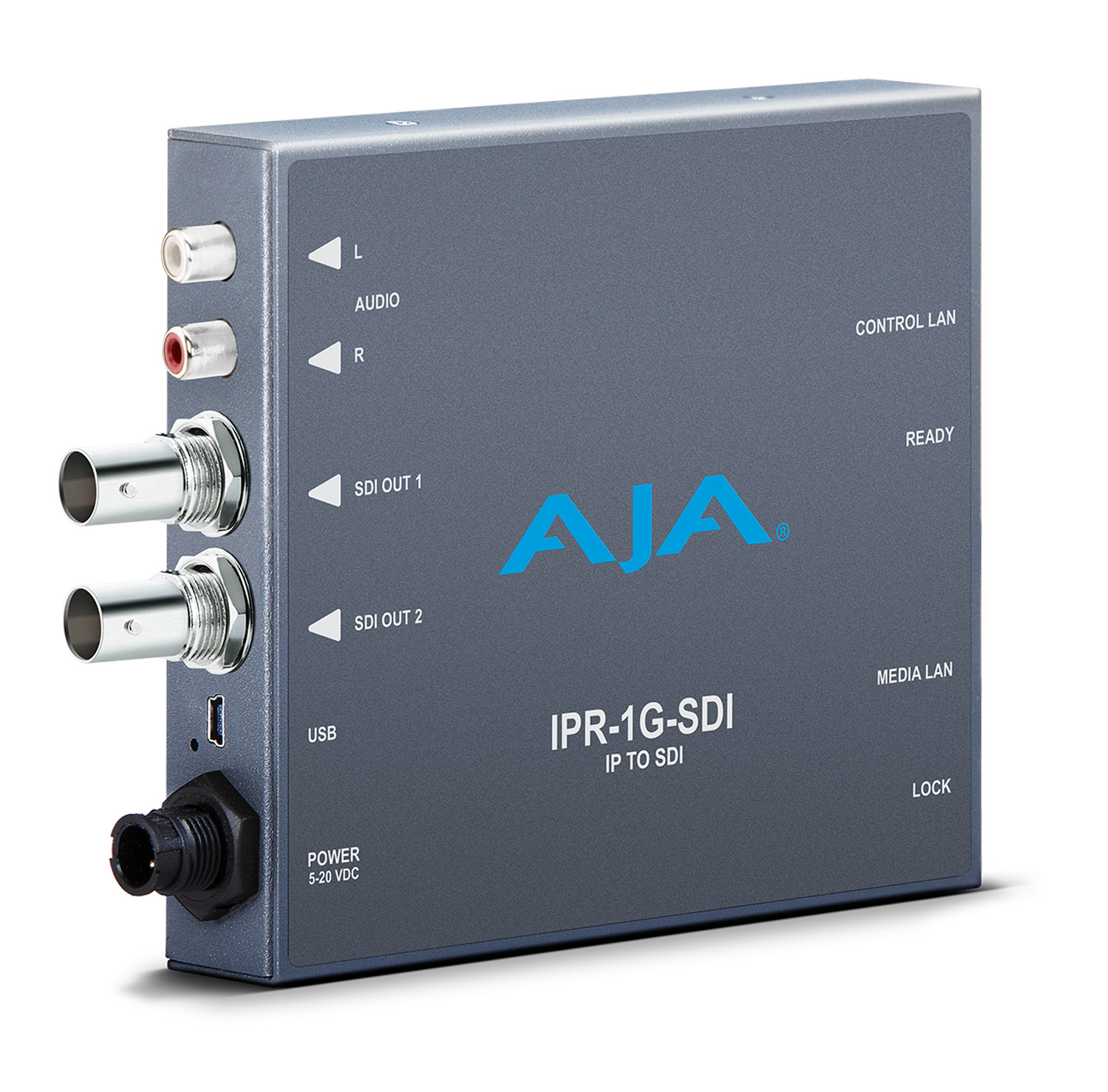

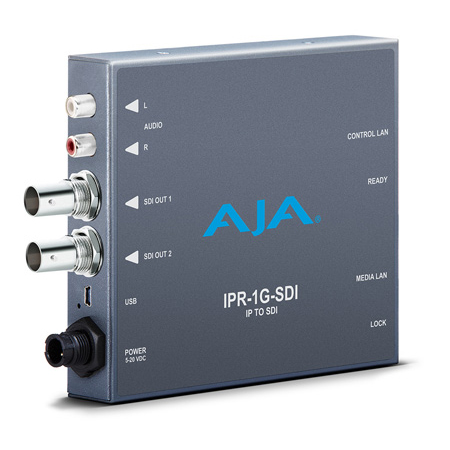

AJA IPR-1G-SDI JPEG 2000 IP Video and Audio to 3G-SDI Converter
  • AJA IPR-1G-SDI JPEG 2000 IP Video and Audio to 3G-SDI Converter
  • AJA IPR-1G-SDI JPEG 2000 IP Video and Audio to 3G-SDI Converter
  • AJA IPR-1G-SDI JPEG 2000 IP Video and Audio to 3G-SDI Converter

Questions? Ask a Markertek Expert:
800-522-2025 Email

AJA IPR-1G-SDI JPEG 2000 IP Video and Audio to 3G-SDI Converter

Manufacturer: AJA Video

Item #: AJA-IPR-1G-SDI   •   MFG #: IPR-1G-SDI




Our Price:$795.00
Add to Cart for Better Price

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Required Accessories

    The IPR-1G-SDI is a VSF TR-01 (and other JPEG 2000 formats) to 3G-SDI converter suited for point of use applications including source monitoring, digital signage, and video walls. The IPR-1G-SDI decodes VSF TR-01 streams then formats the data for 3G-SDI output. The audio associated with the video stream is extracted, synchronized, and then embedded into the SDI stream as well as output on an analog RCA stereo interface.

    IPR-1G-SDI extracts a JPEG 2000 essence from an incoming IP stream and presents it for display on SDI devices. It's rugged, fanless, Mini-Converter design is ideal for placement in a wide range of display scenarios, from studios to field.

    User Control
    IPR-1G-SDI provides two key ports for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The USB 2.0 mini connector facilitates quick and simple firmware updates.


    • Features

      • JPEG 2000 IP Video and Audio to 3G-SDI Converter
      • 1x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet media input
      • Essence support: VSF TR-01 and other JPEG 2000 MPEG-2 workflows
      • Rugged, fanless design
      • 1x 3G-SDI BNC output with 4:2:2 10-bits/pixel
      • Embedded and analog audio outputs
      • Full 10-bit pixel processing pipeline
      • Network (LAN) control and status
      • Quick network setup with AJA eMini-Setup software

    • Specifications

      • Video Formats
      • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1920 x 1080i 25, 29.97
      • (HD) 1280 x 720p 50, 59.94, 60
      • (SD) 625i 25
      • (SD) 525i 29.97

        Essense Input
      • 1 x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet (IEEE 802.3-2012)
      • VSF TR-01 and other J2K MPEG-2 workflows

        Outputs
      • 1 x 3G SDI BNC, 4:2:2 10-bits/pixel
      • 2 x RCA analog audio, Levels at -10dBV (nominal)
      • User Controls
      • 1 x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet (IEEE 802.3-2012)
      • HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
      • Web and REST clients supported
      • 1 x USB 2.0 Mini-B (IEC 62680-1) connector
      • AJA eMini-Setup of network parameters

        Environment
      • Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
      • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
      • Operating Relative Humidity: 10-90% noncondensing
      • Operating Altitude: <3,000 meters (<10,000 feet)
