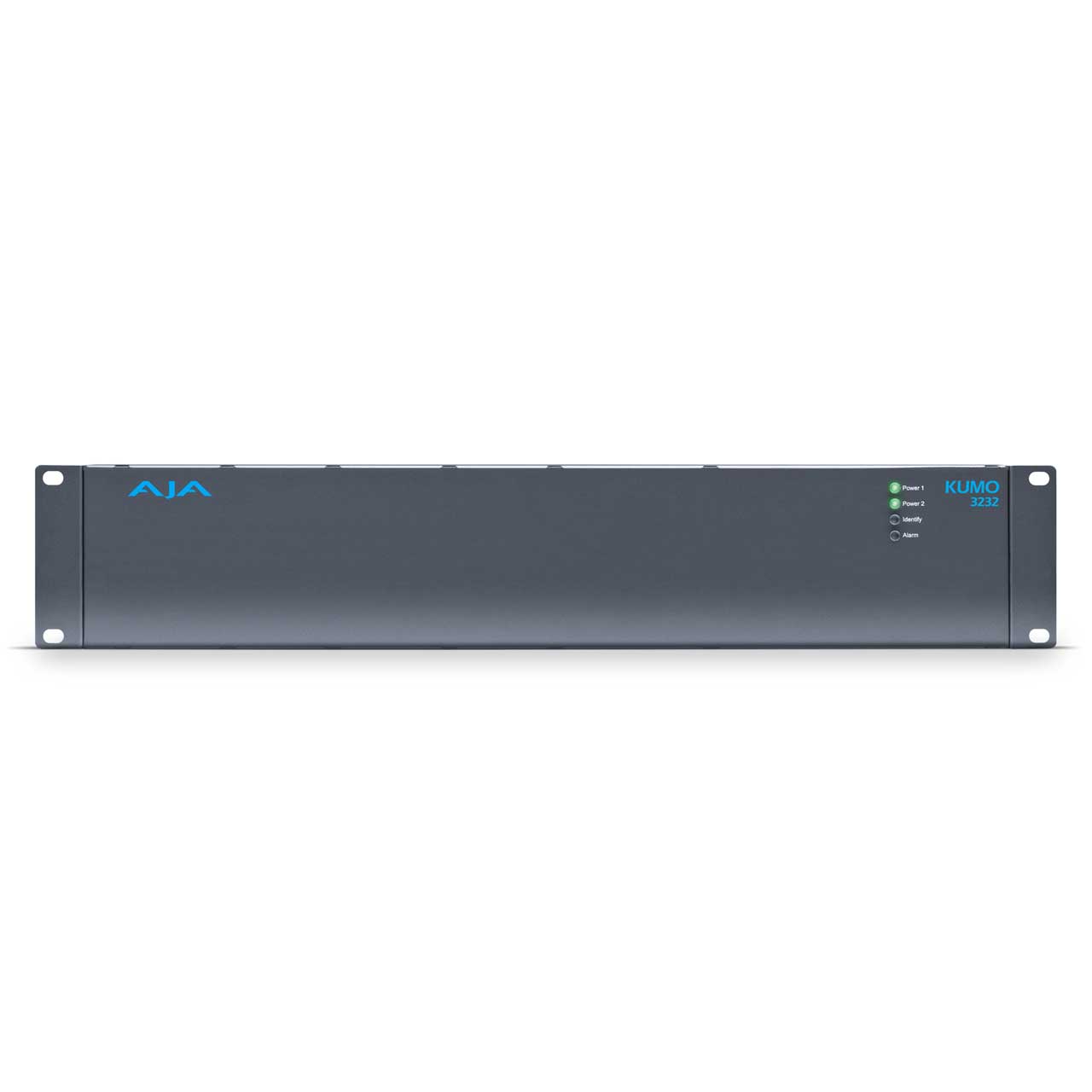

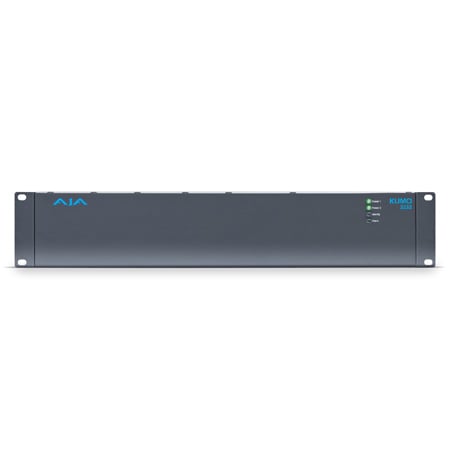

AJA KUMO 3232 32x32 Compact 3G-SDI Router with 1 Power Supply

ITEM #: AJA-KUMO3232 MFG #: KUMO 3232

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$4,399.00

Availability: In Stock
iAvailability Description Popup


    KUMO 3232 - Overview

    The AJA KUMO 3232 offers increased capacity for larger configurations like mid-sized post facilities and mobile trucks while maintaining a mere 2RU profile. Built to the same quality standards as all AJA KUMO products, KUMO 3232 is the ideal choice for any situation where a balance of size and capacity are critical.

    KUMO's powerful cross-point routing matrix maps any input to any number of outputs without the need for additional patch panels or distribution amplifiers. Use KUMO as an affordable distribution amplifier by routing a single input to all outputs. Used in this way, a KUMO 3232 can take the place of multiple distribution amplifiers.

    • Features:

      • 32x 3G-SDI inputs and outputs
      • Small, portable form factor
      • Quad cable support for 4K/UltraHD
      • Redundant power supply (option)
      • Eight salvos per router
      • Embedded web server for remote control
      • USB port to easily configure the router IP address

    • Specifications:

      • Video Format
      • 270 Mbps, 1.5 Gbps, 3 Gbps SDI
      • 270 Mbps DVB-ASI
      • Format agnostic, 150 Mbps - 3 Gbps

        Video Input Digital

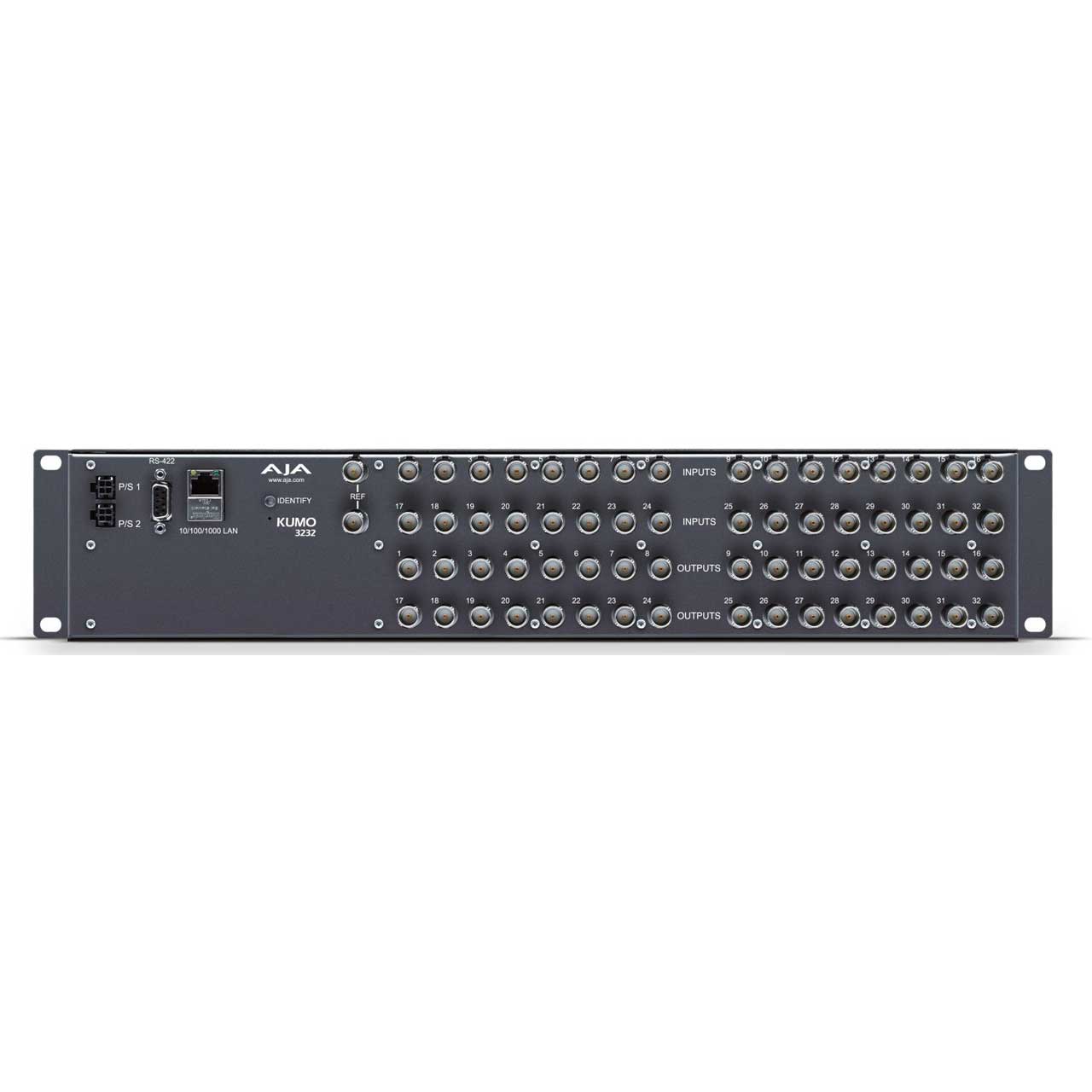

      • 3G-SDI Inputs
      • 32x BNC, SMPTE-259/292/424

        Video Output Digital
      • 3G-SDI Outputs
      • 32x BNC, SMPTE-259/292/424
      • Noninverting

        Ancillary Data
      • Passes all SDI embedded ancillary data including audio

        Salvo
      • Up to 8 Salvos can be configured and saved in each KUMO router

        Cable Equalization
      • (Belden 1694A)
      • 3 Gbps, up to 140m
      • 1.5 Gbps, up to 200m
      • 270 Mbps, up to 400m
      • Automatic operation

        Reclocking
      • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
      • All other rates are passed through and not reclocked

        Switching Modes
      • Single, Dual, and Quad link modes
      • Switches in vertical blanking per SMPTE RP-168

        Control Panel Compatibility
      • AJA KUMO CP - 1RU X-Y Ethernet control panel
      • AJA KUMO CP2 - 2RU X-Y Ethernet control panel

        Reference Input
      • External, 2x BNC
      • Looping, nonterminating
      • Blackburst or tri-level sync

        Network Interface
      • 1x RJ-45, 10/100/1000 Ethernet
      • Supports AJA KUMO Ethernet control panels, direct connect or networked
      • Basic support for Grass Valley Native Protocol
      • Embedded web server for remote control

      • USB Interface
      • 1x Mini-USB for IP configuration using AJA eMini-Setup

    • Warranty:

      • Five year warranty

    • GTIN:

      0892448000625
