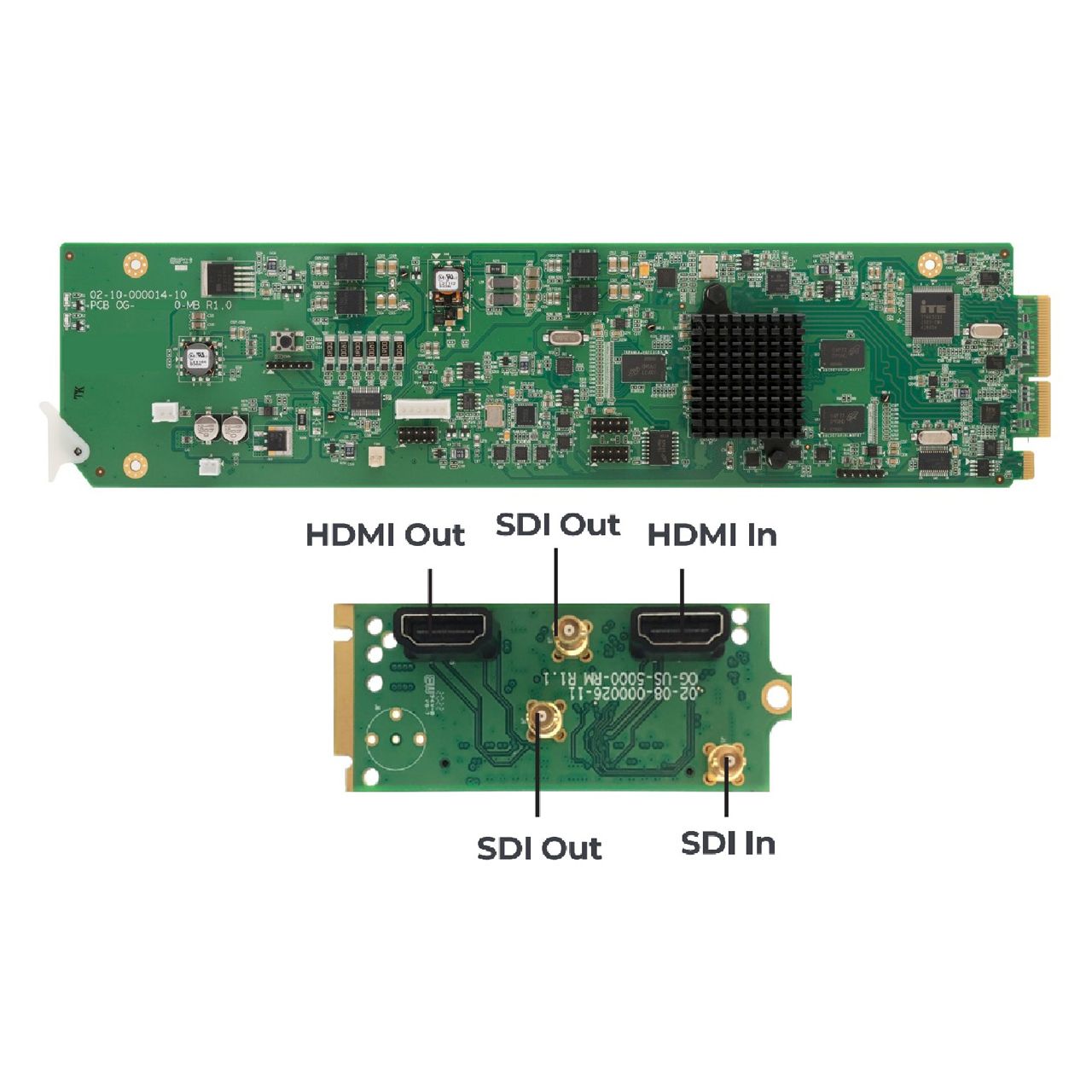

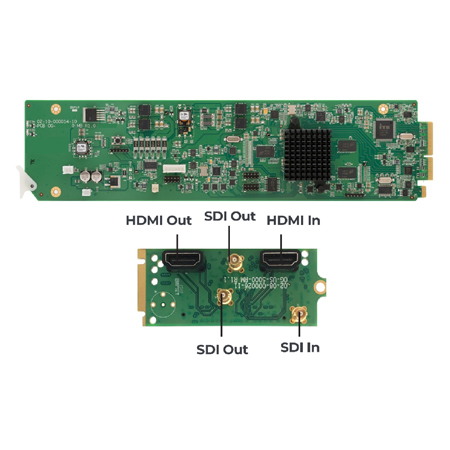

Apantac OG-HDR-UDX-SET-1 - OG-HDR-UDX-MB and OG-HDR-UDX-RM Bundle - Occupies 2 Slots in the OpenGear Frame

OG-HDR-UDX-SET-1 - Overview

• Features:

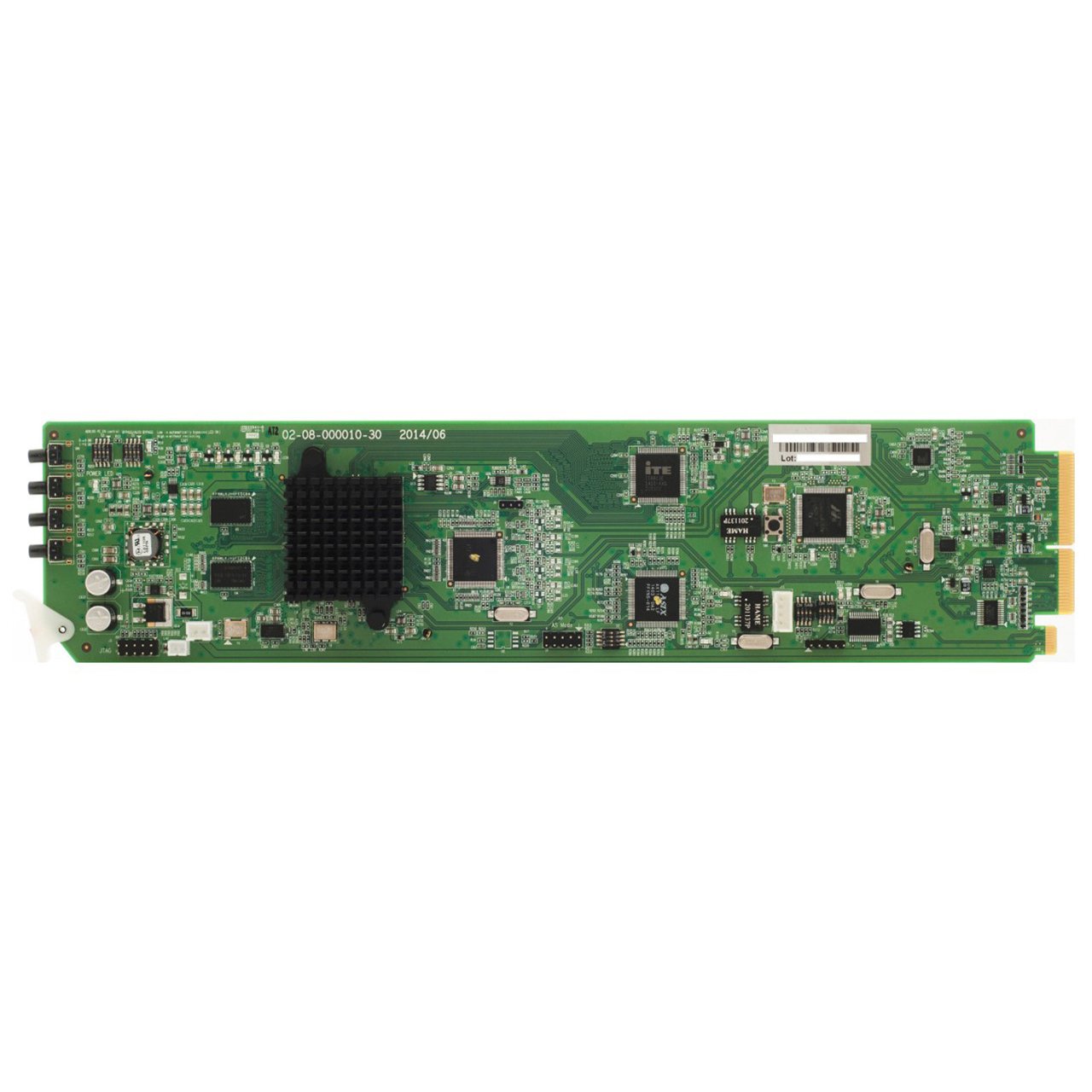

  • OG-HDR-UDX-MB
  • openGear OGX card-based form factor
  • Dashboard control enabled
  • Convert from SDR to HDR, HDR to SDR - either PQ or HLG
  • Cross convert from HDR to HDR from PQ to HLG and vice versa
  • SDR to HDR in 203 nits with static conversion
  • SDR to HDR in 400 nits with dynamic conversion
  • HLG to PQ (and vise versa) follows ITU-R BT.2100 recommendation
  • Convert HDMI to SDI and vice versa
  • Built-in test pattern for trouble shooting
  • Supports 8 channels of HDMI audio to SDI and vice versa
  • Supports 8 channels of audio when converting from SDI to SDI
  • Supports Genlock via openGear frame
  • Low power consumption

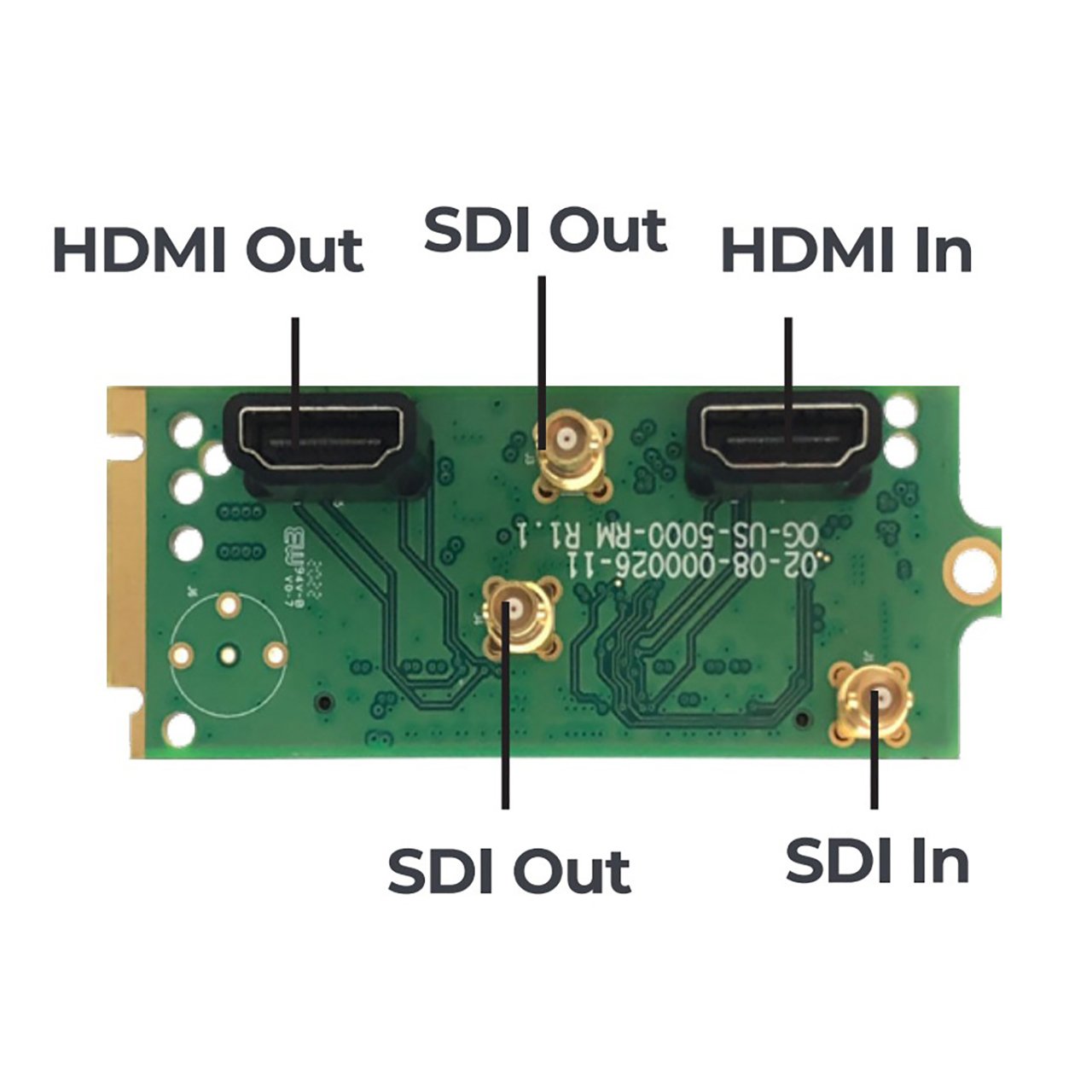

    OG-HDR-UDX-RM
  • 1x HDMI input
  • 1x SDI input
  • 1x HDMI output
  • 1x SDI output
  • 1x Genlock


• Specifications:

  OG-HDR-UDX-MB Specs
  • Dimensions(LxWxH): 17" x 10" x 3" (431.8mm x 254mm x 76.2mm)
  • Weight: 2lbs (453.6g)
  • Input: HDMI or SDI
  • Output: HDMI and SDI
  • Control: Dashboard
  • Genlock: Analog black burst via OGX frame

    OG-HDR-UDX-RM Specs
  • Dimensions(LxWxH): 5" x 5" x 5" (25mm x 25mm x 25mm)
  • Weight: 1lb (0.5kg)


• Item Includes:

  • 1x OG-HDR-UDX-MB OpenGear HDR Up/Down/Cross Converter with Genlock
  • 1x OG-HDR-UDX Rear Module


• Warranty:

  • 5-Year Limited Warranty
