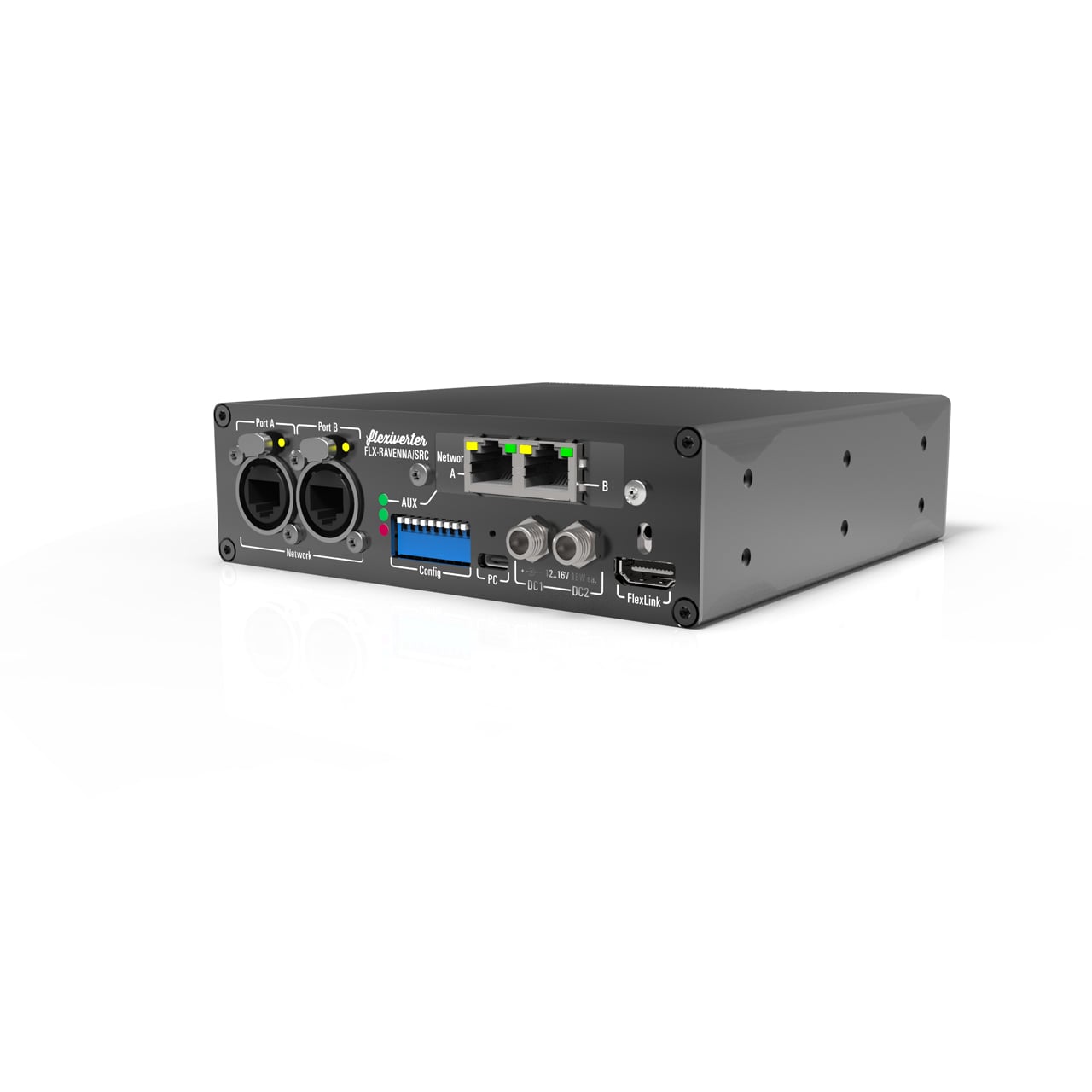

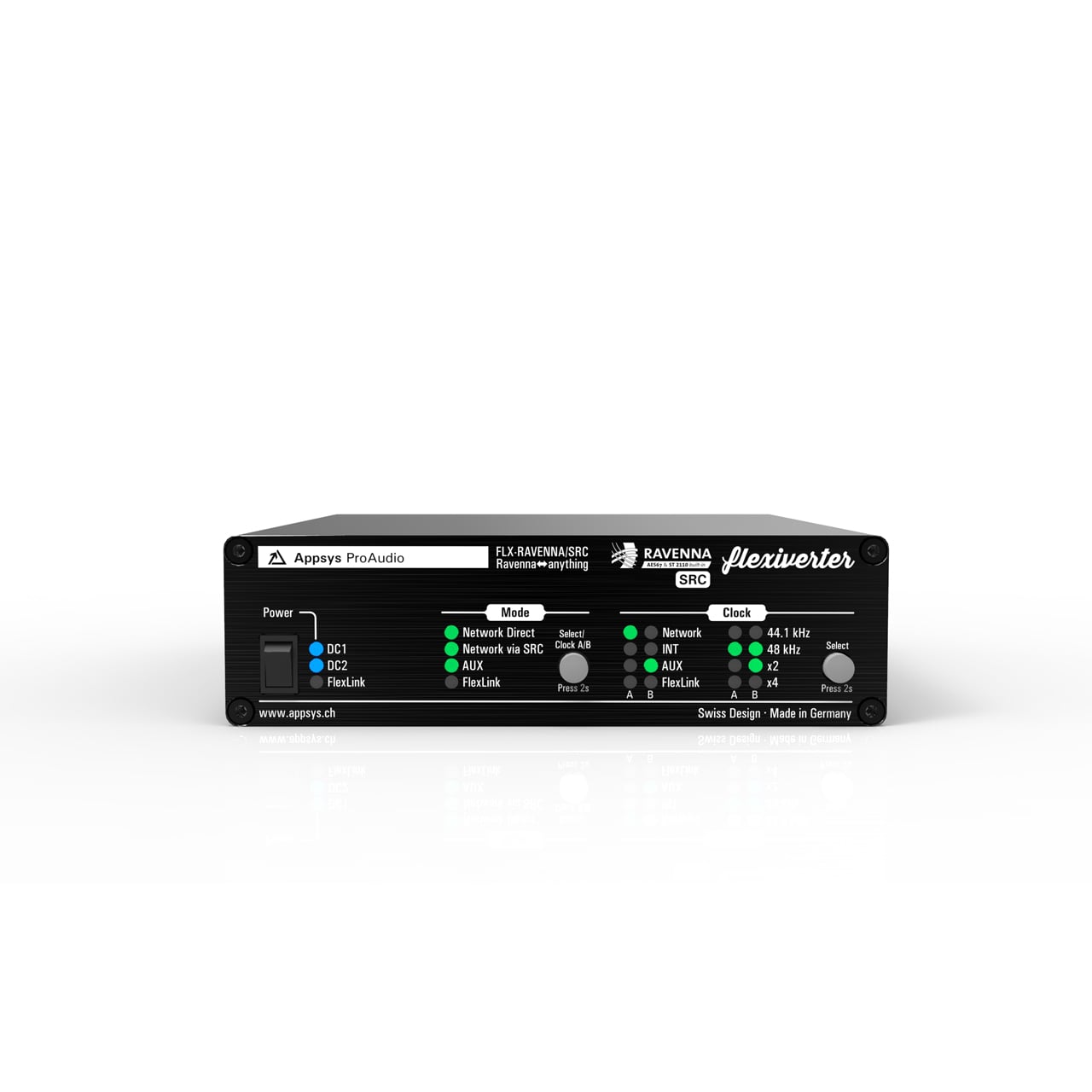

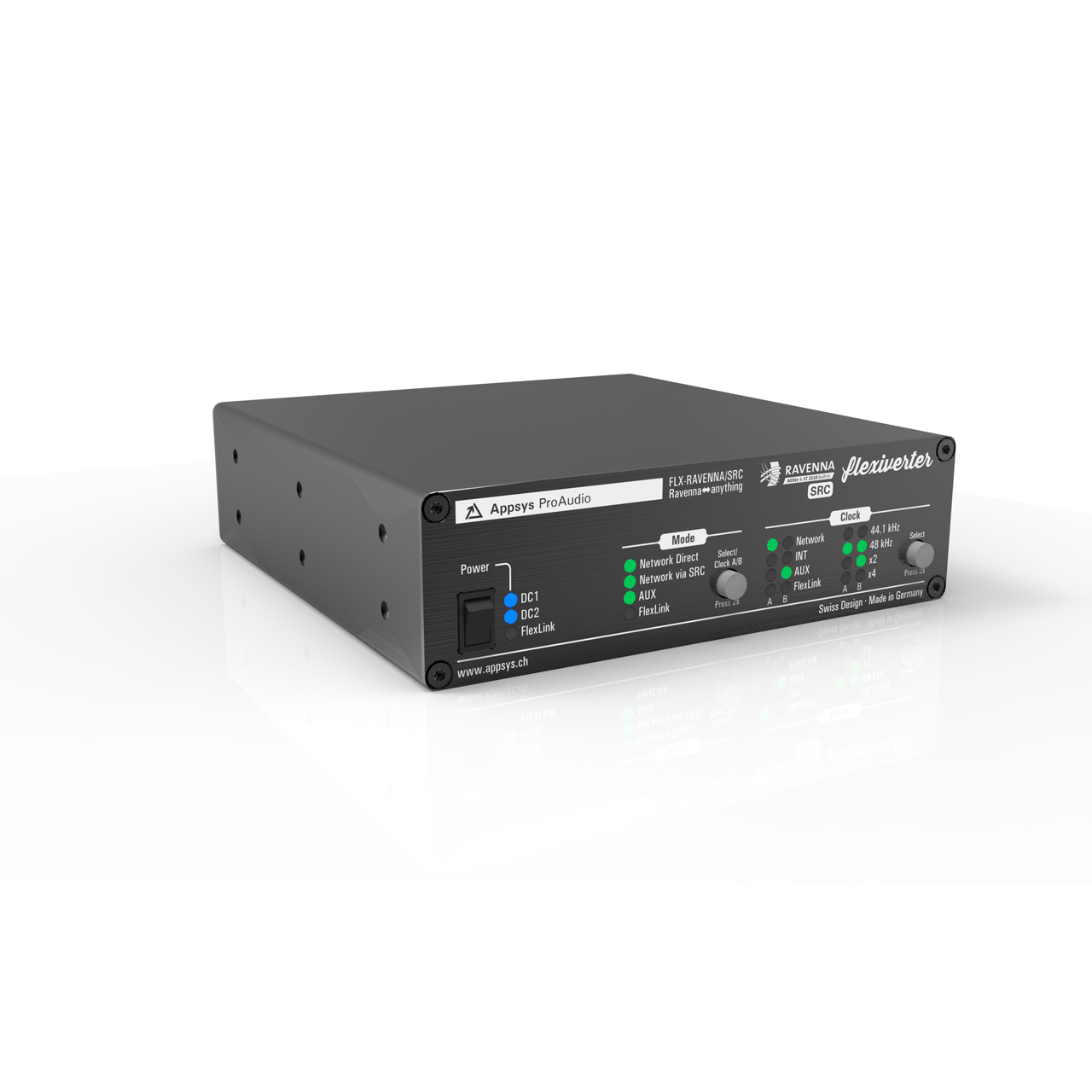

Appsys ProAudio FLX-RAVENNA/SRC 2-Port RAVENNA-to-Anything Converter with Built-in 64x64ch Sample Rate Converter

FLX-RAVENNA/SRC - Overview

RAVENNA to anything. Anything to RAVENNA. Including Sample Rate Conversion!

• Features:

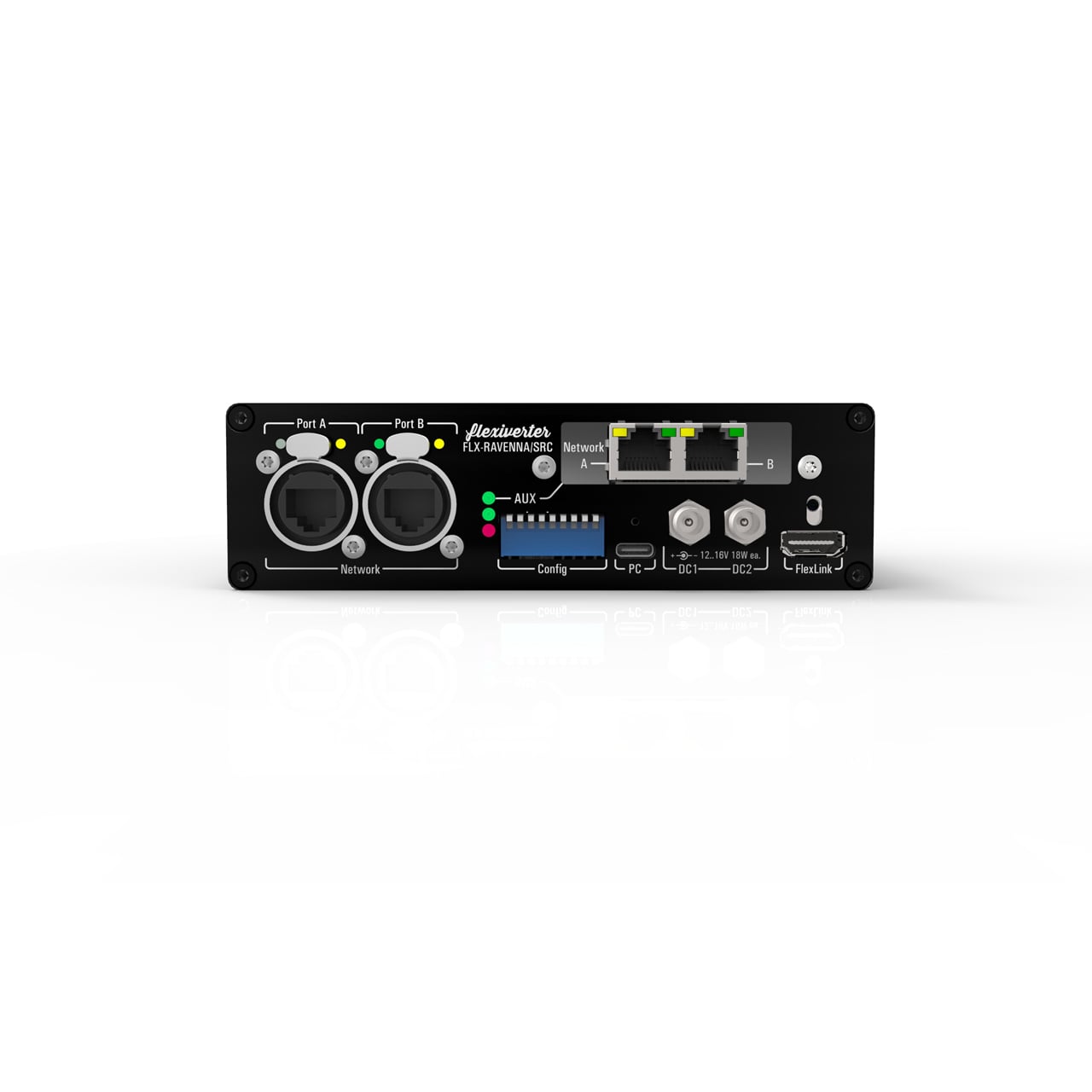

  • Two RAVENNA ports on Ethercon connectors, with built-in ST2110 and AES67 support
  • Based on the proven Merging/Sennheiser ZMAN module
  • AUX port accepting any of the AUX Cards as conversion source/destination
  • When combined with AUX-RAVENNA, it acts as Ravenna/Ravenna bridge with full network and clock domain separation. Other targets (e.g. DANTE) can be realized with the appropriate AUX card
  • 64x64ch bi-directional Sample Rate Converter with top-notch specifications (>120dB THD+N, >134dB DNR), can be bypassed when desired
  • Supports sample rates from 44.1kHz to 192kHz on either side, i.e. can do 96kHz MADI <> 48kHz Dante with 64 channels in each direction
  • FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power
  • Remote control via USB: Web remote (no software required), or UART command line
  • Triple-redundant power supply
    *Additional features when connected to the MVR-mkII: True channel-wise routing of all available channels (built-in plus AUX card)


• Specifications:

  • Dimensions: 3.50" x 8.00" x 6.60"
  • Weight: 2lbs


• Item Includes:

  • 1x Appsys ProAudio FLX-RAVENNA/SRC 2-Port RAVENNA-to-Anything Converter with Built-in 64x64ch Sample Rate Converter


• GTIN:

  0070061361813
