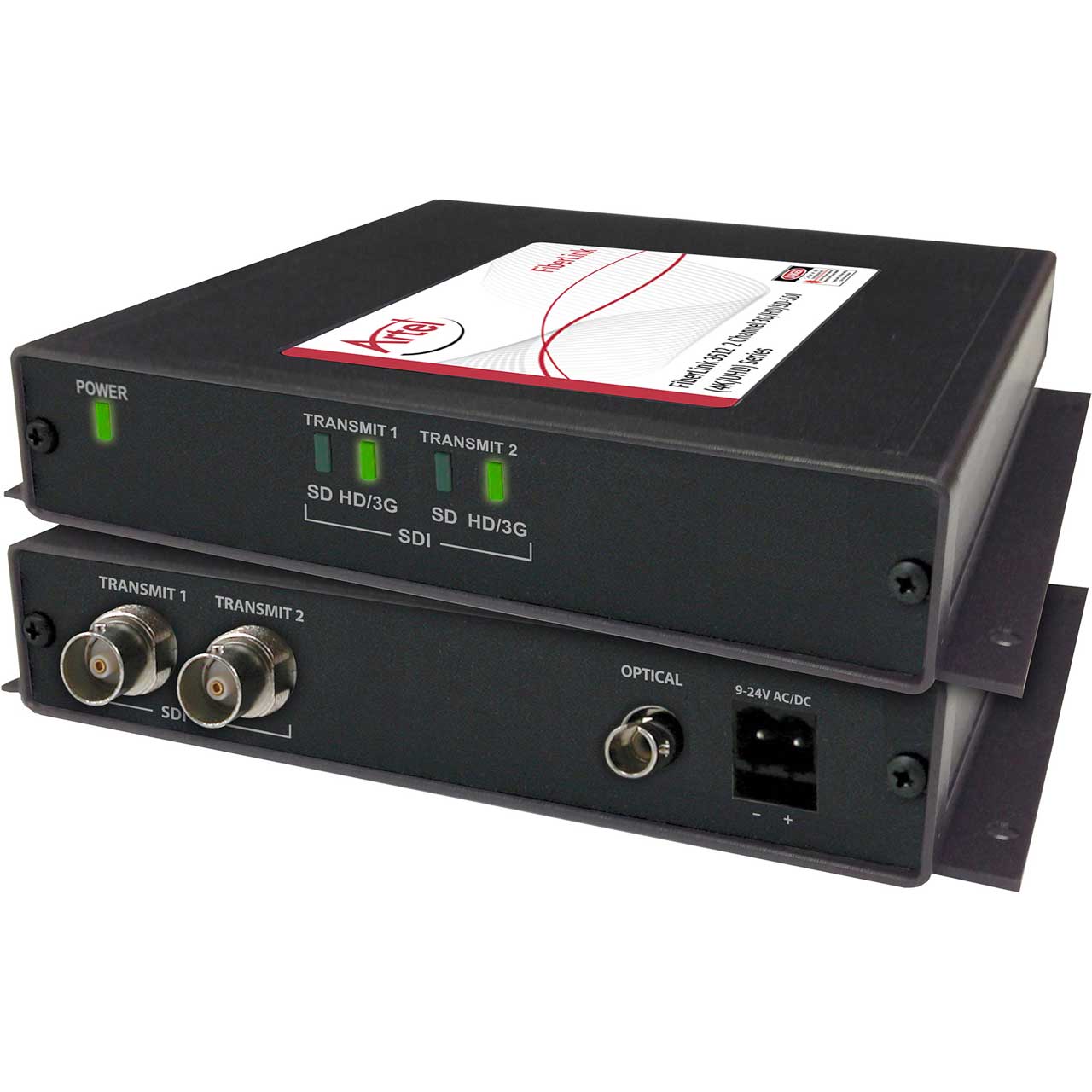

Artel 3512A-B7S FiberLink 2 Channel 3G/HD/SD-SDI (4K/UHD) Series Transmitter - ST Box

3512A-B7S - Overview

• Features:

  • Broadcast or corporate studios, OB Vans, film & production, rental & staging, stadiums and theaters, surgical or medical imaging and more!
  • Signal is equalized and re-clocked prior to fiber optic transmission
  • Receiver features two re-clocked SDI outputs
  • Immunity to pathological patterns over entire link budget and operating temperature range
  • Compliant with SMPTE ST 425-3, 259M-2006, 292-2006, 424M-2006
  • Supports transmission of SMPTE 305M-2005, 310M-2004, 344M-2000, DVB-ASI
  • Operates on either Single Mode or Multimode (62.5u & 50u) fiber (standard power version)
  • Supports 3G/HD/SD-SDI inputs with or without embedded audio and data

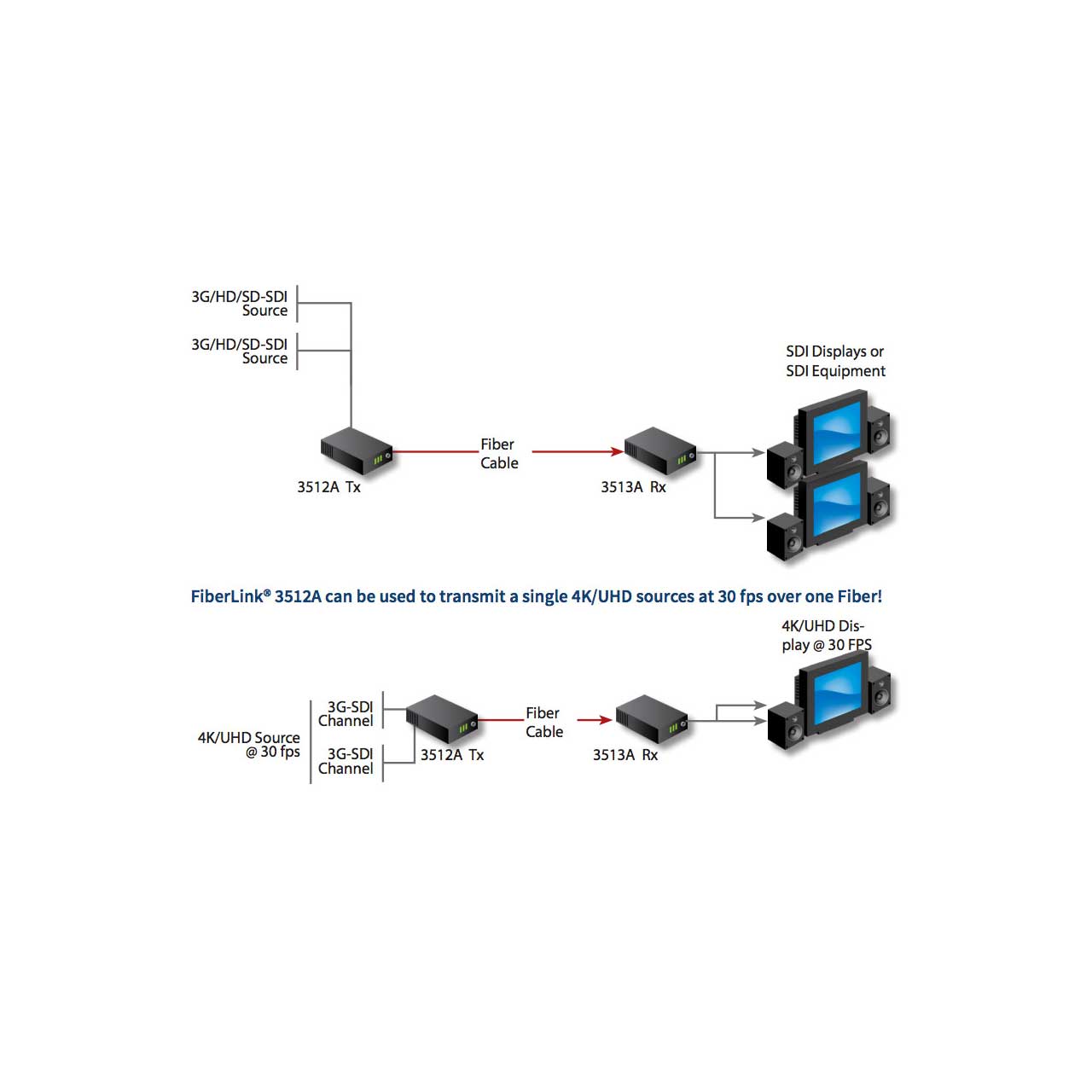

  • Supports 4K/UHD resolutions up to 30 fps
  • 14 dB Standard transmitter version 19 dB Optical Link Budget @ 2.97 Gbps for High Power, Longer Distance version
  • Wide operating temperature range: -10° C to +50° C
  • Compatible with all Artel SDI transmitters and receivers using Artel CWDM products
  • Available in Box and Card versions
  • Card version compatible with the FiberLink 6000A Rack Card Cage
  • Designed and manufactured in the USA by Artel


• Specifications:

  • Serial Video BNC Input
  • Number of Inputs: 2
  • Data Rate Range: 19.4 Mbps to 2.97 Gbps
  • Supported Standards: SMPTE ST 425-3, 259M, 292, 424M-2006, 305M, 310M, 344M, DVB-ASI
  • Re-clocked Data Rates: 270 Mbps (SMPTE 259M, DVB-ASI-270), 1.485 Gbps (SMPTE 292), 2.97 Gbps (SMPTE 424M-2006)
  • Equalization: Automatic up to 100m of Belden 1694A at 3.0 Gbps, 140m at 1.485 Gbps and 180m at 270 Mbps
  • Return Loss: >10dB up to 2.97 Gbps

    Optical Output
  • Connector: ST
  • Wavelengths: CH1 = 1570nm, CH2 = 1550nm
  • Emitter Type: DFB Lasers
  • Output Power (nominal): -3 dBm
  • Re-clocking: At 270 Mbps, 1.485 Gbps & 2.97 Gbps

    General
  • 4K/UHD Support: up to 30 fps using 2 inputs
  • Link Timing Difference: 0.3ns/km of Fiber
  • Indicators: Power, Data Rate lock (SD, HD/3G)
  • Dimensions: 6.5 W x 1.15 H x 6 L (inches)
  • Weight 12.3 ounces
  • Power: 9-24 volts/DC, 5 watts; 95-250 VAC, 50/60 Hz; 5.0 watts, 17.66 BTU/Hr
  • Operating Temperature: -10° C to +50° C
  • MTBF: 72,000 Hours
