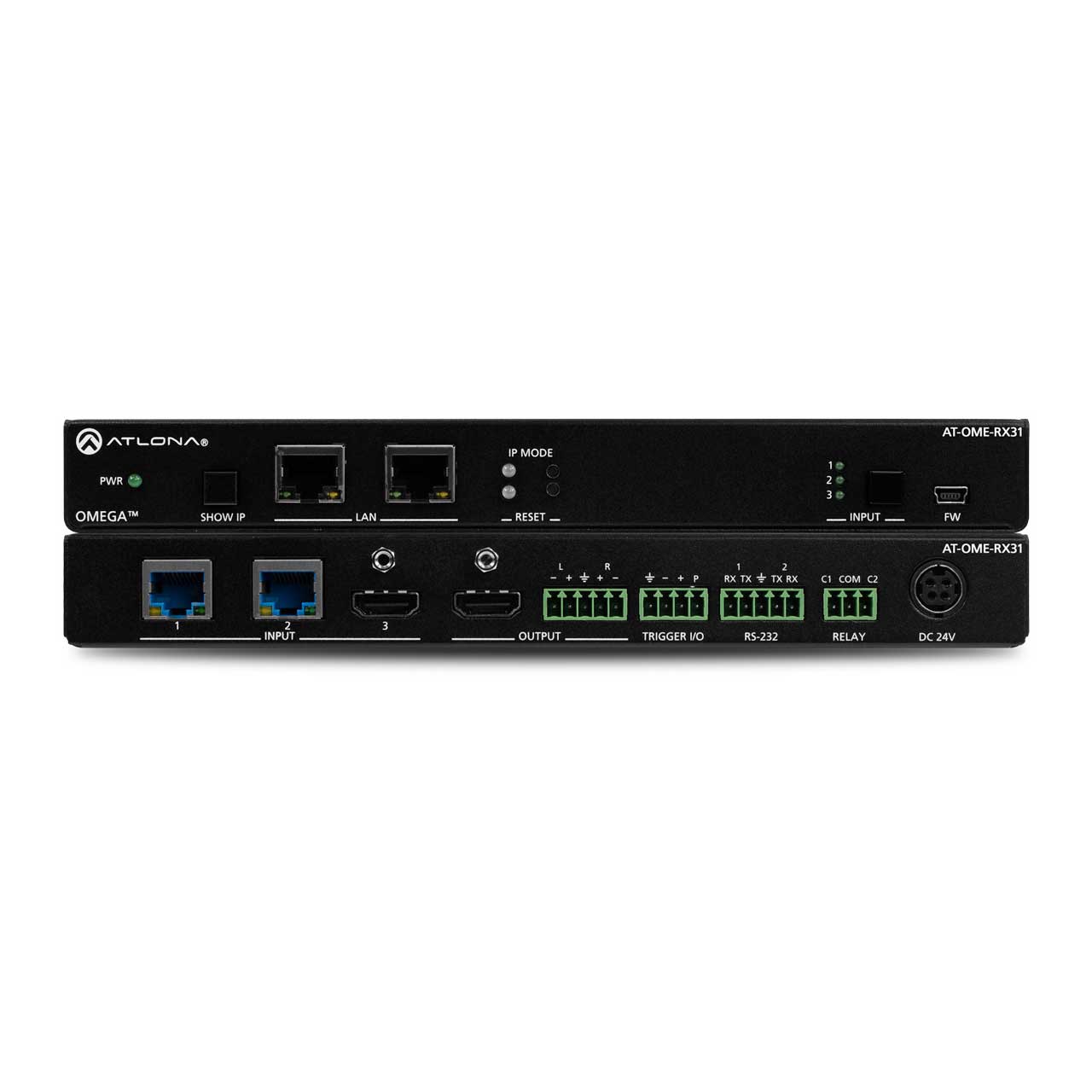

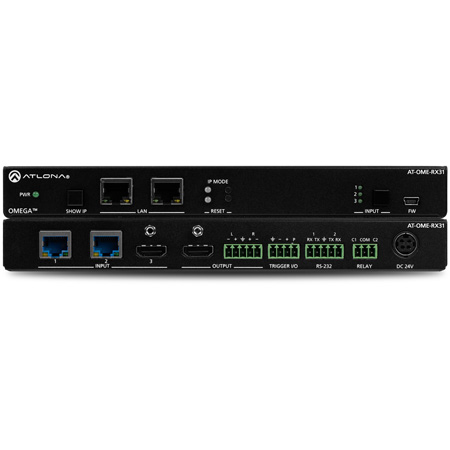

Atlona AT-OME-RX31 Omega 4K/UHD 3x1 AV Switcher/Receiver with Scaler - Dual HDBaseT Plus HDMI Inputs
  • Atlona AT-OME-RX31 Omega 4K/UHD 3x1 AV Switcher/Receiver with Scaler - Dual HDBaseT Plus HDMI Inputs
  • Atlona AT-OME-RX31 Omega 4K/UHD 3x1 AV Switcher/Receiver with Scaler - Dual HDBaseT Plus HDMI Inputs

Questions? Ask a Markertek Expert:
800-522-2025 Email

Atlona AT-OME-RX31 Omega 4K/UHD 3x1 AV Switcher/Receiver with Scaler - Dual HDBaseT Plus HDMI Inputs

Manufacturer: Atlona Technologies

Item #: ATNO-AT-OME-RX31   •   MFG #: AT-OME-RX31




Our Price:$1,450.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Atlona AT-OME-RX31 is an HDBaseT receiver, three-input switcher, and 4K/UHD scaler with a local HDMI input. Part of the Omega Series of integration products for modern AV communications and collaboration, the OME-RX31 features two HDBaseT inputs for receiving video up to 4K/60 4:2:0, plus embedded audio, control, and Ethernet over distances up to 330 feet (100 meters). The HDMI input supports video up to UHD/60 4:4:4. The OME-RX31 is HDCP 2.2 compliant and features 4K/60 upscaling and downscaling with frame rate conversion. Additionally, it provides integrated control for displays and room functions such as motorized screens, and can be externally triggered with the addition of an occupancy sensor. The OME-RX31 is ideal for 4K presentation applications with Omega or UHD-EX Series transmitters, as well as Atlona AV presentation switchers with HDBaseT outputs, local HDMI sources, and the Gain Series amplifiers.

    Applications

    Complete System Integration
    The OME-RX31 and an Omega Series switcher / transmitter provide a compact, comprehensive, cost-effective,
    and fully automated integration solution.

    Meeting Rooms and Conference Rooms
    The OME-RX31 can switch between AV from two transmitters below a meeting table, at separate wall locations,
    or in two podiums. The HDMI input is ideal for a wireless collaboration gateway or digital signage.

    Active Learning Classrooms
    In education applications, the OME-RX31 can be installed in a lectern and used to receive AV from two student
    pods, each with an OME-ST31A below the table. Built-in 4K scaling optimizes content for the primary 4K or HD
    display.

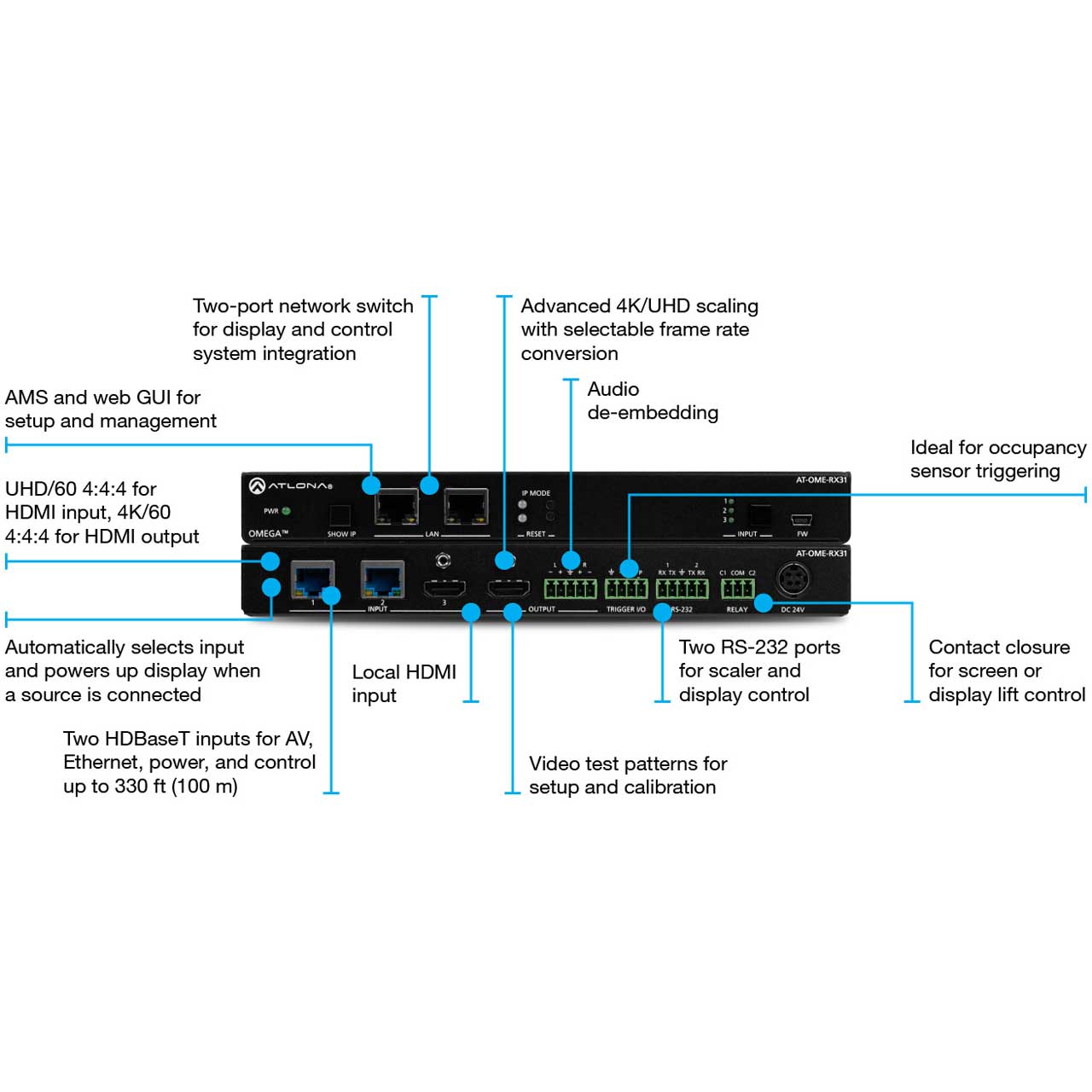

    • Features

      • Dual HDBaseT receiver with local HDMI input
      • Video, audio, power, and data over category cable utilizing HDBaseT technology
      • 4K/UHD downscaling and upscaling
      • Automatic input selection and automatic display control
      • Audio de-embedding
      • Dual Ethernet ports and integrated network switch
      • Contact closure for screen or display lift control
      • Trigger I/O ports for occupancy sensing or remote button controls

    • Specifications

      • Video
      • HDMI: 2.0
      • HDCP: 2.2
      • UHD:
        4096x2160 @ 60(1)/50/30/25/24 Hz
        3840x2160 @ 60(1)/50/30/25/24 Hz
        1920x1080p @ 60/59.9/50/30/29.97/25/24/23.98 Hz
        1920x1080i @ 30/29.97/25 Hz
        1280x720p @ 60/59.94/50 Hz
      • HD:
        720x576p @ 50 Hz
        720x576i @ 50 Hz
        640x480p @ 60/59.96 Hz
        640x480i @ 30 Hz
      • VESA (All resolutions are 60 Hz):
        2560x1600 / 2048x1536
        1920x1200 / 1680x1050
        1600x1200 / 1440x900
        1400x1050 / 1280x1024
        1280x800 / 1366x768
        1360x768 / 1152x864
        1024x768 / 800x600
        640x480
      • Scaler
        1920x1080 @ 24/25/50/60 Hz
        1920x1200 @ 60 Hz
        2048x1080 @ 60 Hz
        3840x2160 (UHD) @ 24/25/30/50/60 Hz
        4096x2160 (DCI) @ 24/25/30/50/60 Hz
        1024x768 @ 60 Hz
        1280x720 @ 50/60 Hz
        1280x768 @ 60 Hz
        1280x800 @ 60 Hz
        1360x768 @ 60 Hz
        1600x1200 @ 60 Hz
      • Color Space: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8-bit, 10-bit, 12-bit
      • HDR: HDR10, Hybrid-Log Gamma (HLG), and Dolby Vision @ 60 Hz

        Audio
      • HDMI Pass-Through Formats
        LPCM 2.0
        LPCM 5.1
        LPCM 7.1 Dolby Digital
        Dolby Digital Plus
        Dolby TrueHD
        Dolby Atmos DTS Digital Surround
        DTS-HD Master Audio
        DTS:X
      • Bit Rate: 24 Mbps, Max
      • Format: 2-channel stereo
      • Balanced Output: +4 dBu, nominal gain; +20 dBu headroom
      • Frequency Response: 20 Hz to 20 kHz, ±0.5 dB
      • THD + N: < 0.004% @ 20 Hz to 20 kHz
      • SNR: > 104 dB @ 1 kHz, zero clipping @ 0 dBFS, unweighted
      • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

        Control
      • RS-232: Device control and configuration
        Supported baud rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
      • Trigger: Occupancy sensor triggering; wake from standby and/or display power-up when room
        becomes occupied. Electrical rating: 30 V @ 1 A (max.)
      • Relay: Contact closure control for room functions such as motorized screens and display lifts,
        as well as occupancy sensing and remote button controls. Normally Open (NO), adjustable Toggle
        and Pulse modes. Electrical rating: 48 V @ 1 A.
      • IP Protocols: HTTPS, Telnet, mDNS
      • Modes: DHCP, Static - selectable through front panel and built-in web server
      • CEC: Yes

        Connectors, Controls, and Indicators
      • HDMI IN: 1 - Type A, 19-pin female
      • HDMI OUT: 1 - Type A, 19-pin female
      • AUDIO OUT: 1 - 5-pin captive screw, balanced / unbalanced 2-channel
      • TRIGGER I/O: 1 - 4-pin captive screw
      • RS-232: 1 - 5-pin captive screw
      • RELAY: 1 - 3-pin captive screw
      • LAN: 2 - RJ45, 100Base-T
      • HDBaseT: 2 - RJ45
      • PWR: 1 - 4-pin, DIN

        Control Buttons:
      • SHOW IP, INPUT: 2 - momentary, tact-type
      • IP MODE, RESET: 2 - momentary, tact-type

        Function Indicators:
      • PWR, INPUT: 3 LED Green
      • IP MODE, RESET: 2 LED Green

        Temperature
      • Operating: 32°F to 122°F
      • Storage Temperature: -4°F to 140°F
      • Operating Humidity (RH): 20% to 90%, non-condensing

        Power
      • Consumption: 8.1 Watts
      • External Power Supply: 100 - 240 V AC, 50/60 Hz
      • Output: 24 V / 2.7 A DC

        Dimensions
      • Device (HxWxD): 1.02 x 8.62 x 5.98 Inches
