BZB-EXH-50 - Overview

The BZBGEAR BZB-EXH-50 4K HDMI Extender kit efficiently transmits audio, video, and IR signals across impressive distances of up to 164 feet (50 meters) using a single Cat5e/6/7 cable, delivering resolutions as high as 4K@60Hz. Furthermore, the transmitter features an HDMI loop-out, enabling connection to an additional display. Advanced EDID management is included to streamline integration and eliminate HDMI handshake issues. This extender kit offers one-way IR control, deep color video, and support for various audio formats, including Dolby TrueHD.

These exceptional features, combined with a wallet-friendly price point, make the BZB-EXH-50 the optimal choice for any scenario demanding long-range HDMI extension.

Control Options:

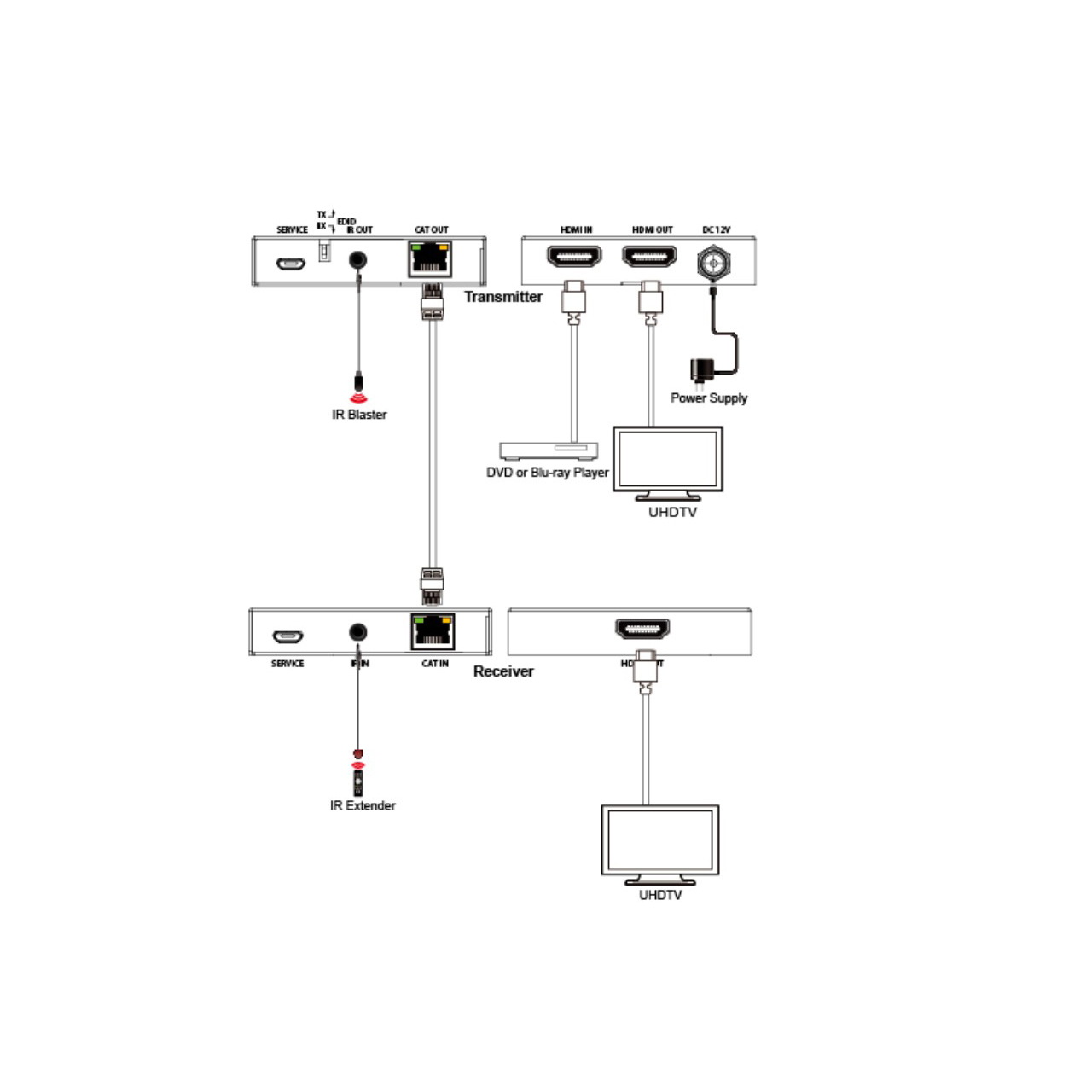

This unit provides a user-friendly one-way IR control feature, designed for easy configuration. To set it up, simply connect your IR receiver to the IR IN port and an IR blaster to the IR OUT port.

Additionally, this unit offers advanced functionality by supporting the duplication of the EDID signal from either the transmitter's or the receiver's display device. This allows for enhanced flexibility in signal management and control, ensuring compatibility and smooth operation in various system configurations.

  • Features:

    • Compliant with HDMI 2.0, HDCP 1.4/HDCP 2.2, and DVI 1.0 standards
    • Capable of copying the EDID signal from either the transmitter's or receiver's display device
    • Installation Flexibility
    • Extension distances reaching up to 164 feet (50 meters)
    • HDR Support
    • Video resolutions up to a maximum of 4K2K@60Hz in RGB/Ycbcr 4:4:4/Ycbcr 4:2:2
    • 18Gbps Bandwidth
    • One-way IR control
    • Supports a one-route HDMI loop output

  • Specifications:

      General
    • Dimensions(WxDxH): 4.0" x 2.7" x 0.52" (101.5mm x 69.3mm x 13.3mm)
    • Weight:
      - Transmitter: 0.33lbs (150g)
      - Receiver: 0.32lb (144g)
    • Power Supply:
      - Input: AC100 - 240V 50/60Hz,
      - Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)
    • Power Consumption: 6.36W
    • Operating Temperature: 32°F-104°F (0°C-40°C)

      Technical
    • HDMI Compliance: HDMI 2.0
    • HDCP Compliance: HDCP 2.2/HDCP 1.4
    • Video Bandwidth: 18Gbps
    • Video Resolution: Up to 4K60Hz 4:4:4
    • Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
    • Color Depth: 8/10/12-bit
    • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DSD-HD Master Audio, DSD
    • ESD Protection: Human Body model: +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge)

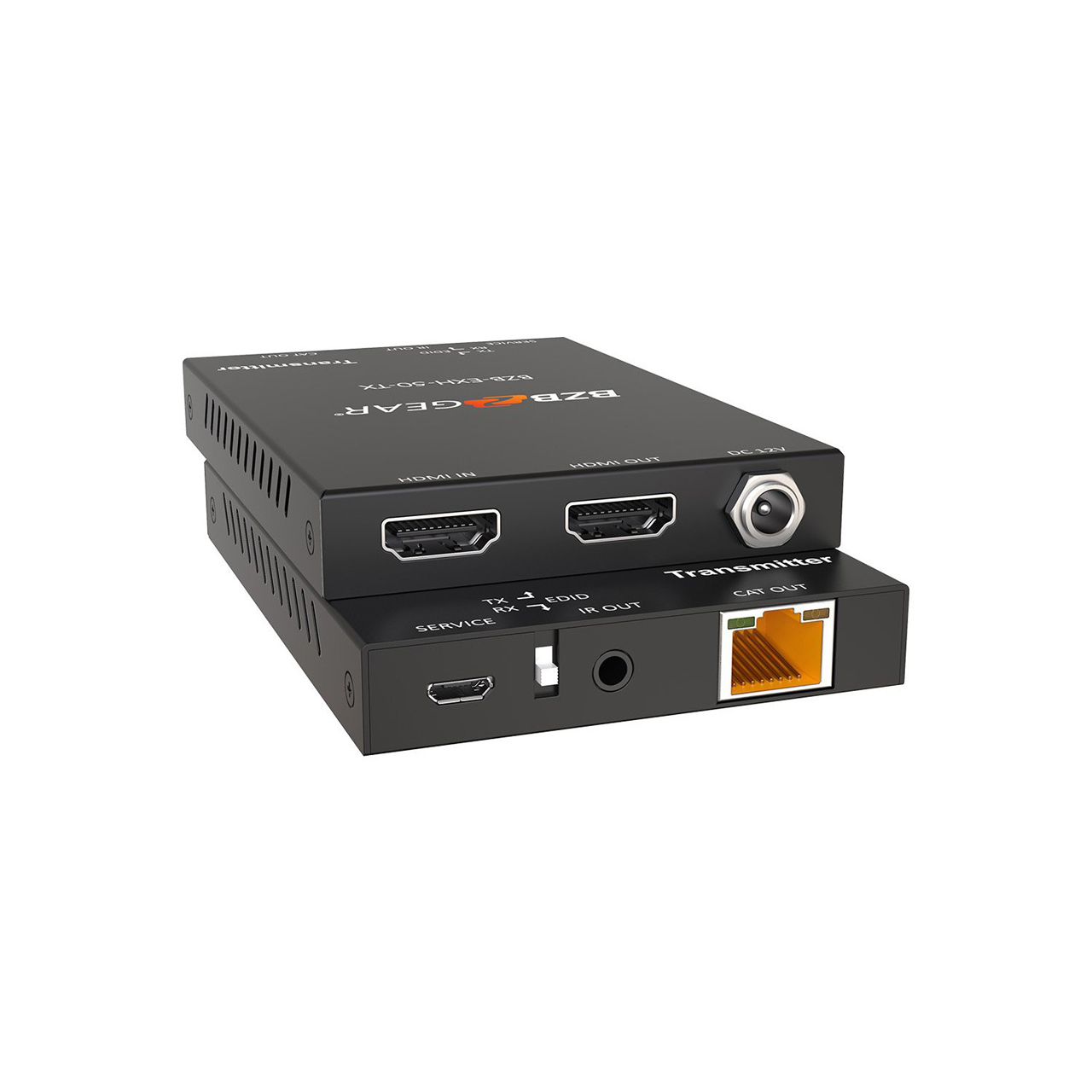

      Transmitter IO
    • Inputs:
      - 1x HDMI Type A (19-pin female)
      - 1x Service (Micro USB, Update port)
    • Outputs:
      - 1x HDMI Type A (19-pin female)
      - 1x IR Out (3.5mm Stereo Mini-jack)
      - 1x CAT Out (RJ45, 8-pin female)

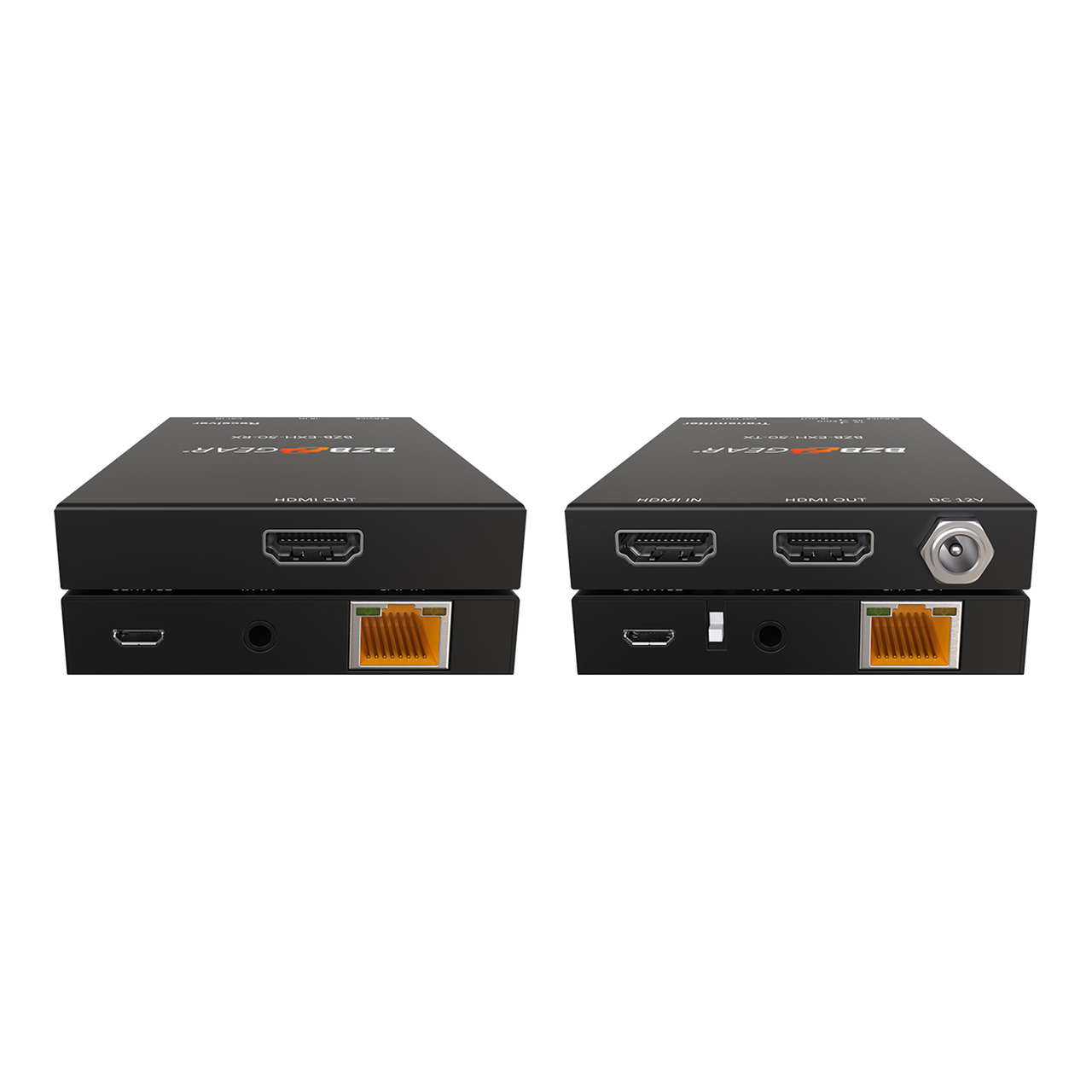

      Receiver IO
    • Inputs:
      - 1x IR In (3.5mm Stereo Mini-jack)
      - 1x CAT In (RJ45, 8-pin female)
      - 1x Service (Micro USB, Update port)
    • Outputs: 1x HDMI Type A (19-pin female)

  • Item Includes:

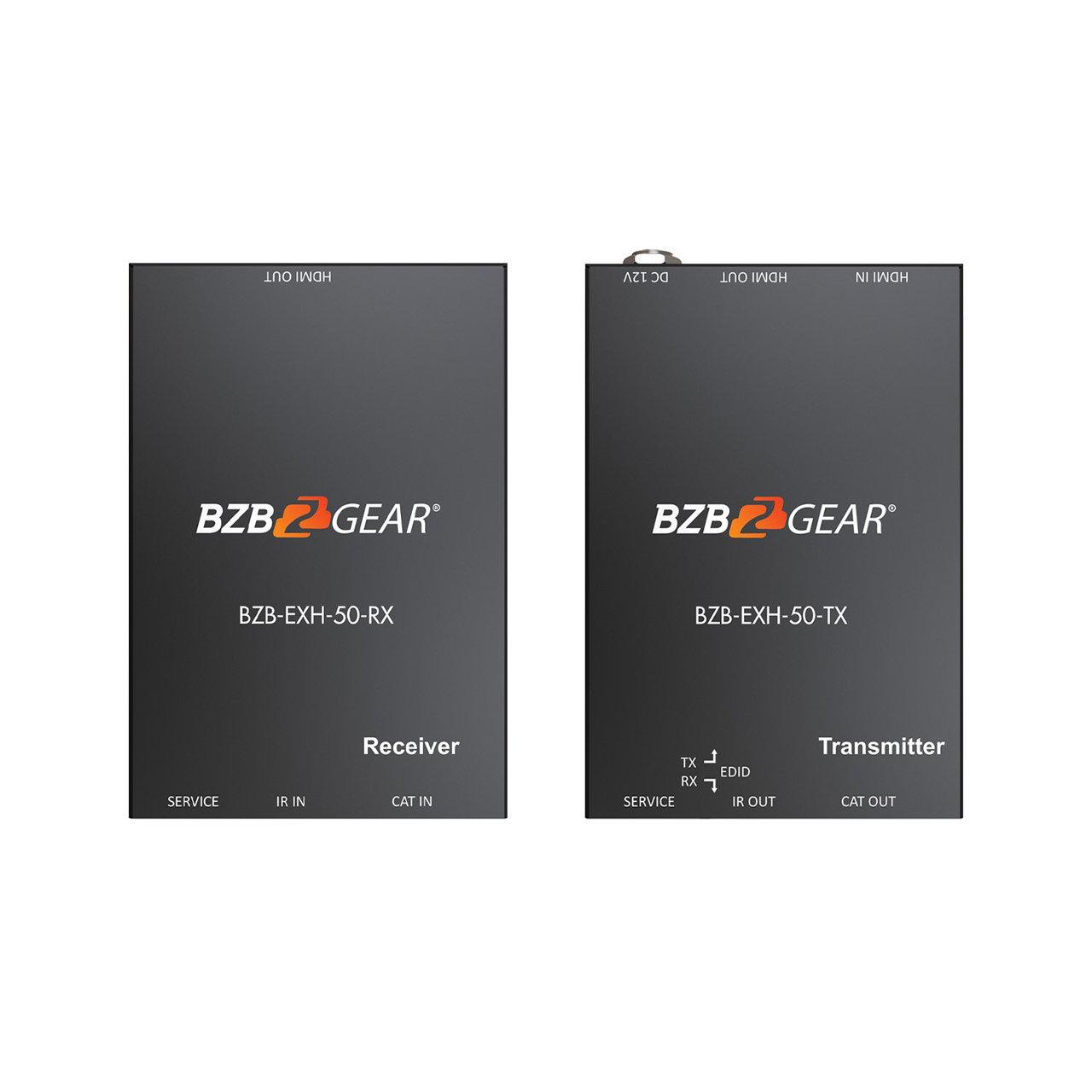

    • 1x BZBGEAR BZB-EXH-50 HDMI 2.0 Extender Transmitter
    • 1x BZBGEAR BZB-EXH-50 HDMI 2.0 Extender Receiver
    • 1x Wideband IR Blaster cable
    • 1x Wideband IR Receiver cable
    • 1x 12V/1A Locking Power adapter
    • 1x User Manual

  • Warranty:

    • 3-Year Limited Warranty

  • GTIN:

    0850009357007
