BZBGEAR BG-SDITPG-G2 12G/6G/3G/HD/SD-SDI Video Pattern Generator

ITEM #: BG-SDITPG MFG #: BG-SDITPG

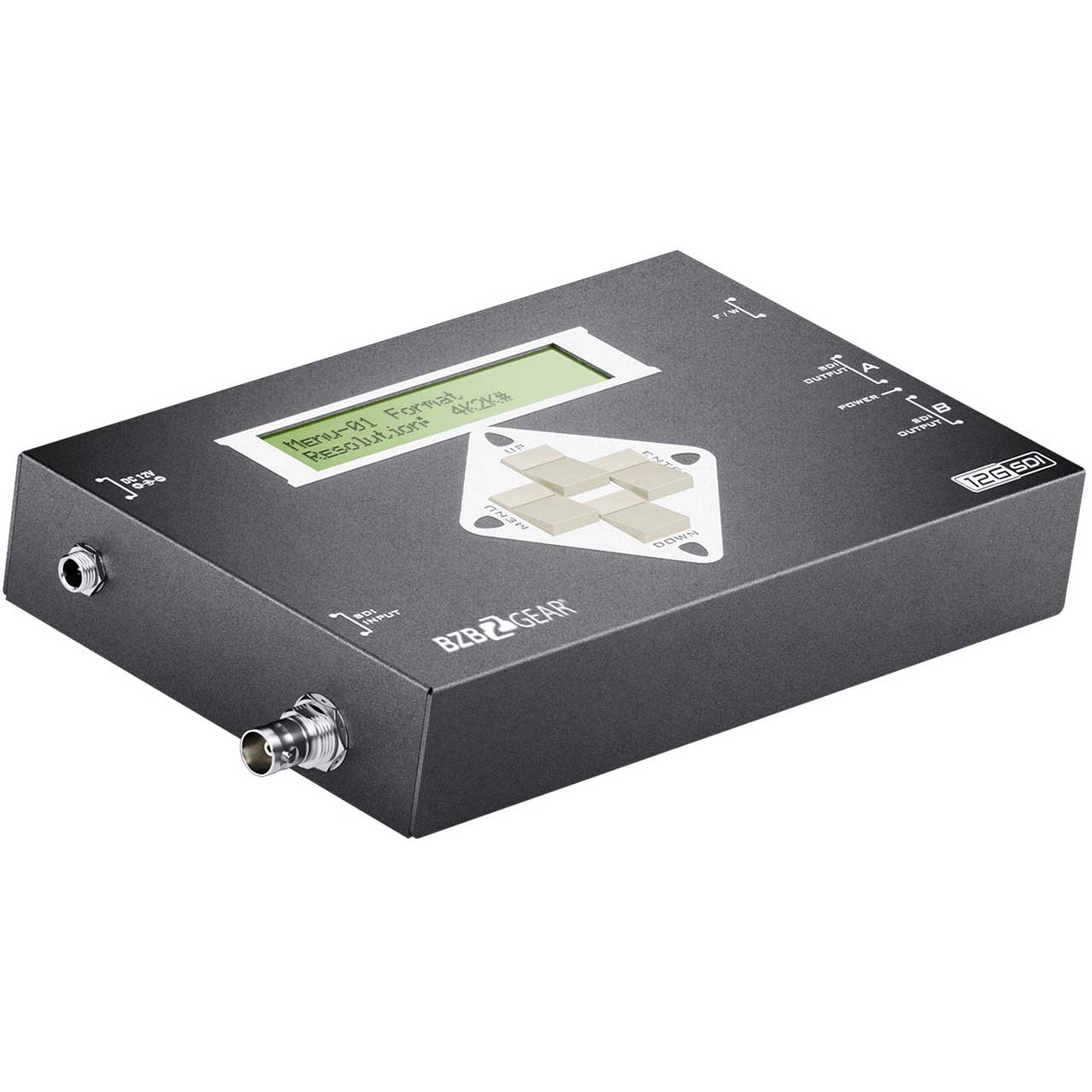

Primary Image

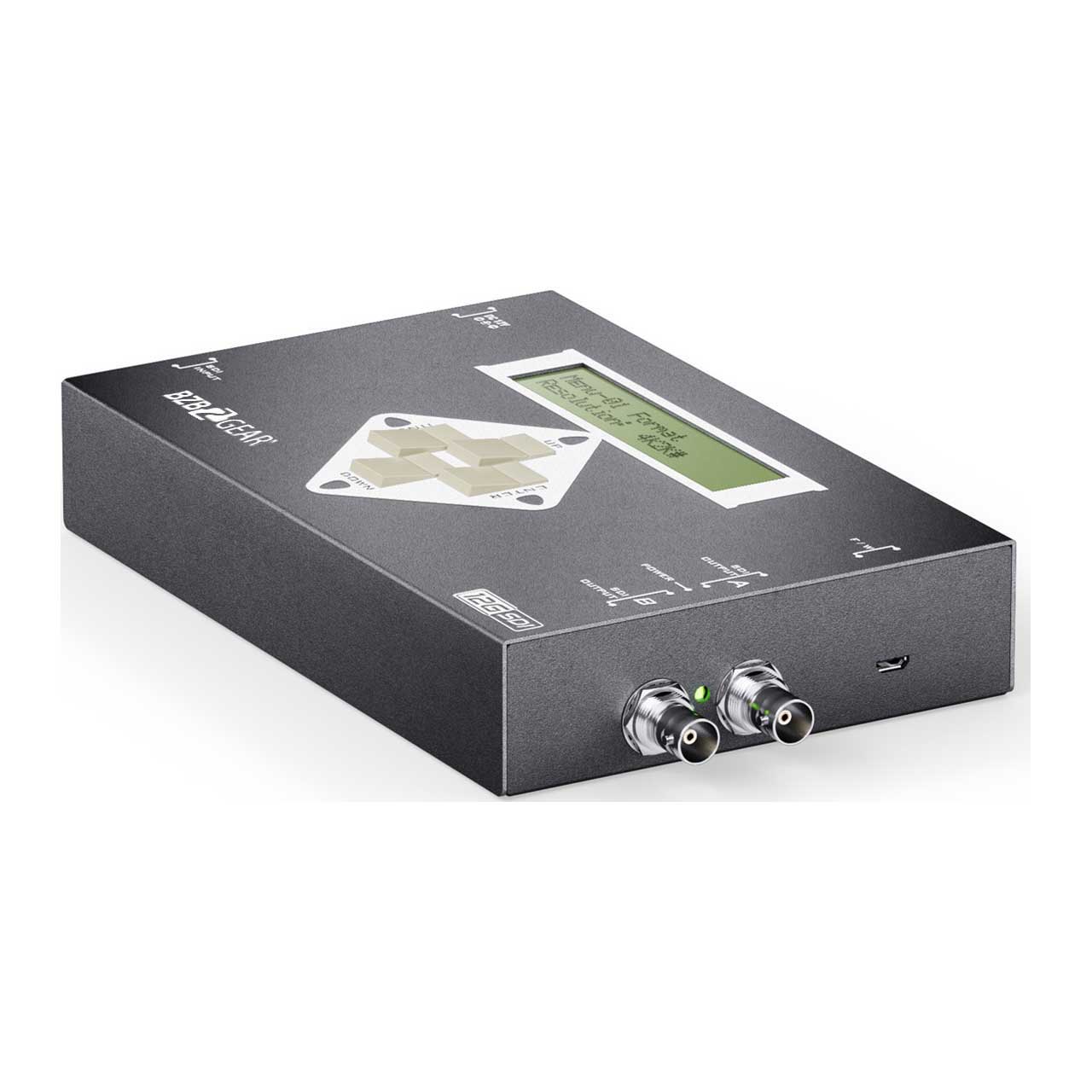

  • Product Image Thumbnail 1 of 4

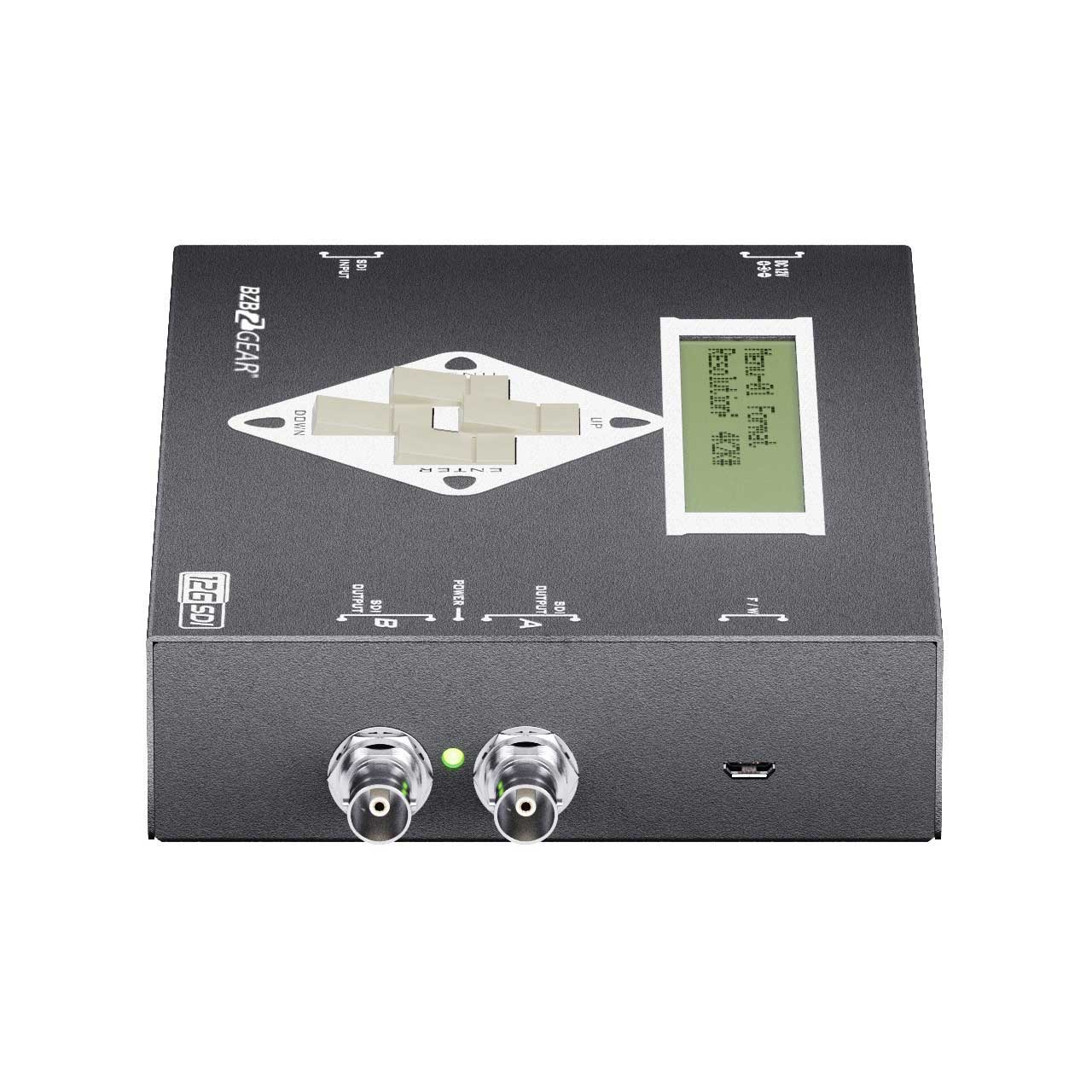

  • Product Image Thumbnail 2 of 4

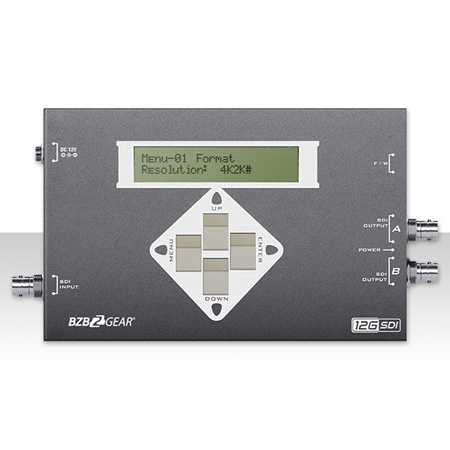

  • Product Image Thumbnail 3 of 4

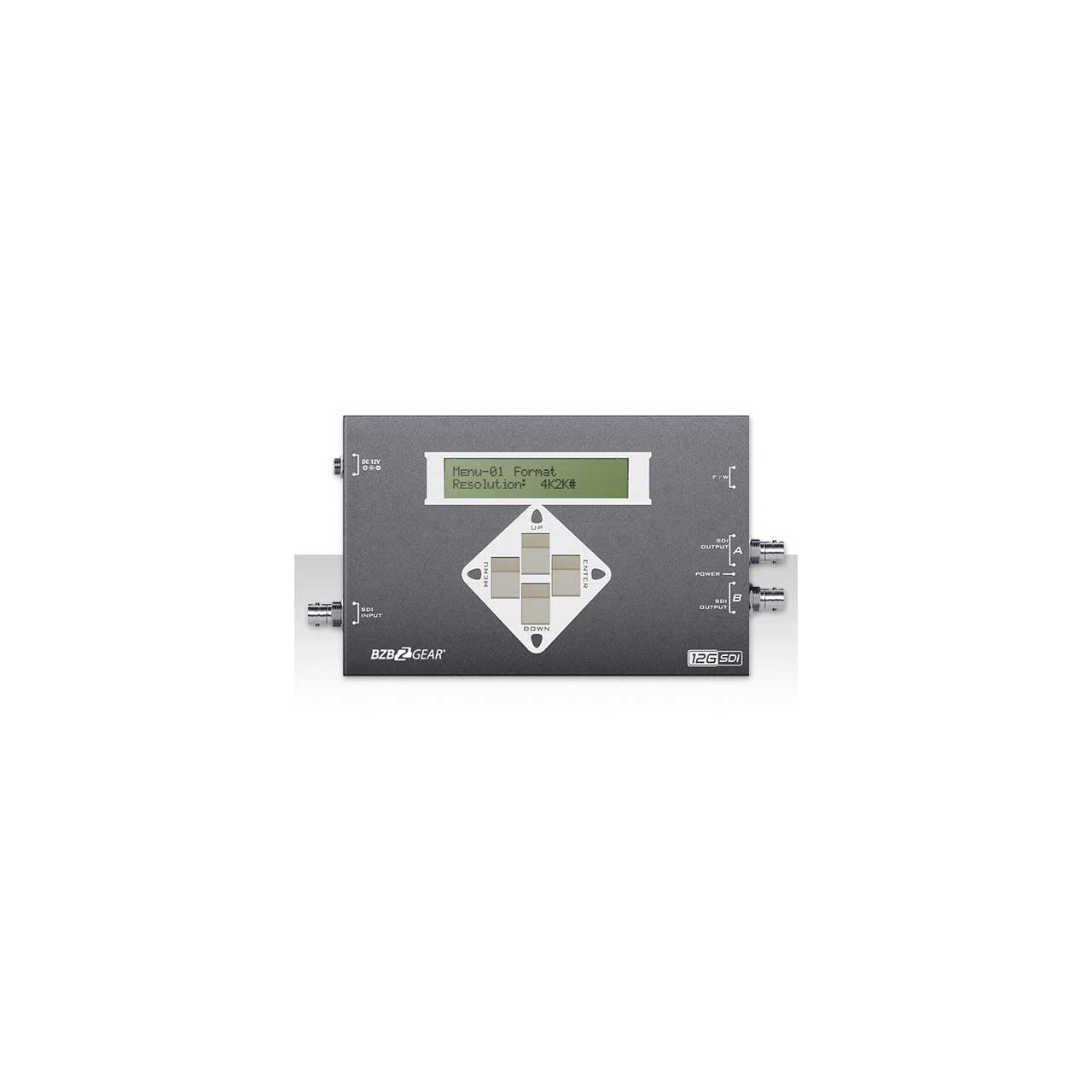

  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BG-SDITPG

BG-SDITPG - Overview

The BG-SDITPG is an advanced SDI pattern generator with multi-format (12G/6G/3G/HD/SD) and multi-pattern support. In addition to still and moving video test patterns it also has the ability to generate audio signals (SMPTE-291M). The BG-SDITPG can support up to 8 channel AES compliant audio with 48KHz sample rate. With just four buttons and an LCD screen it is incredibly easy to operate and it's durable metal construction is built for stand up to years of field use.

SDI
Crystal clear image with resolutions up to up to 4K2K@60Hz.

Power
Flexible power options for easy installation. Use supplied Power Adapter or POE (Power Over Internet) function.

Ideal fit for:
- Studios
- Event Centers
- Live Video Productions

  • Features:

    • Multi-Format - 12G, 6G, 3G, HD, SD
    • Audio Generator - 8 Channel AES Comliant @48KHZ
    • Dual Output - Simultaneous 12G SDI outputs
    • Easy to Use - 4 simple buttons access all functions
    • Multiple Patterns - Choose from multiple still and moving test patterns
    • Locking PSU - Prevents accidental disconnection


  • Specifications:

    • Role of usage: Pattern generator
    • SDI standards: 12G/6G/3G/HD/SD-SDI
    • Auto SDI rate detection: Yes
    • Supported protocols: SMPTE 259M (270Mbps / 360Mpbs) SMPTE 292M / HDTV (1.485 &
      1.485/1.001Gbps) SMPTE 424/425M (2.97 & 2.97/1.001Gbps) SMPTE ST-2081 (5.94&5.94/1.001Gbps) SMPTE ST-2082
      (11.88&11.88/1.001Gbps)
    • Video bandwidth: 11.88Gpbs
    • Data rates: 143 / 270 / 1483 / 1485 / 2967 / 2970 / 5934 / 5940 / 11868 / 11880 Mbps
    • Video support: [12G] 4K2K@50/59.94/60 [6G] [email protected]/24, 25, 30 [3G] 1080p@50/59.94/60
      (4:2:2) [HD] 720p50/59.94/60, 1080p24/30, 1035i50/59.94/60, 1080i50/59.94/60 [SD] [email protected], PAL@50Hz
    • SDI signal type: SMPTE-292M / 259M / 424M / ST-2081 / ST-2082
    • Output impedance: 75W
    • Cable (Belden 1694A) equalization / transmission: [12G-SDI] up to 50m (165ft) / [6G-SDI] up
      to 100m (330ft) / [3G-SDI] up to 200m (660ft)
    • Audio support: Yes
    • PCB Stack-up: 6-layer board [impedance control - differential 100W; single 75W]
    • Output: 2x BNC [SDI]
    • BNC connector: 75W interlocking socket
    • [HD] Eye pattern characteristics: Amplitude: Within 800mV <10%Long time jitter <1.0 UI Rise
      overshoot: Less than 2% Timing jitter <1.0 UI Fall overshoot: Less than 2% Alignment jitter <0.2 UI
    • Fixedness: Interlocking power supply
    • Power supply: 12V 2A DC
    • Power consumption: 8 Watts [max]
    • Operation temperature: 0~40°C [32~104°F]
    • Storage temperature: -20~60°C [-4~140°F]
    • Relative humidity: 20~90% RH [no condensation]


  • Item Includes:

    • 1x BG-SDITPG Pattern Generator
    • 1x 12V power supply unit
    • 1x User Manual


  • Warranty:

    • 2 Years


  • GTIN:

    0850009357076
