Belden 1695A CMP Rated RG6 Plenum 6G-SDI/UHDTV Coaxial Video Cable 18AWG - Black - 500 Foot - ReelTuff Box

ITEM #: BL-1695A-Z500-BK MFG #: 1695A 010Z500

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$2,273.60

Our Price:

$997.46

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


1695A 010Z500 - Overview

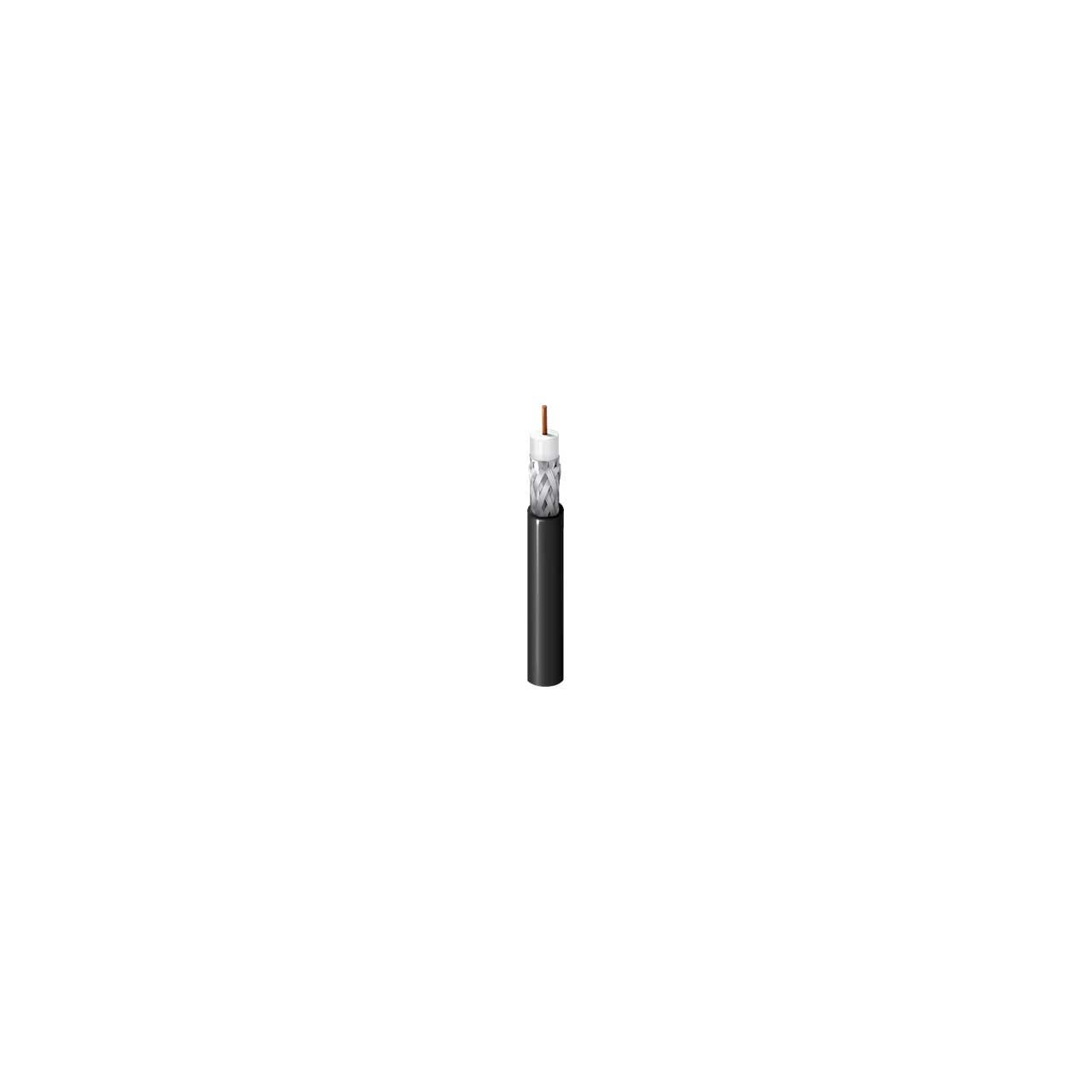

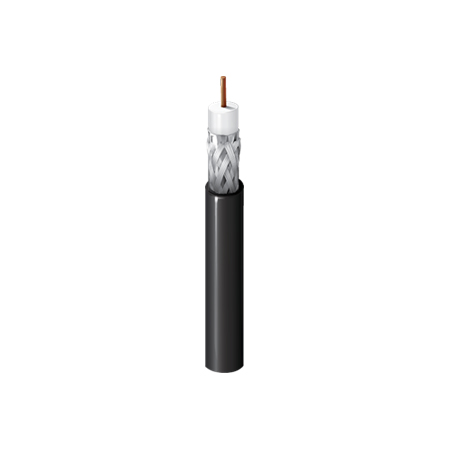

Belden 1695A Video Cable is a Plenum Low Loss Serial Digital RG-6, 75 Ohm, 6G-SDI Coax cable that features a 18 AWG solid .040" bare copper conductor with foam FEP insulation, Duofoil® Foil plus tinned copper braid shield (95% coverage) in a PVC jacket.

ReelTuff reel-in-a-box cable packaging.
Designed and built with the installer in mind, ReelTuff® packaging is lighter to carry than boxes with wooden reels, and offers tear-resistant, easy-to-access, reinforced handles. With multiple convenient dispensing holes for vertical pulls from stacked boxes, easy-to-read labels and descending length marking on the cable, installation has never been faster or easier!

Applications
Indoor use where plenum is required
Digital Video
6 Gb/s UHDTV
HD-SDI 1080p
Multimedia and lighting automation

  • Features:

    • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
    • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
    • Easy Identification: Cable jackets feature footage room and zone markings

  • Specifications:

    • General
    • RG Type: 6
    • Conductor Size: 18 AWG
    • Stranding: Solid
    • Nominal Diameter: 0.040 in
    • Material: BC - Bare Copper
    • Insulation Material: FEP - Flourinated Ethylene Propylene (Foam)
    • Nominal Insulation Diameter: 0.170 in (4.32 mm)
    • Outer Sheld Layer 1 Type: Tape
    • Outer Sheld Layer 1 Material: Tri-Laminate (Alum + Poly + Alum)
    • Outer Sheld Layer 1 Coverage: 100%
    • Outer Sheld Layer 2 Type: Nraod
    • Outer Sheld Layer 2 Material: Tinned Copper (TC)
    • Coverage: 95%
    • Outer Jacket Material: PVC
    • Overall Cable Diameter (Nominal): 0.229 in (5.82 mm)

      Electrical Characteristics
    • Return Loss (RL):
      5 - 1600 MHz: Min. 23 dB
      1600 - 4500: 21 dB
      4500 - 6000 MHz: 15 dB

      Attenuation
    • 1 MHz: 0.24 dB/100 ft
    • 3.58 MHz: 0.45 dB/100 ft
    • 5MHz: 0.55 dB/100 ft
    • 7MHz: 0.65 dB/100 ft
    • 10MHz: 0.75 dB/100 ft
    • 67.5MHz: 1.478 dB/100 ft
    • 88.5MHz: 1.94 dB/100 ft
    • 100MHz:2.1 dB/100 ft
    • 15MHz: 2.4 dB/100 ft
    • 143MHz: 2.8 dB/100 ft
    • 180MHz: 3.4 dB/100 ft
    • 270MHz: 4.0 dB/100 ft
    • 360MHz: 4.0 dB/100 ft
    • 540MHz: 5.2 dB/100 ft
    • 0720MHz: 6.1 dB/100 ft
    • 750MHz: 6.2 dB/100 ft
    • 1000MHz: 7.4 dB/100 ft
    • 1500MHz: 9.5 dB/100 ft
    • 2000MHz: 11.3 dB/100 ft
    • 2250MHz: 12.2 dB/100 ft
    • 3000MHz: 14.6 dB/100 ft
    • 4500MHz: 18.6 dB/100 ft
    • 6000MHz: 22.4 dB/100 ft

      Electrical
    • Nominal Conductor DCR: 6.4 Ohm/1000ft (21 Ohm/km)
    • Nominal Outer Sheld DCR: 2.8 Ohn/1000 ft (9.2 Ohm/km)
    • Nominal Capacitance Conductor-to-Shield: 16.2 pF/ft (53.1 pF/m)
    • Nominal Characteristic Impedance: 75 Ohm
    • Nominal Velocity of Propagation: 83%
    • L Voltage Rating: 300 V (CMP)

      Mechanical Characteristics
    • UL Temperature: 32° to 167°F (0° to 75°C)
    • Installation Minimum Bend Radius: 2.3"
    • Maximum Pull Tension: 69 lbs (31 kg)
    • Bulk Cable Weight: 41 lbs/1000 ft
    • Environmental Suitability: Indoor - Plenum, Indoor

      Standards and Compliance
    • Environmental Suitability: Indoor - Plenum, Indoor
    • Sustainability: CA Prop 65 Flammability
    • Reaction to Fire: NFPA 262, FT6
    • NEC / UL Compliance: CMP CEC
    • C(UL) Compliance: CMP
    • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
    • APAC Compliance: China RoHS II (GB/T 26572-2011)
    • Non-Plenum Number: 1694A

  • Item Includes:

    • 1x RG6 Plenum SDI/HDTV Coaxial Cable- 500-foot

  • Warranty:

    • Limited 10 Year Warranty
