Blustream EX40B-KIT Slimline HDMI Extender Set - 40m 1080p (1080i 50m)

EX40B-KIT - Overview

EX40B-KIT - Overview

EX40B-KIT - Details

• Features:

  • Extends HDMI up to distances of 40m over a single CAT cable (1080i up to 50m)
  • Supports video resolutions 480i-1080p*
  • Supports Bi-directional IR from input and output locations
  • Supports LPCM 7.1ch, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Supports full 3D signal display
  • Supplied with Blustream IR receiver and emitter
  • Requires local power at both Transmitter and Receiver
  • EDID management
  • HDCP 1.4 compliant
  • *8-bit color support only


• Specifications:

  • Video input:

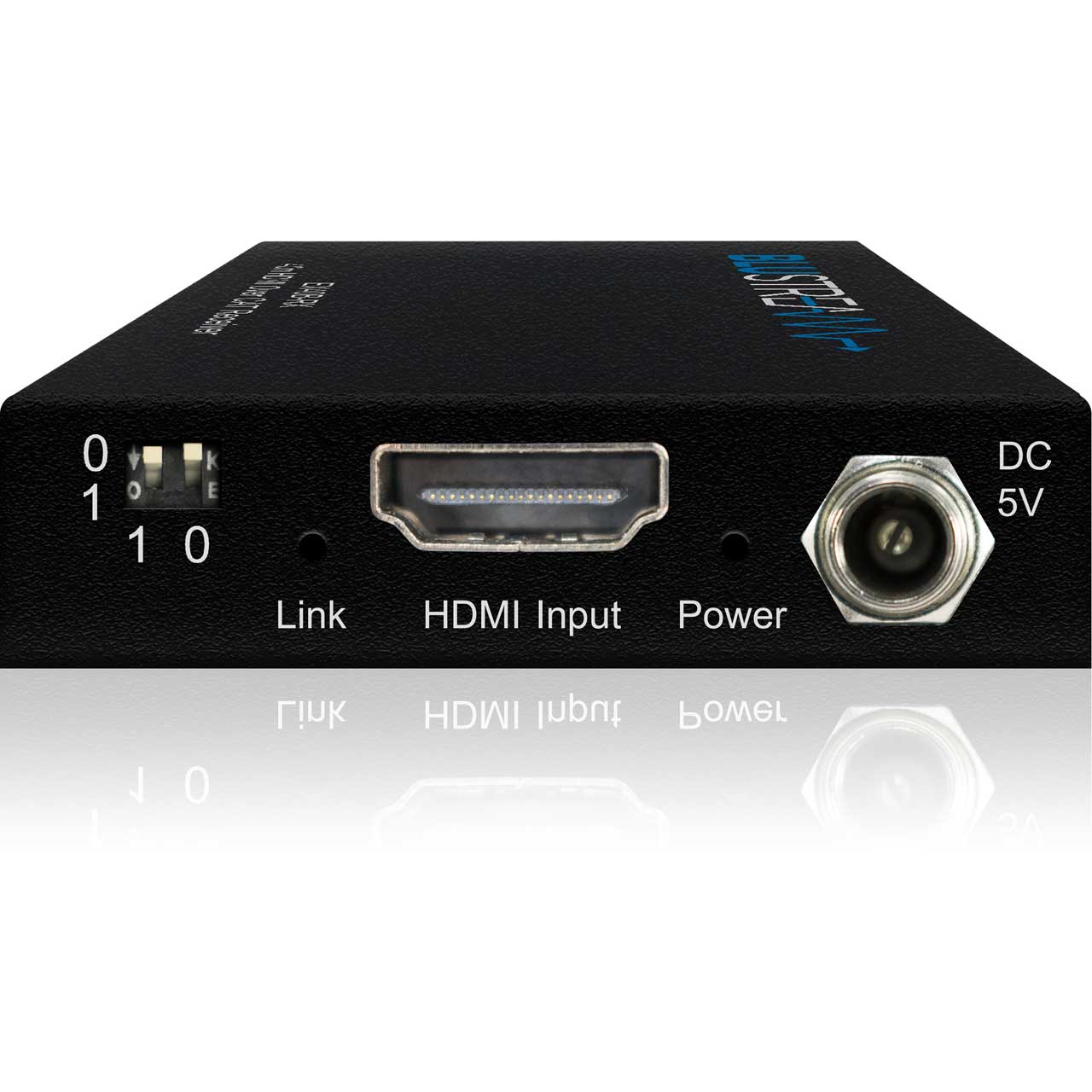

    EX40B-TX: 1 x HDMI Type A, 19-pin, female

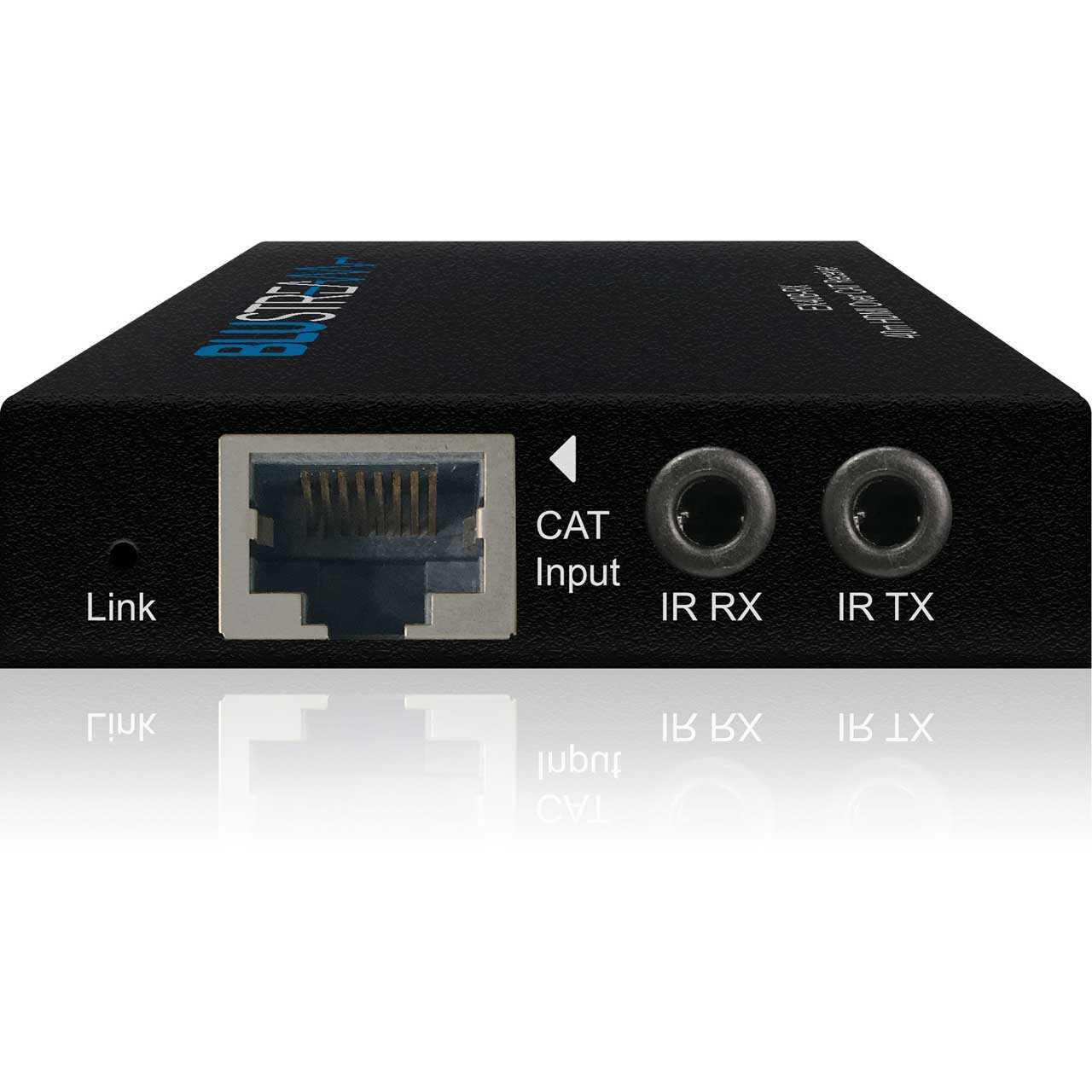

    EX40B-RX: 1 x RJ45
  • Video output:
    EX40B-TX: 1 x RJ45

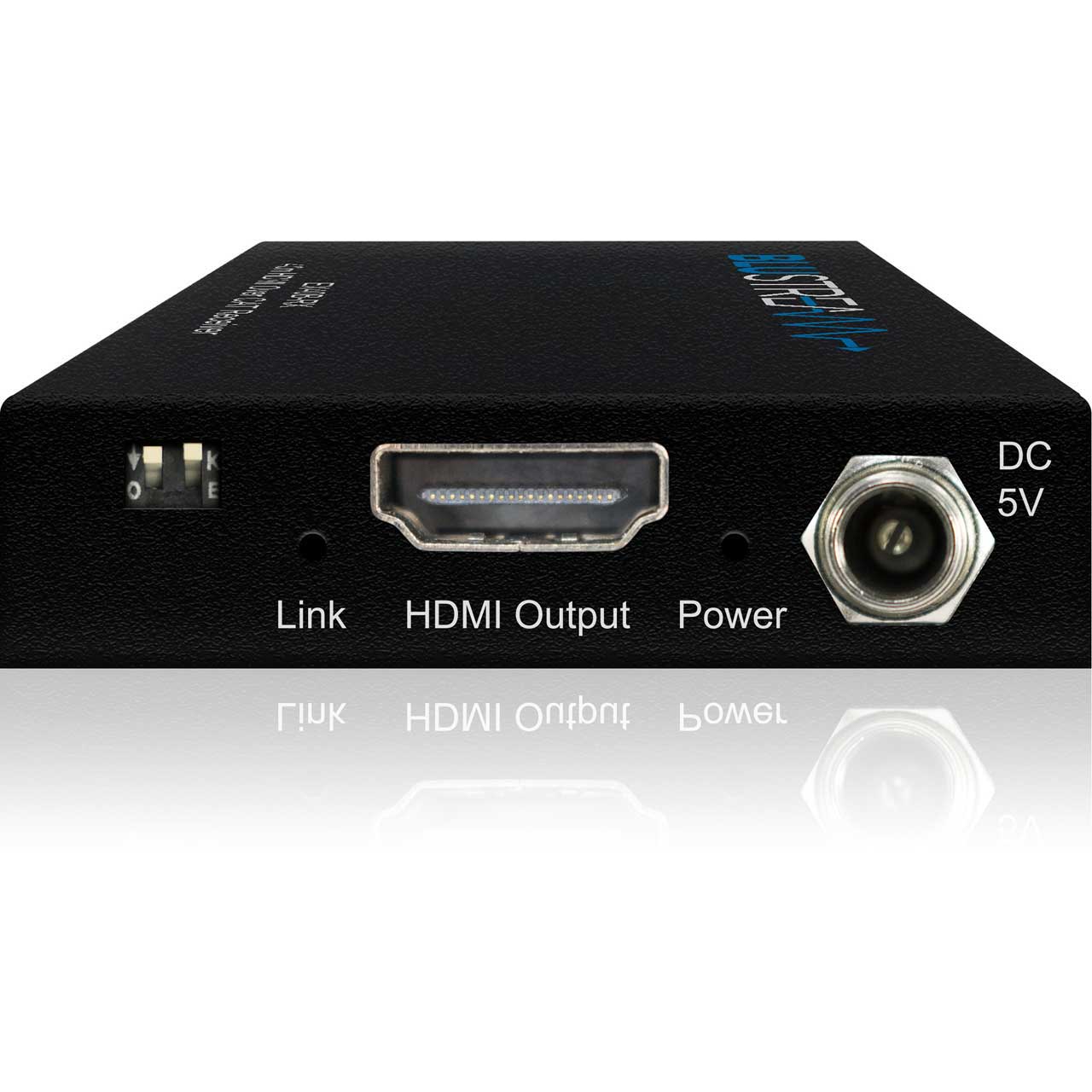

    EX40B-RX: 1 x HDMI Type A, 19-pin, female
  • IR input: 1 x 3.5mm stereo jack
  • IR output: 1 x 3.5mm mono jack
  • Power Supply: 5V/1A DC, screw type connector, one per balun required
  • Dimensions with connections (W x H x D): 58 x 15 x 96mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)


• Item Includes:

  • 1x EX40B-TX
  • 1x EX40B-RX
  • 2x 5V/1A DC Power Supply
  • 1x IR Emitter
  • 1x IR Receiver
  • 2x Mounting Brackets
  • 1x User Manual


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242001481
