    PRO-8RS232 - Overview

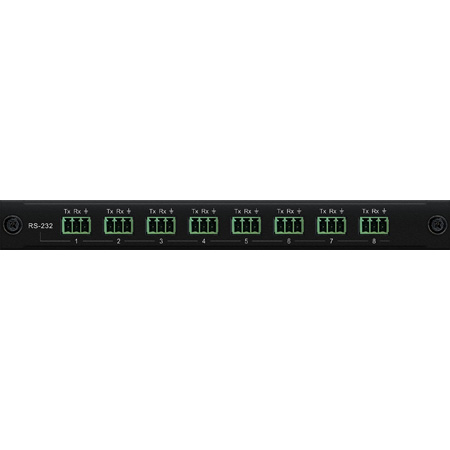

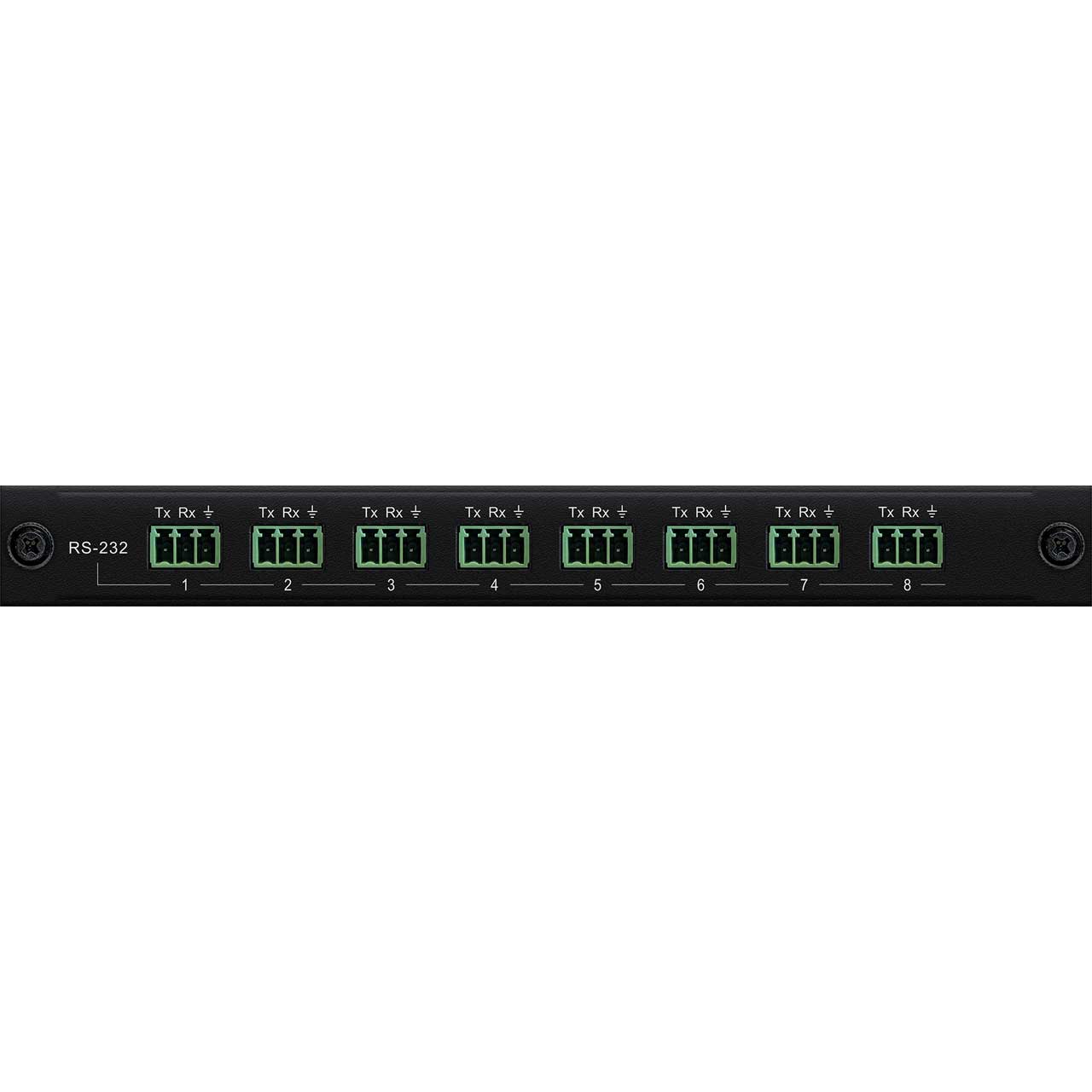

    The Blustream PRO-8RS232 RS-232 routing board offers 8x bi-directional RS-232 ports for serial communication from all input and output locations when used with compatible Blustream HDBaseT™ transmitters & receivers. The PRO-8RS232 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

    • Features:

      • Features 8x Bi-directional RS-232 ports for serial communication to corresponding Blustream HDBaseT™ zone receivers
      • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub


    • Specifications:

      • RS-232 serial ports: 8x 3-Pin Phoenix connector
      • Card Dimensions (W x H x D): 190mm x 22mm x 177mm
      • Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
      • Shipping Weight: 0.5kg
      • Operating Temperature: 32°F to 104°F (0°C to 40°C)
      • Storage Temperature : -4°F to 140°F (-20°C to 60°C)


    • Item Includes:

      • 1x PRO-8RS232


    • Warranty:

      • 3 Year Warranty


    • GTIN:

      9340242002167
