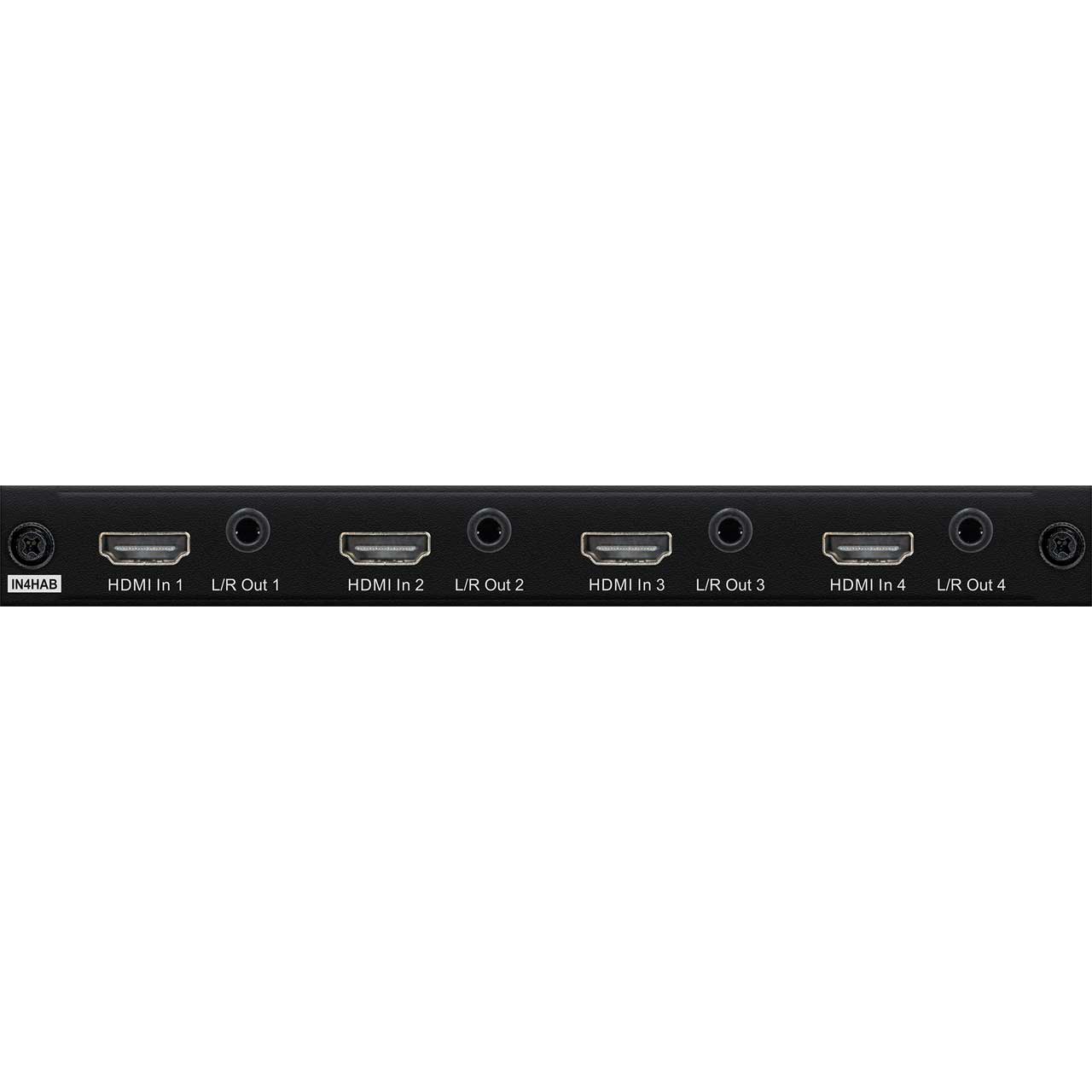

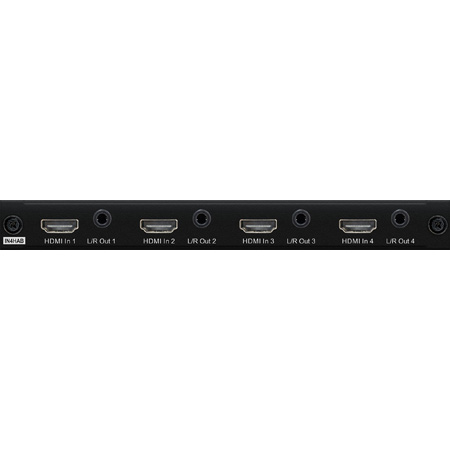

Blustream PRO-IH4HAB Pro Matrix 4x HDMI 18G Board w/Audio Breakout

PRO-IN4HAB - Overview

• Features:

  • Features 4x HDMI 2.0 inputs which can be independently routed to video output cards
  • Supports HDMI 2.0 18Gbps specification including HDR support
  • Supports up to 4K UHD 60Hz 4:4:4
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Each HDMI input includes an independent fixed level 2ch analog audio breakout allowing connection to a local third-party audio solution (supports 2ch PCM)
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP 2.2 Support
  • *For HDMI 2.0 18Gbps video distribution the PRO-IN4HAB must be used with a HDMI 2.0 18Gbps Custom Pro output board


• Specifications:

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 4x Analog Left/Right audio (3.5mm stereo jack)
  • Card Dimensions (W x H x D): 170mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)


• Item Includes:

  • 1x PRO-IN4HAB


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242002426
