BMD-HDLSMTVDUO2B - Overview

Complete Monitoring Solution

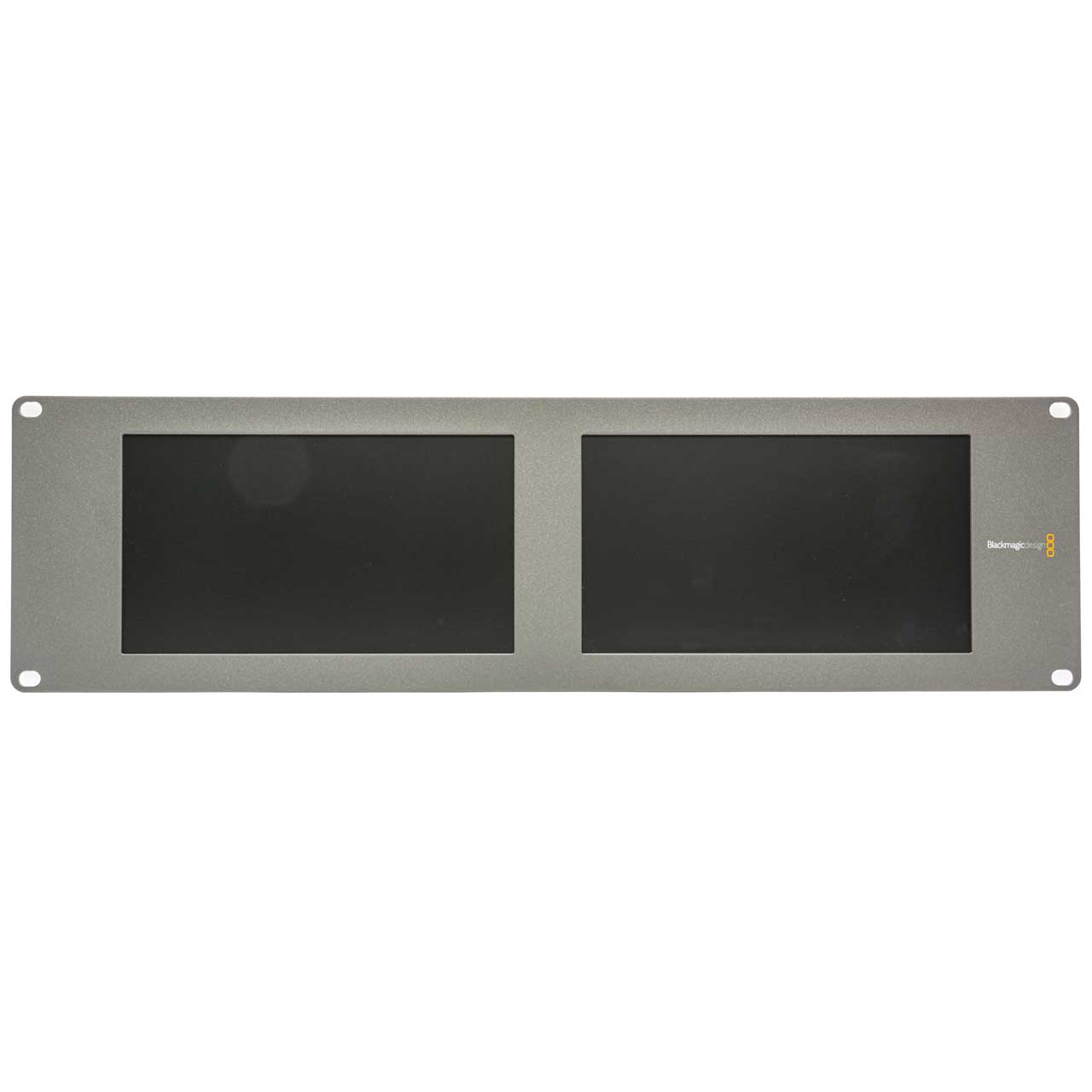

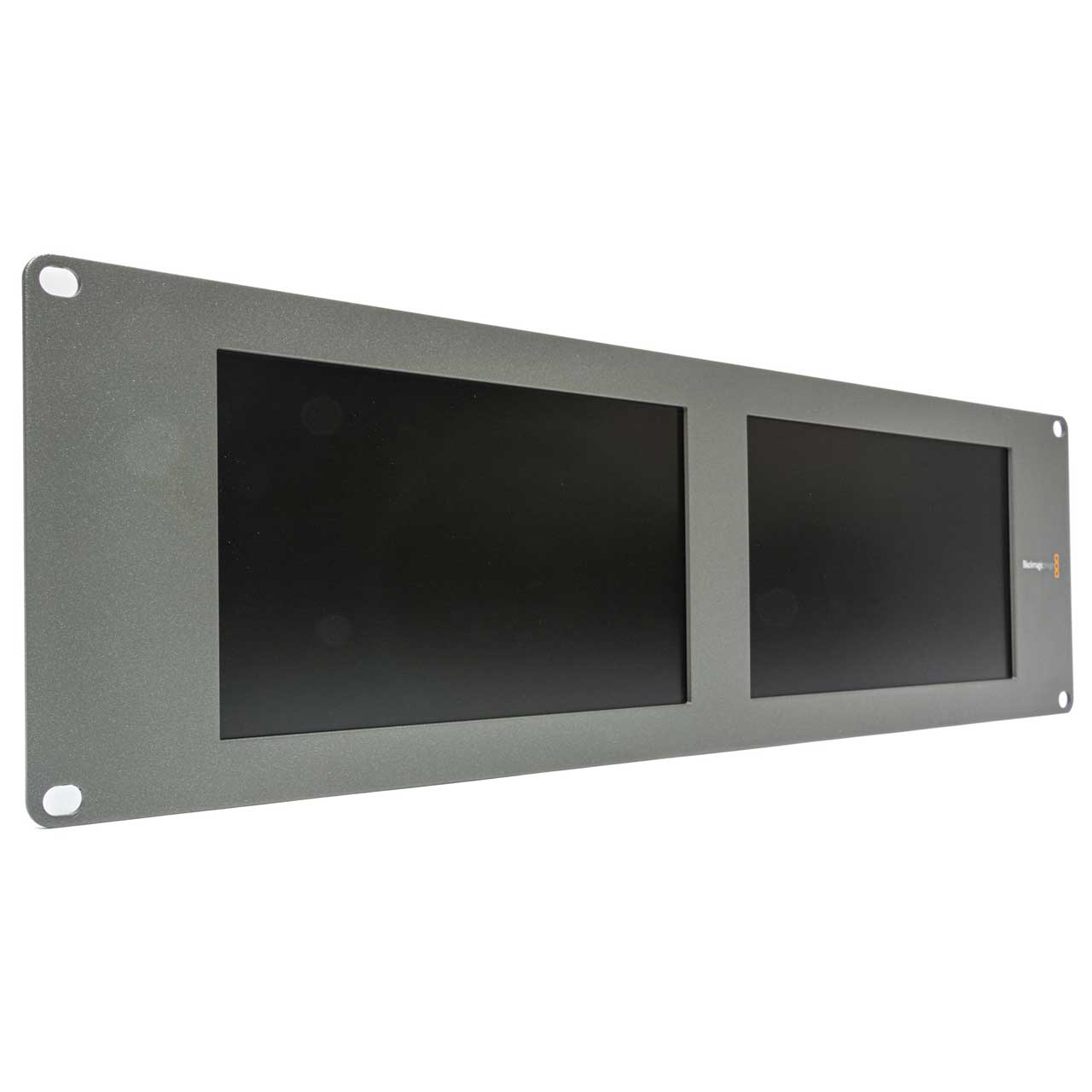

Get the ultimate in low cost SDI monitoring with SmartView Duo2! Perfect for post production, broadcast or live events, SmartView Duo2 features two large 8 inch LCD screens in a compact rack mount design that's less than an inch thick. SmartVideo Duo handles all SD, HD and 3 Gb/s SDI video standards, and all screens can be remotely adjusted via your ethernet network! Use SmartView Duo2 in racks for local monitoring, for multi monitor video walls in master control rooms or for camera monitoring for production switchers! With SmartView Duo2 you can afford to put SDI monitoring everywhere you need.

Perfect for Live Production
SmartView Duo2 is perfectly designed for building a video wall for monitoring all sources into live production switchers, and because it's so incredibly thin, it's even perfect for portable setups where you need to save space. Imagine having all your video sources displayed on large 8 inch LCD screens so you can see camera focus and quality! Now you can build full live broadcast presentation monitoring that's small enough to be fully portable! SmartView Duo2 is lightweight and thin, so it's perfect for outside broadcast vans or even installed into portable monitor racks to reduce shipping costs of flyway kits!

Monitor Everywhere!
Good quality SDI monitoring is expensive and often makes it hard to put monitoring on all the devices in your racks, or control rooms because costs add up quickly. SmartView Duo2 eliminates this problem and includes two large beautiful 8 inch displays in a compact 3 rack unit size. You get full loop though SDI connections, and ethernet network connection for setup. SmartView Duo2 includes easy to use software for Mac and Windows so you can see all the monitors on your network for remote adjustments. That's perfect when you want to color match all screens in a video wall remotely from your laptop!

Please Note! This is a bstock item. Its fully functional but missing the international power supply adaptors.

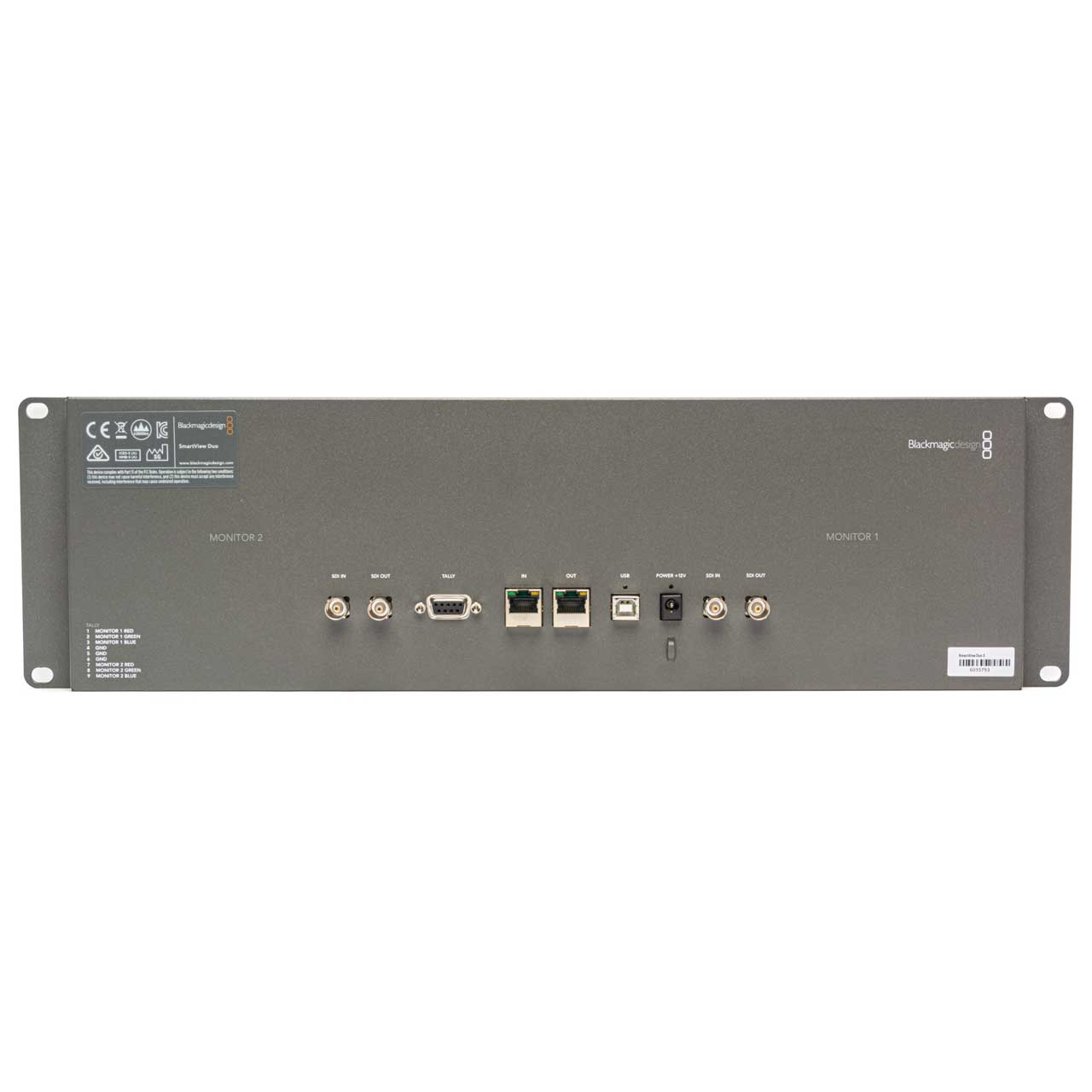

  • Features:

    • Dual 8" LCD Monitors - Large color LCD monitors with high quality video filtering for amazing images.
    • Monitor 2 SDI In with Loop Out - SDI/HD-SDI and 3 Gb/s SDI input connection for decks, routers or cameras in 10 bit SD, HD or even 2K.
    • Tally Connection - Industry standard tally inputs for each monitor allows independent tally to display red, green or blue.
    • Ethernet In with Loop Out - Control all your monitors from a single computer for easy matching between displays!
    • USB 2.0 Update Port - Update your SmartView Duo software to add new video formats as they are invented!
    • International Power Supply - Standard 12V power supply with international adapters for connection to all power outlets. Cable tie down point.
    • Monitor 1 SDI In with Loop Out - SDI/HD-SDI and 3 Gb/s SDI input connection for decks, routers or cameras in 10 bit SD, HD or even 2K.
    • Tally Connector Info - Forget reaching for the instruction manual, because the Tally connections are listed here!

      Please Note! This is a bstock item. Its fully functional but missing the international power supply adaptors.

  • Specifications:

    • Connections:
    • SDI Video Input - Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output.
    • Multi Rate Support - Auto detection of 2K, HD or standard definition inputs.
    • Updates and Configuration - Via USB 2.0 high speed (480 Mb/s)
    • Ethernet - 10/100 BaseT with loop through.
    • Tally - 9-pin D connector

      Standards:
    • SDI Compliance - SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M.
    • SDI Color Space - REC 601, REC 709
    • SDI Auto Switching - Automatically selects between SD, HD and 3 Gb/s SDI.
    • Video Sampling - 4:2:2 and 4:4:4
    • SDI Format Support - 525i59.94, 625i50, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p/23.98, 2048x1080p/24, 2048x1080p/25, 2048x1080PsF/23.98, 2048x1080PsF/24, 2048x1080PsF/25, 2048x1556PsF/23.98, 2048x1556PsF/24, 2048x1556PsF/25.

      Display:
    • Display Element - TFT Active Matrix LCD.
    • Display Resolution - 800 x 480 pixels
    • Response - < 15 ms
    • Contrast Ratio - Typically 500:1
    • Color Depth - 16.7 Million Colors.
    • Display Orientation - Displays can rotate upside down for optimum viewing angle.

      Power Supply

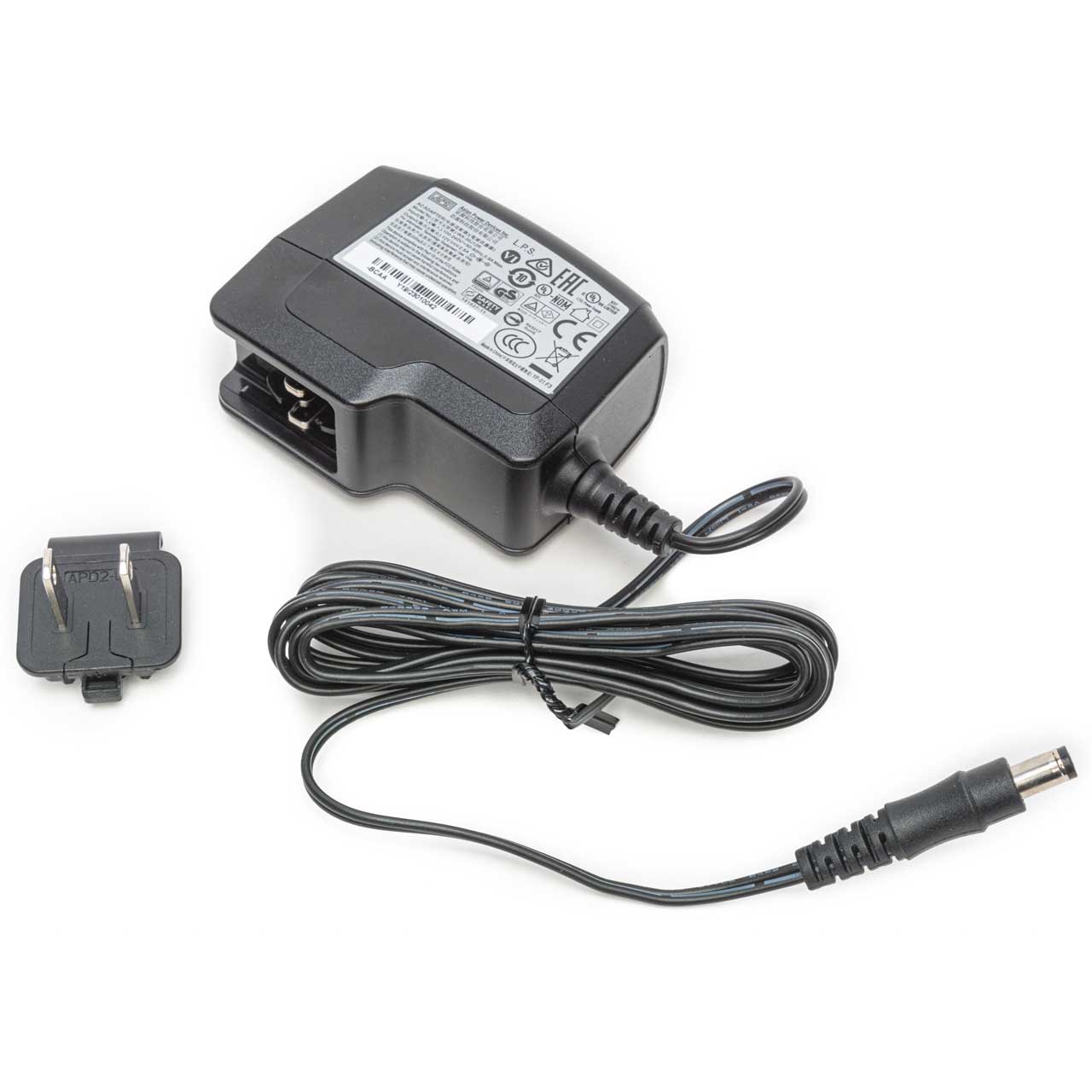

    • 12V universal power supply included with international socket adapters for all countries.
    • Power Consumption < 20 Watts

      Operational Voltage Range
    • 12V - 15V

  • Item Includes:

    • SmartView Duo
    • Power Supply
    • Software CD

  • GTIN:

    0933871600446
