Blackmagic Design MultiView 4 MultiViewer Kit with SDI/HDMI/Ethernet & Power Cables

ITEM #: BMD-MLTVIEW4-KIT MFG #: MLTVIEW4-KIT

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$635.70

Our Price:

$565.00

Availability: In Stock
iAvailability Description Popup


    MLTVIEW4-KIT - Overview

    The Blackmagic Design MultiView 4 has four independent 6G-SDI inputs that work with all SD, HD and Ultra HD formats up to 2160p30. The included Ethernet remote control software lets you turn on audio meters, select audio to output, and create custom labels. MultiView 4 displays your sources in a standard 2x2 grid. You can also add a Teranex Mini Smart Panel for full front panel control and rack mount it using the optional Teranex Mini Rack Shelf!

    The MultiView 4 is designed in a compact, elegant enclosure so they are small enough to be used in fly away cases, outside broadcast vehicles, housed in equipment racks or even sitting on a desktop. They are only one third of a single rack space wide, so customers can mount them on the optional Teranex Mini Rack Shelf side by side with additional MultiView 4 or Teranex Mini products.

    Multi-view monitoring is perfect for massive control rooms with lots of incoming feeds, for live multi camera production or for use on location and in tight spaces that don't have room for multiple monitors. With Blackmagic MultiViews you don't need to connect multiple monitors, dozens of cables or run extra power to see all of your video sources! Simply plug your cameras, decks, switchers and routers into the SDI connections to see everything with amazing clarity and detail on a single HD or Ultra HD monitor!

    • Features:

      • Multi source monitoring designed for broadcasters
      • Mix any combination of SD, HD and Ultra HD sources
      • Custom labels, tally, audio meters and more
      • Multi Rate 6G-SDI Connections Supports all of your SD, HD and Ultra HD equipment
      • MultiView 4 handles 4 sources in an incredibly compact size

    • Specifications:

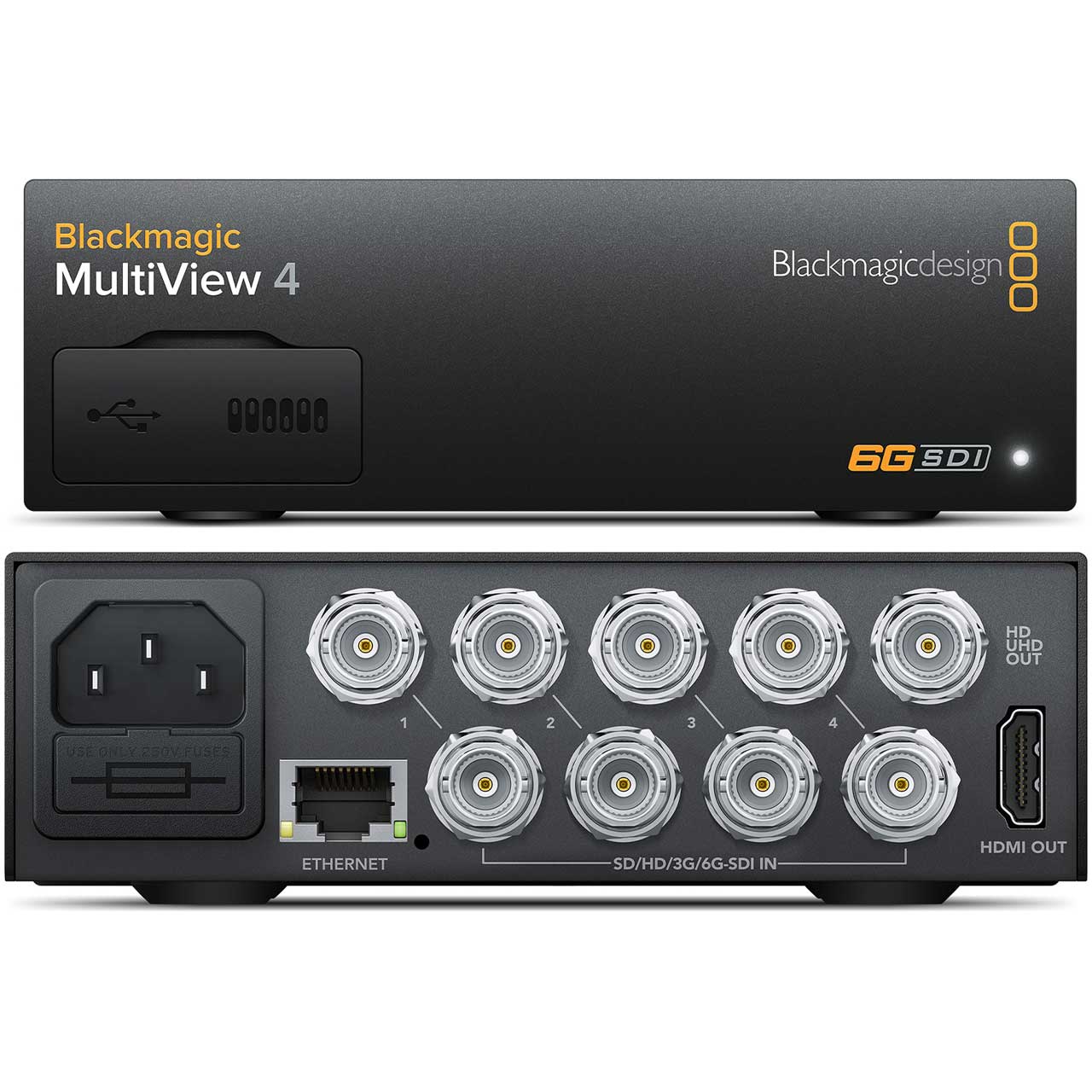

      • Connections
      • SDI Video Input: 4x 10-bit SD-SDI, HD-SDI and 6G-SDI
      • SDI Video Loop Output: 4x 10-bit SD-SDI, HD-SDI and 6G-SDI
      • SDI Video Multi View Outputs: 1x 10-bit HD-SDI and 10 bit 6G-SDI
      • HDMI Video Multi View Outputs: 1x HDMI type A connector. Output supports EDID of the monitor.
      • Multi Rate Support: Auto detection of SD, HD or 6G-SDI. Simultaneous viewing of 4K, HD and SD video.
      • Updates: USB or Ethernet
      • Control: Optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons
      • Configuration: RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting
      • Reclocking: On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video

        Standards
      • SD Format Support: 525i29.97 NTSC, 625i25 PAL
      • HD Format Support: 720p50, 720p59.94,720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
      • 2K Format Support: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K 23.98 PsF, 2K 24 PsF, 2K 25 PsF
      • Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
      • 4K Format Support: 2160p24
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601
      • SDI Video Rates: SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI.
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit
      • SDI Color Precision: 10-bit 4:2:2 and 4:4:4
      • SDI Color Space: YUV or RGB for inputs, YUV for outputs
      • SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input so that each input can be running a different television standard
      • SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M

      • Display: Optional Teranex Mini Smart Panel with 1.5" LCD for menu settings

        Software
      • Software Control: Multi view software included free for Windows and Mac OS X
      • Internal Software Upgrade: Via included updater application

        Operating Systems
      • Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later
      • Windows 8.1 or Windows 10

        Power Requirements
      • Power Fail Protection: MultiView 4 settings preserved and restored instantly at power on
      • Power Supply: IEC power cable required. 90 - 240V AC input.
      • Power over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet)
      • Power Consumption: 16 Watts

        Environmental Specifications
      • Operating Temperature: 32°F - 104°F (0°C - 40°C)
      • Storage Temperature: -4°F - 113°F (-20°C - 45°C)
      • Relative Humidity: 0% to 90% non-condensing

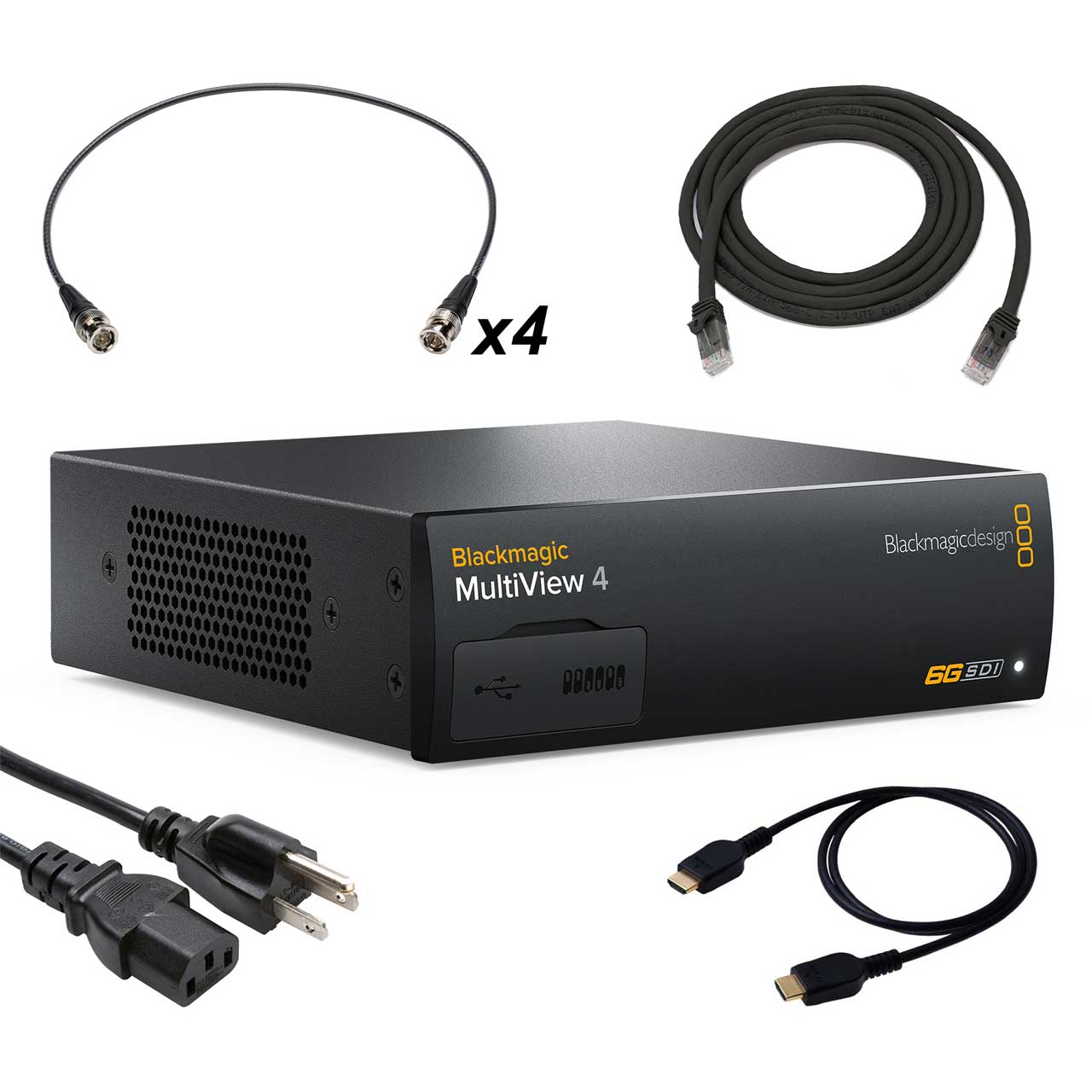

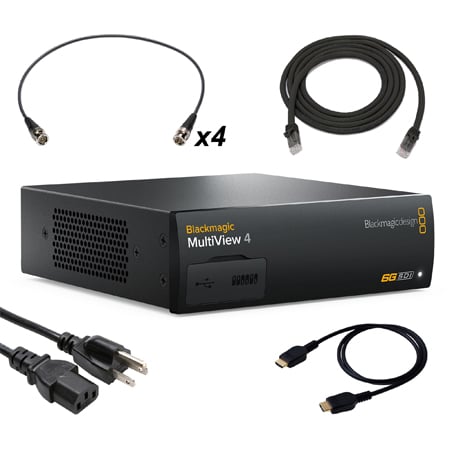

    • Item Includes:

      • 1x Blackmagic Design MultiView 4 4K Multi-viewer

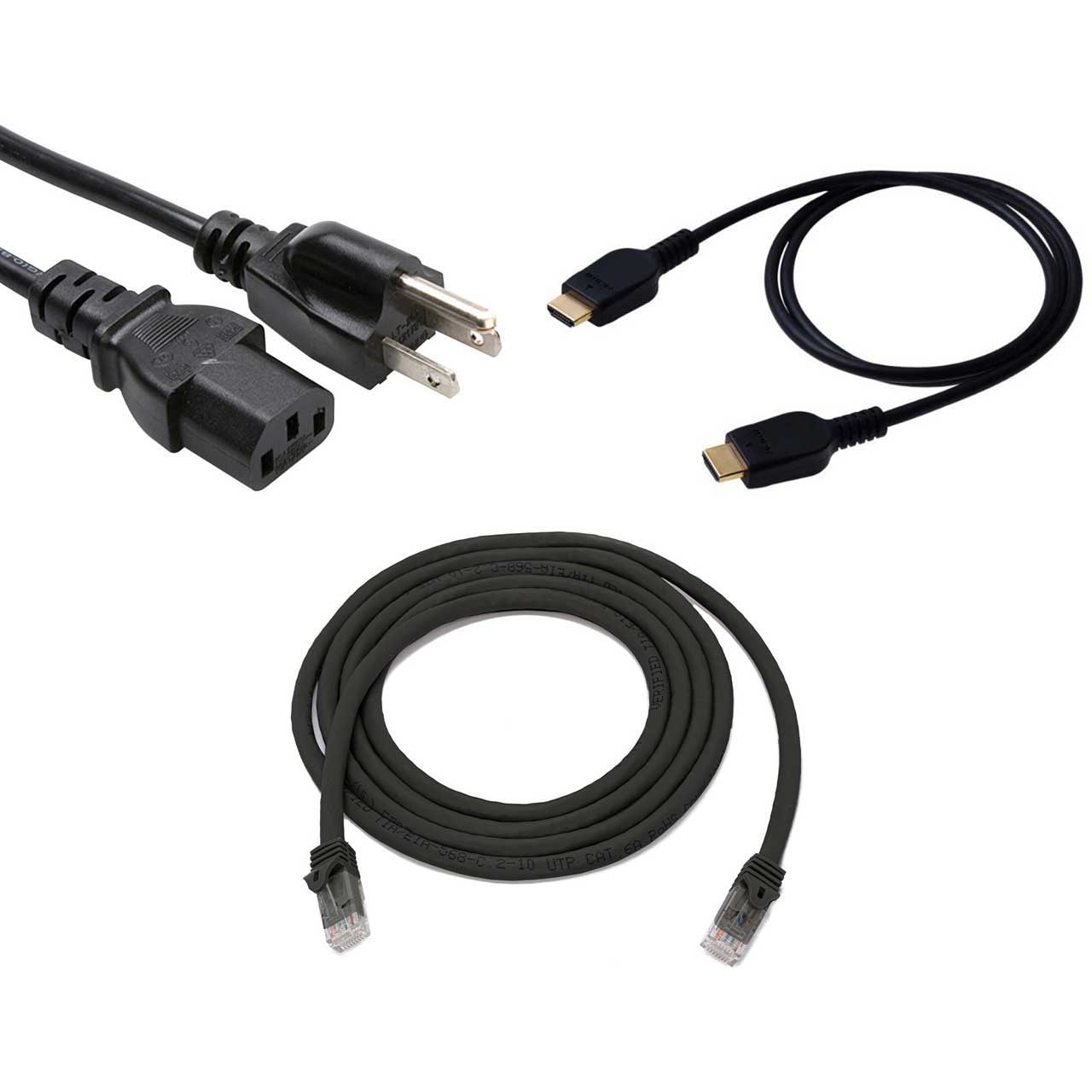

      • 1x 6ft 18 AWG IEC NEMA 5-15P Power Cord
      • 1x 6ft Ultra High Speed HDMI 2.1 Cable

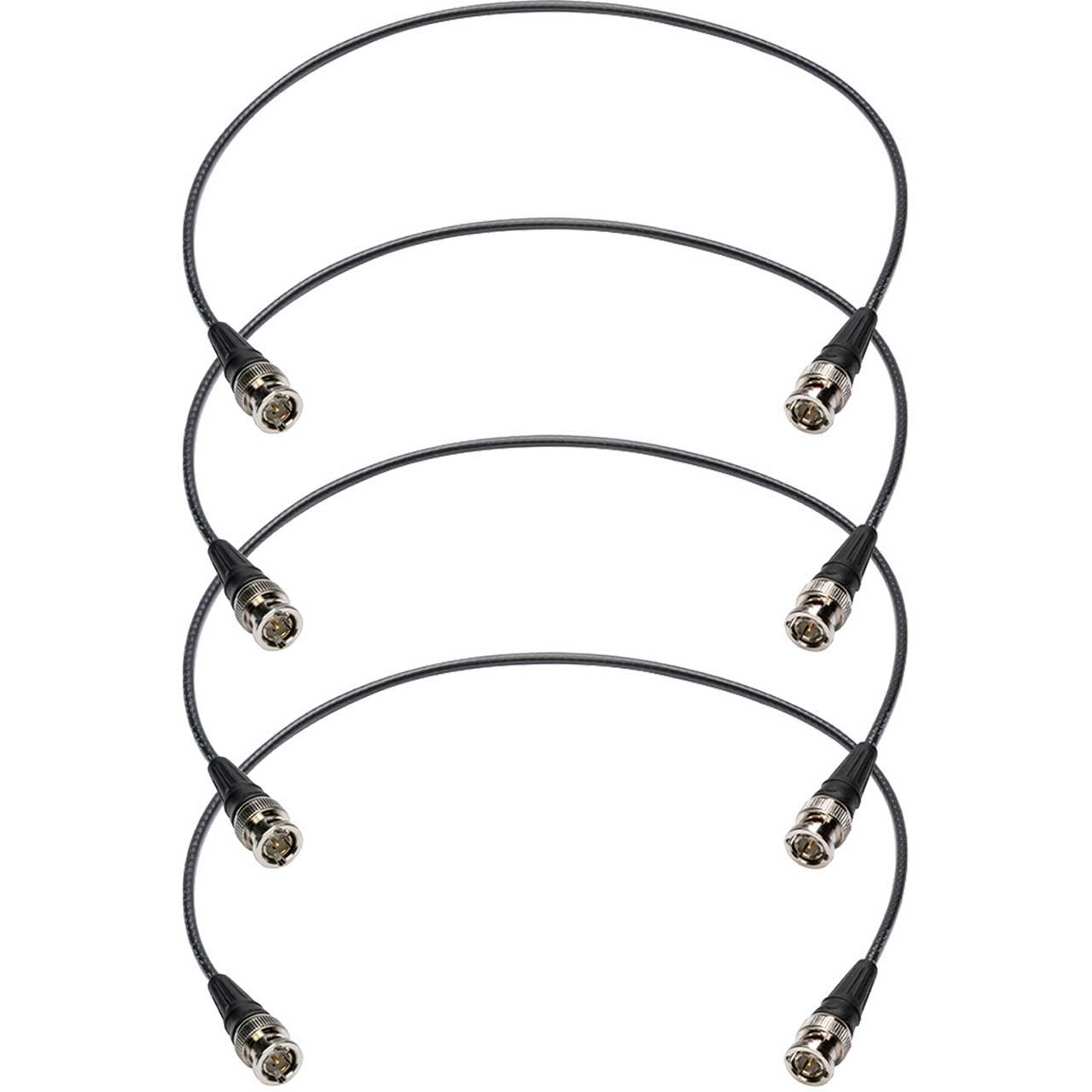

      • 4x 6ft Laird 4855R 12G SDI/4K UHD BNC Cable
      • 1x 3ft Cat6A 600MHz Snagless Molded UTP 10 Gigabit Ethernet Cable

    • Warranty:

      • Blackmagic Design MultiView 4: 3 Year Limited Manufacturer's Warranty
      • Connectronics 18 AWG IEC Power Cord: 1 Year Warranty
      • Connectronics HDMI 2.1 Cable: 1 Year Warranty
      • Laird 4855R BNC Cable: 1 Year Warranty
      • Connectronics CAT6A 600MHz 10 GbE Ethernet Cable: 1 Year Warranty

    • GTIN:

      9338716003888
