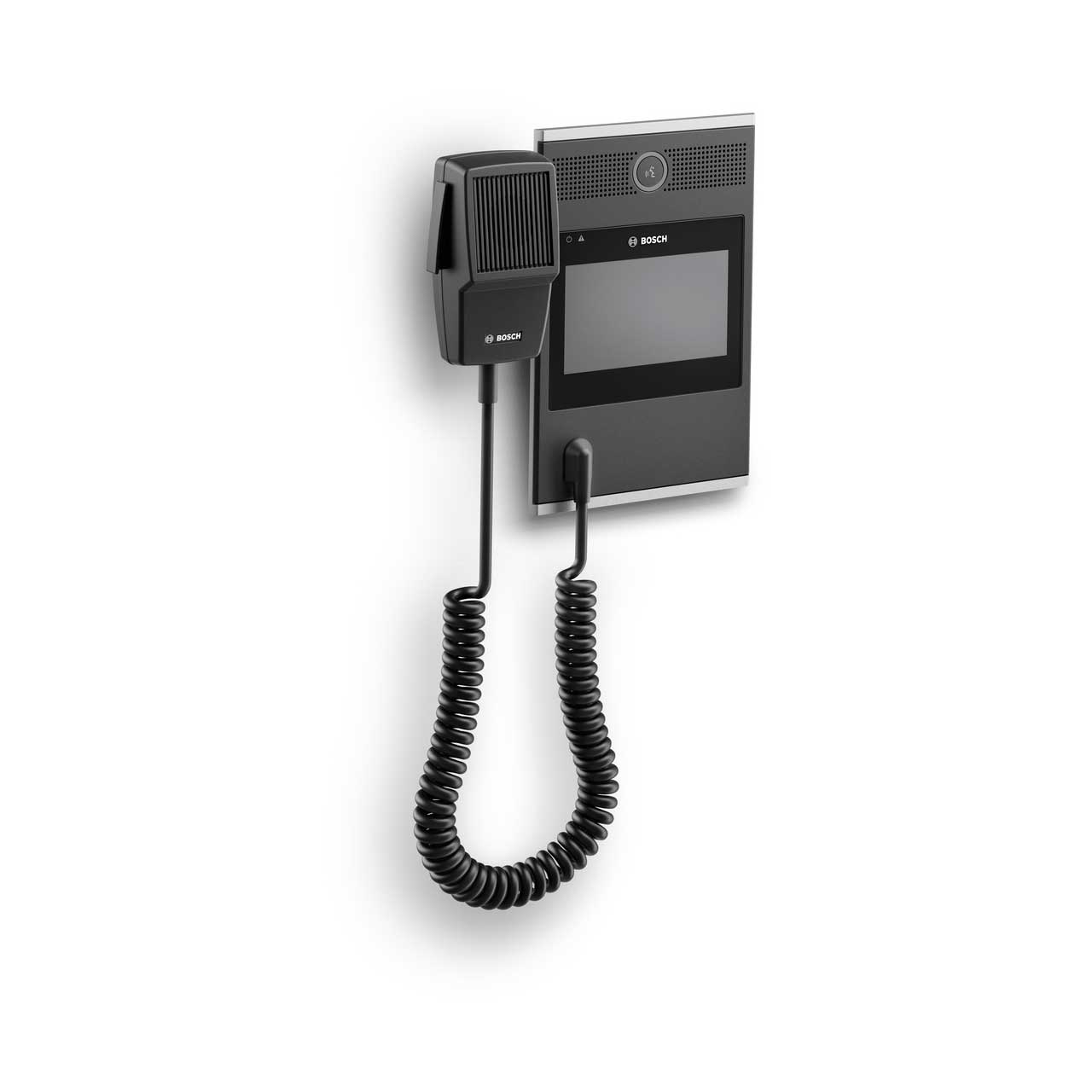

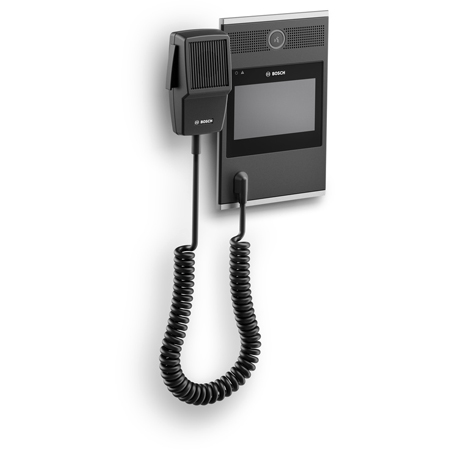

Bosch PREASENSA Wallmount LCD Call Station with Cable Microphone

ITEM #: BSH-PRA-CSLW MFG #: PRA-CSLW

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$1,499.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PRA-CSLW - Overview

    The Bosch PRA-CSLW call station for use in PRAESENSA Public Address and Voice Alarm systems is easy to install and intuitive to operate because of its touch screen LCD, providing clear user feedback about setting up a call and monitoring its progress, or controlling back ground music. The call station allows for positioning without much effort, because it only requires a connection to an OMNEO IP-network with Power over Ethernet (PoE) for communication and power supply combined. It can be configured for use as business call station, but also as emergency call station. The stylish design uses a heavy metal base with a recessed press-to-talk button and provides a hand-held omni-directional microphone to eliminate the proximity effect which creates a boomy sound when a user speaks close to the microphone. It has a built-in loudspeaker for call monitoring and a socket to connect a local background music source. It can be easily installed in a wall mount cabinet or flush mounted on a panel. The 4.3" high-resolution full-color capacitive touch screen gives the operator optimum control and feedback at all times.

    • Features:

      • Wall mount housing with fixed hand-held microphone and helix cable
      • Housing fits surface-mounting or flush-mounting
      • 4.3" full-color capacitive touch screen
      • Graphical user interface for optimum user guidance and feedback
      • Status and fault indicators for voice alarm purposes
      • Built-in monitor loudspeaker with volume control
      • Press-to-talk switch on hand-held microphone.
      • Direct connection to the IP-network. One shielded CAT5e cable is sufficient for Power over Ethernet, audio and control.
      • For dual redundancy of network and power connection, a second shielded CAT5e cable can be connected.

    • Specifications:

      • Electrical
      • Microphone (PRA-CSLW):
        - Nominal acoustic input level (configurable): 85 to 105 dBSPL
        - Maximum acoustic input level: 120 dBSPL
        - Signal to Noise Ratio (SNR): > 73 dBA
        - Directivity: Unidirectional
        - Frequency response (+3 / -6 dB): 500 Hz to 8 kHz (Noise Cancelling)
      • Display:
        - Size: 4.3"
        - Touch screen: Capacitive
        - Color depth: 24-bit
        - Resolution: 480 x 272 px
        - Brightness: 300 cd/m2
      • Monitor loudspeaker:
        - Maximum sound pressure level, at 1 m: 75 dBSPL
        - Volume control: Mute, -40 dB to 0 dB
        - Frequency range (-10 dB): 400 Hz to 10 kHz
      • Line input:
        - Signal to Noise Ratio (SNR): > 96 dBA
        - Total Harmonic Distortion + Noise (THD+N): < 0.1 %
      • Power transfer
      • Electrical
      • Microphone (PRA-CSLW):
        - Nominal acoustic input level (configurable): 85 to 105 dBSPL
        - Maximum acoustic input level: 120 dBSPL
        - Signal to Noise Ratio (SNR): > 73 dBA
        - Directivity: Unidirectional
        - Frequency response (+3 / -6 dB): 500 Hz to 8 kHz (Noise Cancelling)
      • Display:
        - Size: 4.3"
        - Touch screen: Capacitive
        - Color depth: 24-bit
        - Resolution: 480 x 272 px
        - Brightness: 300 cd/m2
      • Monitor loudspeaker:
        - Maximum sound pressure level, at 1 m: 75 dBSPL
        - Volume control: Mute, -40 dB to 0 dB
        - Frequency range (-10 dB): 400 Hz to 10 kHz
      • Line input:
        - Signal to Noise Ratio (SNR): > 96 dBA
        - Total Harmonic Distortion + Noise (THD+N): < 0.1 %
      • Power transfer
      • Power over Ethernet (PoE 1-2):
        - Nominal DC input voltage: 48 V
        - Standard: IEEE 802.3af (mode B)
      • Power consumption:
        - Call station (general use): 4.2 W
        - Call station (alarm use): 5.4 W

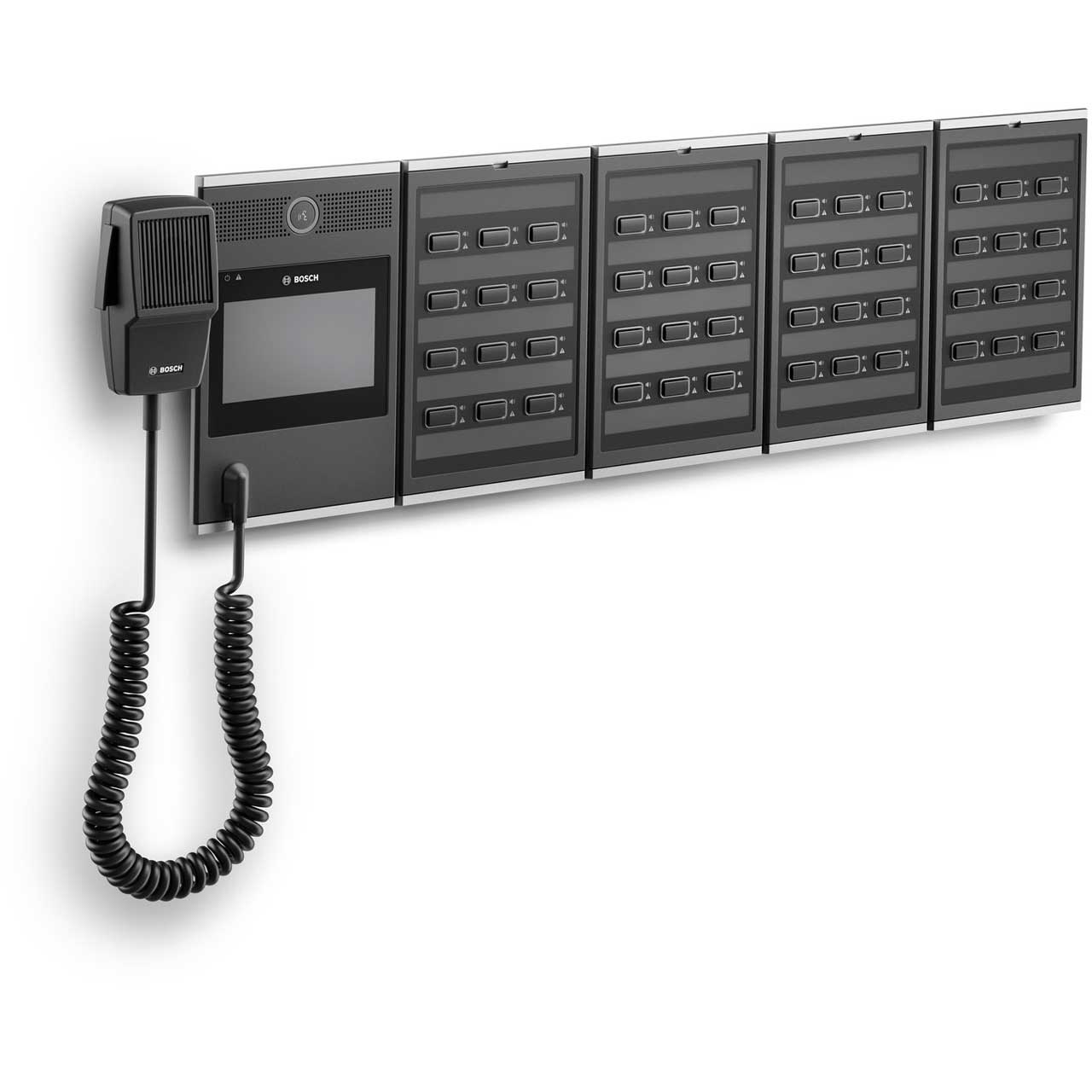

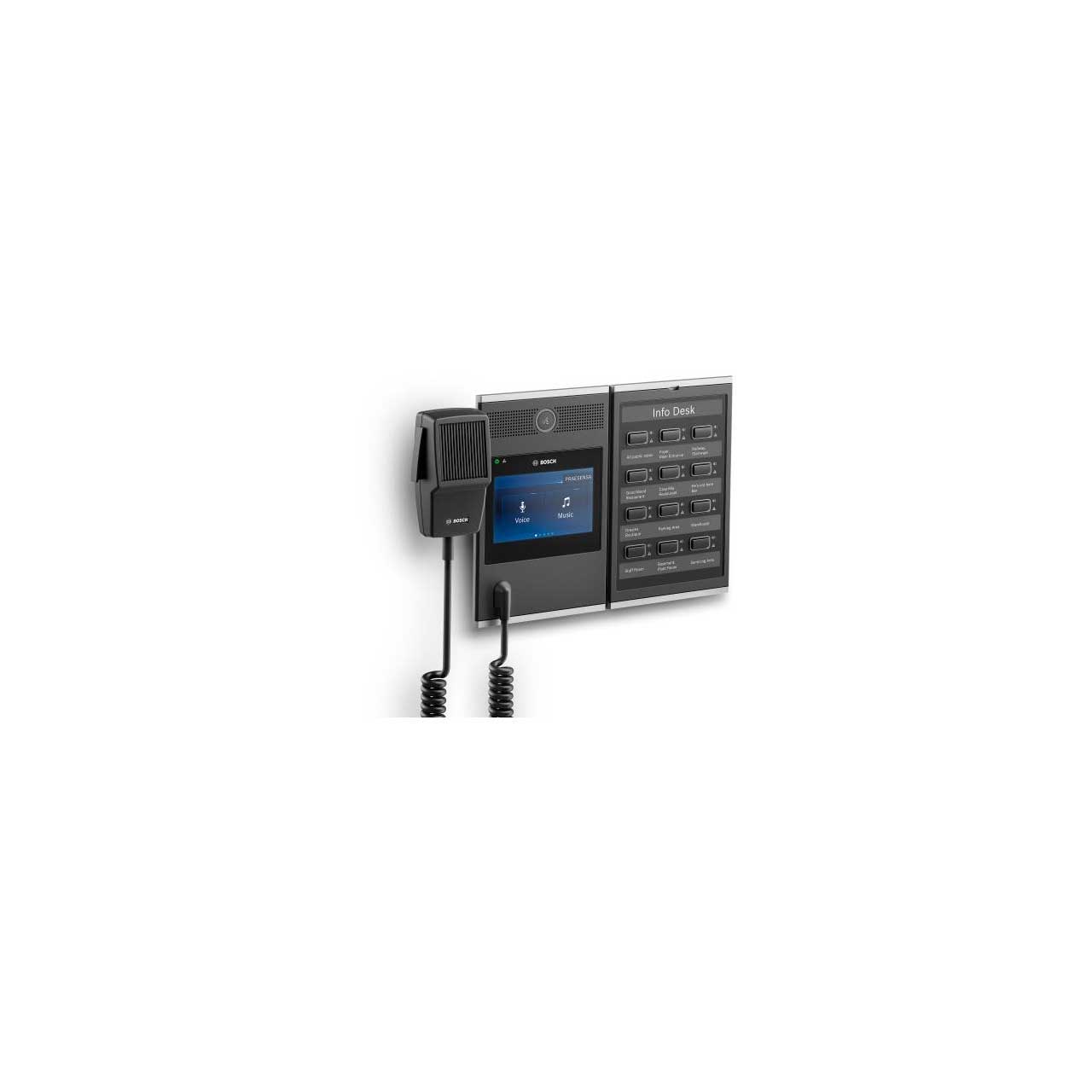

        - Per call station extension (indicators off/on): 0.1 W / 1.0 W
      • Input voltage tolerance: 37 to 57 VDC
      • Supervision (PRA-CSLD):
        - Microphone: Impedance
        - Audio path: Pilot tone
        - Press-To-Talk Switch: Impedance
        - Controller continuity: Watchdog
        - PoE (1-2): Voltage

        Network Interface
      • Ethernet: 100Base-TX, 100BASE-T
      • Protocol: TCP/IP
      • Redundancy: RSTP
      • Audio/Control Protocol: OMNEO
      • Network Audio Latency: 10 ms
      • Audio Data Encryption: AES128
      • Control Data Security: TLS
      • Ports: 2

        Environmental
      • Climatic Conditions:
        - Operating Temperature: 23 to 122 °F
        - Storage and Transport Temperature: -22 to 158 °F
      • Humidity(Non-Condensing): 5 to 95%
      • Dimensions: 5.12 x 2.44 x 7.44 In (WxHxD)
      • Base Material: Zamak
      • Base Color: RAL9017
      • Panel Material: Plastic
      • Panel Colors: RAL9017/RAL9022HR
      • Weight: 2.21 lb

    • Item Includes:

      • 1x Wallmount LCD call station
      • 1x Bracket (attached to bottom)
      • 1x Connector cover (attached to bottom)
      • 1x Microphone clip
      • 1x Quick Installation Guide
      • 1x Safety information

    • GTIN:

      0800549826082
