Cobalt Digital RM20-9905-D-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) - 5 SDI In - 6 SDI Out

RM20-9905-D-HDBNC - Overview

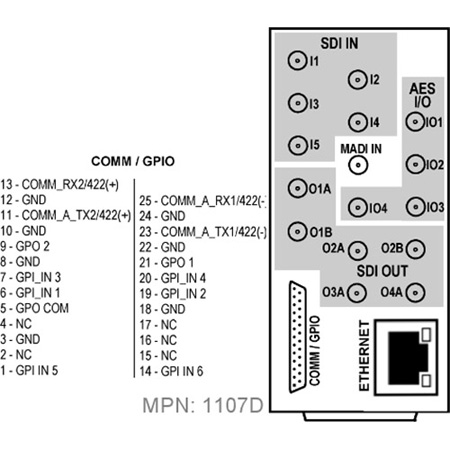

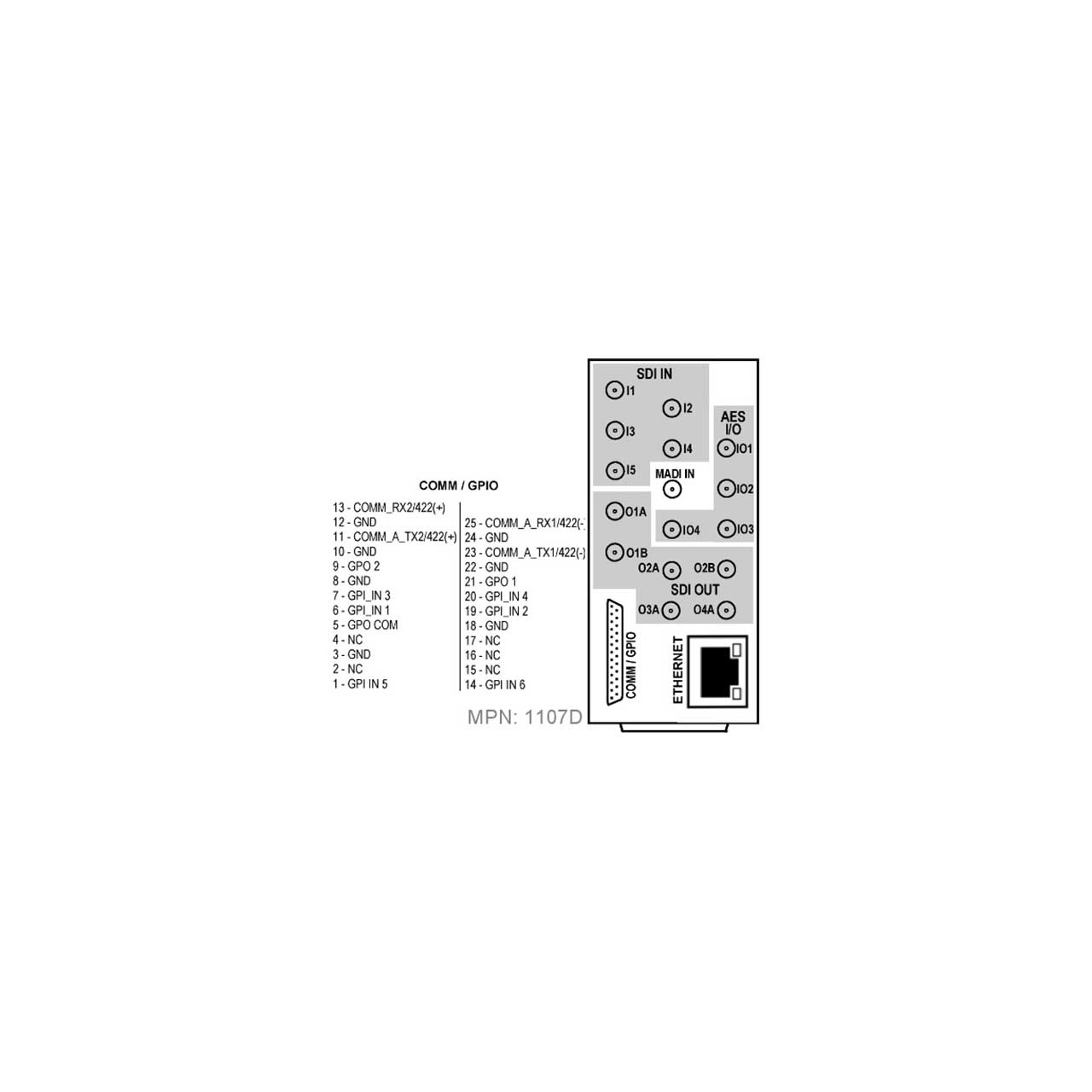

• Specifications:

  • (5) SDI In
  • (6) SDI Out
  • (4) AES I/O (User Selectable)
  • (1) MADI In
  • GPIO/COMM
  • (1) 100/1000 BaseT Ethernet Port
  • (All coaxial connectors HD-BNC)

    Note: Rear modules with SFP access do not come standard with any SFP functionality. SFP functionality is available only when used in conjunction with SFP option.
    Note: Due to the alignment of the 9905-MPx card and this rear module, the combination of the card and rear module
    will consume the adjacent odd frame slot in addition to the even slot occupied by the card.
    Note: This rear module cannot be installed in frame slots 19/20 location. The 9905-MPx card, when installation is
    attempted, will clash/interfere with the frame network controller card.
