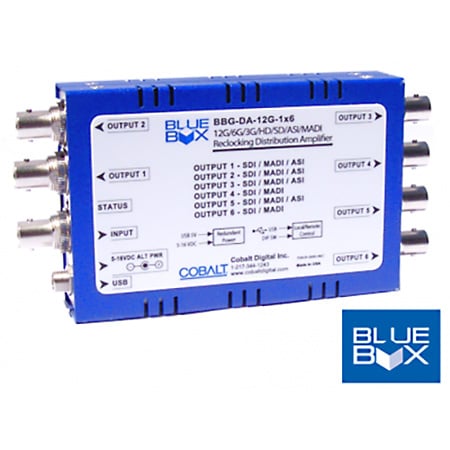

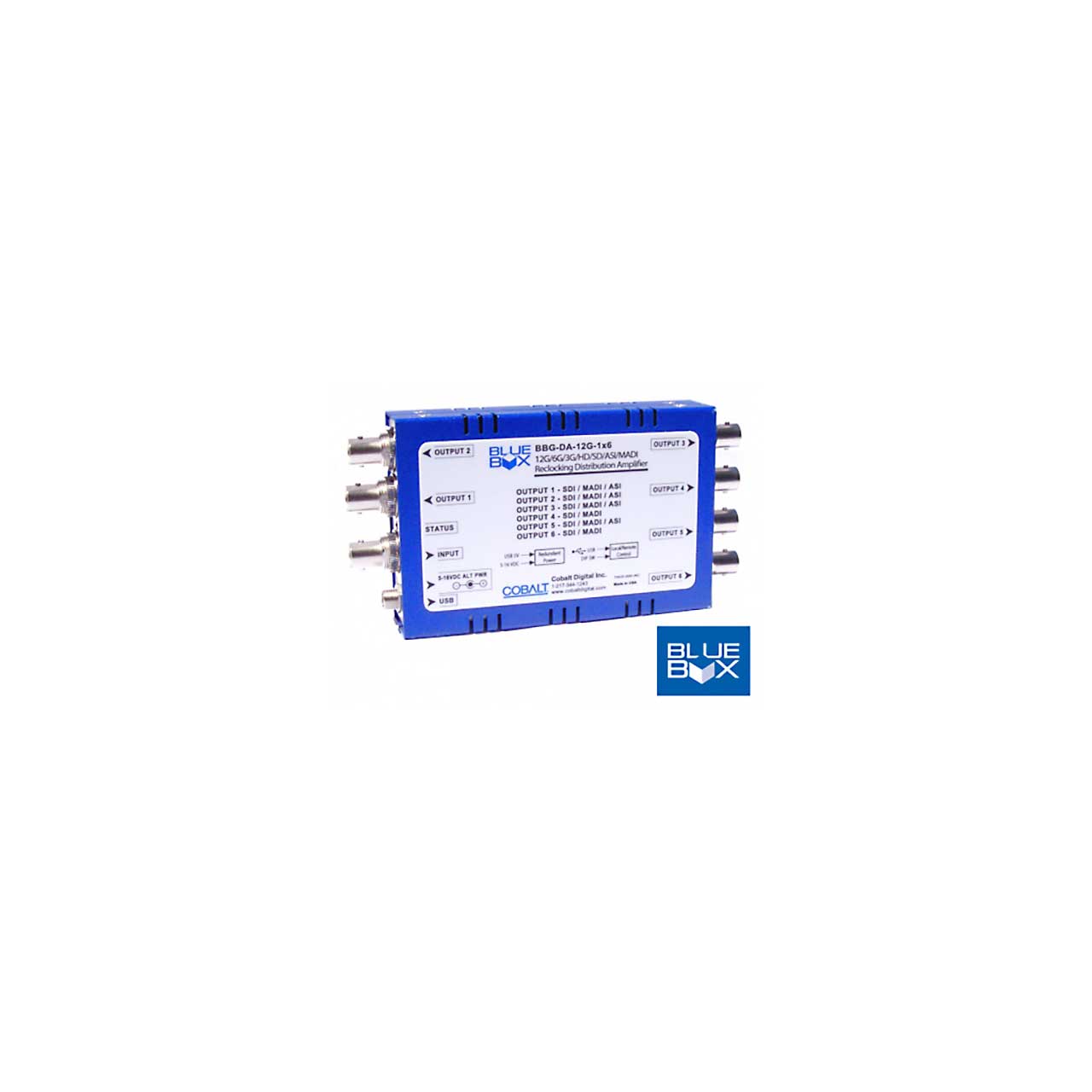

Cobalt BBG-DA-12G-1x6-PS5 12G/3G/HD/SD/SDI ASI MADI Reclocking Distribution Amplifier with PS5 Universal Power Supply

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Cobalt BBG-DA-12G-1x6-PS5 12G/3G/HD/SD/SDI ASI MADI Reclocking Distribution Amplifier with PS5 Universal Power Supply

    Manufacturer: Cobalt Digital

    Item #: CB-BGDA12G1X6PS5   •   MFG #: BBG-DA-12G-1X6-PS5


    This item is custom made. Ordering this product requires written authorization. Please contact a sales engineer at 1-800-522-2025 for details.


    Availability:
    In Stock
    i
    Item is Available for immediate shipping from our warehouse.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The Cobalt BBG-DA-12G-1x6-PS5 a 12G/6G/3G/HD/SD-SDI / ASI / MADI multi-rate distribution amplifier that features an input status LED. The unit is fully automatic and supports SMPTE 2082-1 (12G), 424M (3G), 292M and 259M SDI video signals as well as ASI and MADI, and is equipped with one input and six reclocked SDI outputs. (Reclocking for 12G/6G/3G/HD/SD-SDI and MADI inputs; all other bit rates are non-reclocking.) The unit supports 1x4 ASI distribution using its non-inverting outputs.

      The BBG-DA-12G-1x6-PS5 includes the PS5 universal power supply.


      • Features

        • Six 12G/6G/3G/HD/SD equalized and reclocked outputs
        • 1x4 ASI distribution capability
        • Input status LED indicator
        • Auto-reclock for SMPTE 2082-1, 424M, 292M, 259M, and MADI
        • Small rugged portable standalone package ideal for portable installations. Optional BBG-MB mounting bracket provides rigid, secure mounting to mounting surfaces.
        • Rugged construction backed with a five-year warranty.

      • Specifications

        • Power
        • <2 Watts; 5-16 VDC (compatible with Power Supply PS4 (North America) or PS5 (International). (See Ordering Information for details.)

          12G/6G/3G/HD/SD-SDI / ASI / MADI Inputs
        • Number of inputs: 1
        • Impedance: 75Ω
        • SDI Formats Supported: SMPTE 2082-1, 424M, 292M, 259M
        • Other Formats Supported: ASI, MADI

          Receive Performance; Equalized (Cable Length; Belden 1694A)
        • 12 Gbps: 80m
        • 6 Gbps: 110m
        • 3 Gbps: 160m
        • 1.485 Gbps: 180m
        • 143-360 Mbps: 400m

          12G/6G/3G/HD/SD-SDI / ASI / MADI Outputs
        • Number of DA outputs: 6
        • Signal Level: 800 mV +/- 10%
        • DC Offset: 0.0V +/- 0.5V
        • Jitter 12 Gbps: Alignment (<100 kHz) Jitter: < 0.3 UIll Timing (<10 Hz) Jitter: < 8 UI
        • Jitter 6 Gbps: Alignment (<100 kHz) Jitter: < 0.3 UI; Timing (<10 Hz) Jitter: < 4 UI
        • Jitter 3 Gbps: Alignment (<100 kHz) Jitter: < 0.3 UI; Timing (<10 Hz) Jitter: < 2 UI
        • Jitter 1.5 Gbps: Alignment (<100 kHz) Jitter: < 0.2 UI; Timing (<10 Hz) Jitter: < 1 UI
        • Jitter 270 Mbps: Alignment (<1 kHz) Jitter: < 0.2 UI; Timing (<10 Hz) Jitter: < 0.2 UI
        • Impedance: 75 Ω

          Dimensions (W x H x D)
        • 5.8" x 2.9" x 1.1" (including connector projections) (147 x 74 x 28 mm)

      • Warranty

        • 5 Year
