Clear-Com CZ11467 MB300ES Intercom System Base Station ONLY with 115-230 VAC Power

ITEM #: CLCM-CZ11467 MFG #: CZ11467

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$3,325.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    CZ11467 - Overview

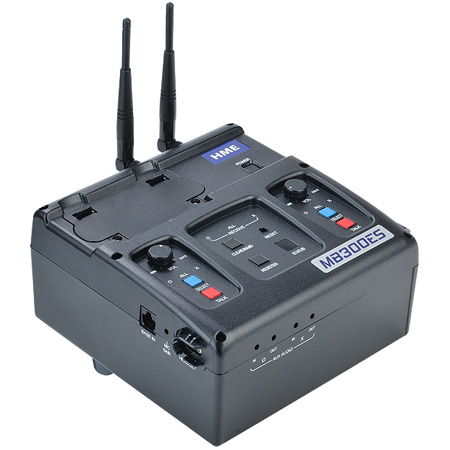

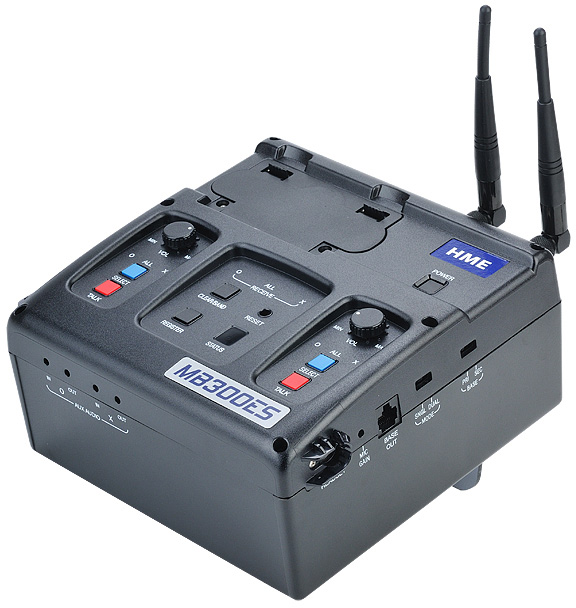

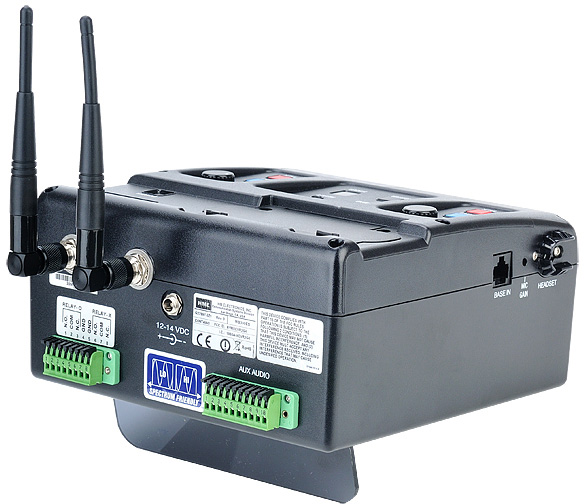

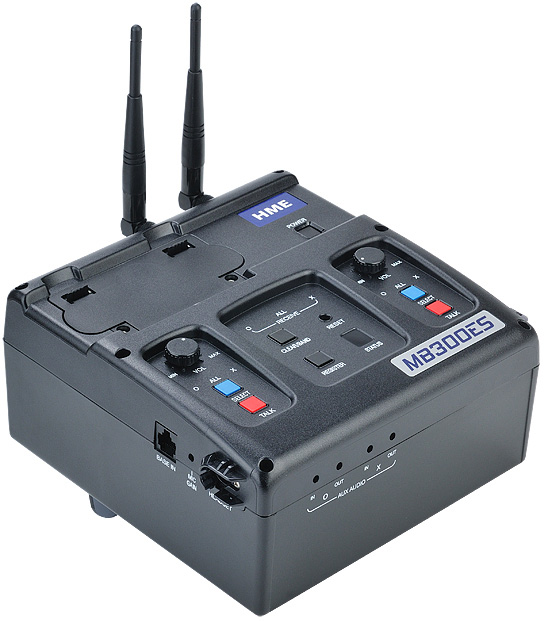

    The Clearcom MB300ES is an intercom system base station for use with the DX300ES 2.4 GHz digital wireless intercom system. The flexible DX300ES offers a two-channel mobile intercom system that is easy to set up and use, and it's expandable to accommodate larger operations. The compact design makes it highly portable and convenient to deploy instantly where full-duplex communication is required.

    Each base can support up to four full-duplex or 12 half-duplex wireless beltpack and/or WH301 wireless all-in-one headset users. By linking two base stations together, up to 6 full-duplex or 30 half-duplex beltpack users can be in communication. Special features include dedicated channel relays and 4-wire audio interfaces for ease of connectivity to third-party systems.

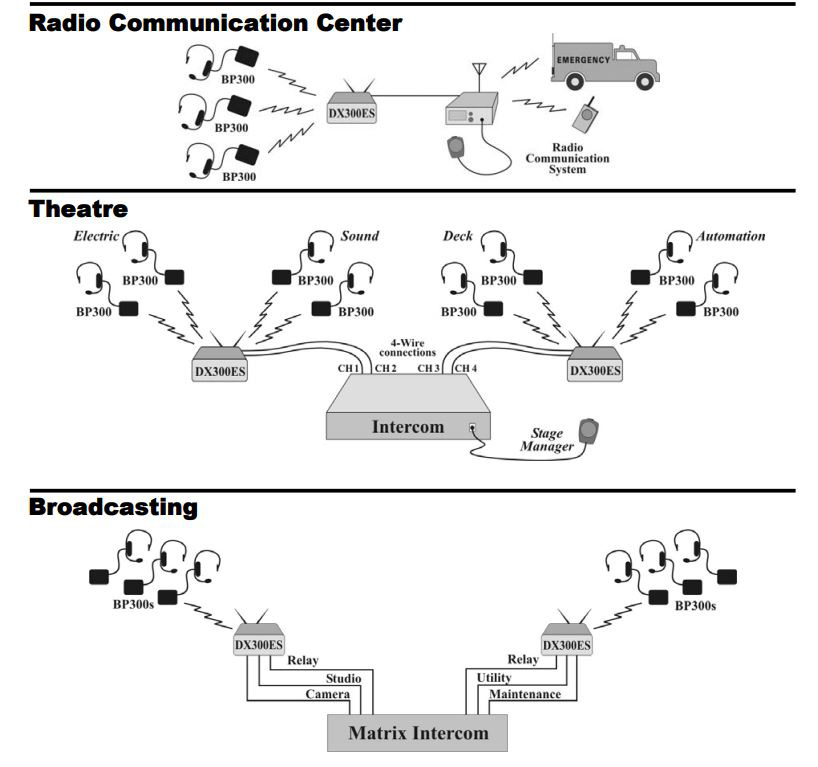

    Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system.

    • Features:

      • Two-Channel 2.4GHz Mobile Base Station
      • Up to 4 full-duplex or 12 half-duplex beltpack and/or all-in-one headset users per base station
      • Link two bases together to support a maximum of 30 users
      • Secure 64-bit encryption
      • Dedicated channel relays
      • 10-pin terminal strip connector for easy connection to 4-wire intercom systems
      • Triple diversity (space, time and frequency) operation for extreme multi-path environments
      • No frequency coordination or licensing for operation
      • Power via 100-240 VAC, 12-14 VDC, 1.5V "AA" batteries or an optional rechargeable BAT850 battery

    • Specifications:

      • System Specifications
      • Frequency Range: All (2400 - 2483.5MHz)
      • Low (2401.92 to 2439.936MHz)
      • High Band (2443.392 to 2481.408MHz)
      • Frequency Response: 200Hz to 3.5kHz
      • Security: 64-Bit Encryption
      • Temperature Range: 4 to131°F (-20 to 55°C) Typ.
      • Transmit/Receive: Frequency-Hopping, Spread Spectrum (FHSS)
      • Transmit Power: 100mw Burst
      • Modulation Type: Gaussian Filtered FSK, TDMA
      • Frequency Stability: 13ppm
      • Harmonics/Spurious: Exceeds FCC and ETSI Specifications Over Temperature
      • RF Sensitivity: <-90dBm w 10-3 BER
      • System Distortion: <2%
      • Dynamic Range: -90dBm to -20dBm;
      • FCC License: None Required (Approved for Worldwide Use)
      • FCC Acceptance: Part 15

        Base Station Specifications
      • Antenna Type: External, Dual Diversity ½-Wave Dipole, R-TNC Connector (x2)
      • Power Requirements: 100-240V AC, 50-60Hz or 12-14V DC or Six 1.5V AA Batteries or
      • BAT850 Rechargeable Battery (Optional)
      • Size: 8 x 8 x 3.5in (20.32 x 20.32 x 8.89cm)
      • Weight: 2.75 lb. (1.25kg) with Battery
      • AUX I/O: 600 Ω Balanced, with Level Adjustment
      • Headset Connector (x2): Mini-DIN
      • Headset Output: 200mW into 32W
      • Relay: 8-Pin Phoenix - NC,COM,NO,GND (x2)
      • 2A @ 30V DC

    • Item Includes:

      • 115-230VAC power supply
      • Power cord
      • Two AA battery sleds
      • Two antennas
      • Interconnect cable
      • Manual

    • GTIN:

      0609385519543
