Cleerline SSF-SFP-RJ452POE-1G Gigabit 2x10/100/1000Base-T to 100/1000Base-X SFP Slot / PoE+ / DC Power Supply

ITEM #: CLT-SSFSFPRJ452P MFG #: SSF-SFP-RJ452POE-1G

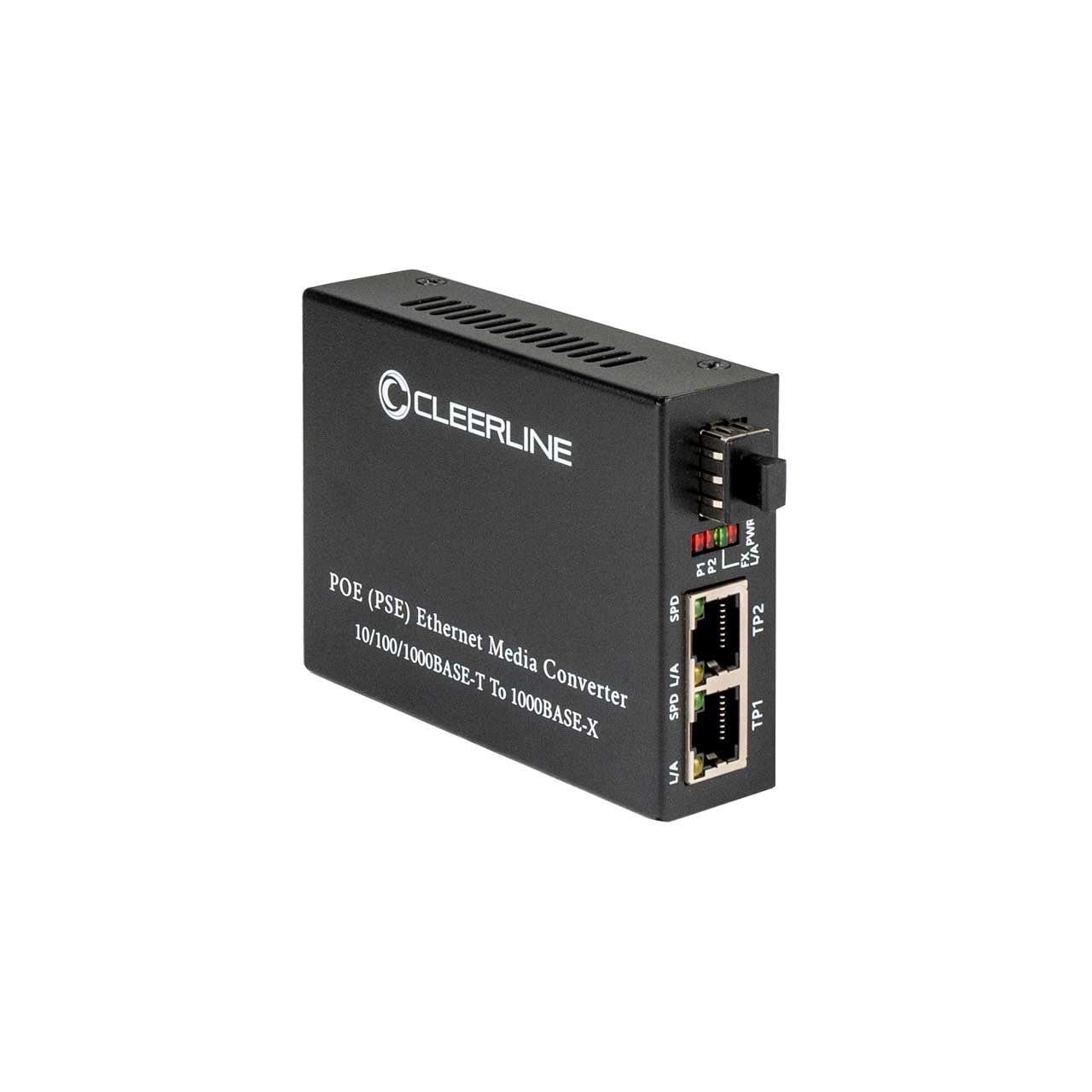

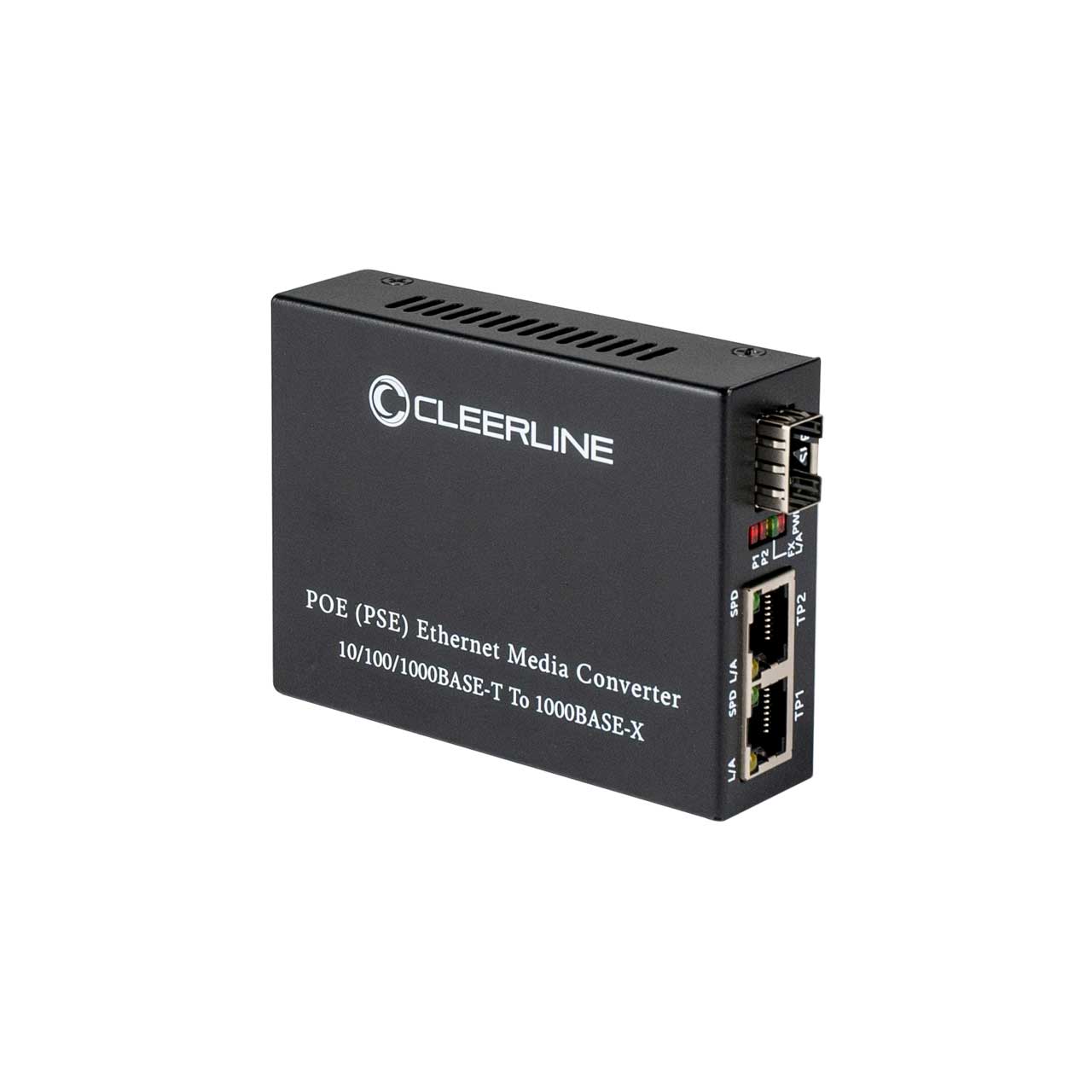

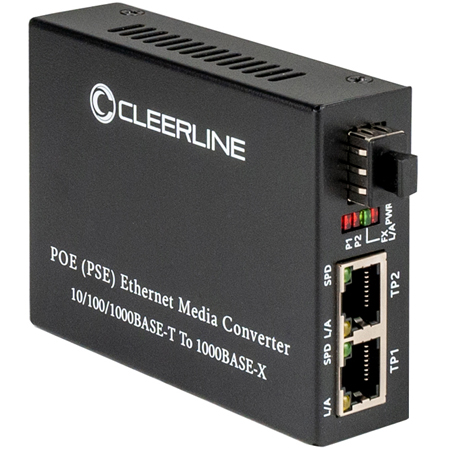

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CLT-SSFSFPRJ452P

SSF-SFP-RJ452POE-1G - Overview

Easily convert between fiber and Ethernet with the Cleerline SSF-SFP-RJ452POE-1G! The unit includes two RJ45 ports with one open SFP slot (SFPs sold separately). An external power supply with AC adapter is also included.

This Gigabit Ethernet 10/100/1000Base-T to 2x 100/1000Base-X non-managed stand-alone media converter provides PoE+ (30W PSE). The unit’s DIP switches provide flexibility in configuration. The SSF-SFP-RJ452POE-1G’s single SFP slot allows both Gigabit and Fast Ethernet operation. All SFP types are accepted, including multimode, single mode, CWDM, DWDM, or BiDi. BiDi allows bi-directional transmission over a single strand of fiber.

Fiber port speed, LFP function, or transparent or switching converter mode can be adjusted via DIP sw.

Power status, UTP and FX port speed and the link status of each port are indicated by LED lights.

The converter also provides Auto-Negotiation & Auto MDI/MDI-X.

  • Features:

    • 2x10/100/1000Base-T to 100/1000Base-X SFP Converter
    • DIP settings for fiber speed, LFP functions and PoE type
    • Forward 2048 bytes (Max.) packets in switch mode
    • Forward 9Kbytes Jumbo packets in transparent converter mode
    • Port isolation available for the two RJ45 ports
    • Auto-Negotiation & Auto MDI/MDI-X
    • Supports Q in Q double tagged frame transparent
    • Supports IEEE 802.1Q Tag VLAN pass thru


  • Specifications:

    • Optical Interface
    • Connector: SFP slot
    • Data Rate: 1.25G (GE) or 155M (FE)
    • Duplex Mode: Full duplex
    • Fiber: MM 50/125µm, 62.5/125µm, SM 9/125µm
    • Distance: Depending on SFP used
    • Wavelength: Depending on SFP used, MM 1310nm, SM 1310, 1550nm, WDM 1310TX/1550Rx (Type A), WDM 1550TX/1310Rx (Type B)

      Electrical Interface
    • Connector: RJ45
    • Data Rate: 10Mbps, 100Mbps, 1000Mbps
    • Duplex mode: Full duplex
    • Cable: 100Base-TX Cat .5, 5e or higher, 1000Base-T Cat.5, 5e or higher

      Operation & Details
    • Operating Temperature: 32° to 122°F (0° to 50°C)
    • Operating Humidity: 10 to 90% non-condensing
    • Storage Temperature: -4&def; to 185°F (-20° to 85°C)
    • Dimensions:
      Without AC adapter (no SFP transceiver): 3.70 x 2.79 x 1.02" (94 x 71 x 26mm)
      Standalone AC adapter only: 4.72 x 2.16 x 1.34" (120 x 55 x 34mm)
    • Weight:
      Adapter: 0.45Lbs (205g)
      Converter: 0.44Lbs (200g)

      Standards & Power
    • Standards: IEEE 802.3, 802.3u, 802.3Z, 802.3ab
    • Indications: LED (Power, FX Link, SPD, TP Link)
    • Power Input: Separate AC Adapter, 90-240VAC to DC52V @ 1.25A
    • PoE Specs: 52VDC voltage output, short and overload protection, Pin polarity 1/2 (V+), 3/6 (V-); IEEE 802.3at
    • Power Consumption: 5W with no PSE, 60W at max load PoE+ (802.3at)
    • Certification: CE, FCC
    • MTBF: 65,000 hrs
