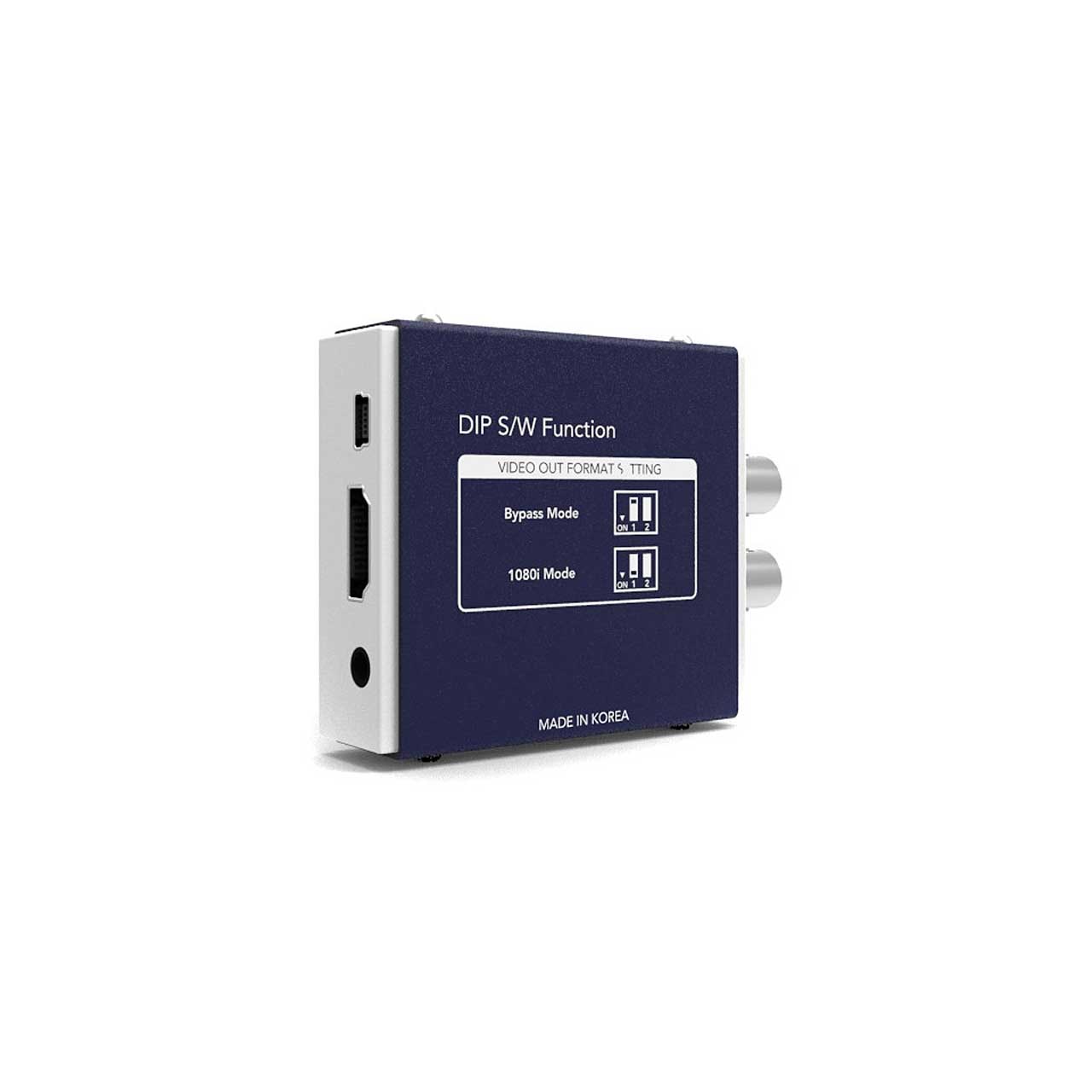

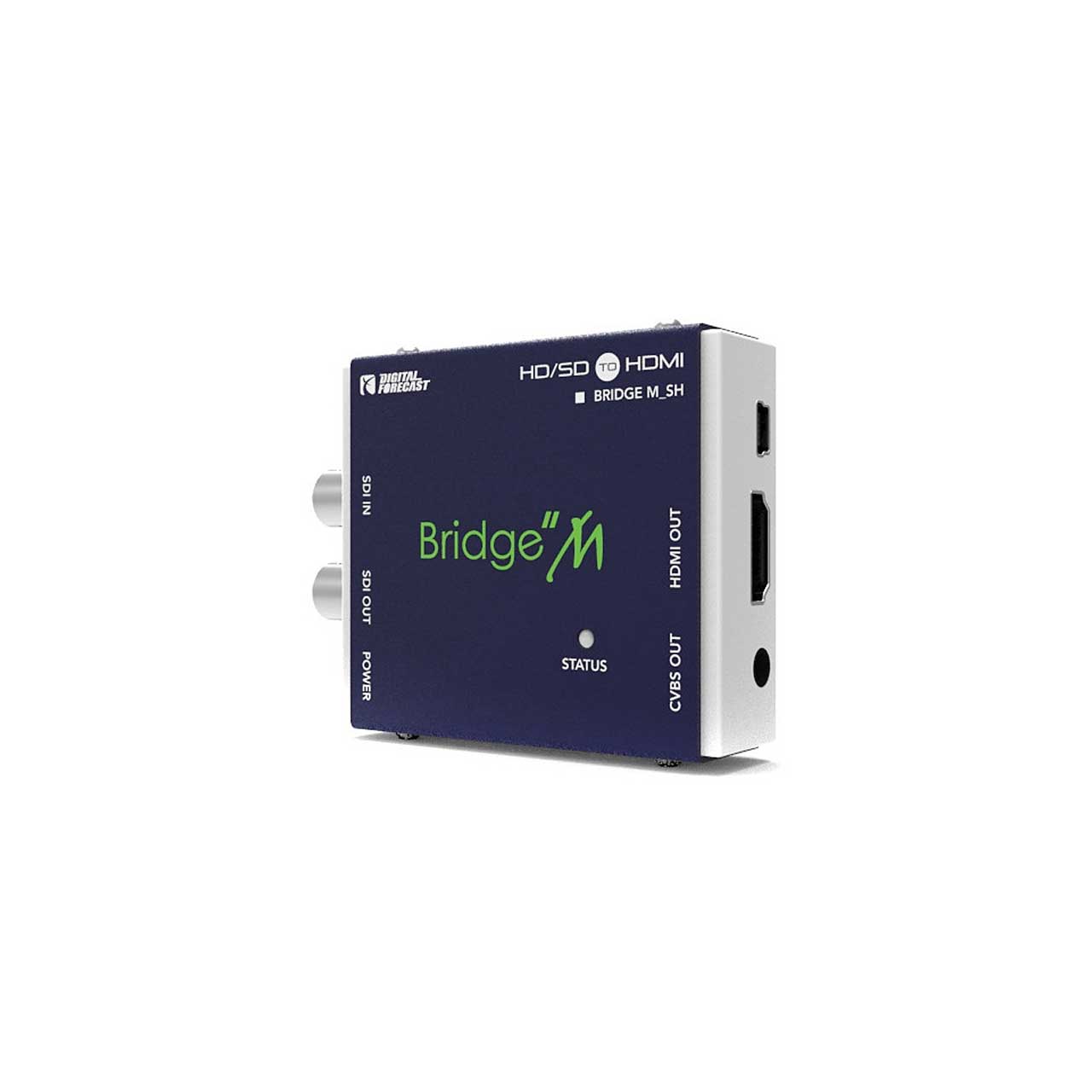

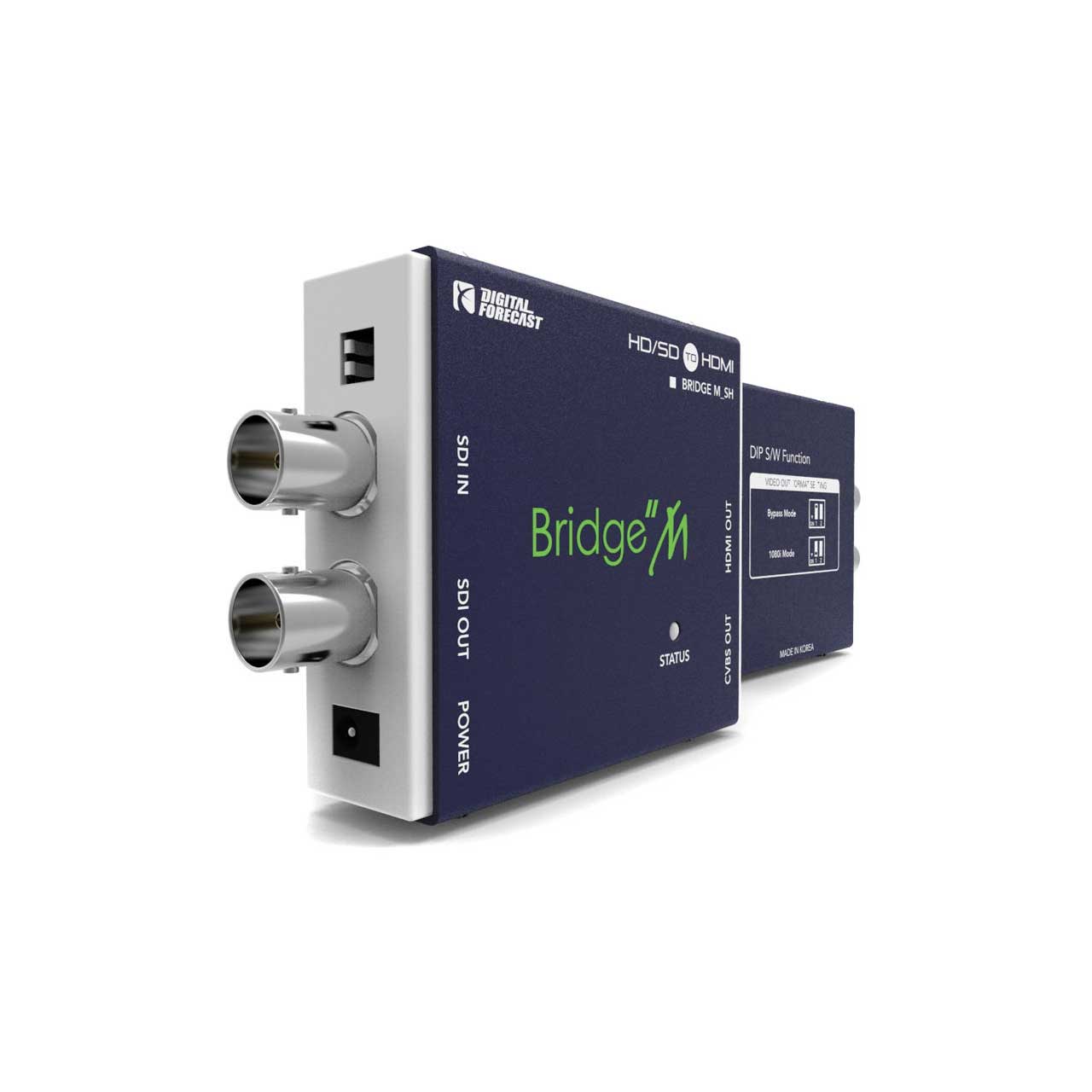

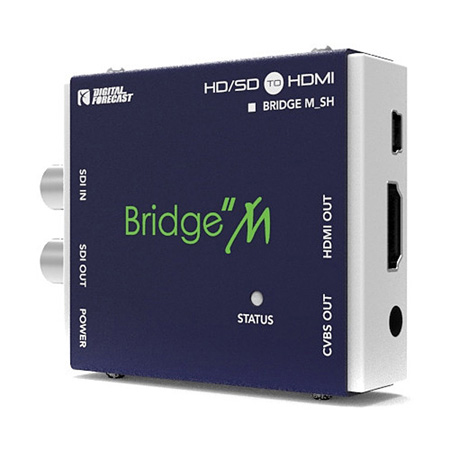

Digital Forecast M-SH SDI to HDMI Converter with Scaler

Manufacturer: Digital Forecast

Item #: DF-M-SH   •   MFG #: M-SH



List Price:$270.00
Our Price:$257.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The M-SH Converter is part of the Digital Forecast Bridge M Series (Micro Type Converters). The M-SH converts SMPTE standard SDI signals to an HDMI format, supporting up to 1080p resolution, allowing you to view professional grade SDI signals on common HDMI displays such as televisions, projectors or monitors. This converter features a separate composite video output, built-in scaler for ensuring the best resolution out for your needs, as well as an SDI output for transmitting your re-clocked SDI signal to an additional SDI source.


    • Features

      • HD/SDI to HDMI converter
      • Small and high-end function inside high video processing engine
      • SDI signal monitoring for TV
      • Normal bypass mode or fixed format out mode
      • 1 HD/SDI input (SD/HD/3G all standard format)
      • 1 HD/SDI input re-clocking out
      • 1 HDMI out (SD/HD/3G all standard format)
      • Low power consumption
      • DC 5V - 24V wide operating range

    • Specifications

      • Physical
      • Dimension (H x W x D): 68 x 59.2 x 20 (mm)
      • Weight: 90g
      • Power Level: +12 VDC
      • Power Consumption: 3.0Watts (Max : 4Watts) ?
      • Operating Temperature: -20? ~ 70?
      • Humidity: 0 to 95% RH, non-condensing
      • Data Rate: 3 Gbps
      • Signal Level: 800mVp-p +/- 50m
        Digital Video Specs
      • Supports HDMI v1.3
      • Supports multi-rate SDI formats
      • SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
      • SMPTE 296M: 720p (60/59.94/50)
      • SMPTE-274M,SMPTE-292M: 1080i (60/59.94/50) 1080p (30/29.97/25/24/23.98)
      • SMPTE-424M: 1080p (60/59.94) 3G

    • Warranty

      • 2 Years
