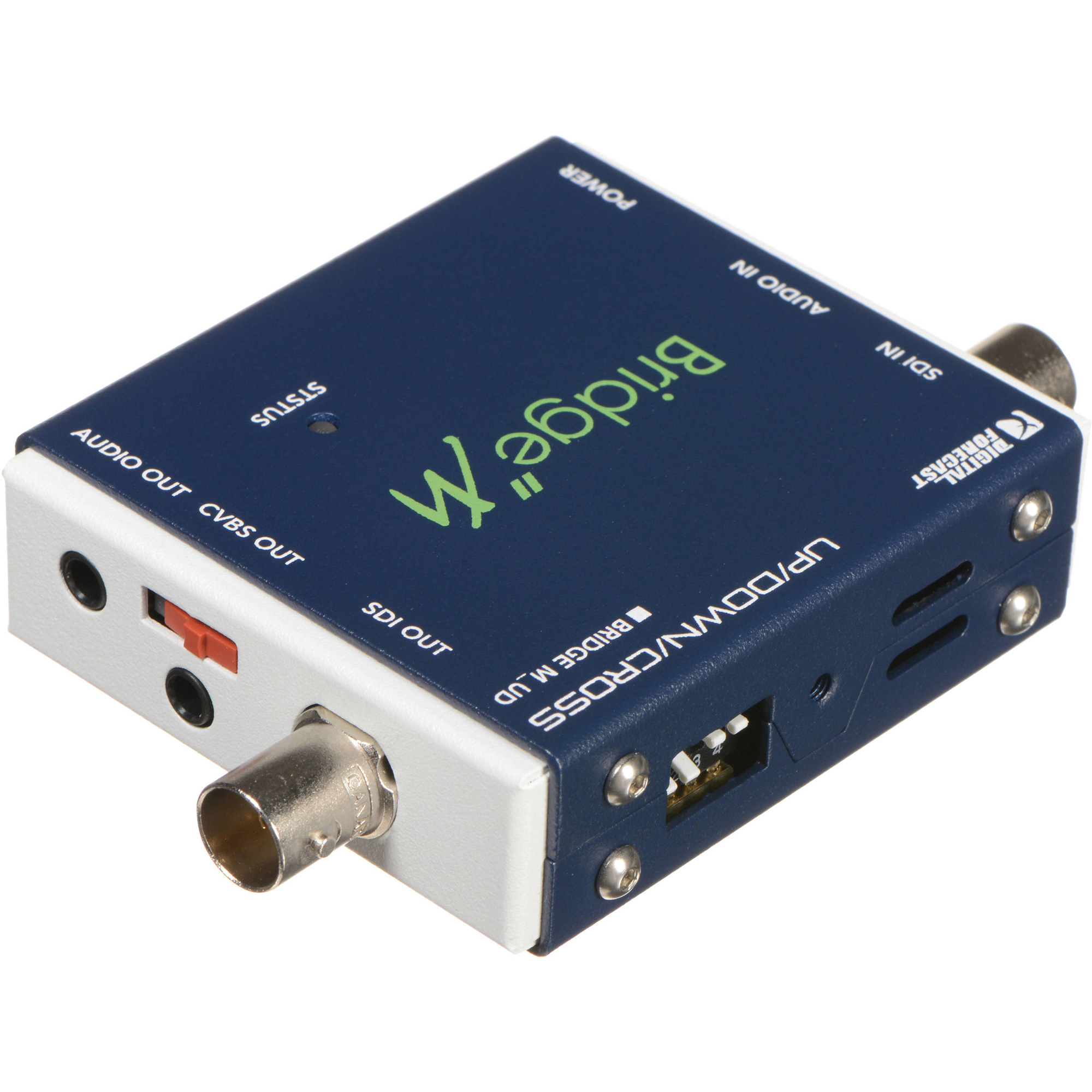

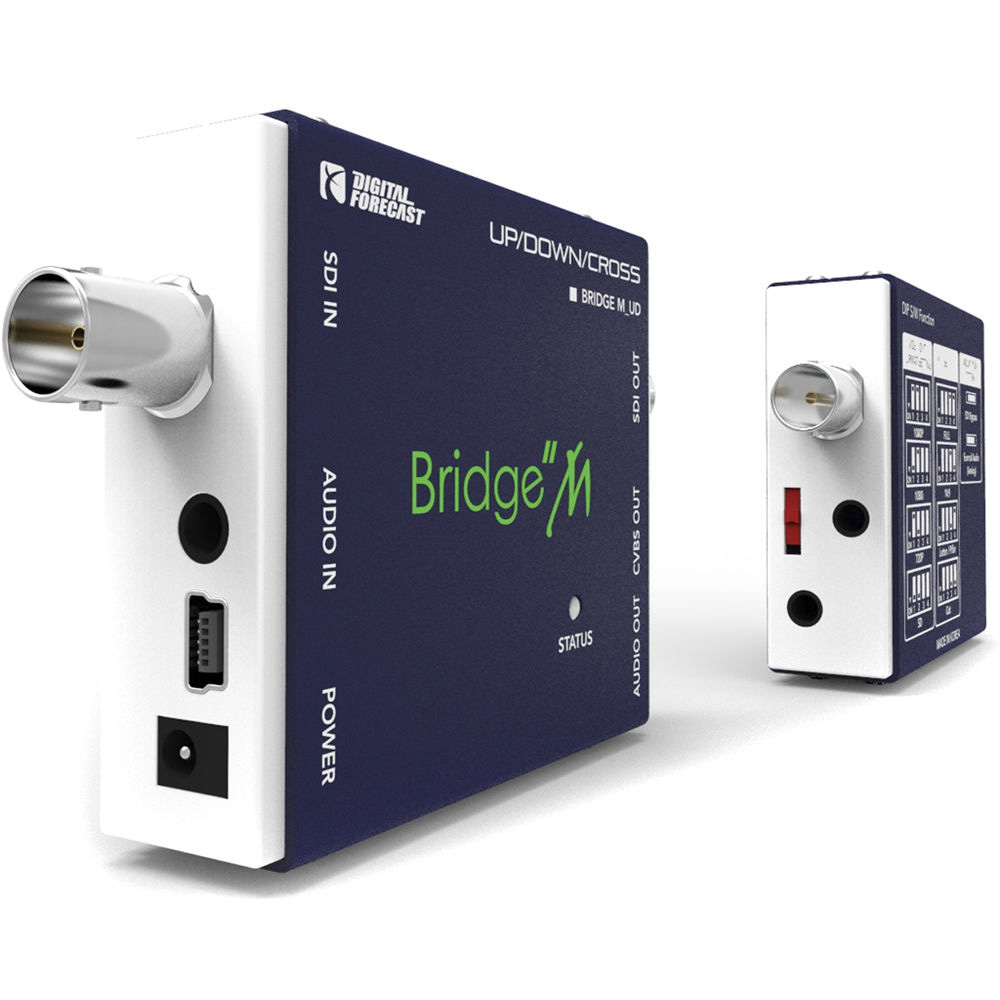

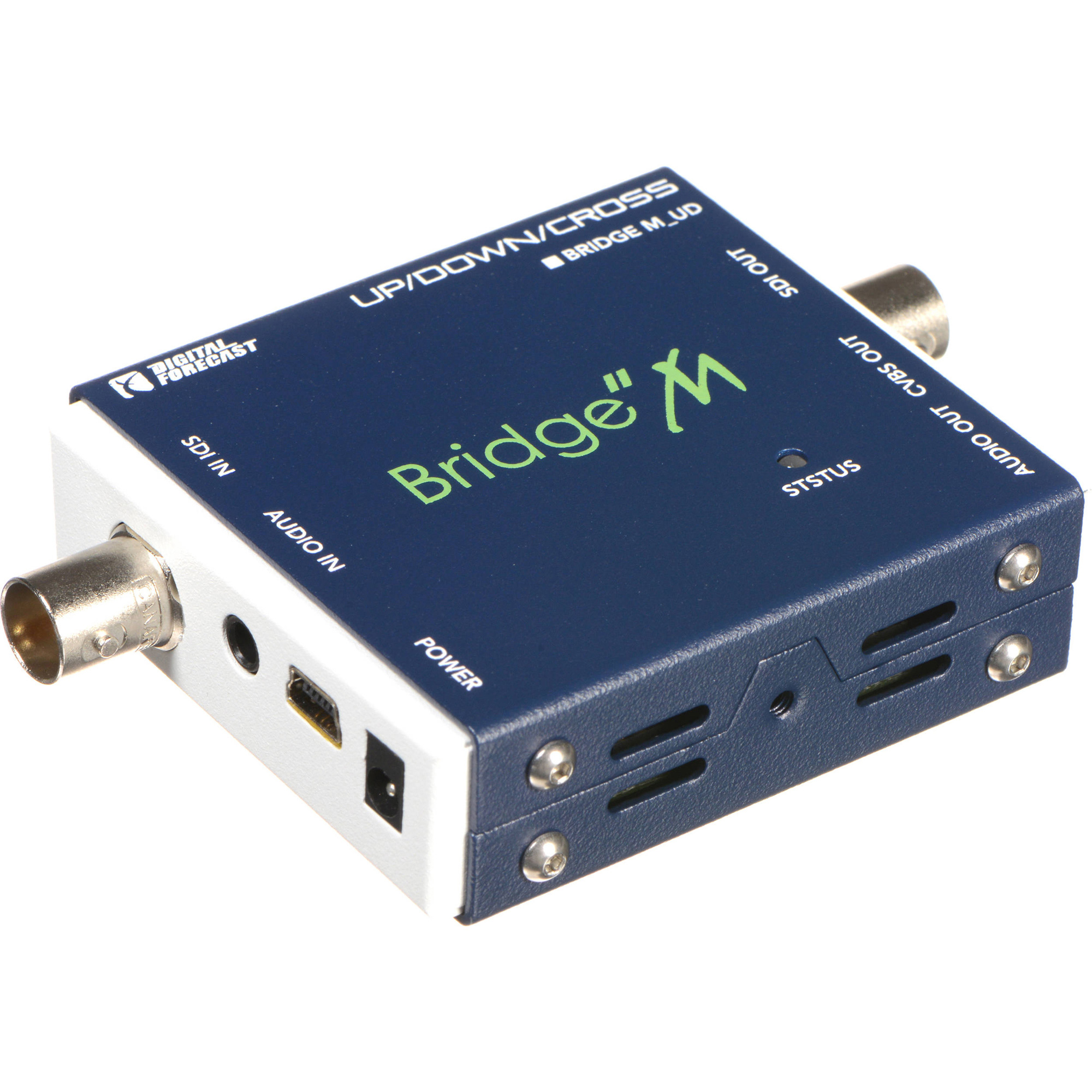

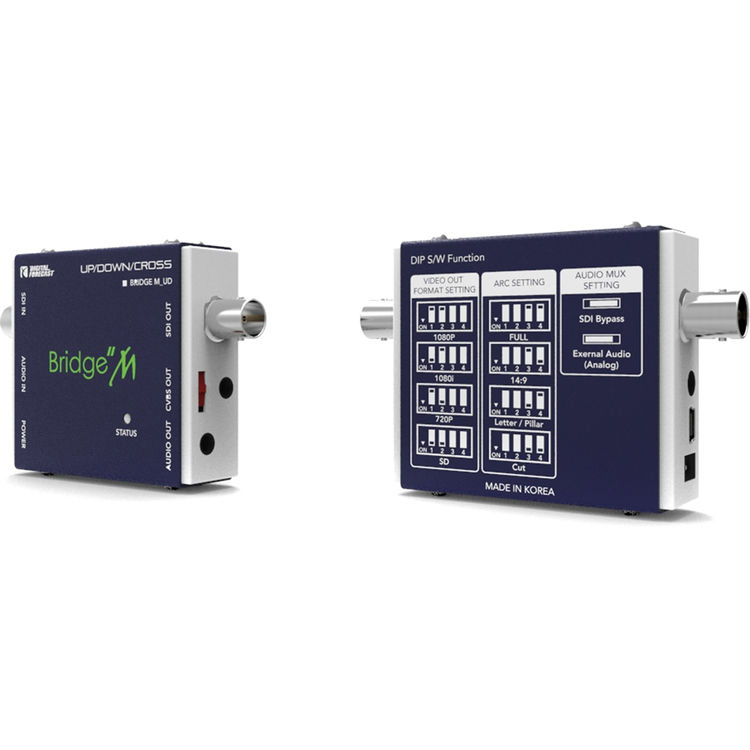

Digital Forecast M-UD HD SDI to Up/Down/Cross with Monitoring - 1 CVBS Ouput
  • Digital Forecast M-UD HD SDI to Up/Down/Cross with Monitoring - 1 CVBS Ouput
  • Digital Forecast M-UD HD SDI to Up/Down/Cross with Monitoring - 1 CVBS Ouput
  • Digital Forecast M-UD HD SDI to Up/Down/Cross with Monitoring - 1 CVBS Ouput
  • Digital Forecast M-UD HD SDI to Up/Down/Cross with Monitoring - 1 CVBS Ouput
  • Digital Forecast M-UD HD SDI to Up/Down/Cross with Monitoring - 1 CVBS Ouput

Questions? Ask a Markertek Expert:
800-522-2025 Email

Digital Forecast M-UD HD SDI to Up/Down/Cross with Monitoring - 1 CVBS Ouput

Manufacturer: Digital Forecast

Item #: DF-M-UD   •   MFG #: M-UD



List Price:$360.00
Our Price:$342.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The M-UD is part of the Digital Forecast Bridge M Series (Micro Type Converters) and is an Up/Down/Cross Converter with SDI input that accepts SD, HD and 3G-SDI signals. Key features of this unit include selectable output formats via the easily accessible DIP switches, a composite video output for monitoring, audio mux/demux functionality, built-in mini USB and 3.5 stereo audio jack inputs. Your SDI signals can travel in any direction with this converter box.


    • Features

      • HD/SDI to HD/SDI Up/Down/Cross/scan converter with monitoring CVBS
      • Small and high-end function inside high video processing engine
      • Audio mux function (selectable Mux Audio source between embedded SDI and analog L/R )
      • Audio demux function (same out Embedded SDI and Analog L/R )

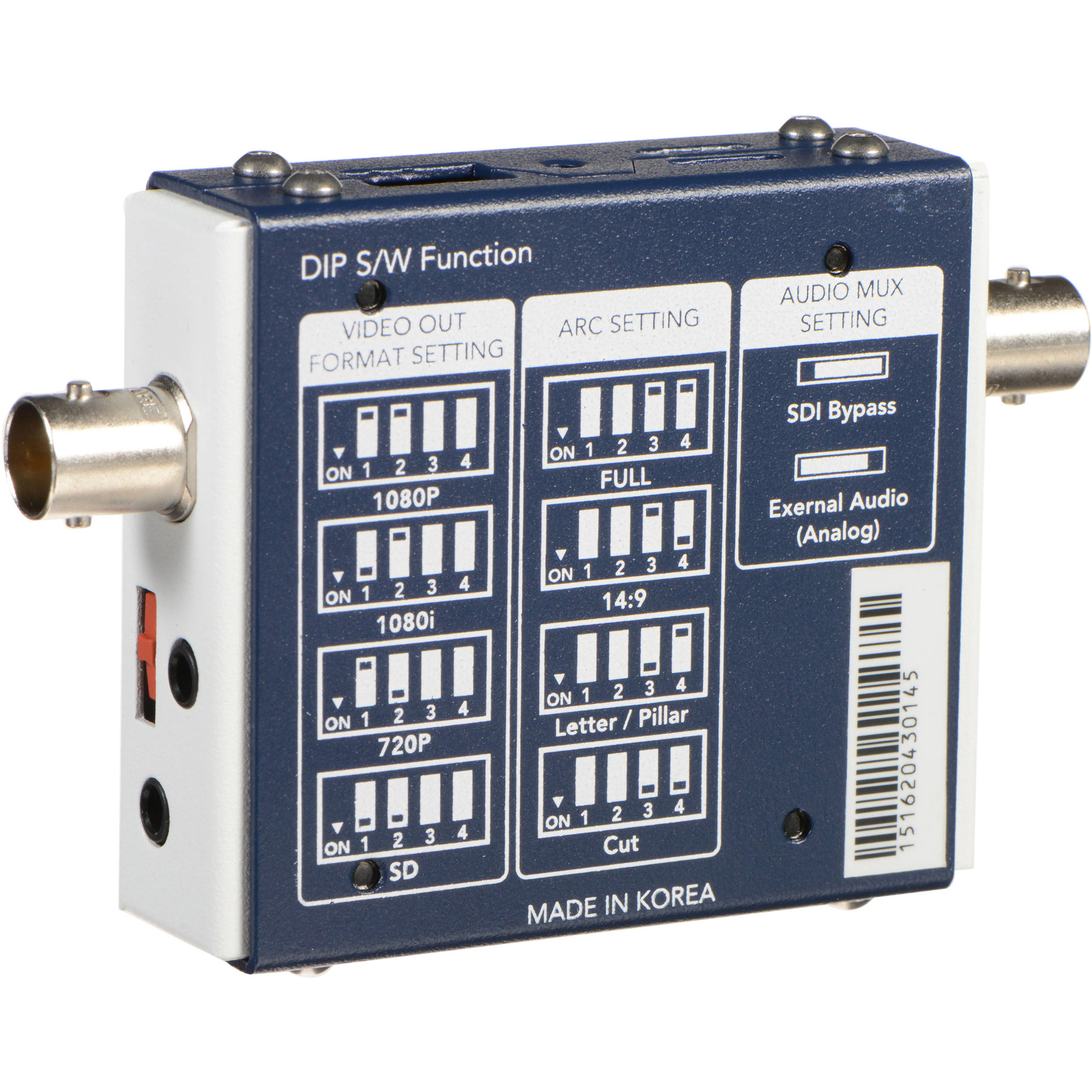

      • User selectable output format using DIP S/W (Up/Down/Cross - SD/720P/1080i/3G)
      • User selectable output ARC using DIP S/W (Full/Letter/Pillar/14:9/Cut)
      • 1x HD/SDI input (SD/HD/3G all standard format )
      • 1x L/R stereo audio input
      • 1x HD-SDI out ( SD/HD/3G all standard format )
      • 1x CVBS for monitoring (NTSC or PAL )
      • 1x L/R stereo audio output (stereo audio jack )
      • 12V DC power supply

    • Specifications

      • Physical
      • Dimension (H x W x D): 68 x 59.2 x 20 (mm)
      • Weight: 95g
      • Power Level: +12 VDC
      • Power Consumption: 4.73 Watts (Max: 5 Watts) ?
      • Operating Temperature: -20? ~ 70?
      • Humidity: 0 to 95% RH, non-condensing
        Digital Video Specs
      • Supports multi-rate SDI formats
      • SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
      • SMPTE 296M: 720p (60/59.94/50)
      • SMPTE-274M, SMPTE-292M: 1080i (60/59.94/50) 1080p (30/29.97/25/24/23.98)
      • SMPTE-424M: 1080p (60/59.94) 3G

    • Warranty

      • 2 Years
