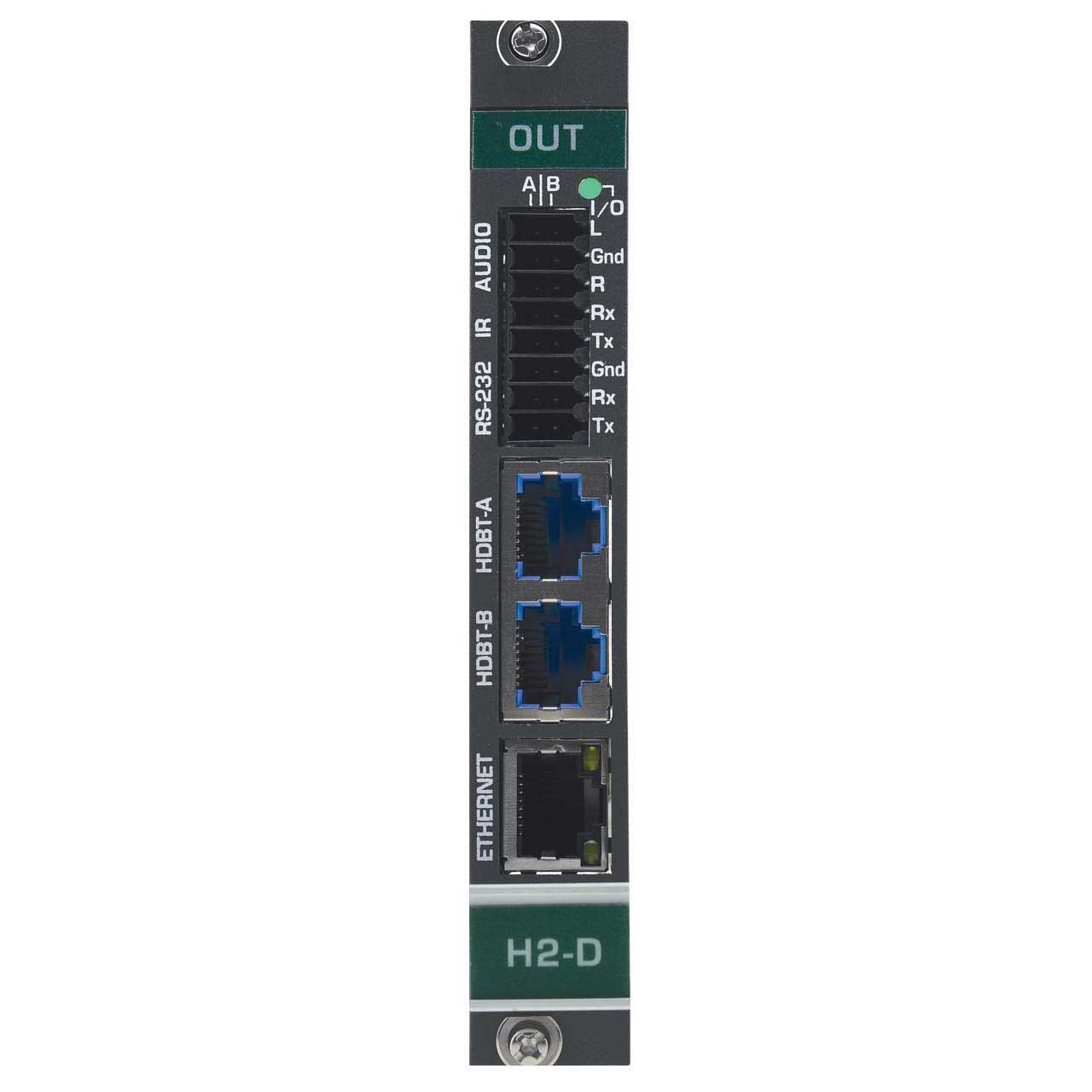

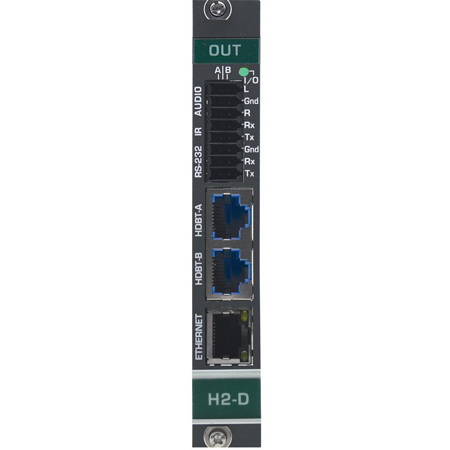

Kramer DTAxrD2-OUT2-F34 2-Channel 4K HDR HDMI over Extended Reach HDBaseT 2.0 Output Card with Analog Audio

DTAXRD2-OUT2-F34 - Overview

Selectable embedded or de-embedded analog audio

• Features:

  • Max. Data Rate - 18Gbps (6Gbps per graphics channel), 10Gbps DSC over CAT cable.
  • Max. Resolution - 4K@60Hz (4:4:4).
  • Analog Audio Embedding/De-embedding or ARC - On the same jack.
  • HDBaseT Technology - HDTV compatible, HDCP 2.2/1.4 compliant.
  • System Range - Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note: When using Kramer HDBaseT cables.
  • Ethernet Extension - Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
  • Bidirectional RS-232 Extension: - Serial interface data flows in both directions, allowing data transmission and device control.
  • Bidirectional Infrared Extension: - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
  • 3D Pass-Through.


• Specifications:

  • INPUTS
  • 2 HDBaseT: On RJ-45 connectors


  • PORTS
  • 2 Unbalanced Audio: On a 6-pin terminal block connector
  • 2 RS-232: On a 6-pin terminal block connector
  • 2 IR: On a 4-pin terminal block
  • 1 Ethernet: On an RJ-45 connector


  • EXTENSION LINE
  • Compression: Low-level standard DSC compression for signals above 4K@60 (4:2:0)
  • 4K@60 (4:4:4) Range with Compression: Up to 100m (330ft)
  • 4K@60 (42:0) Range with No Compression: Up to 100m (330ft)
  • Full HD (1080p@60Hz) Range with No Compression: Up to 130m (430ft),
  • Full HD (1080p@60Hz) Range in Ultra-Long Mode: Up to 180m (590ft)
  • Compliance: HDBaseT 2.0
  • Note: Use Kramer shielded cables to achieve optimum extension ranges


  • VIDEO
  • Max Bandwidth with Compression: 17.95Gbps (5.98Gbps per graphic channel)
  • Max Bandwidth with No Compression: 10.2Gbps (3.4Gbps per graphic channel)
  • Max Resolution with Compression: 3840x2160@60Hz 4:4:4 24bpp
  • Max Resolution with No Compression: 4096x2160@60Hz 4:2:0 24bpp
  • Compliance: HDCP 2.2, HDR 10


  • EXTENDED ETHERNET
  • Bandwidth: Up to 100Mbps


  • EXTENDED RS-232
  • Baud Rate: 300 to 115200


  • POWER
  • Consumption: 21.5W


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing


  • REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
  • Safety: CE
  • Environmental: Complies with appropriate requirements of RoHs and WEEE


• Item Includes:

  • DTAxrD2-OUT2-F34 2-Channel 4K HDR HDMI over Extended Reach HDBaseT 2.0 Output Card with Analog Audio


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063091101
