Gefen EXT-UHDKA-LANS-TX 4K Ultra HD HDMI KVM Over IP - Sender Package

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

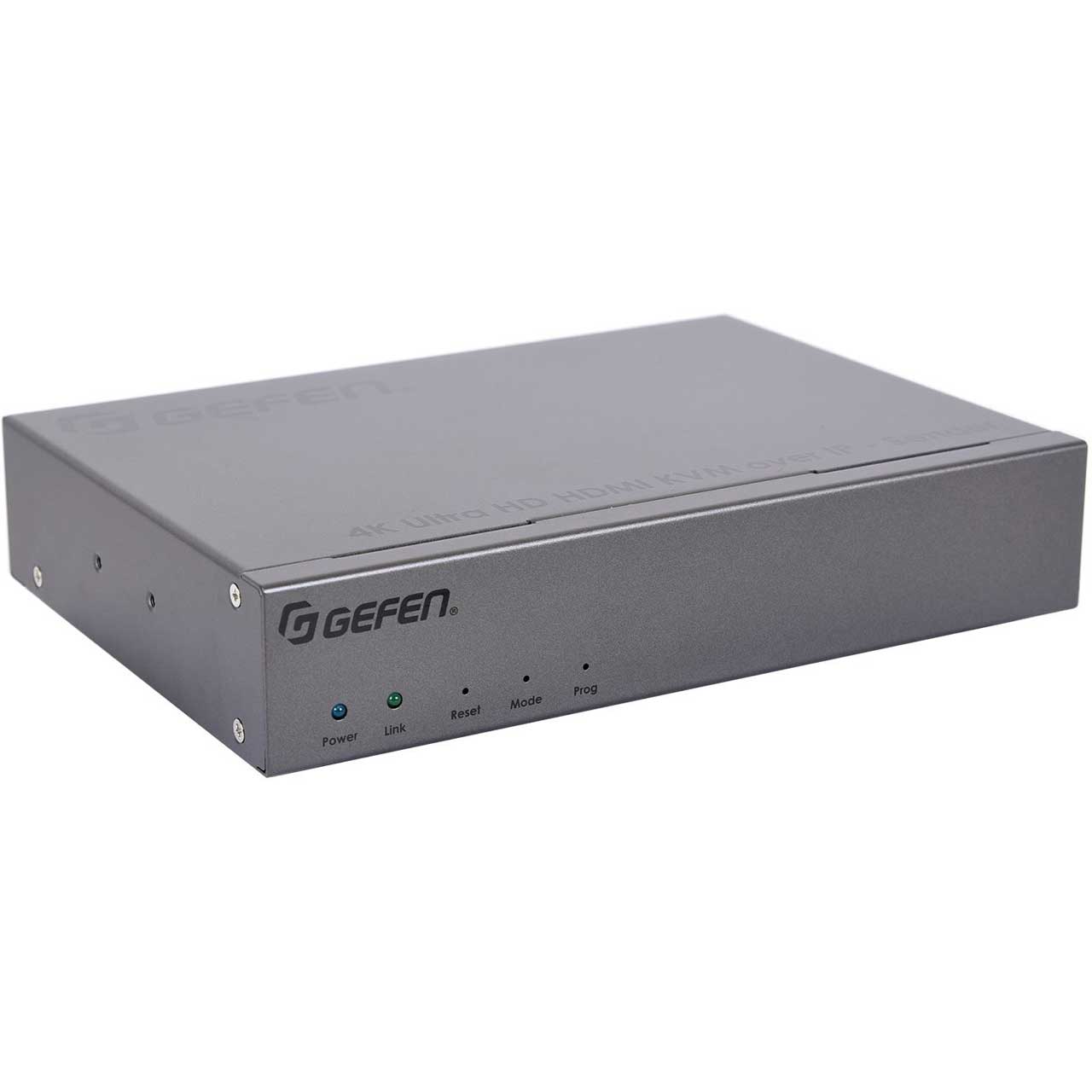

    Gefen EXT-UHDKA-LANS-TX 4K Ultra HD HDMI KVM Over IP - Sender Package

    Manufacturer: Gefen Inc

    Item #: EXT-UHDKA-LANSTX   •   MFG #: EXT-UHDKA-LANS-TX



    List Price:$760.00
    Our Price:$630.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Extend and Distribute 4K HDMI w/ HDR, USB, RS-232, IR, and 2-way audio over a Local Area Network Gefen's AV over IP solutions continue our tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. Our Gen 2.0 KVM products offer enhanced performance, features, and functionality such as 4K Ultra HD with HDR support, built-in scalers, video-wall control, independent USB, RS-232, IR, and audio routing, and backward-compatibility with our first generation products. Each Sender and Receiver extends and routes video, USB, 2-way audio, RS-232, and IR. The EXT-UHDKA-LANS-TX & RX feature maximum input resolution of 4K 60 Hz 4:2:0, and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported. 7.1 channels of HBR (High Bit Rate) lossless and LPCM digital audio can pass through the system as well.

      The Sender unit features a video output for local monitoring of the source. USB, RS-232 2-way IR, and audio can be routed independently between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the new Gefen AV over IP products fully address the ever-growing needs of systems integrators.

      The Receiver features a built-in scaler to help optimize the image for a variety of displays and different viewing environments. It also includes a powerful video wall controller that accommodates any screen configuration up to 16x16 and provides great flexibility in sizing and manipulating live and signage content in demanding installations. Digital and analog audio break-out de-embeds audio from the video and sends it to a separate audio system, enhancing the impact of presentations. The Receiver's integrated USB hub with two USB 2.0 and two USB 1.1 ports accommodates touch panels, keyboard and mouse, and a variety of supported devices. This feature, along with analog audio inputs and outputs, make these products perfect to use in collaborative and interactive installations. To ensure maximum versatility and compatibility, the audio outputs on the Receiver units are compatible with both headphones and line level devices such as powered speakers.


      • Features

        • Extends HDMI, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
        • Independent video, USB, RS-232, IR, and audio routing
        • Backward-compatible with first generation Gefen AV over IP products
        • Supports input resolutions up to 4K 60Hz 4:2:0
        • Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™
        • When used with Gefen DVI-to-HDMI cables (not included), supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920x1200 (WUXGA)
        • Video output on Sender unit for local monitoring of the source
        • KM Emulation feature facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations
        • Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
        • Built-in video wall controller accommodates any number of rows and columns up to 16x16
        • Built-in Audio De-Embedder on Receiver breaks out 2 channel analog, 2 channel PCM, and up to 5.1 channels of Bitstream audio from the HDMI signal, allowing the audio content to be sent to external amplifiers and music distribution systems for added impact
        • Mass-Firmware-Update, quick and automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller
        • Enhanced API for added functionality with third-party control systems
        • Built-in web interface, Telnet, and UDP
        • Compatible with the Gefen Keyboard Switching Controller software, available for download at www.gefen.com
        • Supports 39,900 Senders and a combination of over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
        • Two USB 2.0 ports with data rates up to 480 Mbps and backward-compatibility with USB 1.1
        • Two USB 1.1 ports with KM Emulation, for use with Human Interface Devices (H.I.D.)
        • 802.3af standard Power-over-Ethernet allows the new Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies
        • Two-port Gigabit Ethernet switch built into the Receiver unit
        • Mode switch on Sender for sharpness or motion-optimization of image
        • Field-updatable firmware via EXT-CU-LAN controller or the built-in web server interface
        • Locking power supply connectors
        • Half-rack width Sender and Receiver enclosures are rack-mountable using EXT-RACK-1U-GRY
        • Sender and Receiver can also be surface-mounted using the included L-brackets
        • Low profile Receiver enclosure features an IR Extender port and can be hidden away behind the display

      • Specifications

        • Maximum Pixel Clock: 165 MHz
        • Video Input Connector (Sender): (1) DVI 29-pin, female
        • Video Output Connector (Receiver): (1) DVI 29-pin, female
        • Line Input (Sender): (1) 3.5mm mini-stereo jack
        • Line Output (Sender): (1) 3.5mm mini-stereo jack
        • Mic Input (Receiver): (1) 3.5mm mini-stereo jack
        • Line Output (Receiver): (1) 3.5mm mini-stereo jack
        • USB Host Interface (Sender): (1) USB Type B, female
        • USB Device Connectors (Receiver): (2) USB Type A, female
        • RS-232 Connector (Sender): (1) DB-9, female
        • RS-232 Connector (Receiver): (1) DB-9, male
        • IR Emitter (Sender): (1) 3.5mm mini-mono jack
        • IR Extender (Receiver): (1) 3.5mm mini-stereo jack
        • IR Extender Type: EXT-RMT-EXTIRN
        • Ethernet connector (Sender): (1) RJ-45, shielded
        • Ethernet connectors (Receiver): (3) RJ-45, shielded
        • Mode button (Sender): (1) tact-type
        • Switch button (Receiver): (1) tact-type
        • Reset button (Receiver): (1) tact-type, recessed
        • Link Indicator (Sender/Receiver): (1) LED, green
        • Power Indicator (Sender/Receiver): (1) LED, blue
        • Power Consumption (Sender / Receiver): 10W (max.)
        • Dimensions (Sender / Receiver) (W x H x D): 8.4" x 1.7" x 4.5"

      • GTIN:

        0888814999723
