Thor Fiber F-2HD-1D-TVI-TXRX 2 HD-TVI 1080p Video over Fiber Tx/Rx Kit - Singlemode/Simplex - ST/PC - 12 Mile Range

ITEM #: F-2HD-1DTVI-TXRX MFG #: F-2HD-1D-TVI-TXRX

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$714.00

Our Price:

$595.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


F-2HD-1D-TVI-TXRX - Overview

While many current video deployments are using newer digital transmission systems; legacy analog systems are still relevant and less expensive than their more current counterparts. Thor Fiber now has the F-2HD-1D-TVI-TXRX, a commercial grade Video Over Fiber system in an easy to use kit. Electronic and optical adjustments are never required with these automated plug and play units. LED indicators are provided for instant monitoring of the system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environments. Compatible with AHD-H, AHD-M, AHD-L / HD-TVI 720P & 1080P / HD-CVI 720P & 1080P. The optical module and core circuit are high quality commercial level components that have unparalleled stability, and all optical & electrical interfaces match or exceed international standards.

  • Features:

    • Video Channel: 2-ch unidirectional
    • Data Formats: 1-ch reverse RS485/RS422/RS232 (optional)
    • Transmission Distance: 12.42 Miles (20km) on Singlemode Fiber
    • Fiber Type: Single-mode Simplex
    • CRAFT: Uncompressed technology VIDEO SPEC: 1080P
    • Supports HDTV highest resolution 1080P
    • 10-bit digital video encoding and uncompressed transmission technology
    • High quality commercial grade
    • System status, power and other parameters are monitored via LED indicator lights
    • Compact size
    • Excellent cost performance
    • SMT Surface Mount Technology
    • Stand-alone or rack-mount
    • Lower power consumption
    • Plug and play convenience and simplicity

  • Specifications:

      Optical
    • Fiber Type: Singlemode fiber
    • Fiber Connector: ST/PC
    • Distance: 12.42mi (20km) singlemode (0km - 80km) optional
    • Wavelength:
      - Transmitter: T1310nm, R1550nm
      - Receiver: T1550nm,R1310nm

      HDTVI(Transmitting)
    • Input Level: >500mVp-p
    • Desc:
      - 1080p:75-=5
      - Coaxial cable, 300m
      - 720p:75-5coaxial cable,500m
    • Input/Output Impedance: 75 Ω
    • Physical Interface: 2x BNC

      HDTVI(Receiving)
    • Output Level: 1Vp-p
    • Input/Output Impedance: 75Ω
    • Physical Interface: 2x BNC

      Data
    • Transmission Media: Coaxial cable
    • Baud Rate: 1200~9600bit/s
    • Operation Mode: Half-Duplex;Full-Duplex;RS-232
    • Indicators: LOS,PWR,VIDEO
    • Mean time between failures(MTBF): >100 000 hours

      General

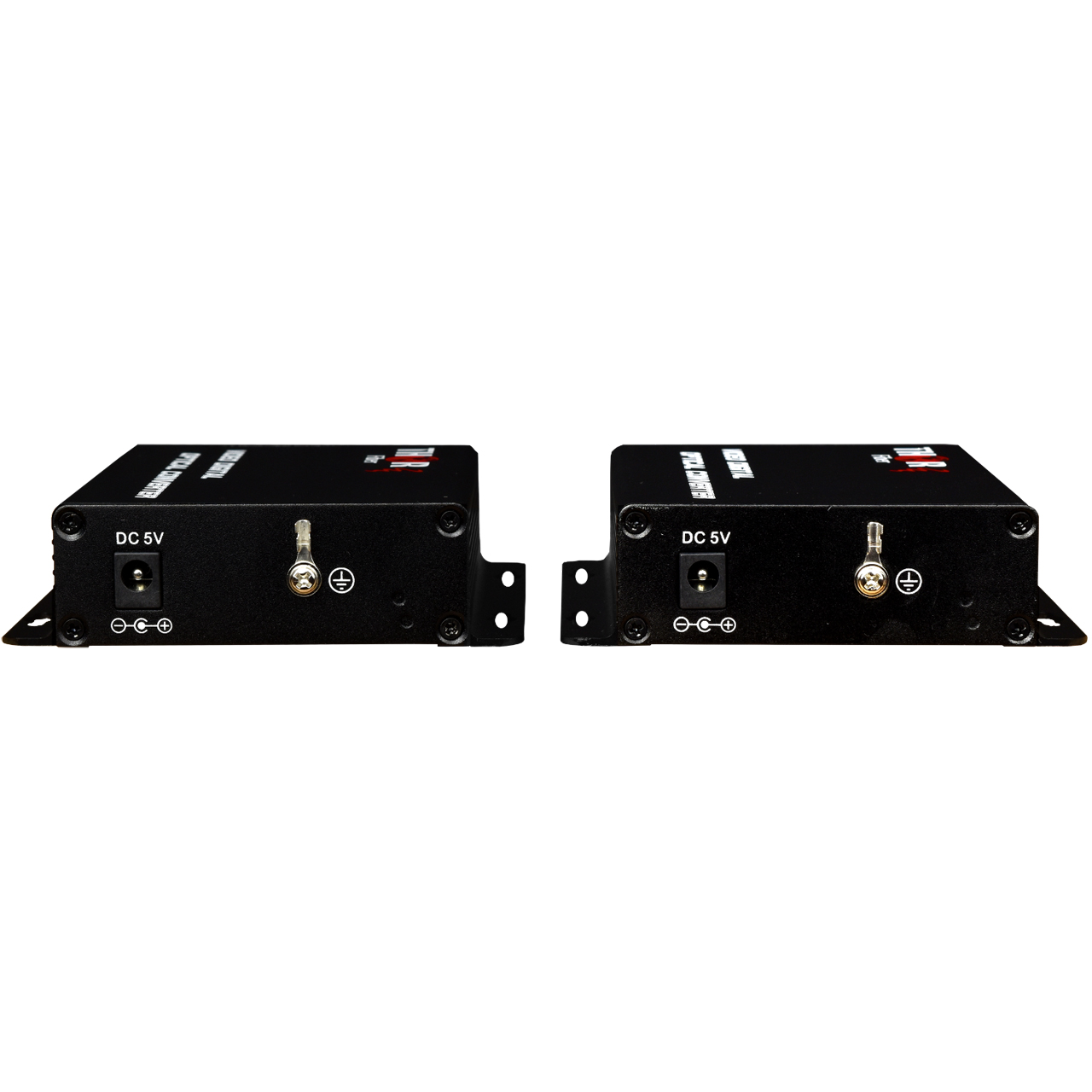

    • EPS: DC 5V
    • Power Consumption: ≤ 5W
    • Dimensions (WxDxH): 6.625" x 4.5" x 1.25"

  • Item Includes:

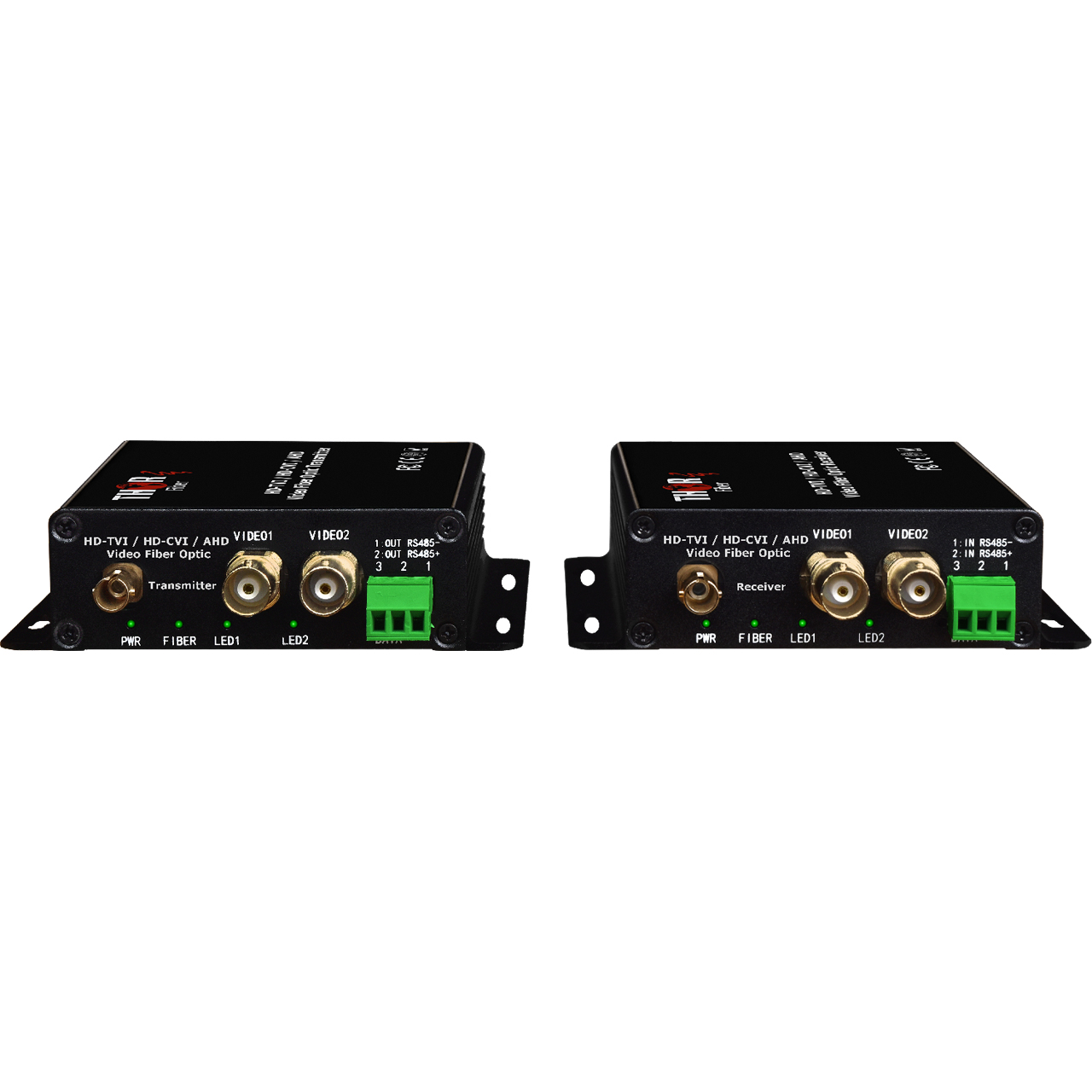

    • 1x Thor Fiber F-2HD-1D-TVI Transmitter
    • 1x Thor Fiber F-2HD-1D-TVI Receiver
    • 2x US Power Cord

  • Warranty:

    • 5 Year Limited Warranty
