    HVS-110 - Overview

    TRUE SUCCESSORS TO THE WORLD STANDARD IN SMALL HD/SD SWITCHERS! The HVS-100 and the HVS-110, portable video switchers, boast exceptional cost performance. Both mixers inherit and improve upon the diverse functions and features of the popular HVS-300HS, including mixed HD/SD input, frame synchronizing, re-sizing engine, 2.5D wipe effects, DVE, Chroma keyer and DSK. The HVS-100 and HVS-110 also have a built-in Web server that lets you change settings from a PC or a tablet. A clip memory feature has been added to the still store to support playback of video or animations and enhances productions through the use of CG wipes, while the multi-viewer meets a diverse range of monitoring needs. The equipment can be used in all types of locations, including live events, sports, news studios, OB vans, editorial offices and presentation venues, making it the ideal tool for shaping the imaginative ideas of video creators.

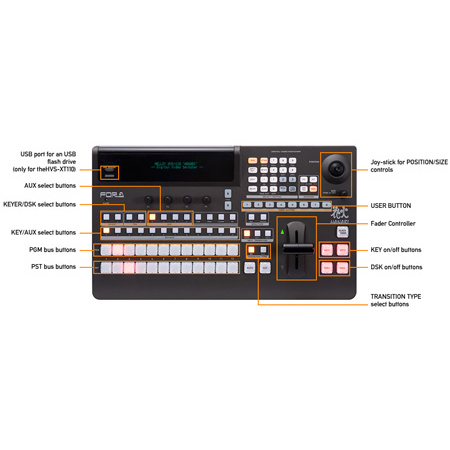

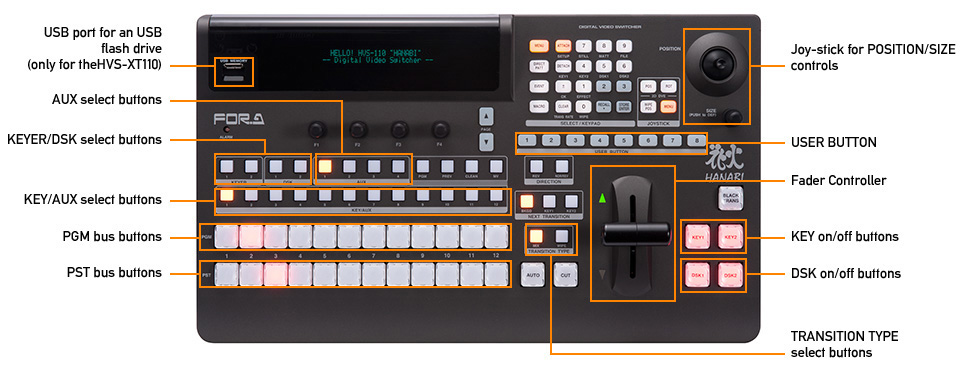

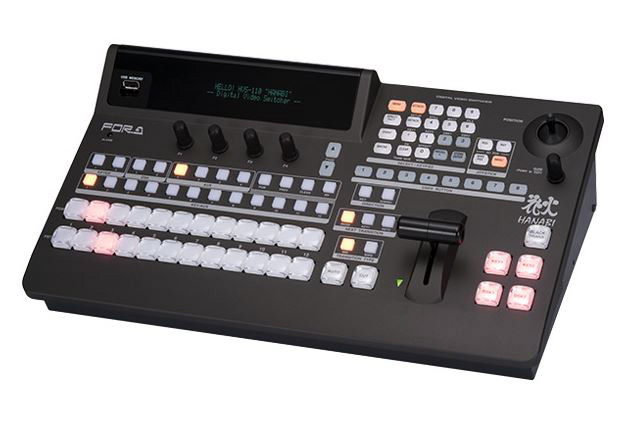

    HVS-110 Integrated Main Unit/Control Panel Type

    Featuring operability almost on par with the HVS-100, the HVS-110 also boasts a compact design enabling simple portability. The inclusion of ample video input and output functionality, making it ideal for use in small broadcasting vans and broadcasting helicopters. Despite being portable, a redundant power source is also possible using an optional AC adaptor.

    HVS-100/110 units have been upgraded with new functions described as follows.
    - Progressive-format, 4K Square Division (SQD) signal support
    - Level-B signal input support at 1080/59.94p, 50p
    - Audio playback support
    - Additional Non-Border display function support and 4K mode layout on Multi Viewer
    - Multi Viewer split patterns significantly enhanced, from 8 to 20 types
    - VDCP Over IP protocol available
    - External keyer control over DSK-400.
    - HVS-100PCI option supports 1080/29.97p, 25p, 24p, 23.98p
    - HVS-100PCO option supports 1080/29.97p, 25p, 24p, 23.98p. PC-resolution output also supported at 1080/59.94p and 50p.

    • Features:

      • 12 HD/SD SDI inputs, 8 HD/SD SDI outputs and 1 HDMI output come as standard. Mixed HD/SD input is supported in the standard configuration. The 9 outputs can all be freely assigned.
      • Frame Synchronizers
      • Re-Sizing Engine
      • 2 Keyers and 2 DSKs
      • Abundant Transitions and DVEs
      • 2 Still/Clip Stores
      • 2/4/5/7/9/10/11/16 Split Multi Viewer
      • Event Memory and User Button
      • Macro Function
      • Freely Assignable DSK
      • External Interfaces
      • GUI Control Function via Web Browser
      • Redundant Power Supply
      • 4K (Ultra-HD) Switcher Capability
      • Small Mobile and Up-Link ProductionTrucks
      • Live Staging / Event Production
      • Small Broadcasting Environments
      • House of Worship
      • Sub Screens
      • Flypack
      • Multi Channel Delivery
      • Corporate Production
      • Education
      • 4K Production
    • Specifications:

      • Video Formats: 1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p
      • 1080/59.94p and 1080/50p Level-A (HVS-100EXP3G
      • Video Input: HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps, 75O, BNC x 12 (FSs on 8 inputs, resize engines on 4 inputs)
      • Number of Inputs: Standard: HD-SDI x 12
      • Video Output: HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps, 75O, BNC x 8, HDMI x 1
      • Number of Video Outputs: Standard: HD-SDI x 8, HDMI x 1
      • Signal Processing: 4: 2: 2: 4, digital component
      • Quantization: HD/SD-SDI: 10-bit
      • Effect: WIPE: 100 patterns, border and softness / 2.5D DVE: 56 patterns or more DVE WIPEs
      • Transition: Available controller: Fader controller, AUTO or CUT button / Type: MIX or WIPE (DVE included)
      • Still/Clip Store: 2 channels (with backup feature). Each store can hold up to 227 frames of HD video
      • Keyer/DSK: 4 channels (KEYER x 2 + DSK x 2), includes 2D DVE that can be freely assigned. An advanced, high quality chroma keyer can be assigned to any one of the two Keyers or two DSKs.
      • Multi-viewer: 2/4/5/7/9/10/11/16-way split views with title, tally and audio level meter display and 1 frame delay for PGM output
      • Proc. Amp.: Equipped with all inputs
      • Event Memory: 100 events (complementary transition available when loading events)
      • Macro Function: 30 commands (up to 230 series of operations can be registered per command)
      • Genlock Input: BB: NTSC: 0.429 Vp-p/PAL: 0.45 Vp-p or Tri-level Sync: 0.6 Vp-p, 75 O, BNC x 1, loop-through (to be terminated with 75 O terminator, if unused)
      • External Memory: USB flash drive

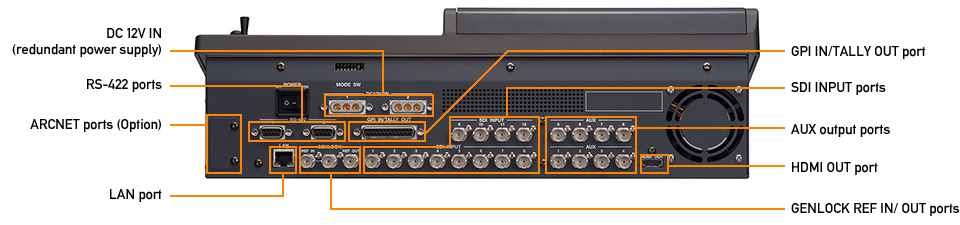

      • Interface:
      • - GPI-IN/OUT: 25-pin D-sub (female) x 1 (24 inputs/24 outputs), TTL negative logic pulse or Make-contact
      • - RS-422: 9-pin D-sub (female) x 2 (for the HVS-30RU and tally unit connection or EDITOR port (BVS-3000 and GVG-100 protocols)
      • Temperature / Humidity: 0°C to 35°C / 10% to 90% (no condensation)
      • Power / Consumption: 100 V AC to 240 V AC ±10%, 50/60 Hz / Approx. 120 W
      • Dimensions / Weight: Approx. 420 (W) x 129.3 (H) x 246 (D) mm / Approx. 4 kg
    • Item Includes:

      • CD-ROM (user's manual)
      • Quick setup guide
      • AC power adaptor
