Fiberplex FPX6000T/A3/PD48 DanteAV over IP Gateway Transmitter

ITEM #: FPX6000T-PD MFG #: FPX6000T/A3/PD48

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$2,240.00

Availability: In Stock
iAvailability Description Popup


    FPX6000T/A3/PD48 - Overview

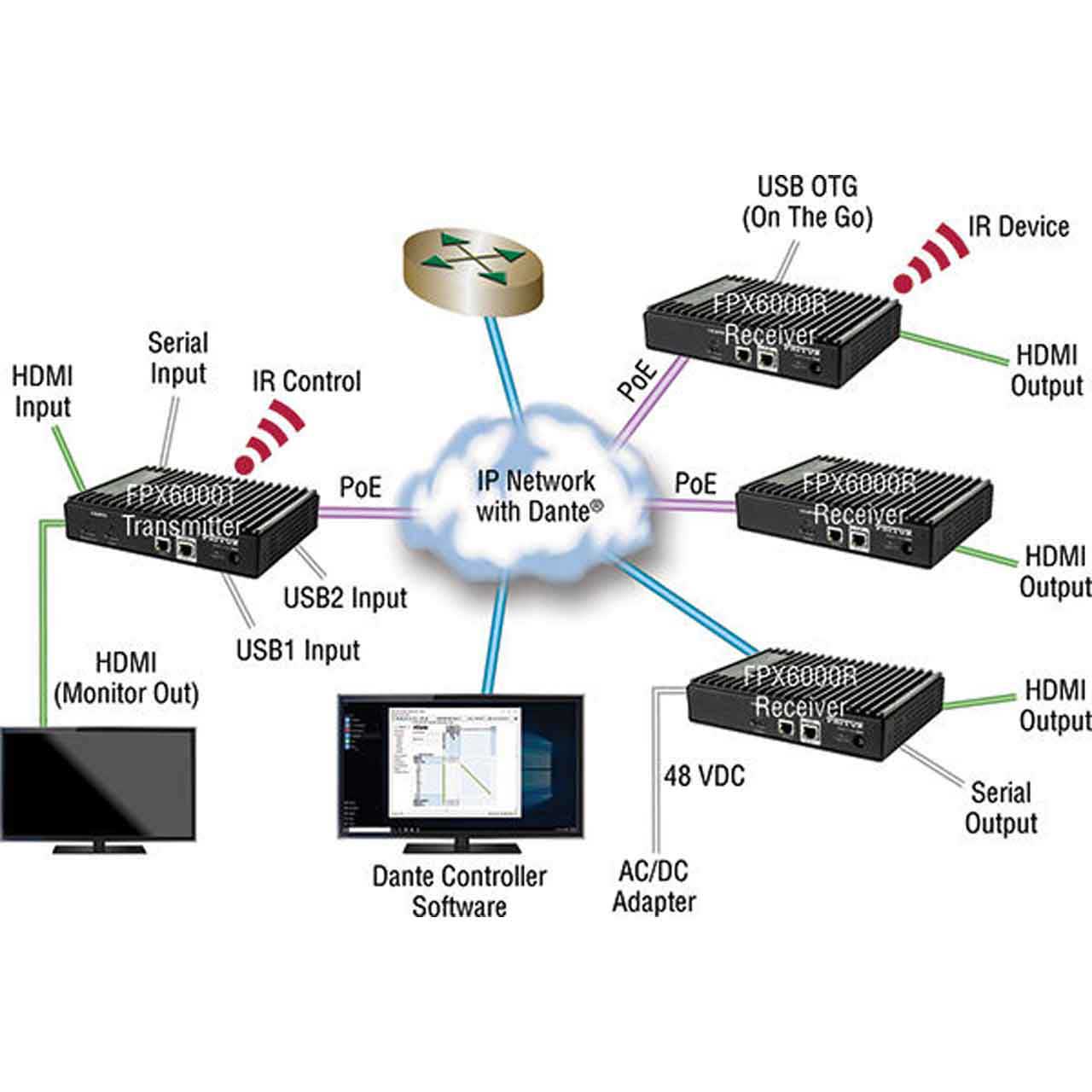

    Patton's FPX6000 enables 8 audio channels (transmit or receive) and 1 HDCP encryption support video channel (transmit or receive) to be easily inserted onto an existing Ethernet network backbone without suffering the performance issues and management difficulties associated with audio and video over IP.

    Dante's sub-microsecond synchronization of audio and video eliminates alignment problems-this is accomplished by having a single network clock for the entire system in sync regardless of the number of endpoints, transporting audio and video with low deterministic latency.

    In addition to providing high performance audio and video over IP, the FPX6000 is loaded with peripheral connectivity options including USB2.0 and USB OTG for keyboard and mouse, infrared for remotes, even serial signals for PTZ control and more. all over IP!

    The Dante Controller makes routing, controlling and monitoring your audio and video traffic and endpoints as simple as clicking a button.

    • Features:

      • Clean Crisp Audio
      • Supports Mixed Networks
      • Expanded Coverage
      • Interoperability

    • Specifications:

      • Audio
      • Up to eight channels at 44.1, 48, 88.2 or 96 kHz. HDCP sourced audio channels limited to 48 kHz
      • High-quality, low jitter with on-board clock generator for audio
      • Up to 8192 samples (170 ms @ 48 kHz) audio buffering per channel (receiver only)
      • Built-in eight-channel asynchronous sample rate converter (in transmitter only)
      • Audio transport formats: Dante Audio over IP, AES67 RTP
      • Bit depths: 24, 16, and 32 bits per audio sample
      • Sample rate pull-up/down (+4.1667, +0.1, -0.1, and -4.0 %)

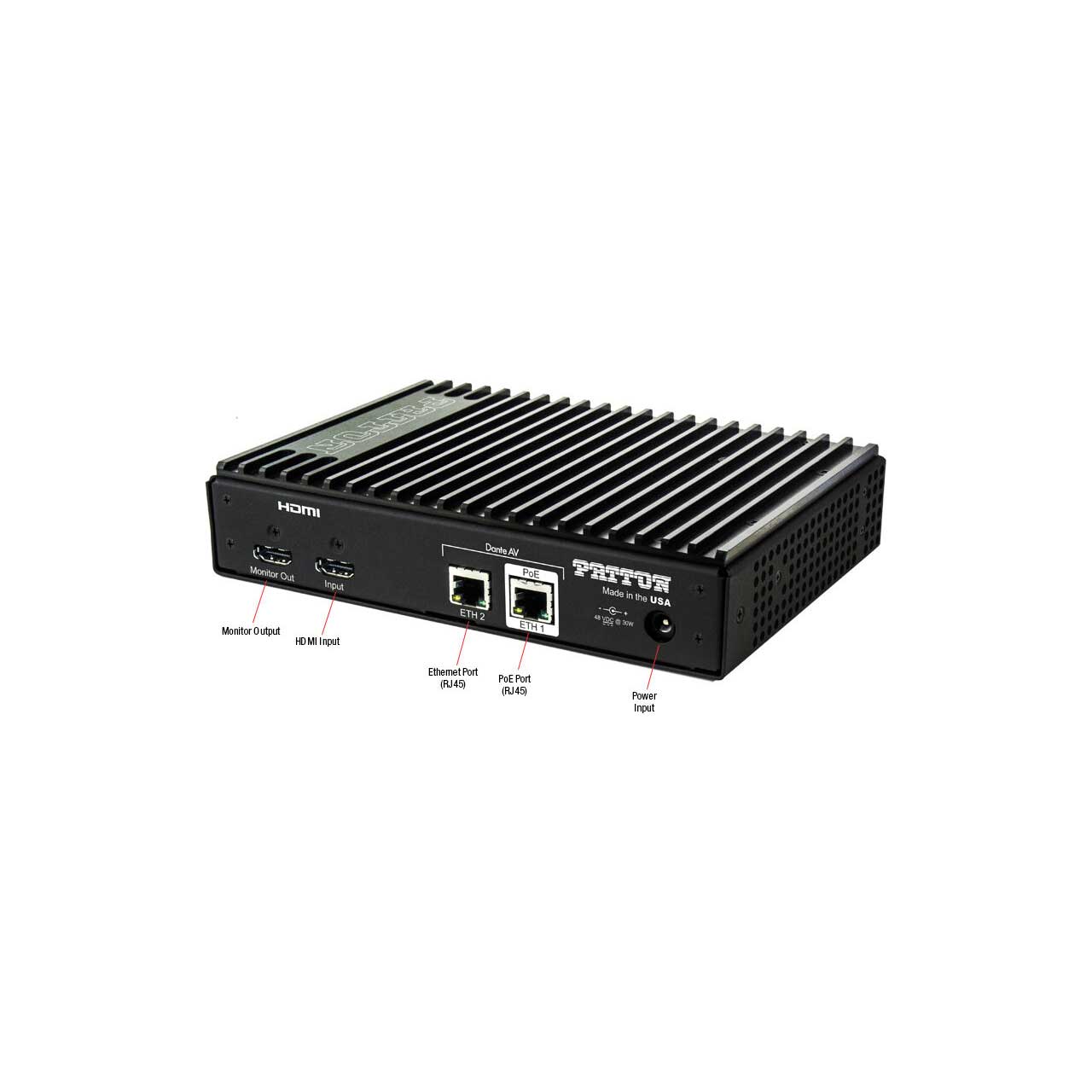

        Network
      • 2 x 10/100/1000BaseTX
      • Dante Network Port
      • Switch or Daisy-chain
      • PoE (PD-Powered Device)
      • Hardware time-stamping, supporting sample-accurate playback
      • Audio Flows In/Out: Up to 8x8 (unicast or multicast
      • Video Flows In/Out: 1x1 (unicast or multicast)

        Video
      • 1 HDMI 2.0/1.4b input (R model) or output (T model)
      • Built-in HDCP encryption/decryption for video
      • HDCP 2.2 input/output, HDCP 2.3 over network
      • 800 Mbps recommended maximum bit rate
      • Accepts any bit stream from external CODEC
      • Video transport formats: Dante Video over IP
      • Up to 4K60 input/output
      • HDR support
      • HDMI monitor output loop-through (R model)
      • JPEG2000

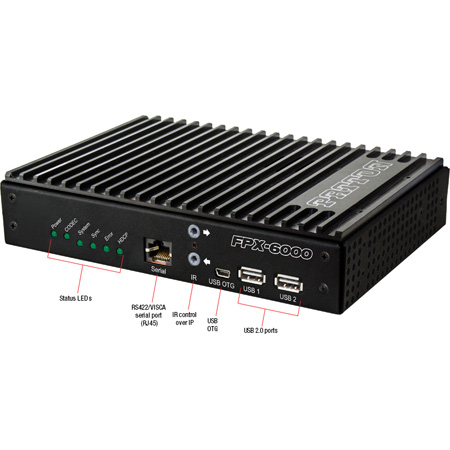

        Control Interfaces(Peripherals)
      • 2 x USB 2.0 Type A for keyboard and mouse
      • USB On The Go (OTG) for keyboard and mouse
      • RS422 for PTZ camera input control (RJ45)
      • IR 3mm infrared control over IP

        Panel Status LEDs
      • Power
      • CODEC
      • Dante software
      • Dante system
      • Clock Synchronization (master, slave, progress)
      • HDCP status

        Software
      • Full Dante API support
      • Support for HDMI management
      • Support for fully validated HDCP management
      • EDID management
      • Serial/IR/USB HID/CEC over IP support

        Physical
      • 9.15L x 5.72D x 1.75H inch (23.34L x 14.53D x 4.45 H cm)
      • Weight: 2.85 lbs (1.29 kg)

        Power
      • 48 VDC 0.75 A input

        Operational Temperature
      • 32-104°F (0-40°C)

    • Item Includes:

      • 1x FPX6000T/A3/PD48 Transmitter


    FPX6000T/A3/PD48 - Required Accessories

    FPX6000T/A3/PD48 - Recommended Accessories
