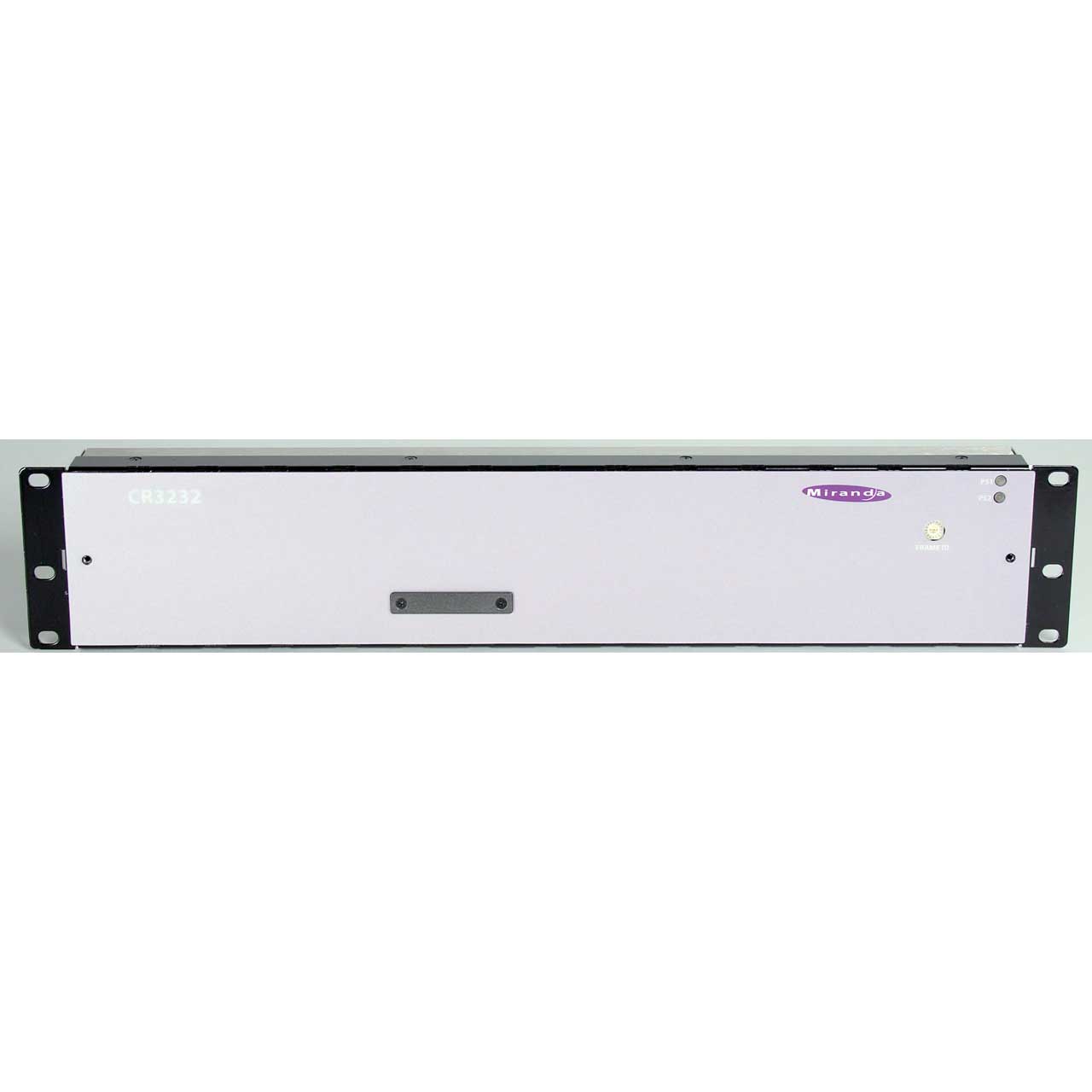

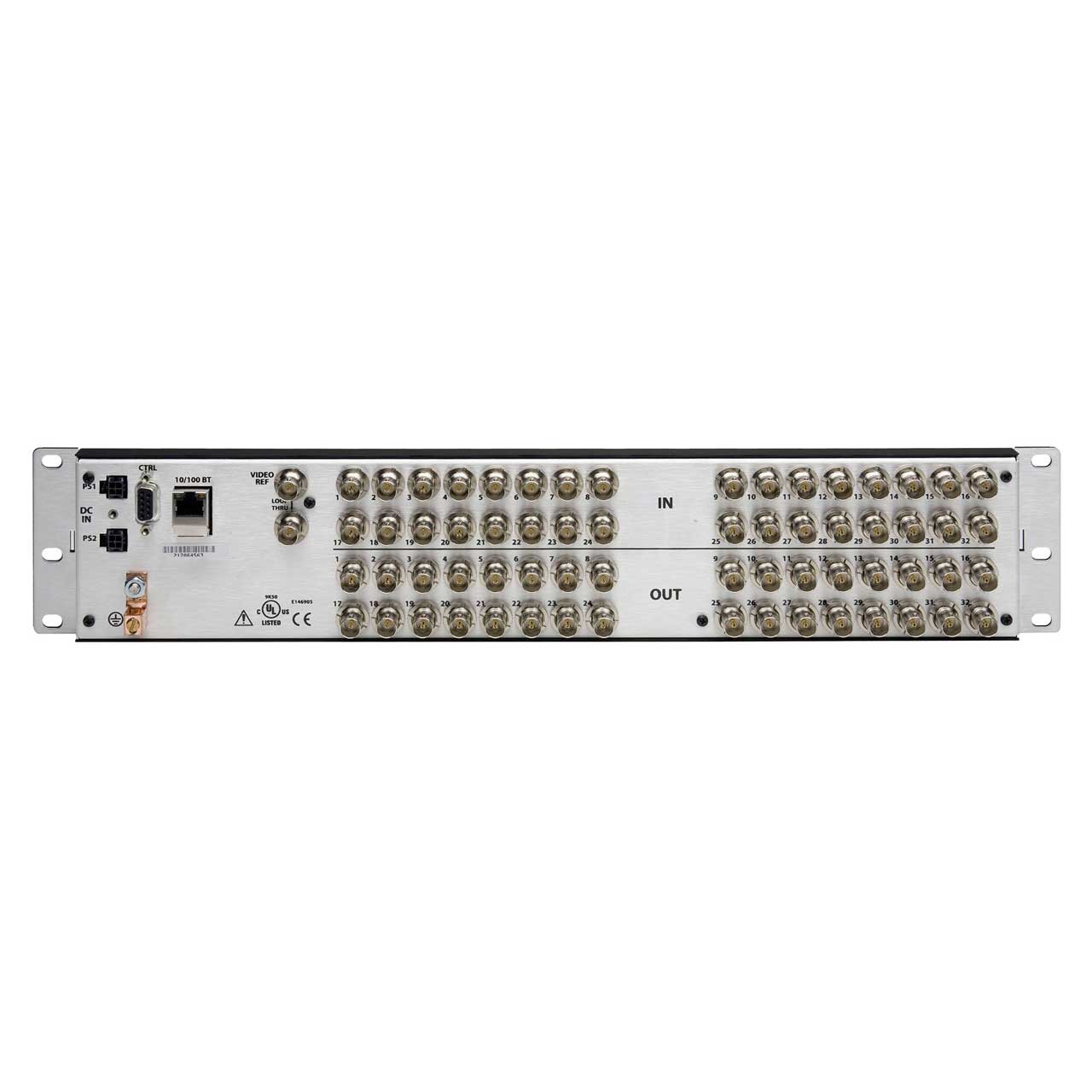

Grass Valley CR3232-3GIG NVISION 32x32 Single Link 3G/HD/SD Serial Digital Video Router 2 RU
  • Grass Valley CR3232-3GIG NVISION 32x32 Single Link 3G/HD/SD Serial Digital Video Router 2 RU
  • Grass Valley CR3232-3GIG NVISION 32x32 Single Link 3G/HD/SD Serial Digital Video Router 2 RU
Questions? Ask a Markertek Expert:
800-522-2025 Email

Grass Valley CR3232-3GIG NVISION 32x32 Single Link 3G/HD/SD Serial Digital Video Router 2 RU

Manufacturer: Grass Valley

Item #: GVLY-CR3232-3GIG   •   MFG #: CR3232-3GIG


List Price:$14,795.00
Our Price:$12,135.00

free ship
More on the way, usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

    California Residents:
    Cancer and Reproductive Harm -


    The NVISION Compact range is highly versatile, and ideally suited to utility routing applications. Triple rate 3G/HD/SD core format in matrix sizes from 8x8 to 32x32. The Compact Routers also have a built-in controller, eliminating the need for a costly external controller.

    Triple Rate 3G/HD/SD
    SMPTE 424M 3 Gb/s models operate error free, with automatic reclocking data paths for 270 Mb/s, 1.483 Gb/s, 1.485 Gb/s, 2.967 Gb/s and 2.970 Gb/s rates. The 3 Gb/s routers protects your small router investment well into the future, with 1080p 50/60 support and Dolby E and DVB-ASI compliance.

    Machine Control
    The NVISION range’s patented Dynamic Port Architecture simplifies machine control with configurable bidirectional data routing. Only NVISION port routers offer this bidirectional capability; other routing vendors require two ports to accomplish the same task. This saves power, rack space, and cabling.

    • Features

      • Triple rate 3G/HD/SD
      • DVB-ASI compliant
      • Router partitioning
      • Scalable with the entire NVISION range of routers
      • Optional control panel
      • Robust design for rugged conditions
      • Range operates with the entire NVISION router range Powerful, free configuration tools
      • Compact Router System Configurator (CRSC) software provides easy configuration of routers, including salvos and partitioning
      • Software also allows programming of remote control panels, and configuration of network settings
      • Multiple control capabilities
      • Ethernet and serial control
      • Local button panel
      • Graphical User Interface (GUI) panels
      • Highly reliable power supply (over 500,000 hours MTBF)
      • Optional redundant power supply available
      • Optional control panel available
    • Specifications

      • Type: High definition serial digital video
      • Standard: SMPTE 259M-C, 292M and 424M
      • Data rate: Auto reclocking at 270 Mb/s and 1.483, 1.485, 2.967, 2.970 Gb/s or auto bypass with pass-through from 19 Mb/s to 3 Gb/s
      • Note: Inputs do not reclock
      • Connector: BNC
      • Impedance: 75&omeg;
      • Cable equalization (for cables listed or equivalent cable): 400m (1,312 ft.) Belden 1694A, 250m (820 ft.) Belden 1855A at 270 Mb/s, 150m (492 ft.) Belden 1694A, 100m (328 ft.) Belden 1855A at 1.5 Gb/s, 100m (328 ft.) Belden 1694A, 45m (147 ft.) Belden 1855A at 3 Gb/s
      • Router path: Non-inverting
      • Output level: 800 mVp-p ±10 %
      • I/O return loss: >15 dB, 5 MHz to 1.5 GHz >10 dB, 1.5 GHz to 3 GHz
      • Output rise/fall time: ≤135 ps
      • Output overshoot: ≤10 % of amplitude max
      • Output alignment jitter: ≤0.3 UIpp from 100 kHz to 300 MHz
      • Output timing jitter: ≤2.0 UIpp from 10 Hz to 100 kHz
      • AC input: 90-250 VAC, 50/60 Hz, auto-ranging
      • AC connectors: 2, 12 VDC with external modules
      • AC power: PS0001-00, HB0321-00, 50 W, one IEC 320
      • Dimensions (W,H,D): 19 x 3.5 x 1.38
      • Weight: 4 lbs.
      • Mounting: EIA 310-C, 19 in (483 mm)
      • Grounding terminal: Cooper, accepts 14-6 AWG

      • Type: 1 Serial port
      • Standard: SMPTE 207M, EIA-422, configurable
      • Connector: 1, DE-9

      • Type: 10/100 Base T
      • Standard: IEEE 802.3
      • Protocol: NVISION Ethernet protocol
      • Connector: 1, RJ45
