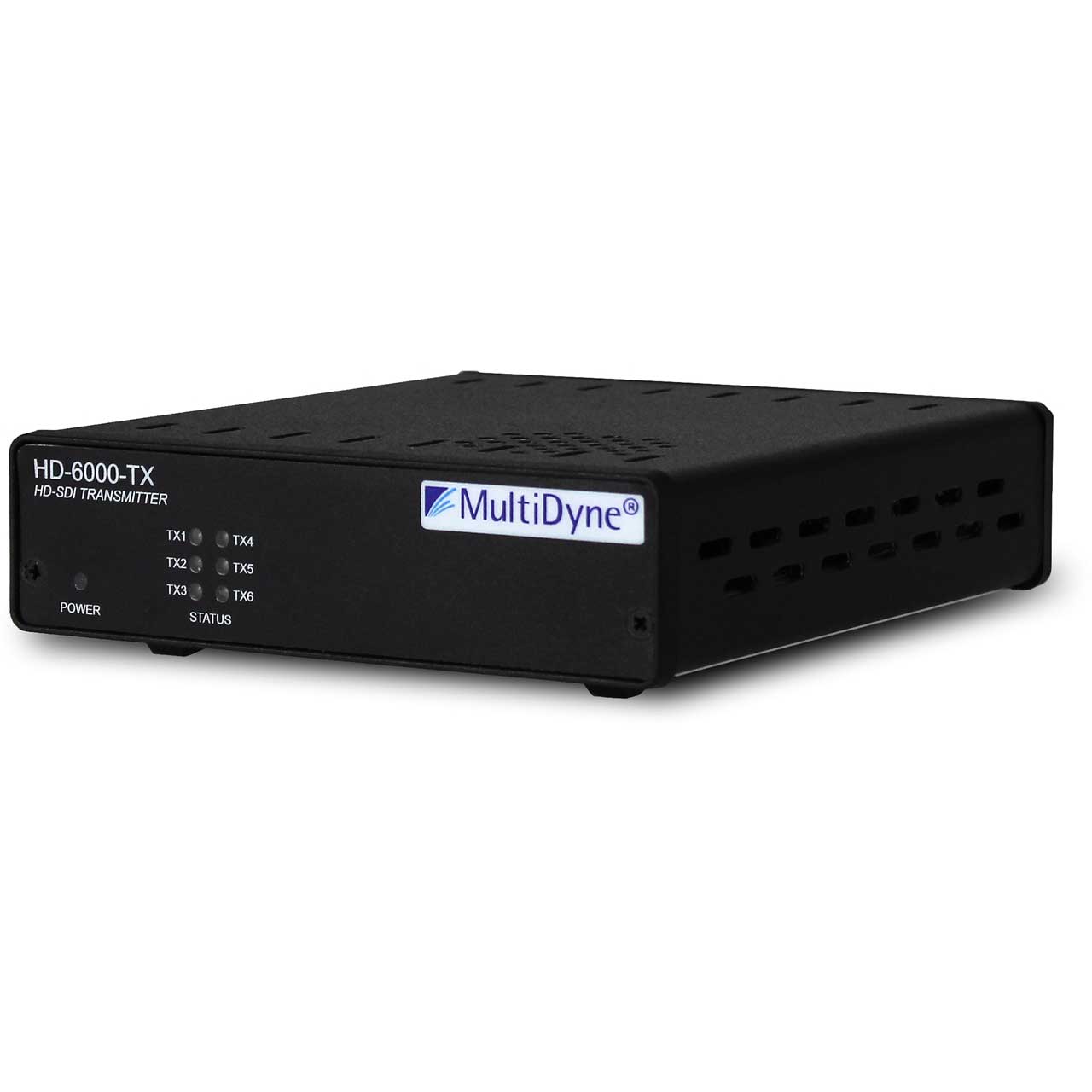

The HD-6Pack series has been designed for OB operators and anyone who needs to trunk multiple uncompressed SDI signals over fiber. Never before has a multi-channel SDI-over-fiber system been so easy to use and so portable. In just one RU, you can transport up to 18 SDI signals up to 3Gbps without compression on a few as one singlemode fiber. The HD-6Pack features LED's to indicate signal presence and optical link status.
Since the SDI signals are not compressed, the HD-6Pack can be used in conjunction with other Multidyne SDI transport components to create custom signal topographies including point-topoint and point-to-multipoint links.
The HD-6Pack features a 1:1 ratio between SDI signals and optical fibers. For facilities where fiber is abundant, this is, by far, the most econmical solution available.
If fibers are at a premium, the HD-6Pack-ONE's use an integrated CWDM passive optical multiplexer to get those six signals onto just one fiber. By Integrating the CWDM we eliminate the need for external patching. The HD-6Pack's can also be factory-configured for 6 to 18 signals in one direction, or any combination to TX and RX to adapt to any signal requirement.
The HD-6Pack as well as the HD-12Pack and HD-18Pack can be used as stand-alone devices or mounted in a 1RU unit. Whether you are optimizing your fibers within a permanent campus or studio infrastructure, linking an "A" and "B" OB unit together or getting the most out of available fibers at the stadium, we have you covered.
The HD-6Pack and HD-6Pack-ONE. Providing the easiest, the most portable and the most cost efficient way to move more full bandwidth HD-SDI video over distances up to 10km on fewer fibers.
Applications
Sports Broadcasting
Shared control rooms
Remote studios/STL's
Tele-Medicine
Distance learning
Corporate A/V
Taking advantage of stadium and campus fiber infrastructures
