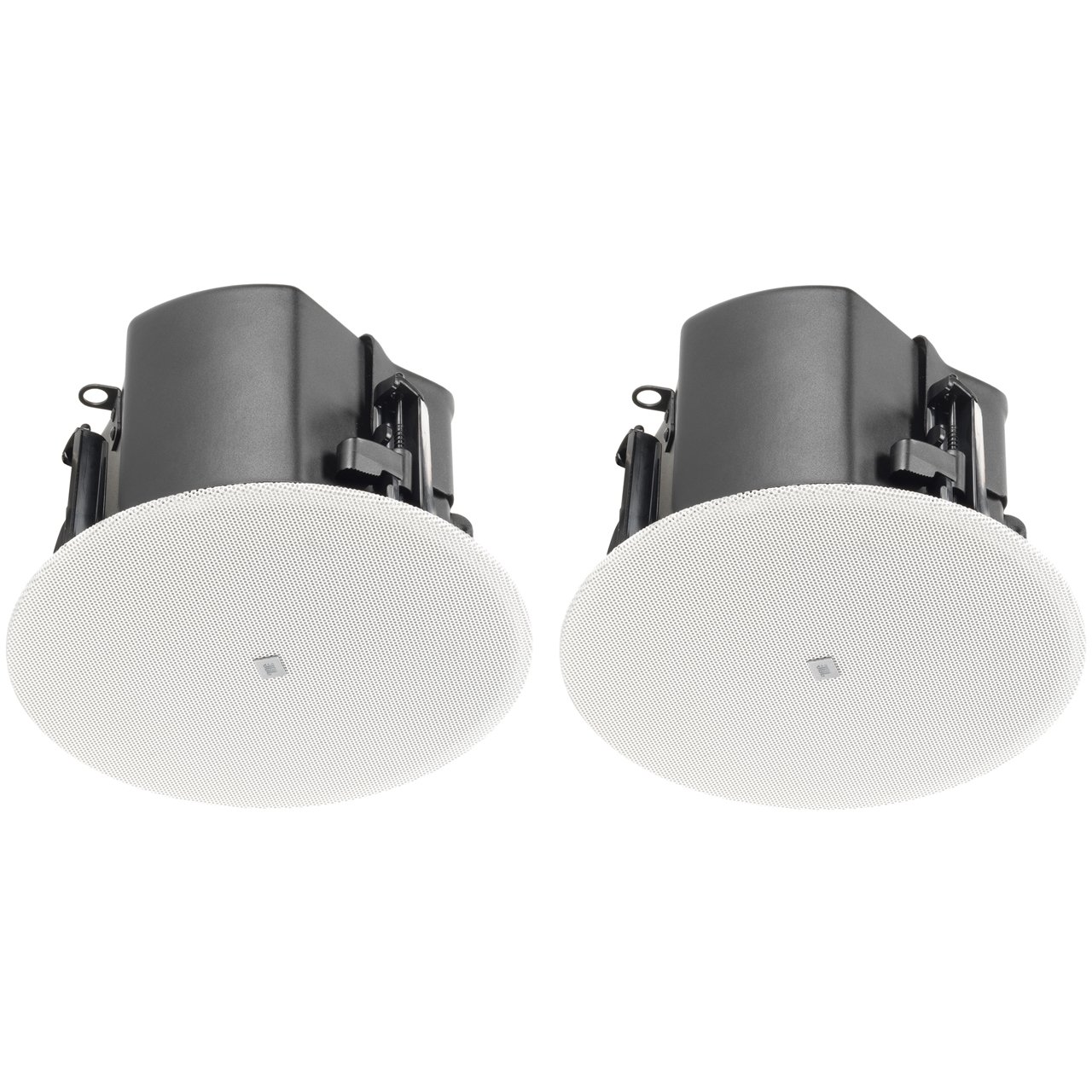

JBL Control 412C/T 3-Inch Full-Range Ceiling Loudspeaker with Built-In 70V/100V Multi-Tap Transformer - White - Pair

ITEM #: JBL-C412C-T MFG #: JBL-C412C/T PAIR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$230.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


JBL-C412C/T PAIR - Overview

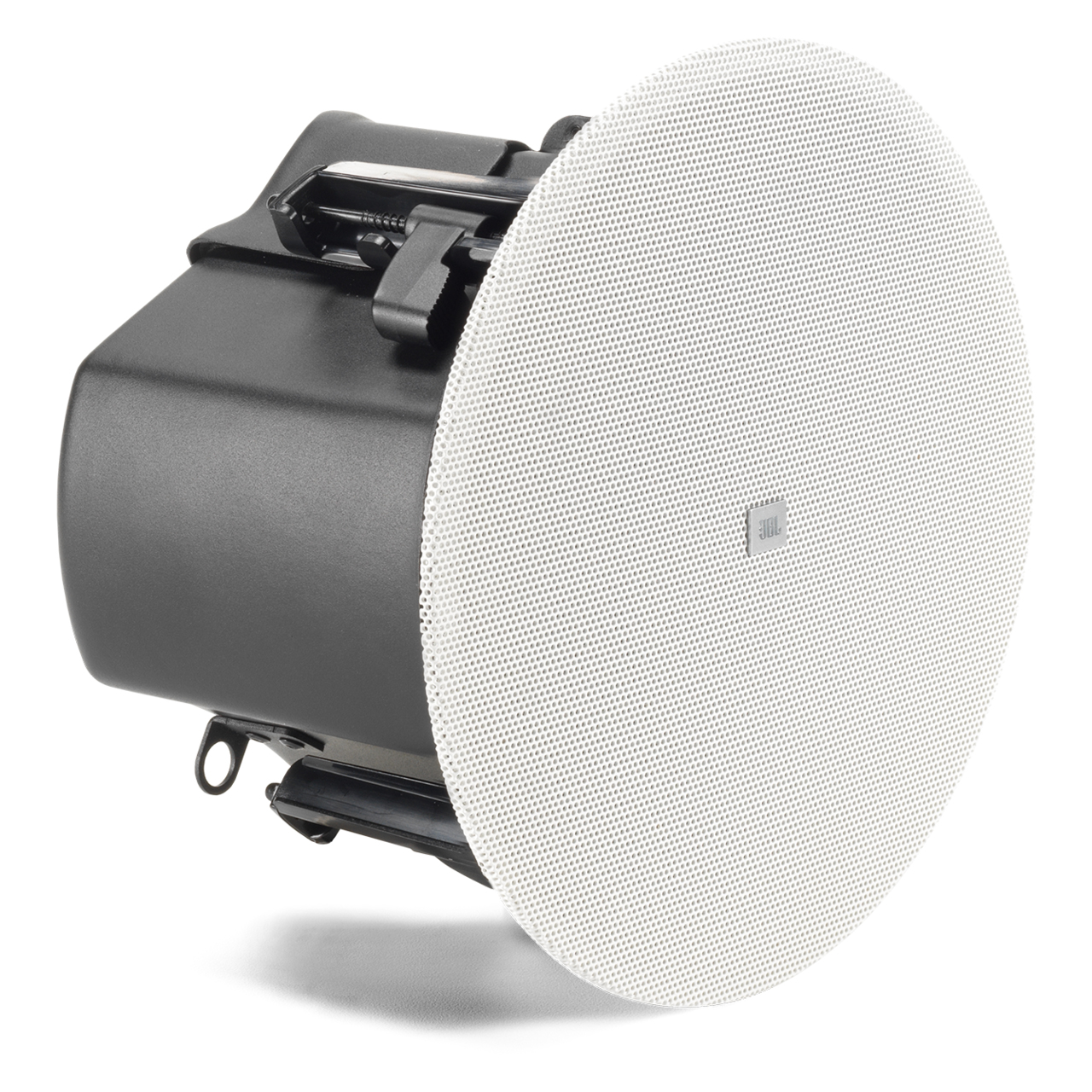

The JBL Control 412C/T, part of the Control 400 Standard Coverage Series, is a full-range ceiling loudspeaker, featuring a 3" driver and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.

The Control 412C/T includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 412C/T supports both 70V/100V and low impedance applications.

Premium Sonic Performance
Featuring JBL's proprietary Radiation Boundary Integrator® (RBI™) technology, the Premium Coverage Series achieves constant directivity coverage, ensuring that listeners can enjoy an especially smooth sound character that remains extremely consistent, clear, and pleasant across a wide coverage area.

Efficient, Flexible Installation

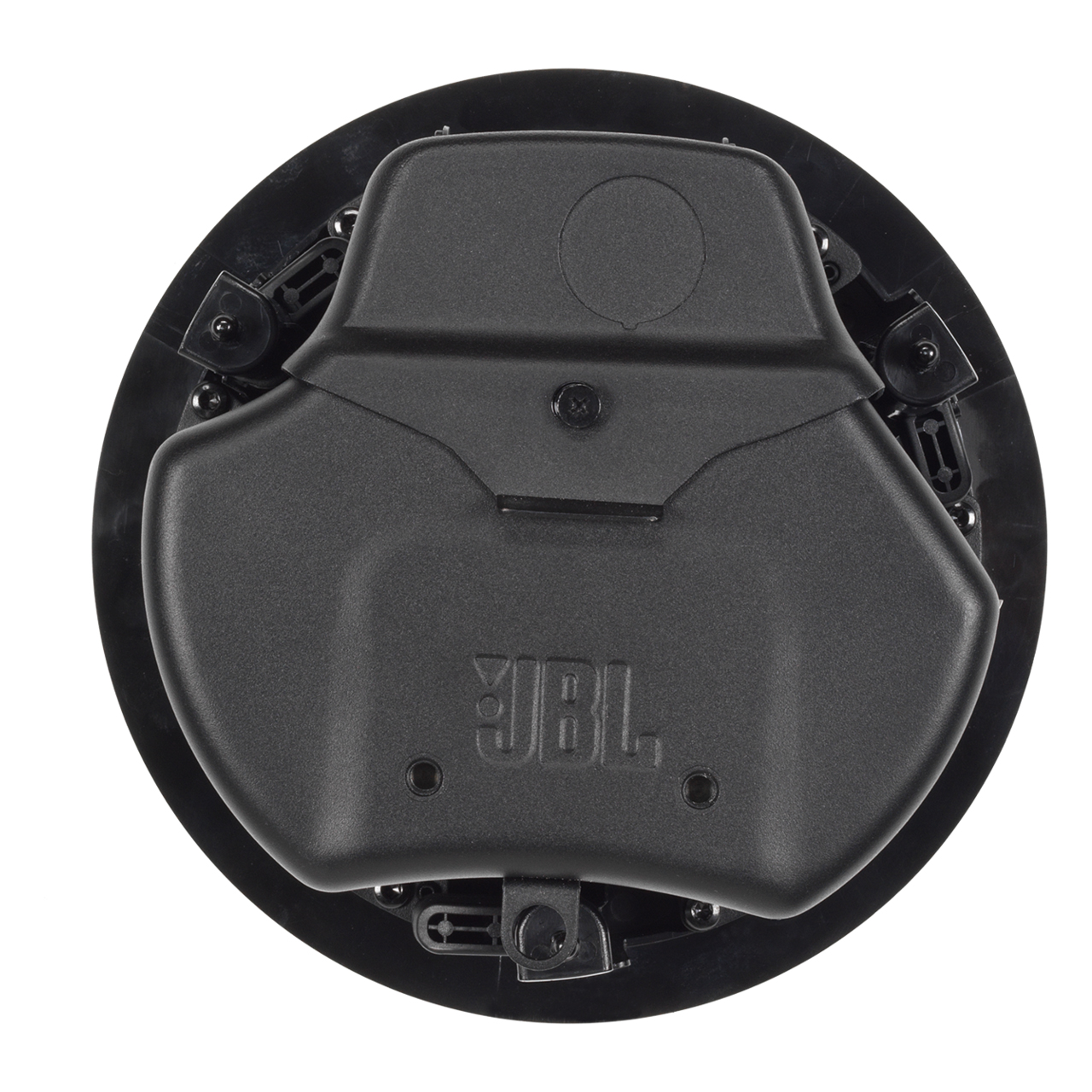

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

Refined, Modern Aesthetics
Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

  • Features:

    • 3" (76mm) full-range driver
    • Integrated enclosure that is ideal for installation in most ceiling plenum spaces
    • Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
    • Full-face, easily paintable magnetic grilles
    • Top and side cable entry options

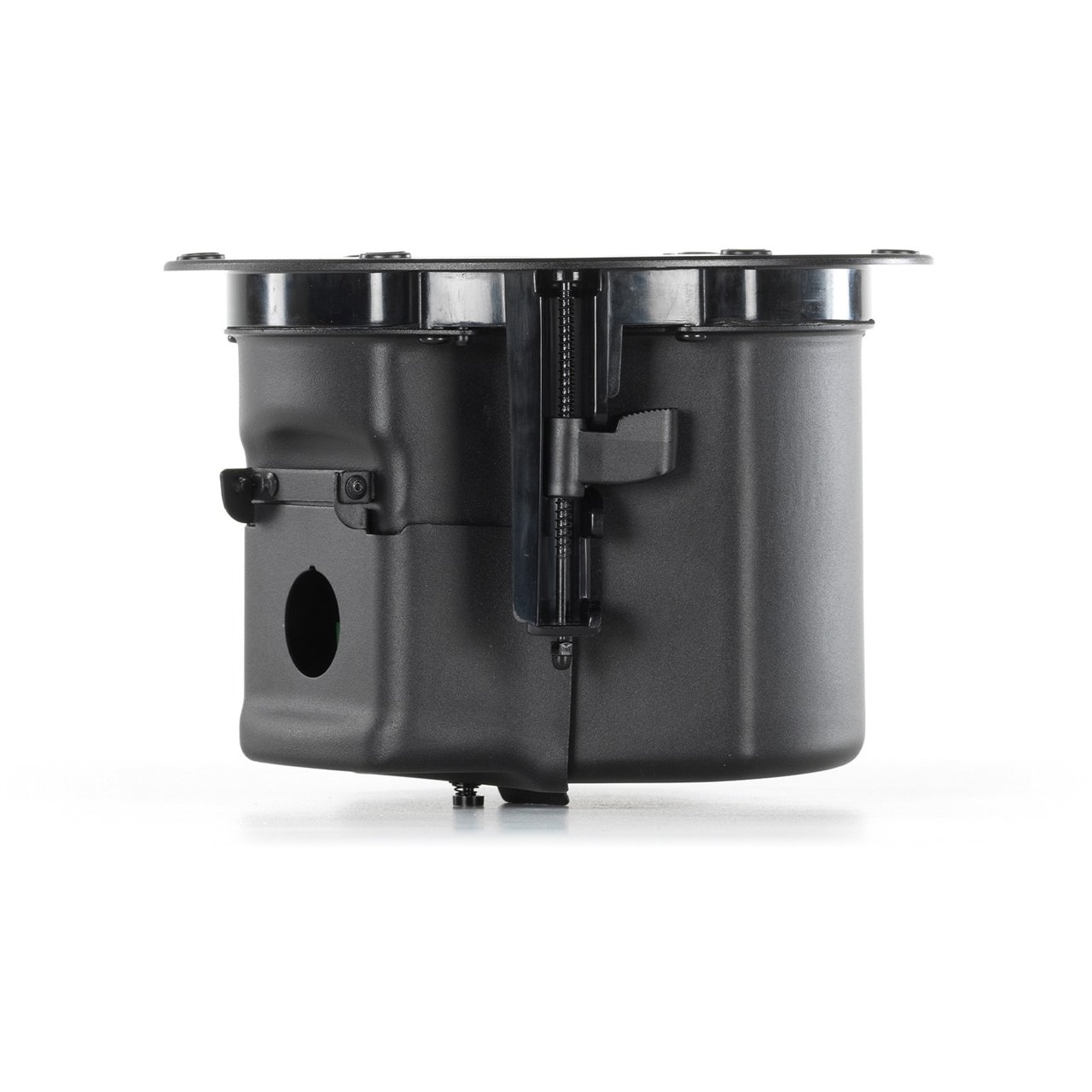

    • Robust and adaptable dogears for wide range of ceiling thicknesses
    • IP33 rated

  • Specifications:

    • Frequency Range (-10dB): 68Hz - 17kHz
    • Power Capacity:
      - 30W (120W Peak) Cont. Pink Noise (2 hrs)
      - 20W (80W Peak) Cont. Pink Noise (100 hrs)
    • Sensitivity (1m/1W): 84dB
    • Coverage Angle: 160° conical
    • Maximum SPL (1m): 99dB continuous pink noise (105dB peak)
    • Nominal Impedance:
    • Transformer Taps:
      - 70V: 15W, 7.5W, 3.8W & 1.9W
      - 100V: 15W, 7.5W, 3.8W

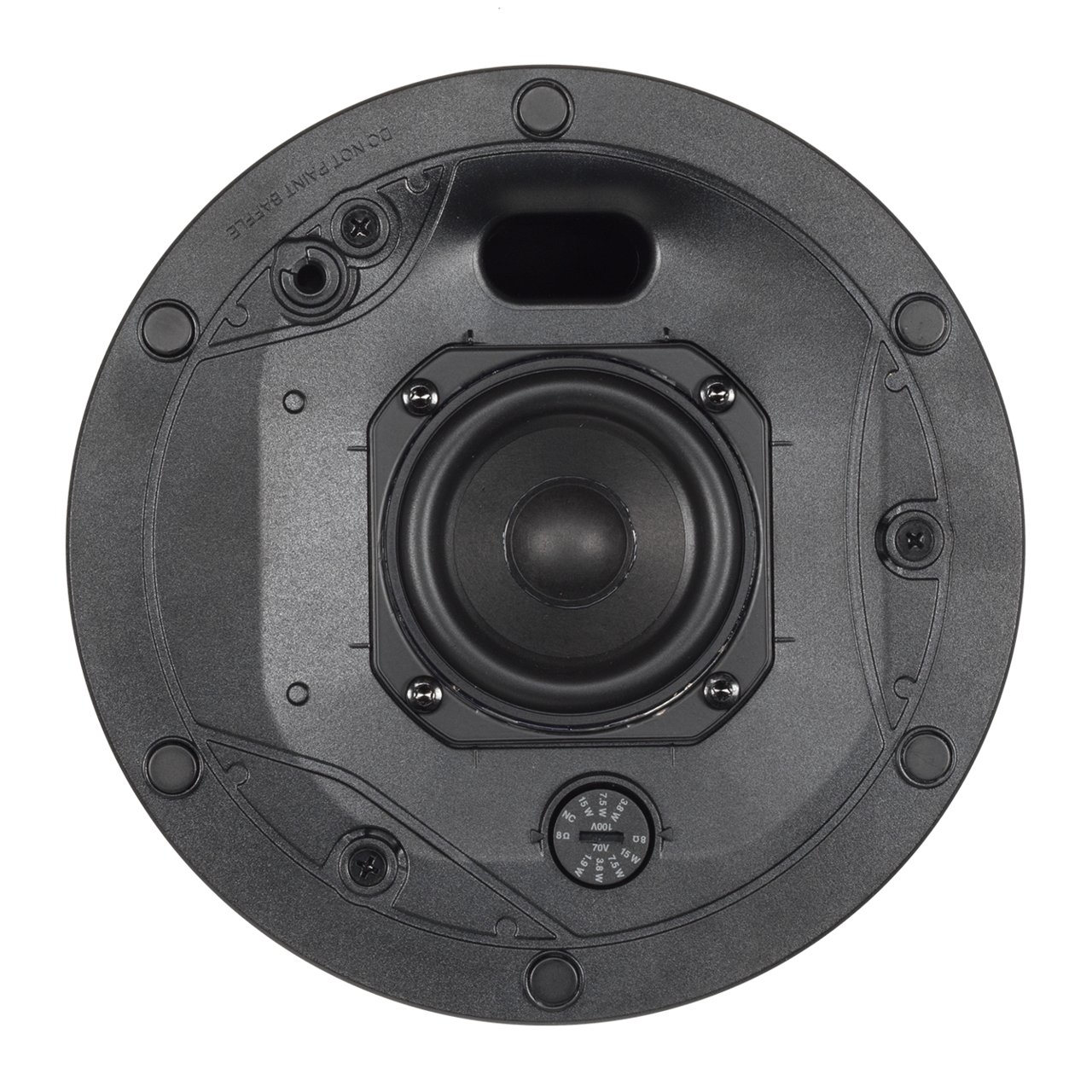

    • Drivers: 3" (76mm) full range driver with paper cone and SBR surround
    • Ceiling Cutout Size: 6.6" (168mm)
    • Dimensions (HxDia.): 5.7" x 8.1" (143mm x 203mm), 5.4" (134mm) from bottom of ceiling tile to top of backcan
    • Safety Agency Rating: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
    • Environmental:
      - IP Rating: IP33 per EN/IEC 60529.
      - Operating Temperature: 32°F - 113°F (0°C - 45°C)
    • Color: Stock grille is White (RAL9003), paintable
    • Net Weight (ea): 3.86lbs (1.75kg)
    • Shipping Weight (pair): 17.46lbs (7.92kg)

  • Item Includes:

    • 1x JBL Control 412C/T 3-Inch Full-Range Ceiling Loudspeaker - White - Pair

  • GTIN:

    0691991043314
