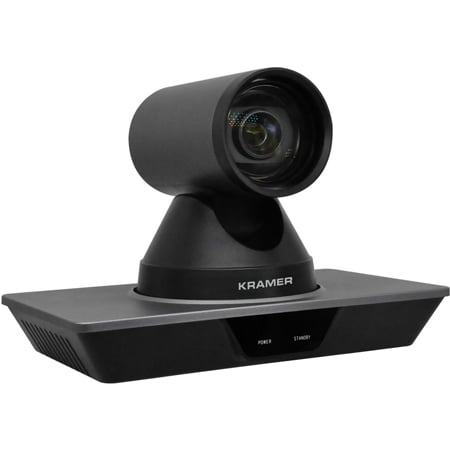

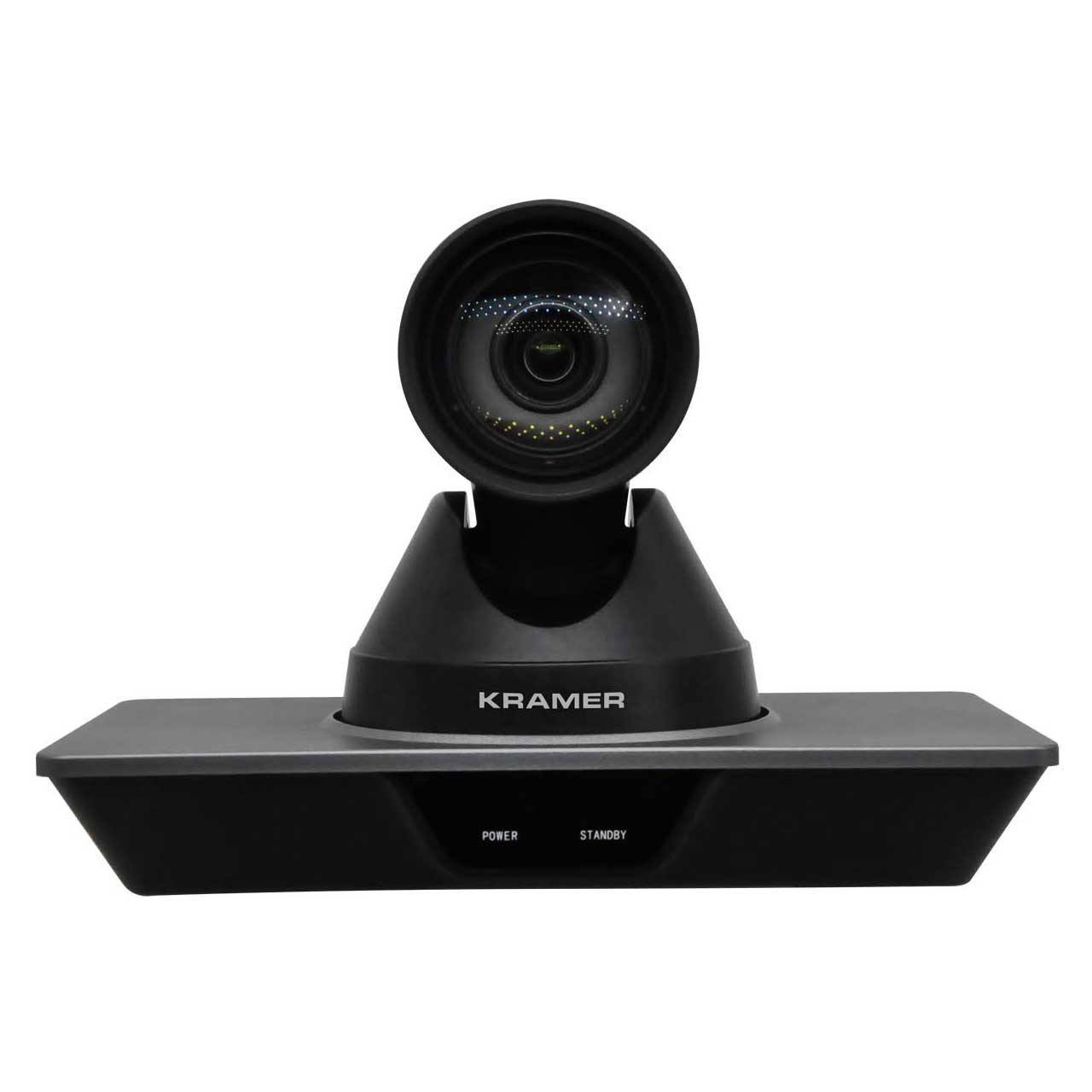

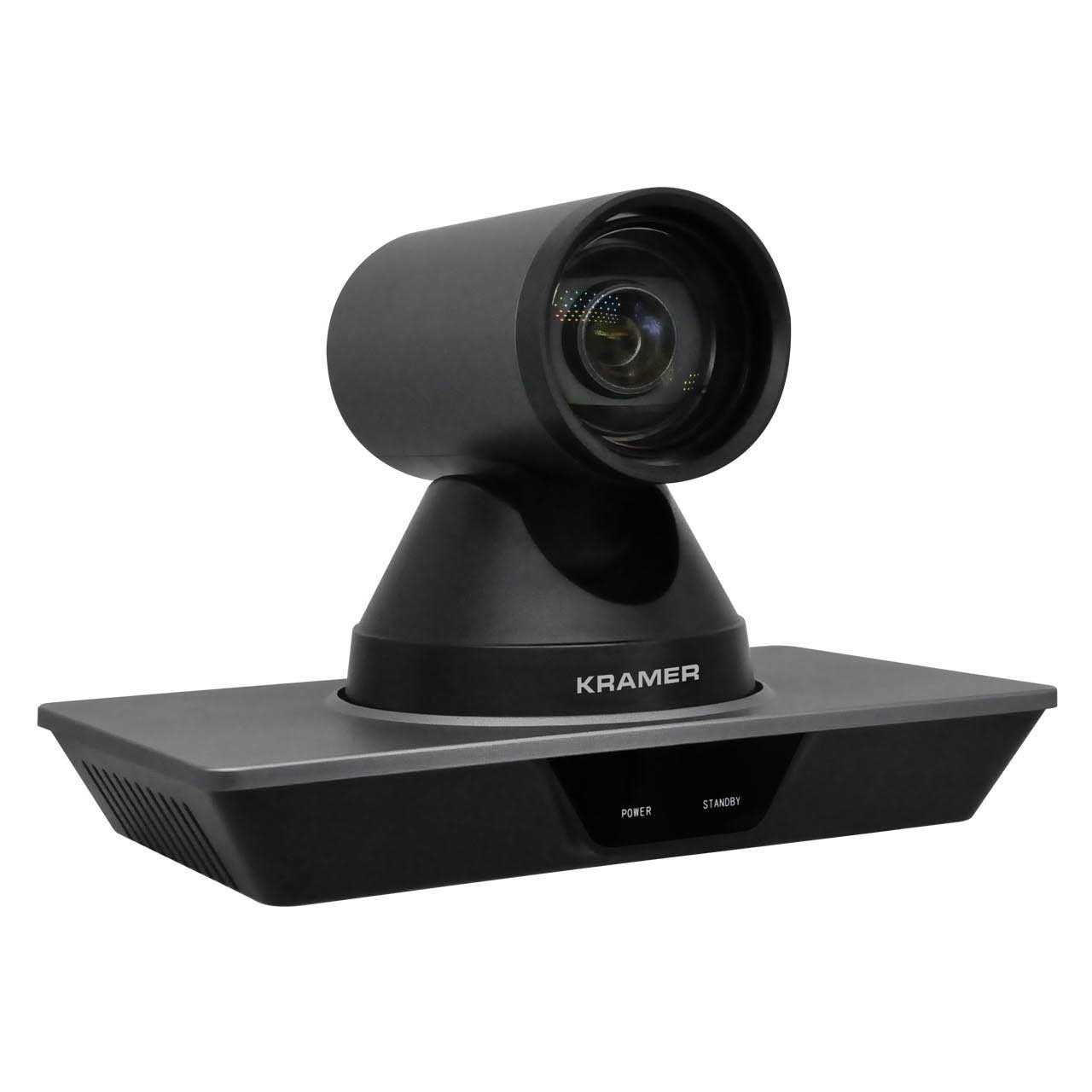

Kramer K-CAM4K 4K UHD PTZ Camera with 71-degree Wide-angle Lens & 12x Optical Zoom

ITEM #: KR-K-CAM4K MFG #: K-CAM4K

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,175.00

Our Price:

$940.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    K-CAM4K - Overview

    Kramer K-CAM4K is an Ultra-HD camera for premium-clarity video in large spaces. Put every meeting in sharp focus with crystal-clear, ultra-high-definition video capture and advanced, yet easy, control.4K resolution, high-power optical and digital zooms, smooth PTZ operation and multiple outputs, the K-Cam4K takes video conferencing to a new level.

    Superior video at any distance
    -Wide-angle image capture with advanced PTZ control enables dynamic coverage of medium and large spaces, such as boardrooms, classrooms, and auditoriums
    -Best-in-class image clarity and highly accurate close-ups, with 4K60 resolution and 12x optical zoom plus 16x digital zoom
    -Enhanced video quality, even in low-light conditions, with industry-leading CMOS image sensing with 2D and 3D digital noise reduction (DNR)

    Easy configuration and control
    -All operation, including pan, tile and zoom, are easily controlled from any Kramer control interface and/or the compact remote control
    -Multiple ports including RS-232, RJ-45, HDMI 1.4, and USB 3.0 deliver 4K video at up to 60 fps
    -Works seamlessly with virtually all meeting applications
    -Fast and simple setting of camera angle, with a choice of 255 pre-set camera positions

    Applications
    -Enterprise meeting rooms
    -Educational spaces
    -Any application where high-quality video conferencing is required

    • Features:

      • 4K 60fps clear video
      • 8.51 megapixel CMOS image sensor
      • Ultra-low CMOS image sensors plus 2D and 3D DNR technology
      • H.264

    • Specifications:

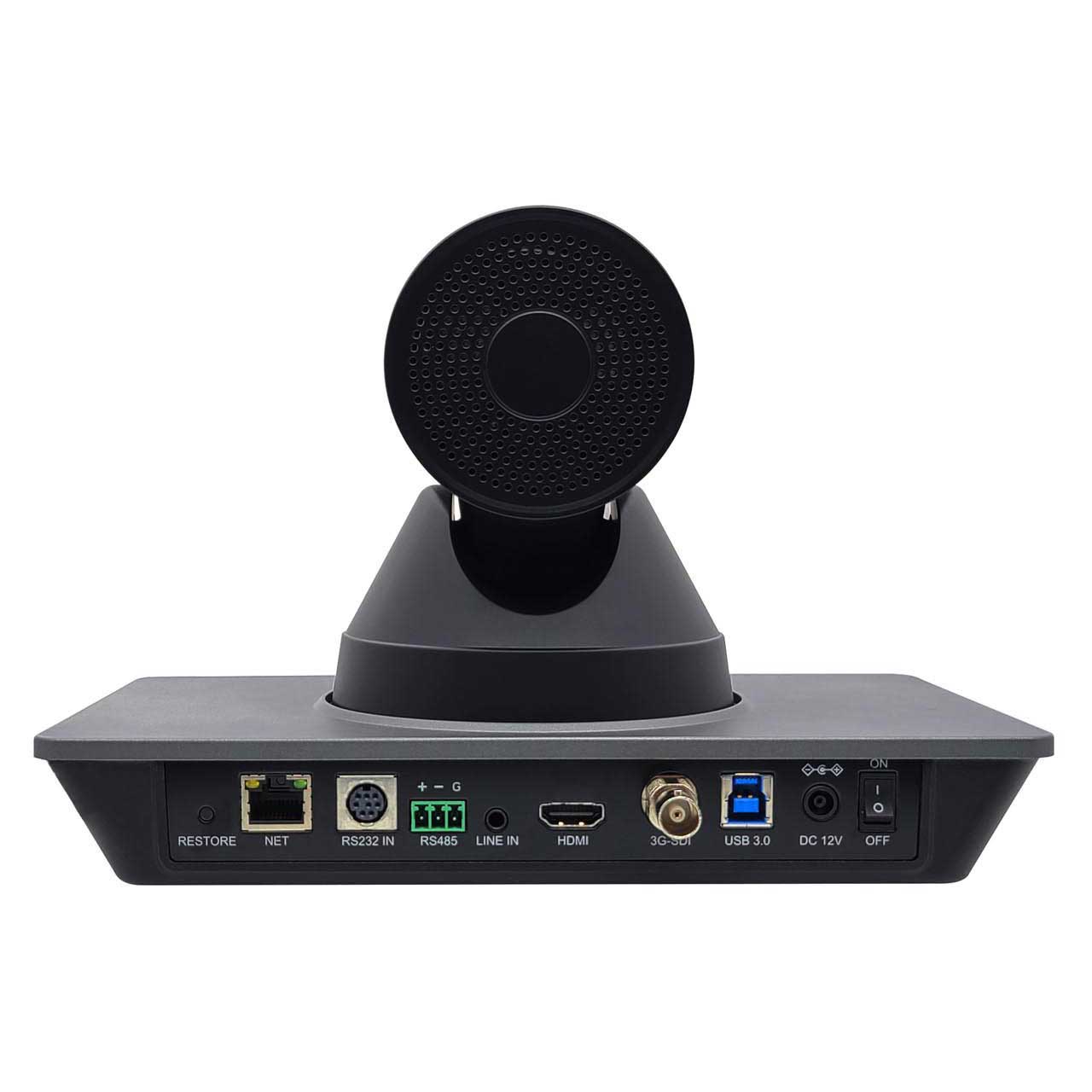

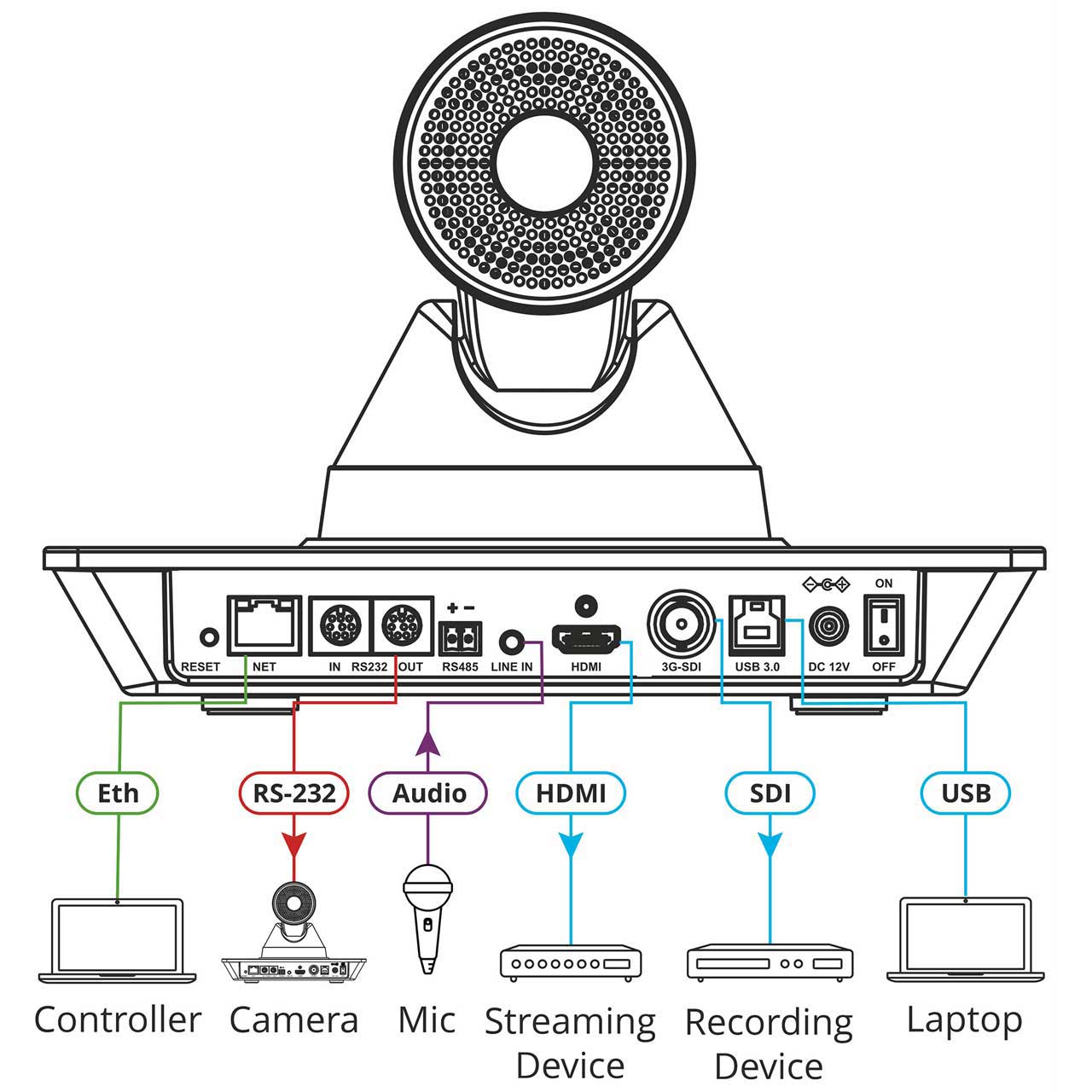

      • Ports
      • USB 3.0: On a USB type B connector Up to 4K@30fps compressed video and 1080P original video can be output
      • RS-232 IN: On an 8-pin Min DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P
      • RS-232 OUT: On an 8-pin Min DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P
      • RJ-45: 10/100/1000M Adaptive Ethernet Port
      • RS-485: On a 2-pin phoenix connector, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P
      • Audio Line In: On a 3.5mm mini jack
      • HDMI: On an HDMI connector
      • 3G-SDI: On a BNC connector, 800mVp-p, 75?. Along to SMPTE 424M standard

        Camera
      • Video System: HDMI: 1080P60, 1080P50, 1080I60, 1080I50, 1080P30, 1080P25, 720P60, 720P50, 1080P29.97, 1080I59.94, 1080P59.94, 720P59.94, 4KP29.97, 4KP25, 4KP30
      • Video System: 3G-SDI: 1080P60, 1080P50, 1080I60, 1080P59.94, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50
      • Sensor: 1/2.5 inch, CMOS, Max Effective Pixel: 8.51M
      • Scanning Mode: Progressive
      • Lens: 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
      • Digital Zoom: 16x
      • Minimal Illumination: 0.5 Lux @ (F1.8, AGC ON)
      • Shutter: 1/30s ~ 1/10000s
      • White Balance: Auto, Indoor, Outdoor, One Push, Manual
      • Backlight Compensation: Support
      • Digital Noise Reduction: 3D Digital Noise Reduction
      • Video S/N: =55dB
      • Horizontal Angle of View: 71° ~ 8.2°
      • Vertical Angle of View: 42.7° ~ 4.5°
      • Horizontal Rotation Range: ±170°
      • Vertical Rotation Range: ±30°
      • Pan Speed Range: 1.6°/s ~ 76°/s
      • Tilt Speed Range: 0.5°/s ~ 15°/s
      • H & V Flip: Support
      • Image Freeze: Support
      • Number of Presets: 255
      • Preset Accuracy: 0.1°

        USB Features
      • Video Format: YUY2: max to 1080P@30fps
      • Video Format: H.264 AVC/SVC: max to 2160P@30fps
      • Video Format: MJPEG: max to 4K@30fps
      • Operating System: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
      • Color System / Compression: YUY2 / MJPEG / H.264 / H.265
      • USB Audio: Support
      • USB Video Communication Protocol: UVC 1.1~1.5
      • UVC PTZ: Support

        Network
      • Video Compression: H.264/H.265/MJPEG
      • Video Stream: First Stream, Second Stream
      • First Stream Resolution: 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360
      • Second Stream Resolution: 720x480, 720x408, 640x480, 640x360, 480x320, 320x240
      • Video Bit Rate: H264: ~60Mbps MJPEG: ~200Mbps
      • Bit Rate Type: Variable Rate, Fixed Rate
      • Frame Rate: 50hz: 4K max to 30fps, 1080P max to 50fps
      • Frame Rate: 60hz: 4K max to 30fps, 1080P max to 60fps
      • Audio Compression: G711A, AAC
      • Audio Bit Rate: 96K, 128K
      • Protocols: TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast

        Controls
      • IR Remote Control Transmitter: OSD
      • Web Interface: Embedded webpages

        Power
      • Source: 12V DC, 2A max
      • Consumption: 12W max

        Environmental Conditions
      • Operating Temperature: 14° to 104°F
      • Storage Temperature: 40° to 140°F
      • Humidity: 10% to 90%, RHL non-condensing
      • Altitude: Below 5000 meters

        Regulatory Compliance (Standards Compliance)
      • Safety: CE, FCC
      • Environmental: RoHs, Reach

        Enclosure
      • Type: Aluminum and plastic

        General
      • Net Dimensions (W, D, H): 5.7" x 3.9" x 5.9"
      • Shipping Dimensions (W, D, H): 9" x 9" x 9.8"
      • Net Weight: 2.1lbs approx
      • Shipping Weight: 5.7lbs approx

    • Item Includes:

      • 1x Power adapter and cord
      • 1x IR remote control transmitter
      • 1x USB 3.0 cable
      • 1x Wall bracket kit
      • 1x Lens cover

    • GTIN:

      7291063098285
