Kramer KIT-400 4K HDMI Auto-Switcher / Scaler Kit over Long Reach HDBaseT

KIT-400 - Overview

• Features:

  • Simple and Powerful Maestro Room Automation - Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including scheduling, input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.
  • HDMI Support - HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).
  • PoC (Power over Cable) Enabled - Power only one of the units. The other unit of the receiver/transmitter pair is powered via the HDBaseT extension.
  • 2 Local and 1 Remote Source - With auto-switching of the live source to the HDMI display on the output at the receiver. The transmitter has an HDMI and a VGA input, with a dedicated audio jack, and there is an additional HDMI input on the receiver side.
  • Audio De-embedding - Output the HDMI audio to a balanced stereo output on the receiver side, and an unbalanced stereo output on the transmitter side.
  • Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation.
  • Easy Remote Device Control - Control devices connected to KIT-400 from the user-friendly Kramer Aware interface on the KIT-400 embedded webpages. You can also access the interface using the Kramer Aware app on a compatible Kramer touch panel.
  • Convenient Unit Control and Configuration Options - Local control via front panel source and output switching buttons, DIP-switches for configuring connection priority, and OSD menu. Distance control via user-friendly embedded web pages via Ethernet, Protocol 3000 API, RS-232 serial commands transmitted by a PC, touch screen system or other serial controller and relay switches.
  • Easy, Cost-effective Maintenance - Local firmware upgrade via USB connector.
  • Easy and Elegant Installation - Installation is fast and cost-effective via a single CAT cable, providing both video signal and power (PoC) connections. Compact MegaTOOLS™ fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.


• Specifications:

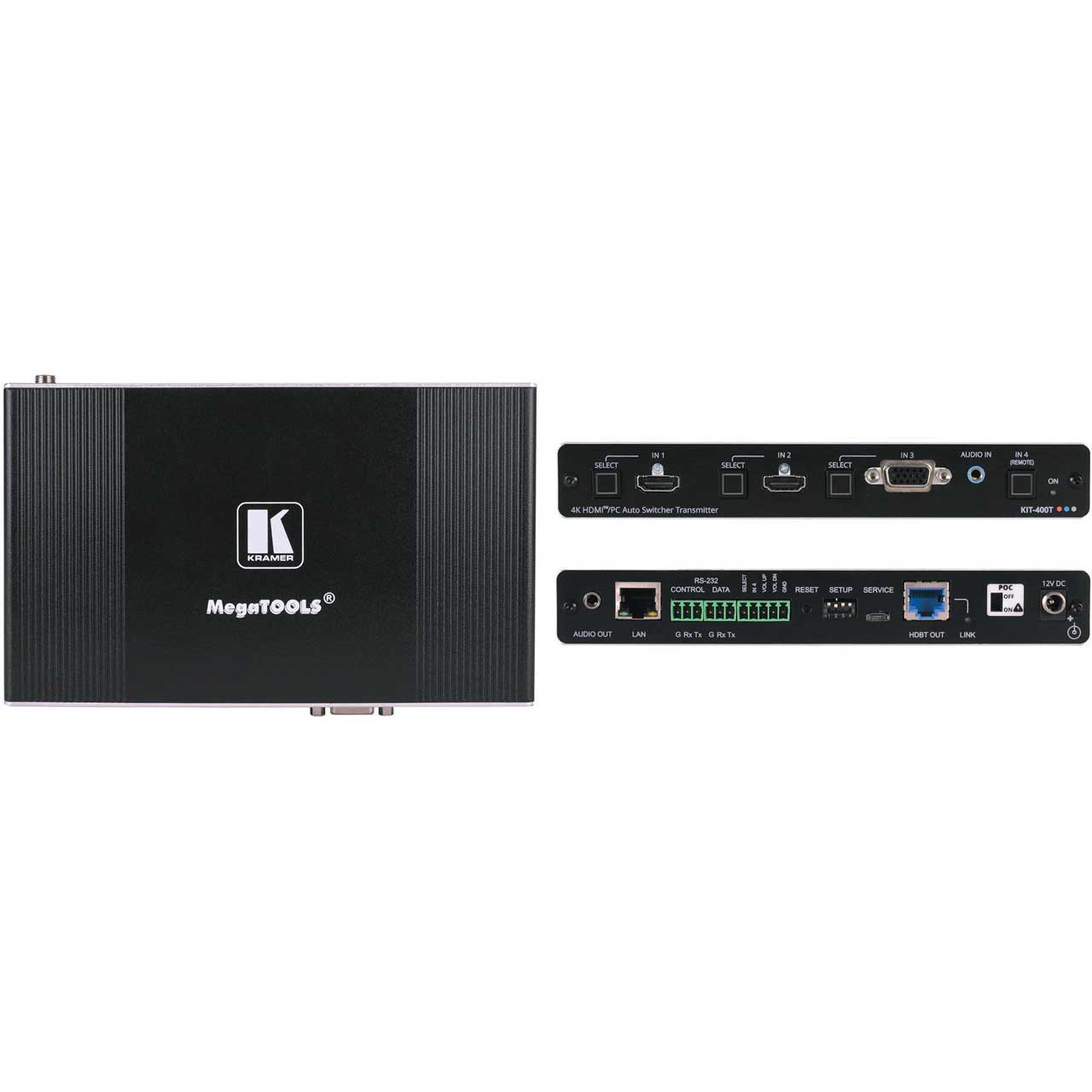

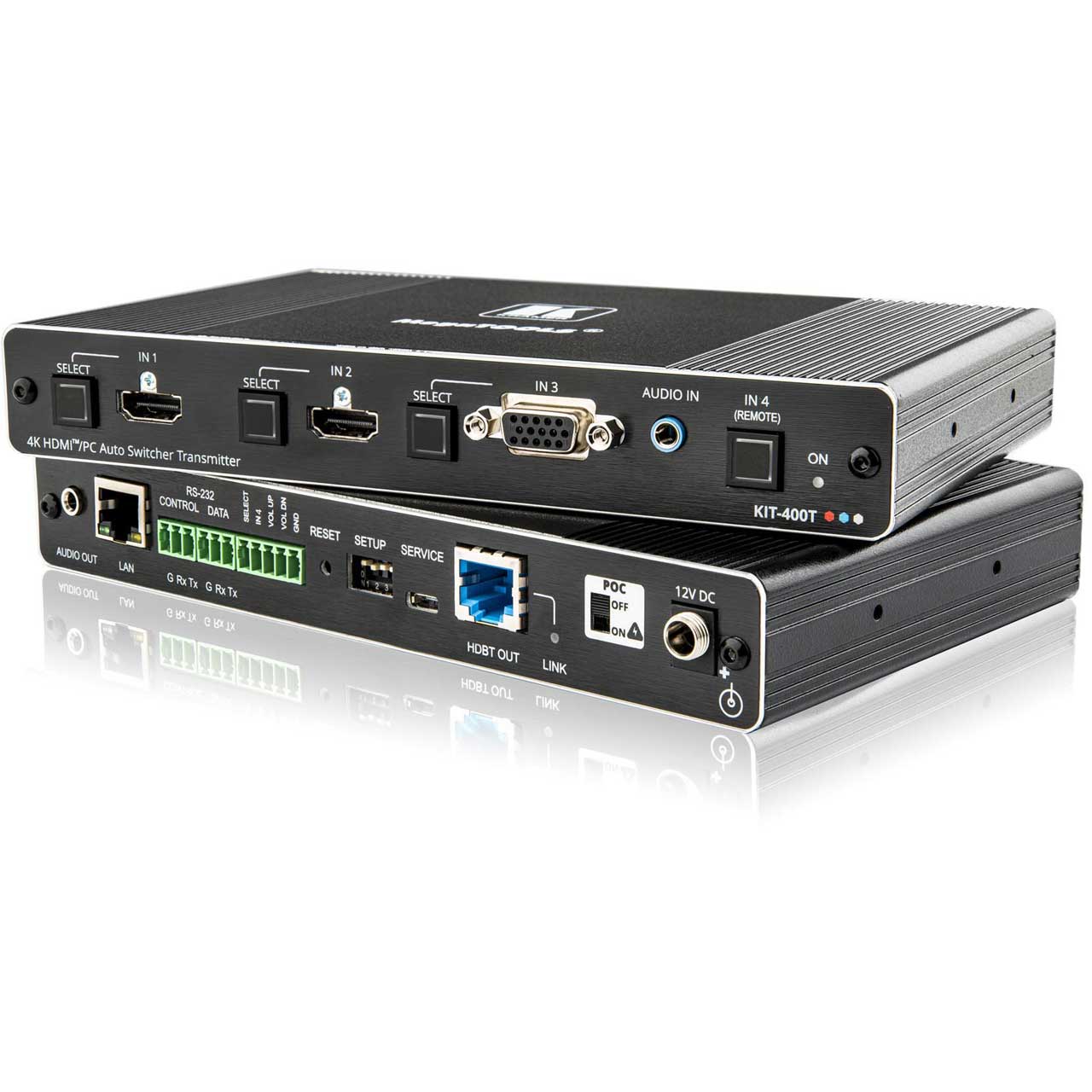

  • Transmitter Inputs/Outputs
  • Inputs
  • 2 HDMI: On female HDMI connectors
  • 1 VGA: On a 15-pin HD connector
  • 1 Unbalanced Audio: On a 3.5mm mini jack
  • Outputs
  • 1 HDBaseT: On an RJ-45 connector
  • 1 Unbalanced Audio: On a 3.5mm mini jack
  • Ports
  • 1 Ethernet: On an RJ-45 connector
  • 1 Control RS-232: On a 3-pin terminal block connector
  • 1 Data RS-232: On a 3-pin terminal block connector
  • 1 Remote Contact-Closure: On a 4 pin terminal block connector
  • 1 Service USB: On a mini-USB connector for firmware upgrade

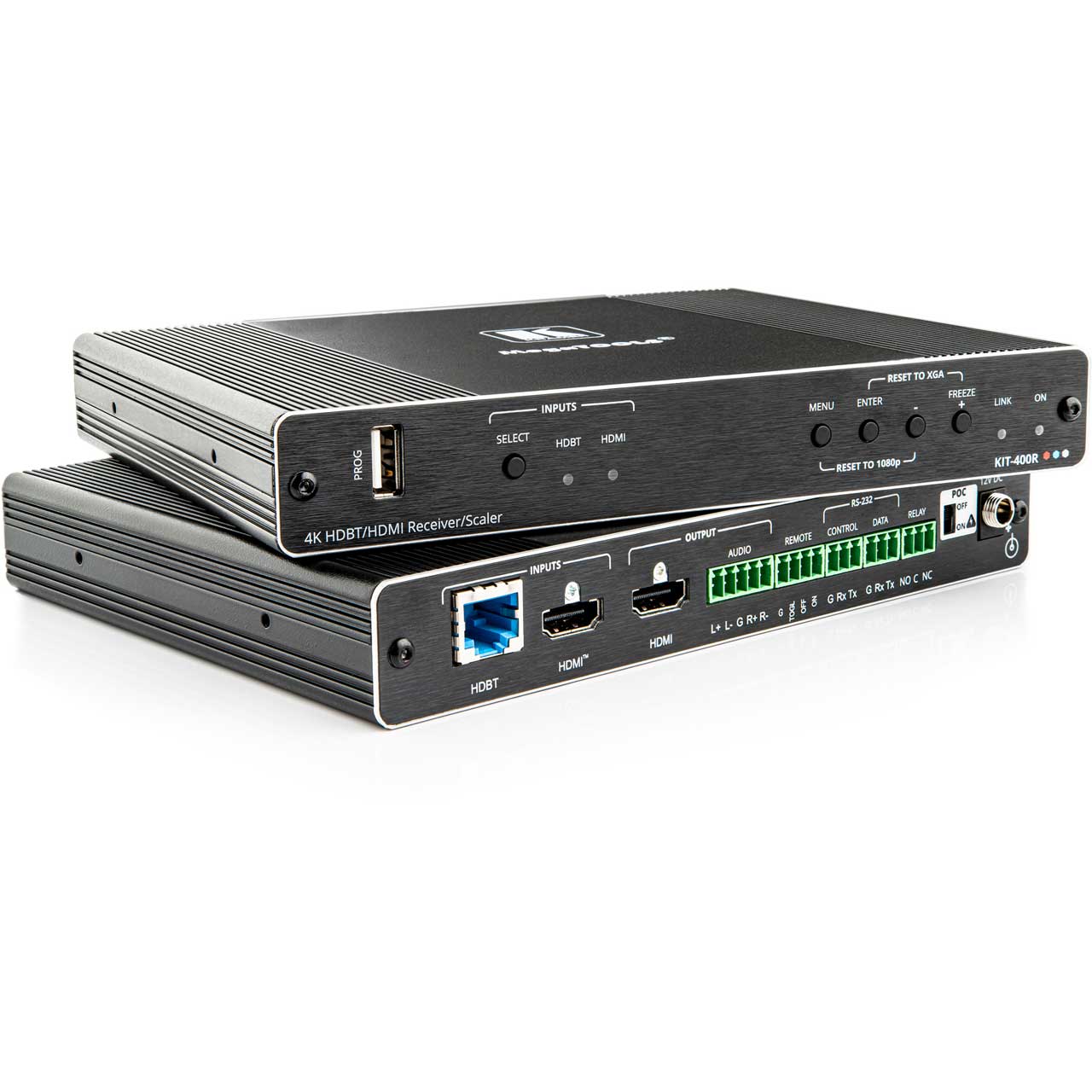

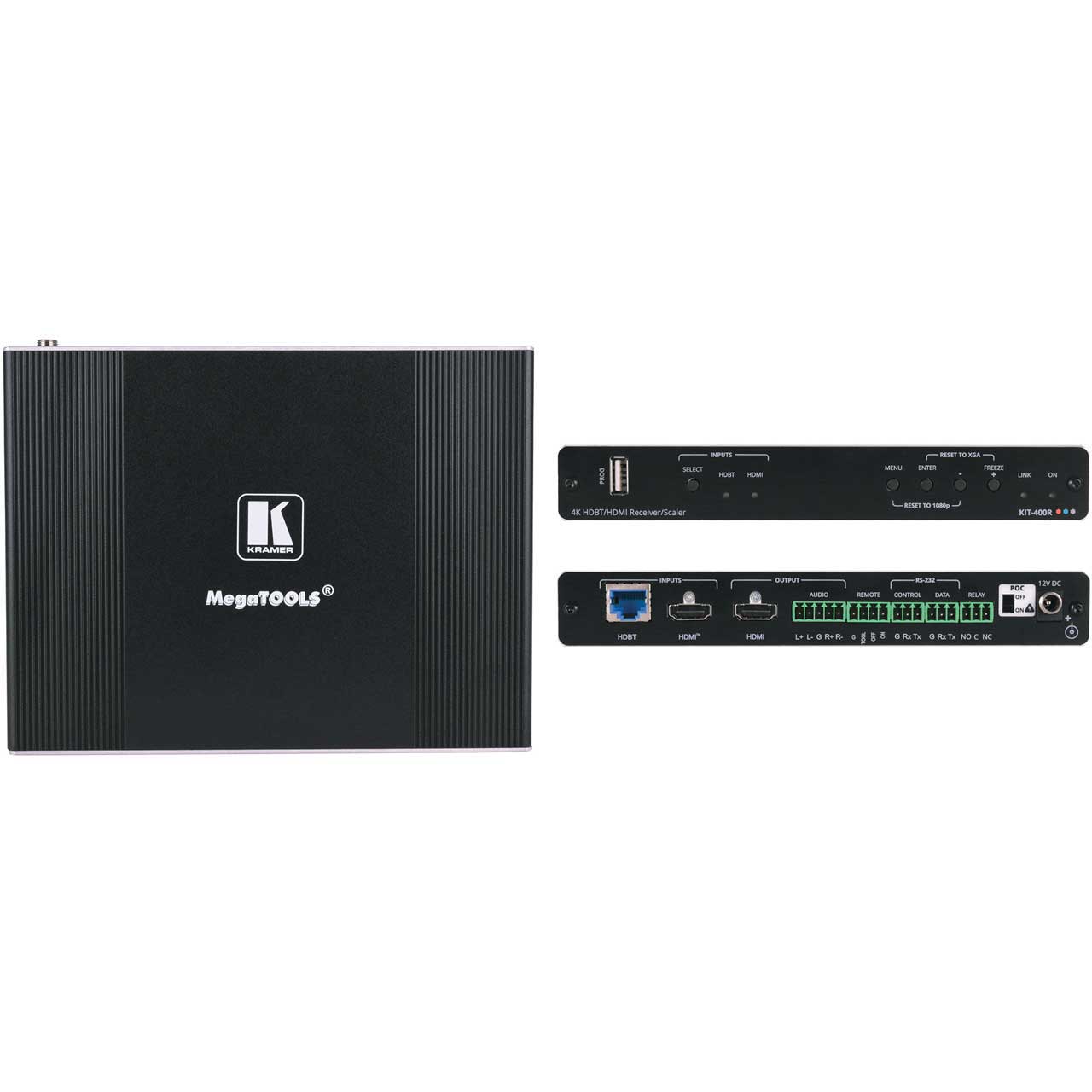

    Receiver Inputs/Outputs
  • Inputs
  • 1 HDBaseT: On an RJ-45 connector
  • 1 HDMI: On female HDMI connectors
  • Outputs
  • 1 HDMI: On female HDMI connectors
  • 1 Balanced Audio: On a 5-pin terminal block connector
  • Ports
  • 1 Control RS-232: On a 3-pin terminal block connector
  • 1 Data RS-232: On a 3-pin terminal block connector
  • 1 Remote Contact-Closure: On a 4 pin terminal block connector
  • 1 Relay: On a 3-pin terminal block connector
  • 1 Program USB: On a USB-A connector for firmware upgrade

    Video
  • Max Data Rate (on the HDMI ports): KIT-400R: 18Gbps, KIT-400T: 10.2Gbps
  • Max Resolution (on HDMI ports): KIT-400R: 4K@60Hz (4:4:4), KIT-400T: 4K@60Hz (4:2:0)
  • HDMI Support: 4K60, CEC, xvYCC color
  • Content Protection: HDCP 1.4 and 2.2 (KIT-400R)
  • KIT-400R Output Resolutions: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz RB, 2560x1600@60Hz RB, 1920x1080@60Hz, 1280x720@60Hz, 2048x1080@50/60Hz, 2560x1440@60Hz RB, 720x480p@60Hz, 720x576p@50Hz, 1280x720p@50/60Hz, 1920x1080p@24/25/30/50/60Hz, 2560x1080p@50/60Hz, 2K@24/25/30/50/60Hz, 4K@24/25/30/50/60Hz

    Extension Line
  • Up to 40m (130ft): At 4K@60Hz (4:2:0)
  • Up to 70m (230ft): At full HD (1080p@60Hz)

    Extended RS-232
  • Baud Rate: 300 to 115200

    Power
  • Source: 12V DC
  • Combined Consumption of Both Units: 2A (1 unit connected to 12V DC + 1 unit powered by PoC)

    User Interface
  • Control: Input selection buttons, DIP-switches, remote contact-closure switches, relay switches. Kramer API via RS-232 serial commands transmitted by a PC, touch screen system or other serial controller, embedded web pages via LAN for configuration and control
  • Indicators: Power, link, input selection LEDs

    Environmental Conditions
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -40° to 158°F (-40° to 70°C)
  • Humidity: 10 to 90%, RHL non-condensing

    Enclosure
  • Size: MegaTOOLS®
  • Type: Aluminum
  • Cooling: Convection ventilation

    Standards Compliance
  • Safety: CE
  • Environmental: FCC, UL


• Item Includes:

  • KIT-400T Auto Switcher Transmitter and KIT-400R Receiver/Scaler
  • Power Adapter and cord (1)
  • Rubber Feet (8)
  • Bracket Sets (2)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063091514
