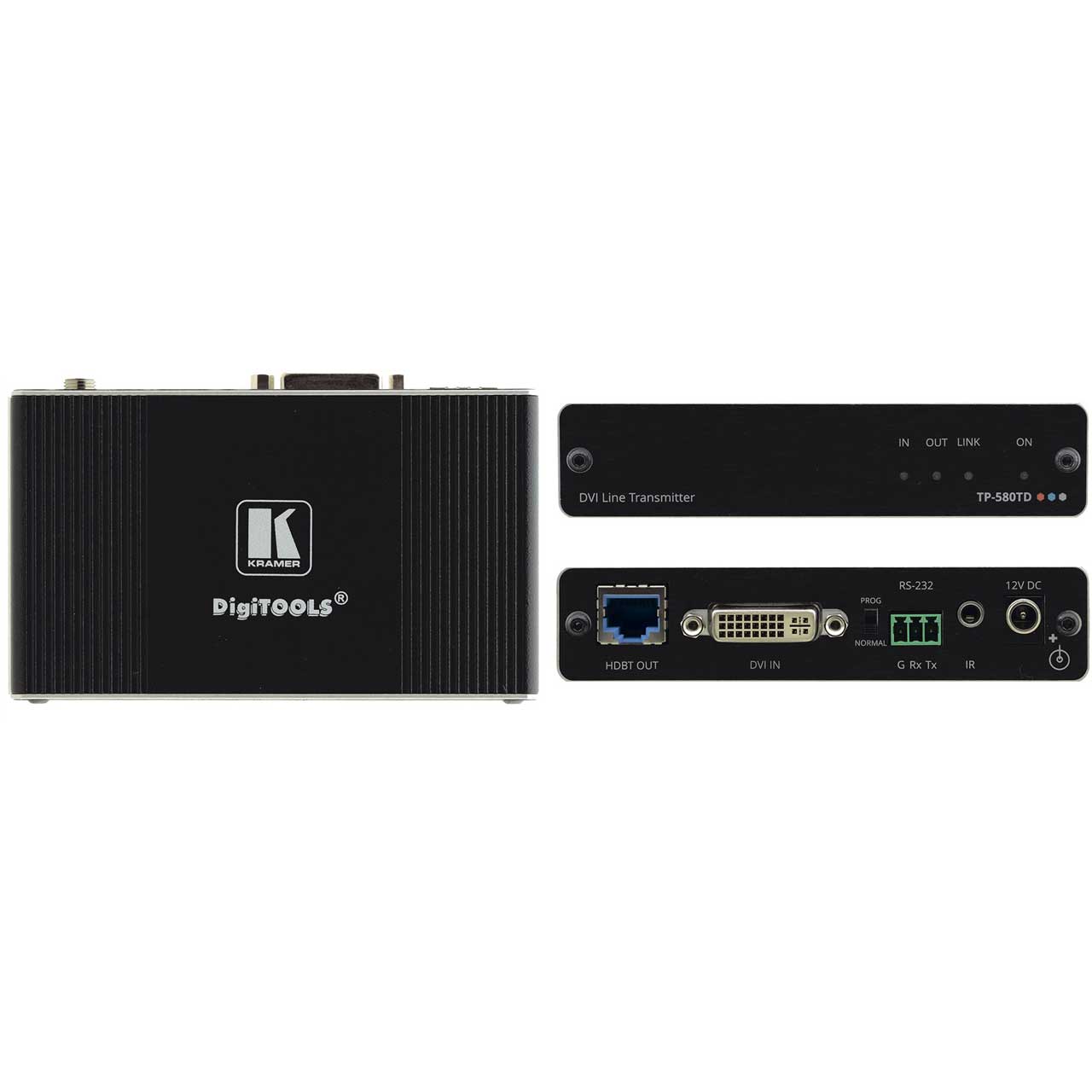

Kramer TP-580TD 4K60 4:2:0 DVI HDCP 2.2 Transmitter with RS-232 & IR over Long-Reach HDBaseT

ITEM #: KR-TP-580TD MFG #: TP-580TD

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-TP-580TD

TP-580TD - Overview

HDBaseT 1.0 transmitter

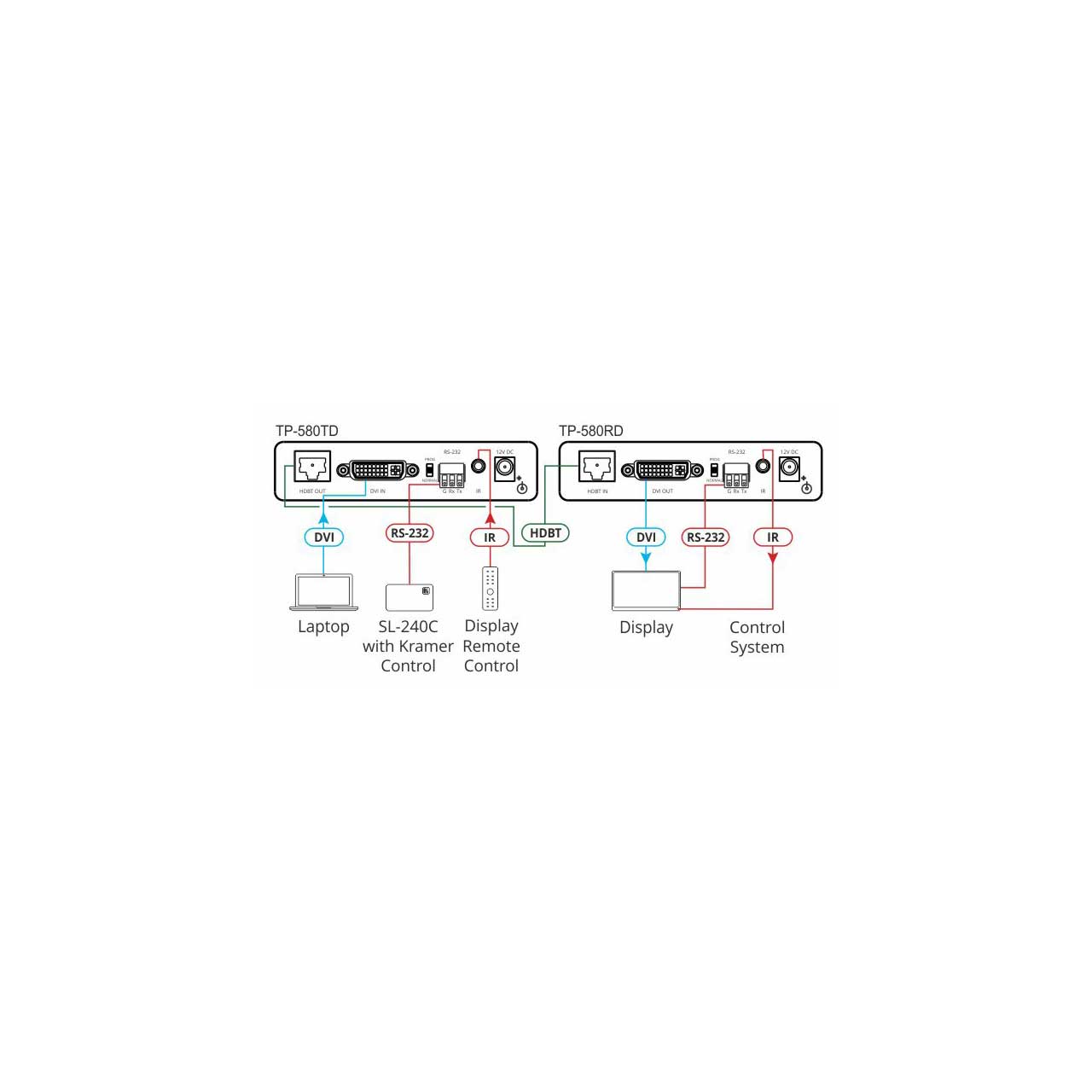

The TP-580TD is a high-performance, long-reach HDBaseT transmitter for 4K@60Hz (4:2:0) HDMI, RS-232 and IR signals over twisted pair, via single-link DVI-I connection. The TP-580TD converts all input signals into the transmitted HDBaseT signal. It extends video signals to up to 40m (130ft) over CAT copper cables to a compatable receiver like the KR-TP-580RD (sold separately) at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Perfect for:
Medical operation rooms and other critical AV extension applications
Highly reliable, long-distance extension of high-quality professional AV signals via lockable cable connections
Governmental market high-reliability AV extension applications
Rental and Staging events

  • Features:

    • High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. TP-580TD is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
    • Secured Operation - Highly-secured operation is ensured by lockable wiring connectivity with protection against unintentional cable disconnection.
    • HDMI Signal Extension - HDCP 2.2 compliant, via single-link DVI-I connection. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID signals are passed through from the source to the display.
    • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
    • Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
    • Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
    • Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
    • Cost-effective Maintenance - Status LED indicators for DVI and HDBT ports facilitate easy local maintenance and troubleshooting.
    • Easy Installation - Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.

  • Specifications:

    • INPUTS
    • 1 DVI-D: On a DVI-I female connector

    • OUTPUTS
    • 1 HDBaseT: On an RJ-45 female connector

    • PORTS
    • 1 IR: On a 3.5mm mini jack for IR link extension
    • 1 RS-232: On a 9-pin D-sub connector for serial link extension and device firmware upgrade

    • EXTENSION LINE
    • Compliance: HDBaseT 1.0
    • Up to 40m (130ft): At 4K@60Hz (4:2:0) (When using Kramer HDBaseT cables)
    • Up to 70m (230ft): At full HD (1080p @60Hz 36bpp) (When using Kramer HDBaseT cables)

    • VIDEO
    • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
    • Max. Supported Resolution: 4K@60Hz (4:2:0) 24bpp
    • Standards Compliance: HDCP 2.2

    • HDMI SUPPORT
    • Deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0

    • EXTENDED RS-232
    • Baud Rate: 300 to 115200

    • CONTROL RS-232
    • Baud Rate: 115200

    • ENCLOSURE
    • Size: DigiTOOLS®
    • Type: Aluminum
    • Cooling: Convection ventilation

    • POWER
    • Source: 12V DC, 2A
    • Consumption: 12V DC, 275mA

    • ENVIRONMENTAL CONDITIONS
    • Operating Temperature: 0° to 40°C (32° to 104°F)
    • Storage Temperature: -40° to +70°C (-40° to 158°F)
    • Humidity: 10% to 90%, RHL non-condensing

  • Item Includes:

    • TP-580TD Transmitter
    • Power Adapter and cord
    • Bracket Set (1)
    • Rubber Feet (4)

  • Warranty:

    • Limited 7 Year Warranty

  • GTIN:

    7291063084721
