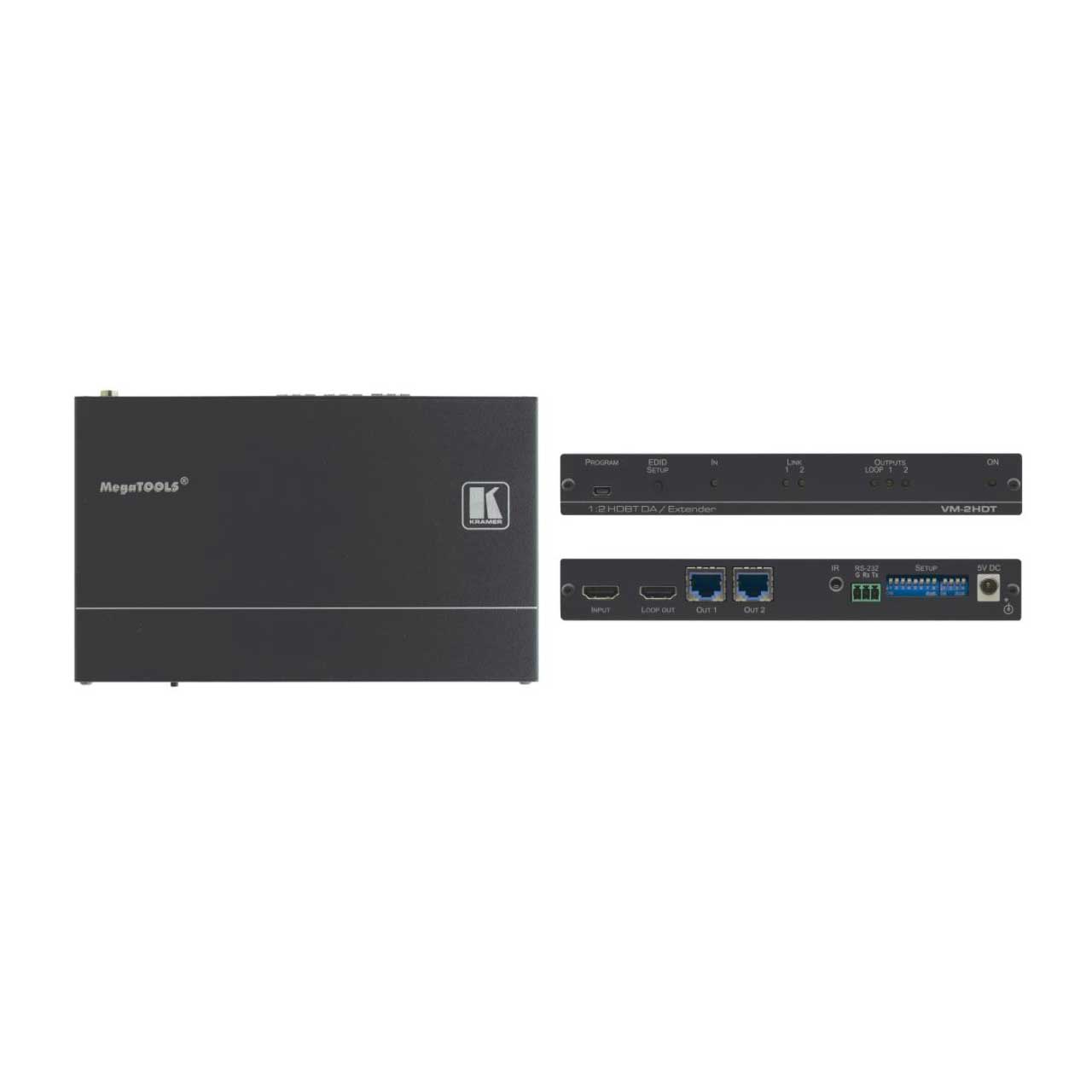

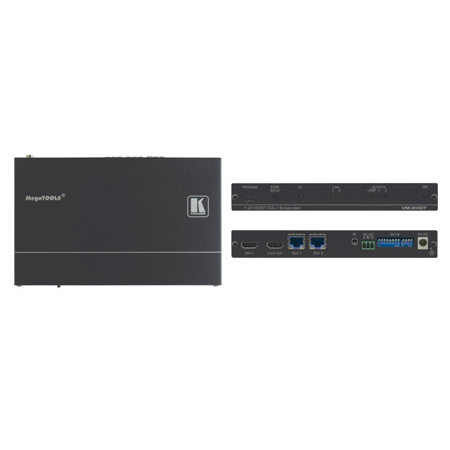

Kramer VM-2HDT 1:2 plus1 4K60 4:2:0 Long-Reach HDBaseT Distribution Amp

VM-2HDT - Overview

• Features:

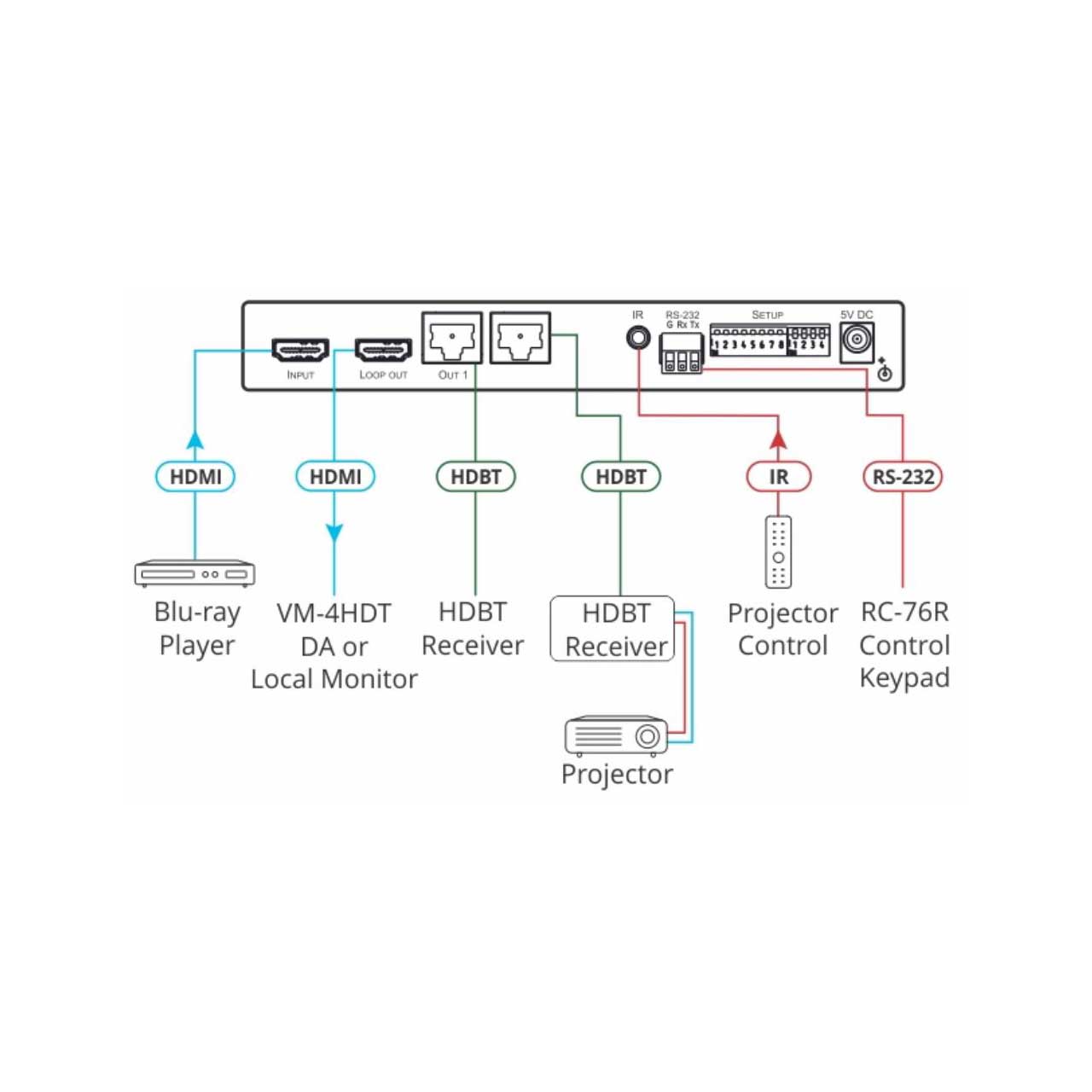

  • High Performance Distribution - Distributes one HDMI signal to two long-reach HDBaseT extension outputs with up to 4K video resolution, and additional HDMI LOOP output for connecting a local monitor or an additional unit in a daisy chain.
  • Extension-line Distribution - Distributes a 4K@60Hz (4:2:0) 24bpp (maximum) video signal over HDBaseT extension line to a distance of up to 40m (130ft) long-reach, and even further for lower video resolutions.
  • Standard Compatibility - Connects to any HDBaseT compliant extension product on the market.
  • HDMI Signal Transmission - HDCP 1.4 compliant signal, supporting Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™- An intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
  • User-Friendly Operation - Status indicators for HDMI and HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
  • Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting, or side-by-side rack mounting.


• Specifications:

  • INPUTS
  • 1 HDMI: On an HDMI female connector


  • OUTPUTS
  • 2 HDBT: On RJ-45 female connectors
  • 1 Loop HDMI: On an HDMI female connector


  • PORTS
  • 1 IR: On a 3.5mm mini jack for IR link extension
  • 1 RS-232: On a 3-pin terminal block for serial link extension


  • VIDEO
  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Max. Resolution: Up to 4K@60Hz (4:2:0) 24bpp
  • Standards Compliance: Supports HDCP 1.4 and HDBaseT 1.0
  • HDMI Support: Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0


  • EXTENSION LINE
  • Up to 40m (130ft): At 4K@60Hz (4:2:0) (when using Kramer HDBaseT cables)
  • Up to 70m (230ft): At full HD (1080p @60Hz 36bpp) (when using Kramer HDBaseT cables)


  • USER INTERFACE
  • Indicator LEDs: Outputs, inputs, communication link and power
  • Controls: EDID setup button, 12 setup DIP switches
  • 1 RS-232: On a Mini-USB female connector for firmware upgrade


  • POWER
  • Source: 5.2V DC, 4A
  • Consumption: 5V DC, 1.6A


  • ENCLOSURE
  • Size: MegaTool
  • Type: Aluminum
  • Cooling: Convection ventilation


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing


• Item Includes:

  • VM-2HDT Distribution Amp
  • Power adapter with cord
  • Bracket Set (1)
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063084707
