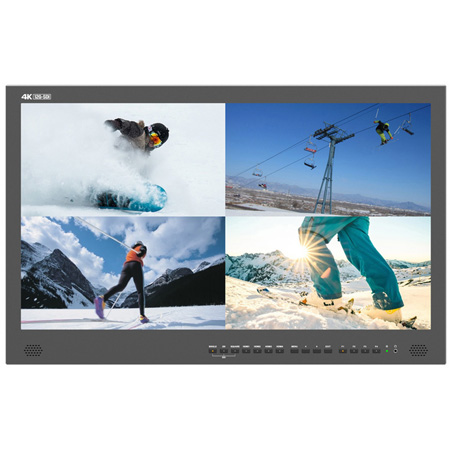

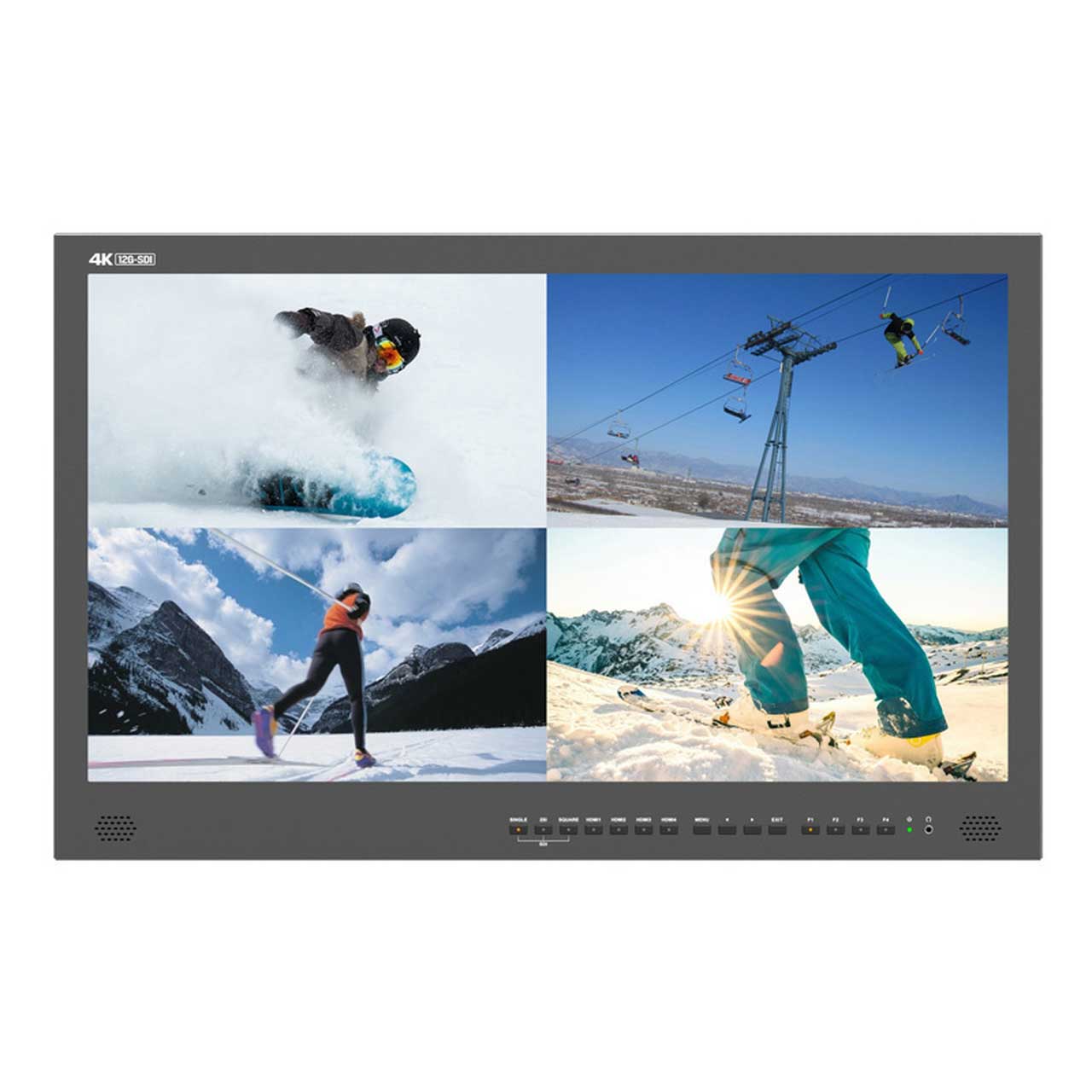

Lilliput BM280-12G-ABBP 28-Inch 12G-SDI 4K Broadcast Director Monitor with 12G-SDI and 4K HDMI Inputs - Gold Mount

Item #: LIL-BM28012GABBP MFG #: BM280-12G-ABBP

Lilliput BM280-12G-ABBP 28-Inch 12G-SDI 4K Broadcast Director Monitor with 12G-SDI and 4K HDMI Inputs - Gold Mount
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price: $1,799.00

Our Price: $1,699.00


Availability: More on the way, usually ships in 3-10 business days
i

This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    The Lilliput BM280-12G is a 28" 4K resolution monitor with HDMI and SDI connectivity at 12G connectivity speeds. Designed for the professional video and film industry and is ideally suited for directors and camera operators operating 4K capable equipment.

    The BM280-12G has two SDI input standards - ST425-3, which uses the 4x SDI inputs to carry 1/4 of the overall screen image, and ST425-5 which allows you to knit together the 4 SDI inputs and interleave them over each other. Both of these allow for a full 4K image over the 4x 3G SDI connections.

    4K Ultra-HD resolution
    The BM280-12G monitor features the latest 4K imaging technology. Connected through by HDMI 2.0, 4K screens are Ultra HD - containing 8.3 million pixels making the resolution four times more powerful than full HD making them the ultimate in cinematic displays.

    12G SDI Input
    The BM280-12G monitor has a 12G-SDI Single link input and output loop onboard. It can support 12G bandwidth inputs, as well as being backward compatible with 3G bandwidth inputs.

    Solid Transmission Distances
    The BM230-12G has a robust signal transmission range, meaning that you can use up to a 70 meter 12G-SDI input cable, and an output cable at up to 50 meters length, offering a flexible path to SDI connectivity. We measure this by looking at the height of the "eye" in the signal wave as shown on an oscilloscope. The BM280-12G has a "tall" eye when analysed, which highlights the strength and jitter-free quality of the signal.

    Image flip mode - View it your way
    Integrate the monitor into your current workflow at whatever angle you choose. X flip - Y flip functionality gives you that flexibilty

    Please Note! Please check that your camera's output feed frequency is compatible with the input frequencies of this monitor by clicking here for Lilliput's list of monitors and supported frequency types (for blackmagic camera owners and other 25fps camera types)
