AVMATRIX PVS0615 Portable 6 Channel Multi-Format Video Switcher

ITEM #: LIL-PVS0615 MFG #: PVS0615

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,999.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PVS0615 - Overview

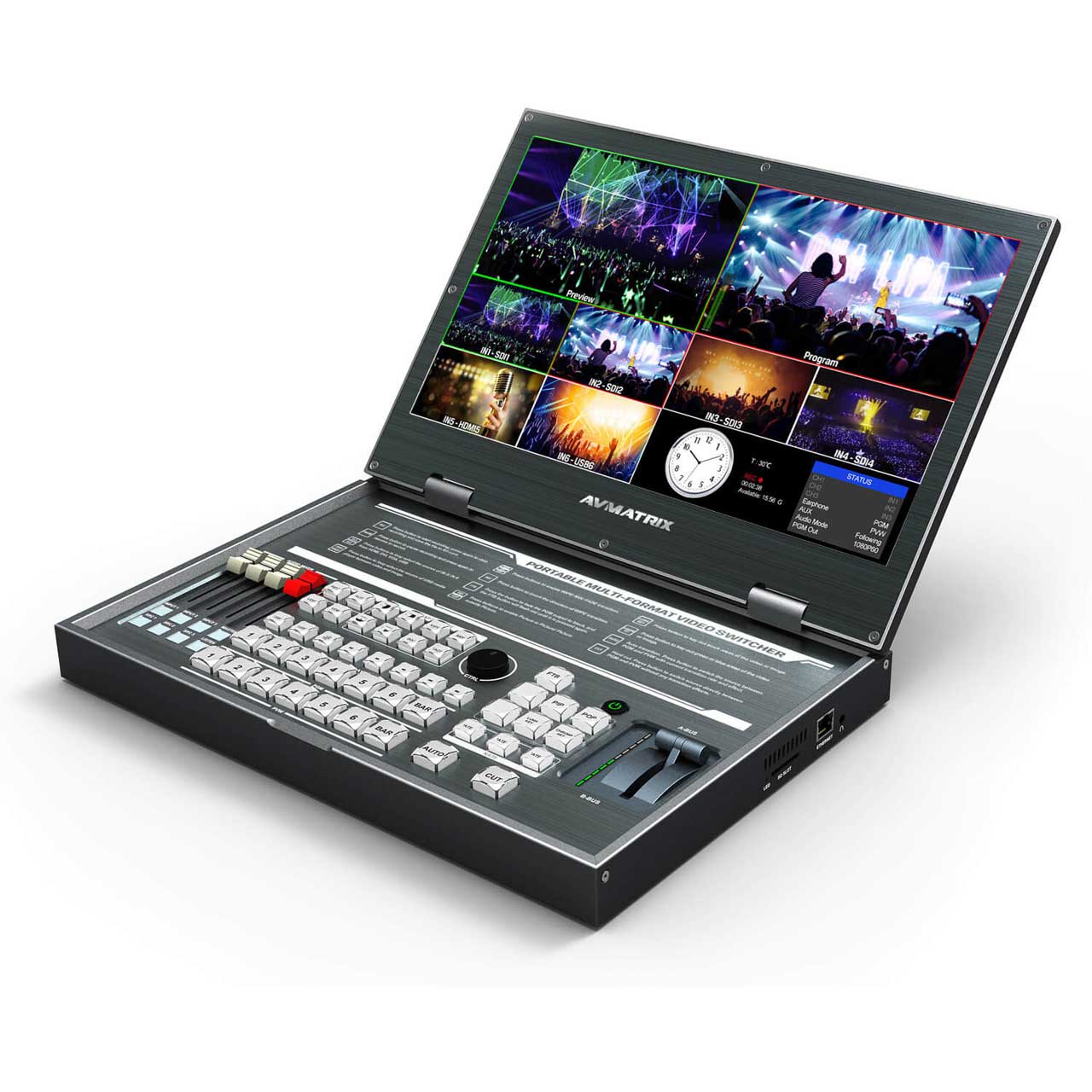

    The AVMATRIX PVS0615 is a multiformat video switcher which facilitates on-the-fly video editing. You can add in transition effects (controlled by a built in T-Bar), Chroma Key, audio mixing, and can save/load from a USB stick or SD card.

    Luma or Chroma Key can be applied, ideal for logos, overlays or masking. the PVS0615 includes a wide range of popular transition effects including wipes, mix, fade and FTB transitions. These transitions are available for use via the T-Bar or AUTO and CUT button.

    This portable all-in-one mixer features 1 channel XLR audio input and output, SDI audio de-embedding, and audio out that supports following and mixing. This switcher is housed in a portable and durable metal case with built-in 15.6" monitor. The PVS0615 also features 6 channels of SDI and HDMI/DVI inputs.

    • Specifications:

      • Functions

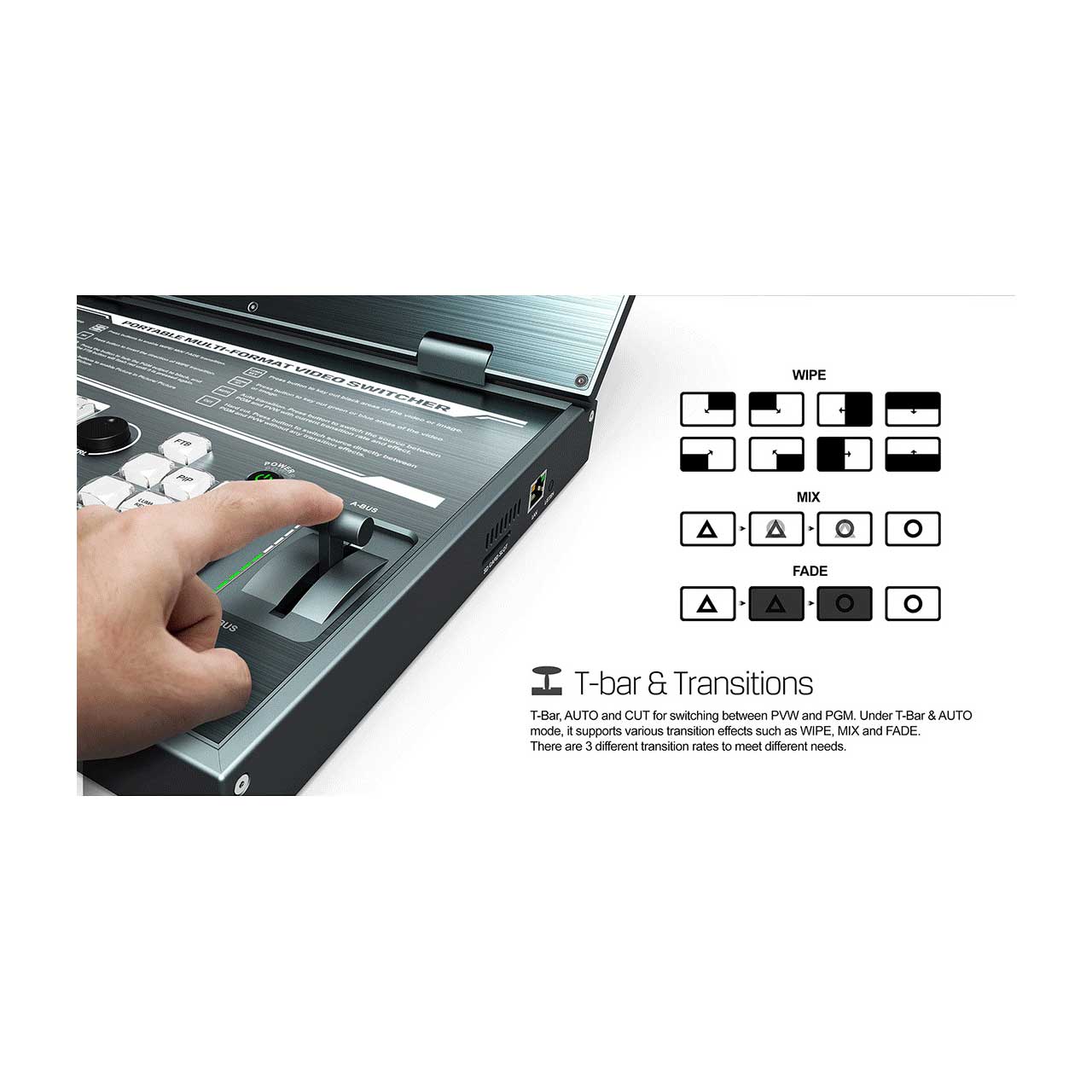

      • Transitions: manual T-bar/wipe/mix/cut/auto/FTB
      • Keys: Luma key/Chroma key
      • Layouts: Multiview/PiP/PoP
      • Audio Mixer: Following/Mixing

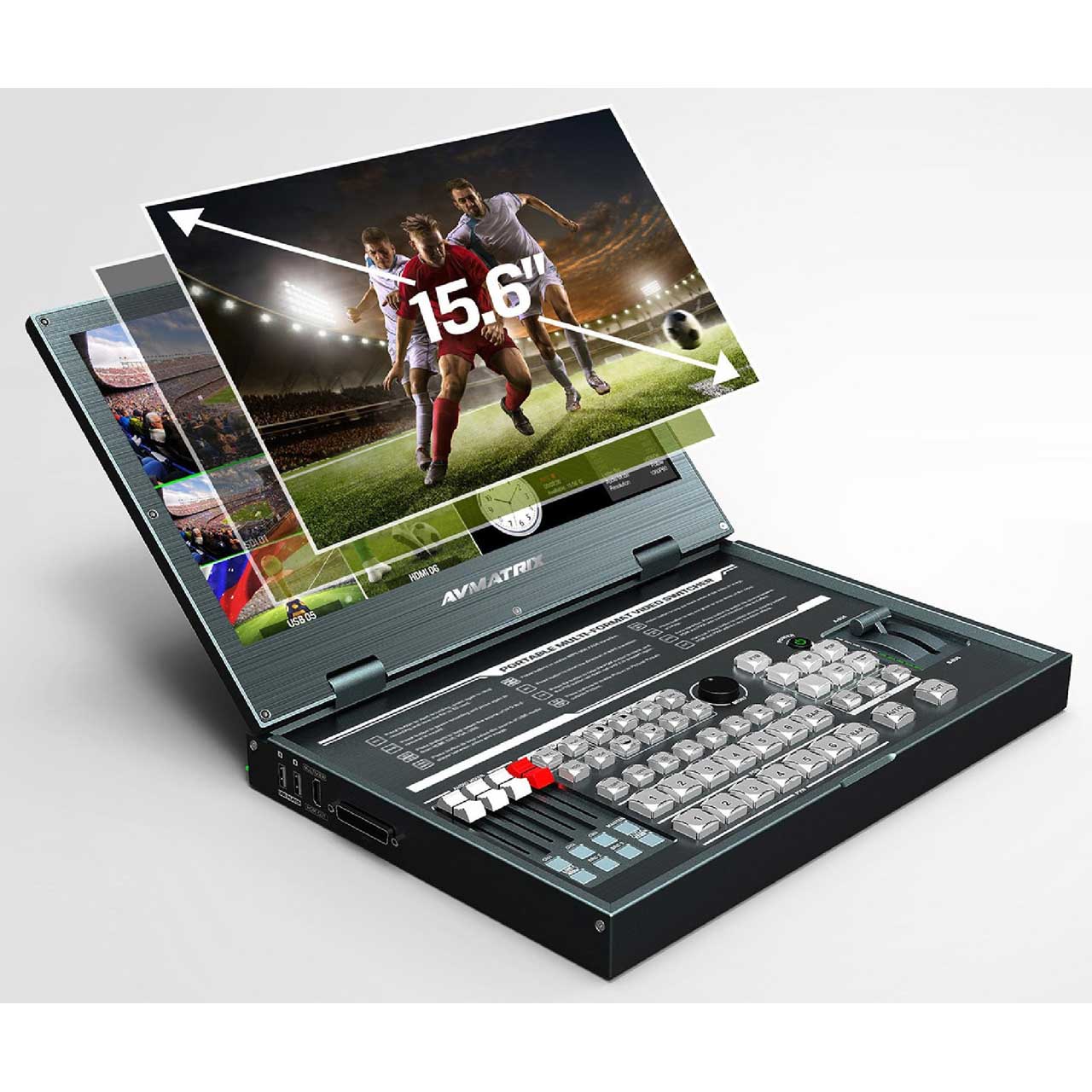

      • LCD Display: 15.6 Inch, 1920x1080 resolution

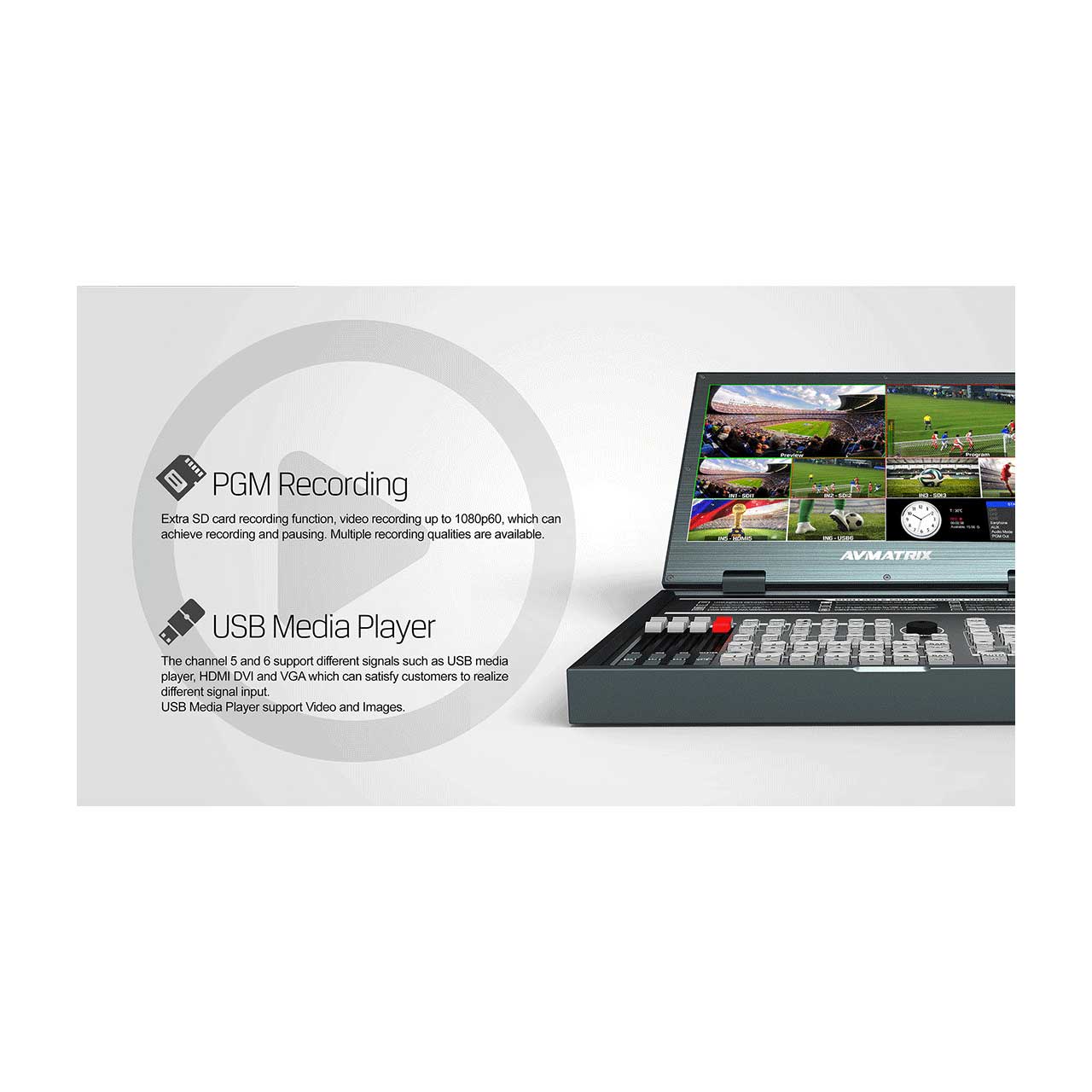

      • Record (Optional): SD card, H.246 encode, video format following PGM

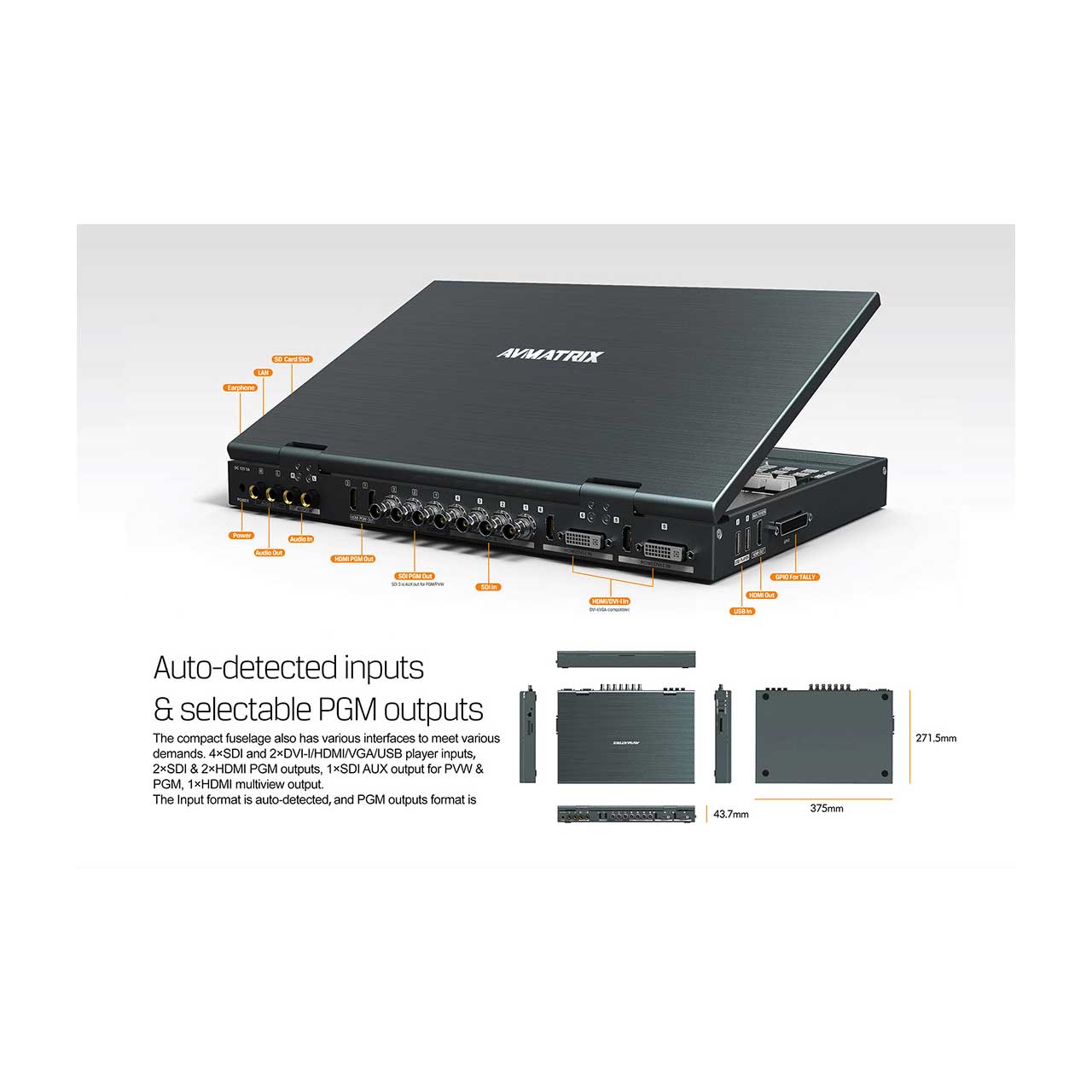

        Inputs
      • SDI Video Inputs: SD/HD/3G-SDI(75Ω) x4, auto detects SD, HD and 3G-SDI
      • HDMI Video Inputs: HDMI type-A x2
      • DVI Video Inputs: DVI-I (VGA-compatible) x2
      • USB Media Player: USB type-A x1
      • Analog Audio Inputs: 1/4" TRS (L/R) x1

        Outputs
      • SDI PGM Outputs: SD/HD/3G-SDI(75Ω) x3
      • HDMI PGM Output: HDMI type-A x2
      • HDMI Multiview Output: HDMI type-A x1
      • Analog Audio Output: 1/4" TRS (L/R) x1
      • Talley: GPIO

        Standards
      • SDI Input Format Support: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080PsF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98
      • SDI & HDMI Scaling PGM Output: 625i 50 PAL, 525i 59.94 NTSC, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50/30/25
      • SDI Compliance: SMPTE 292M / SMPTE259M / SMPTE 424M

        Physical
      • Dimensions (L x W x D): 14.76" x 10.68" x 1.72" (375 x 271.5 x 43.7)
      • Weight: 8.3 lbs (3.8 kg)
      • Power Supply: DC 12V 5A, 33W

    • GTIN:

      6971118000104
