Lilliput Q28 28-inch 12G-SDI Professional Production Studio Monitor with Carrying Case - V-mount

ITEM #: LIL-Q28-VBP-CC MFG #: Q28-VBP-CC

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,699.00

Our Price:

$2,399.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    Q28-VBP-CC - Overview

    Lilliput Q28-VBP-CC is a Q28-series 28 inch 12G-SDI professional broadcast production studio monitor with an V-mount battery plate and carrying case. 12G-SDIm 4K HDMI, 12G SFP+ and other signal transmission methods are integrated into this display, to avoid being lost in the choice question for video signals. Equipped with 12G-SDI, 3G-SDI, and HDMI 2.0 input/output interfaces, it can support up to 4096 x 2160 (60p, 50p, 30p, 25p, 24p) signal.

    • Features:

      • 12G-SDI and 4K HDMI 2.0 Connectivity
      • 3840 x 2160 Display Resolution
      • Quad-Split Multiview Display
      • Multiple Color Temperature Presets
      • HDR and 3D-LUT Support
      • Built-In Speakers, 3.5mm Earphone Jack
      • Supports DCI 4K60 Input
      • Audio Vector, Histogram, and Waveform
      • RS-422 Remote Control Application
      • Integrated Tally Light

    • Specifications:

      • Audio In / Out (48 kHz PCM Audio)
      • Built In Speakers: 2x
      • Ear Jack: 3.5mm

        Display
      • Aspect Ratio: 16:9
      • Brightness: 300cdm⊃2
      • Contrast Ratio: 1000:1
      • Resolution: 3840 x 2160
      • Technology: Calibration to REC.709 with optional calibration unit
      • Viewing Angle: 178° / 178° (H/V)
      • HDR: ST2084 - 300/ 1000/10000/HLG
      • LUT Support: 3D LUT (.cube format)
      • Screen Size: 31.5"
      • Supported Log Formats: SLog2 / SLog3 / CLog / NLog / Arrilog / JLog / User

        Remote Control
      • GPI: 1
      • LAN: 1

        Supported Formats
      • HDMI Formats Supported: 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60
      • SDI Formats Supported: 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60
      • SFP Formats Supported: 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60

        Video Loop Output
      • HDMI Video Loop Output: 1x HDMI 2.0
      • SDI Video Loop: 2x 12G, 2x 3G (Supported 4K-SDI Formats Single / Dual / Quad Link)

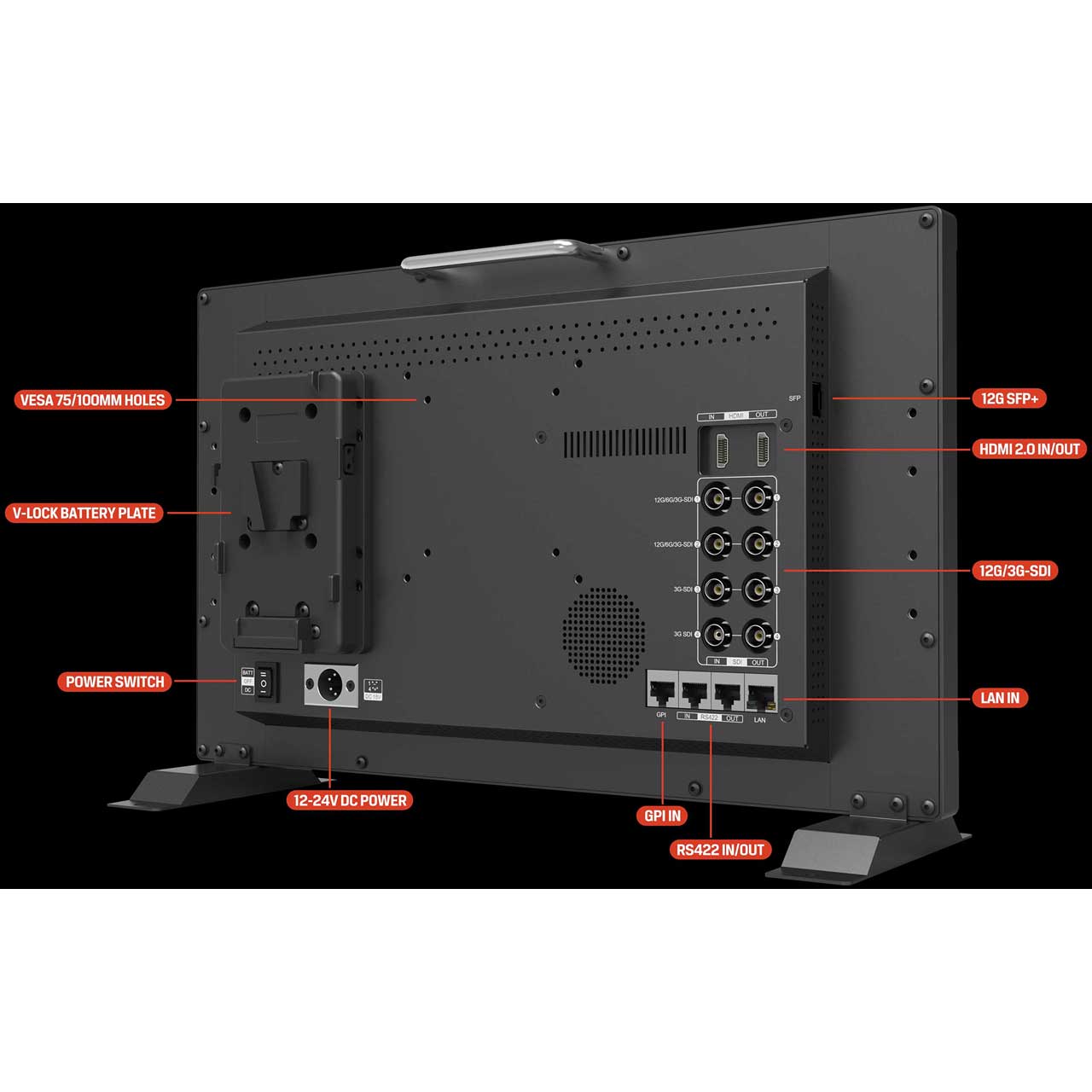

        Connections
      • HDMI Video Input: 1x HDMI 2.0

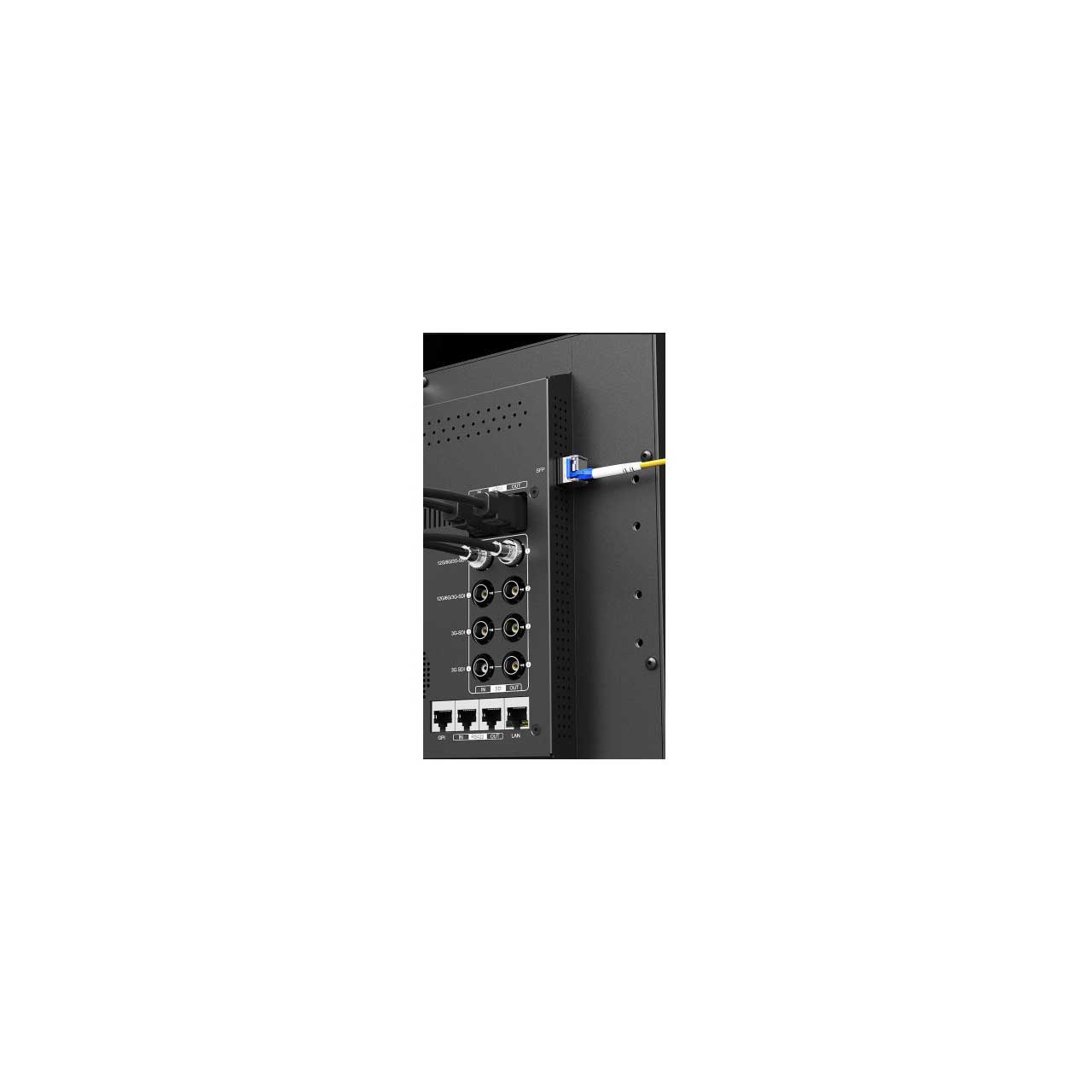

      • SFP: 1x 12G SFP+ (Fiber module optional)
      • SDI VIdeo Input: 2x 12G, 2x 3G (Supported 4K-SDI Formats Single / Dual / Quad Link)

        Size
      • Dimensions: 22.32 x 14.84 x 1.81 in (567 x 377 x 46mm)
      • Weight: 10.36lbs (7.4Kg)

        Power
      • Battery: V-lock Compatible (Battery not included - requires 14.8V)
      • Input Voltage: DC 12-24V
      • Power Consumption: =< 32.5W (15v)

        Environment
      • Operating Temperature: 32° to 104°F (0° - 40°C)
      • Storage Temperature: - 4° to 140°F (-20 - 60°C)

    • Item Includes:

      • 1x Q28 28" 12G-SDI Professional Production Studio Monitor (V-Mount)
      • 1x Carrying Case
      • 1x 15 VDC Power Adapter
      • 1x VESA Mount Plate
      • 2x Base Bracket
      • 1x V-Mount Battery Plate
      • 1x USB Flash Drive
