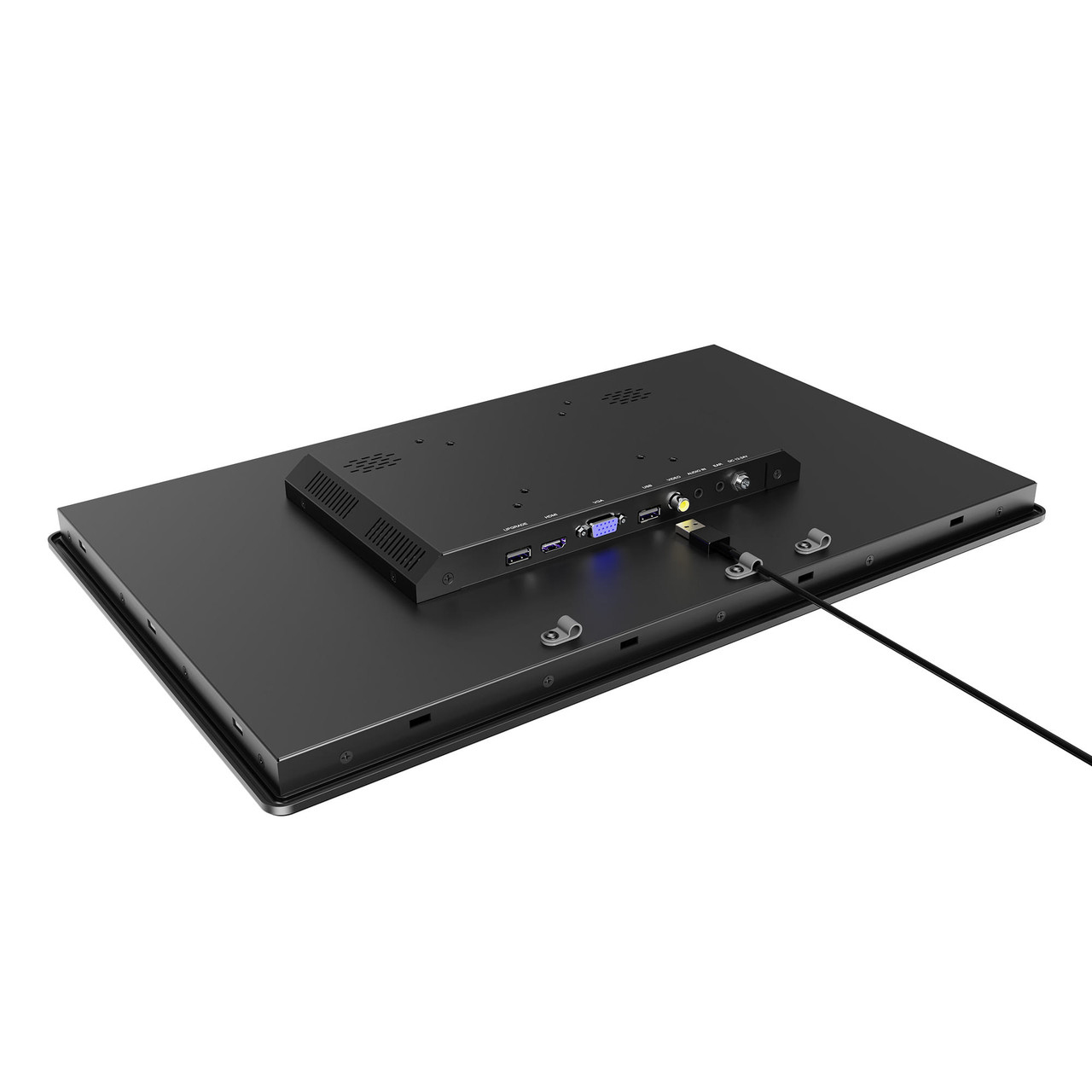

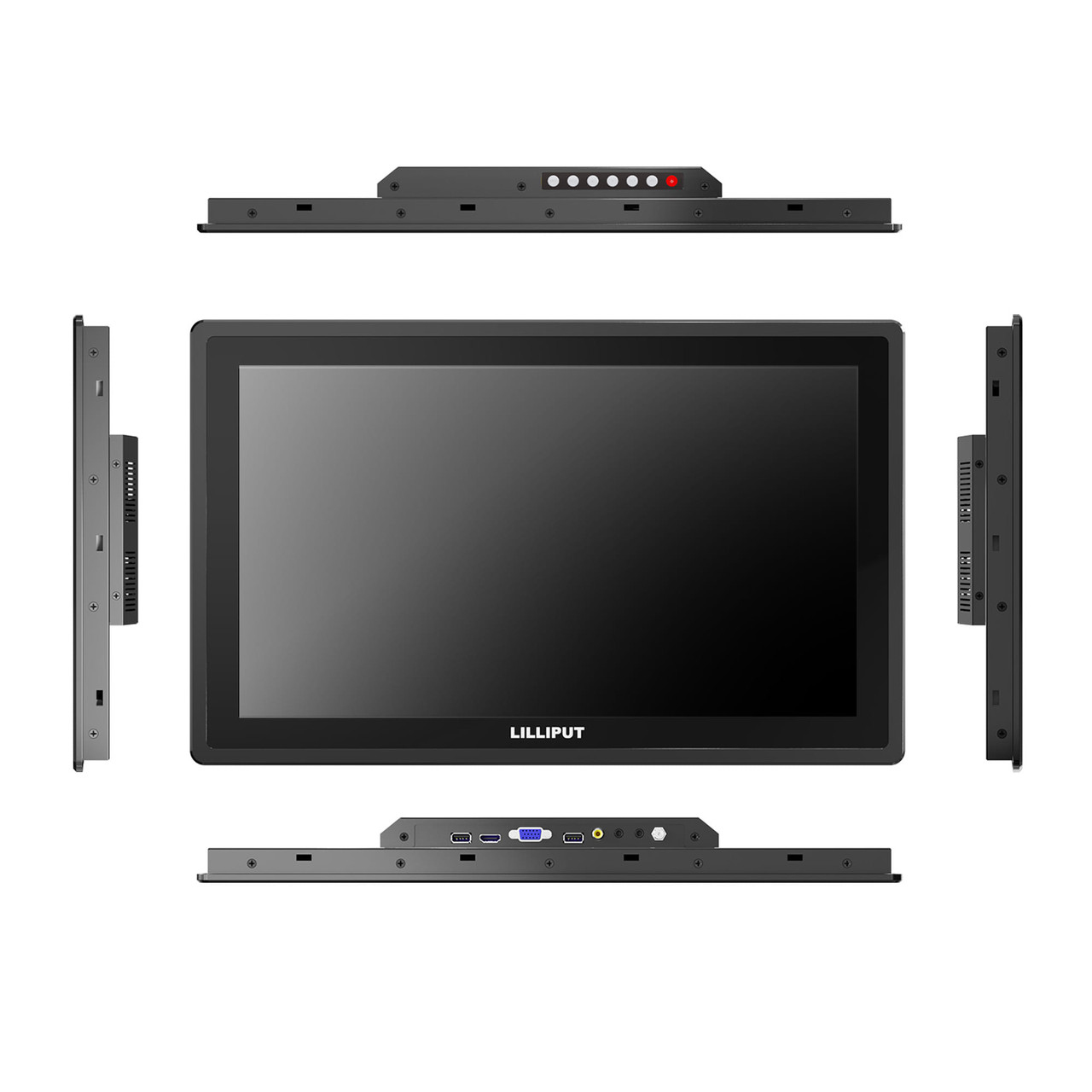

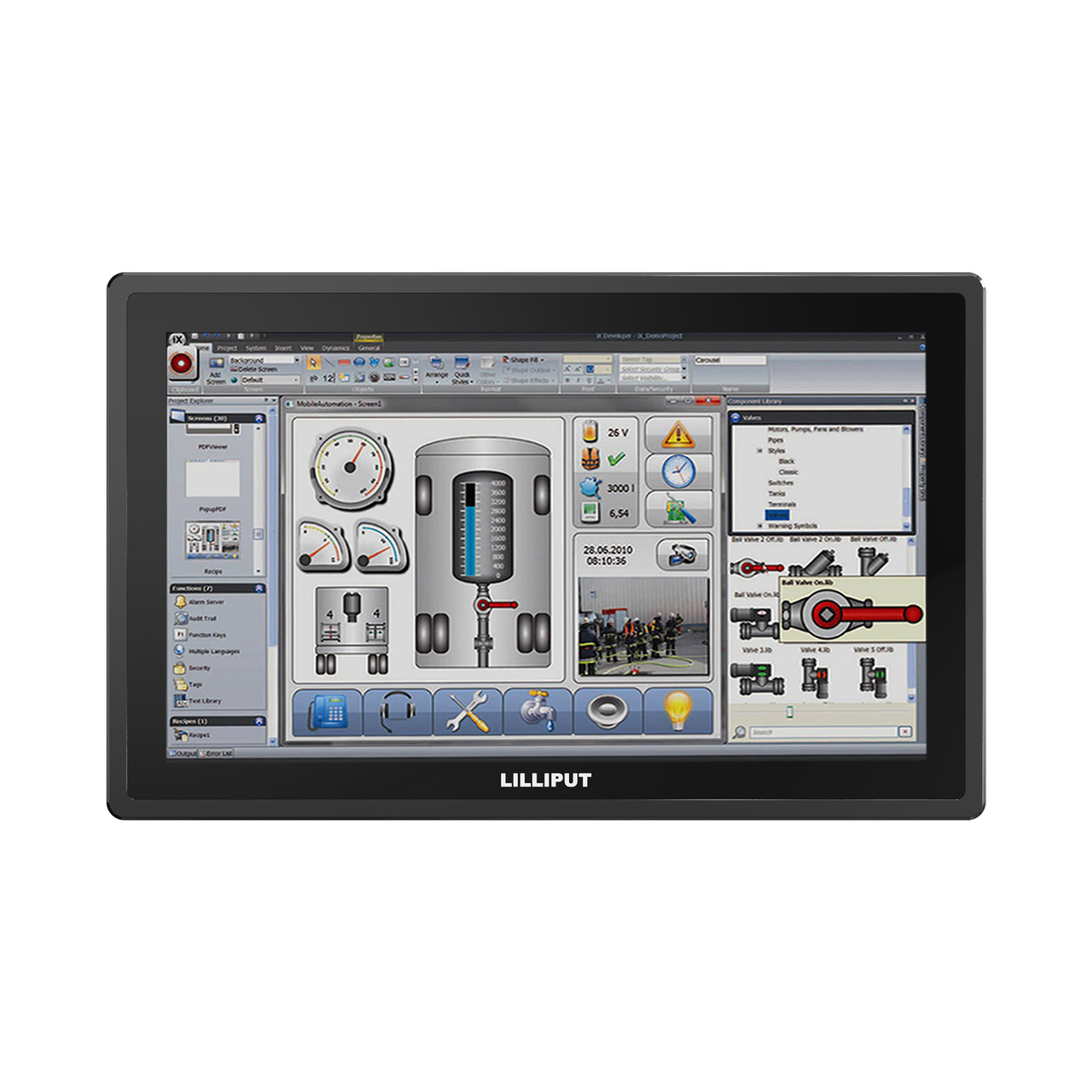

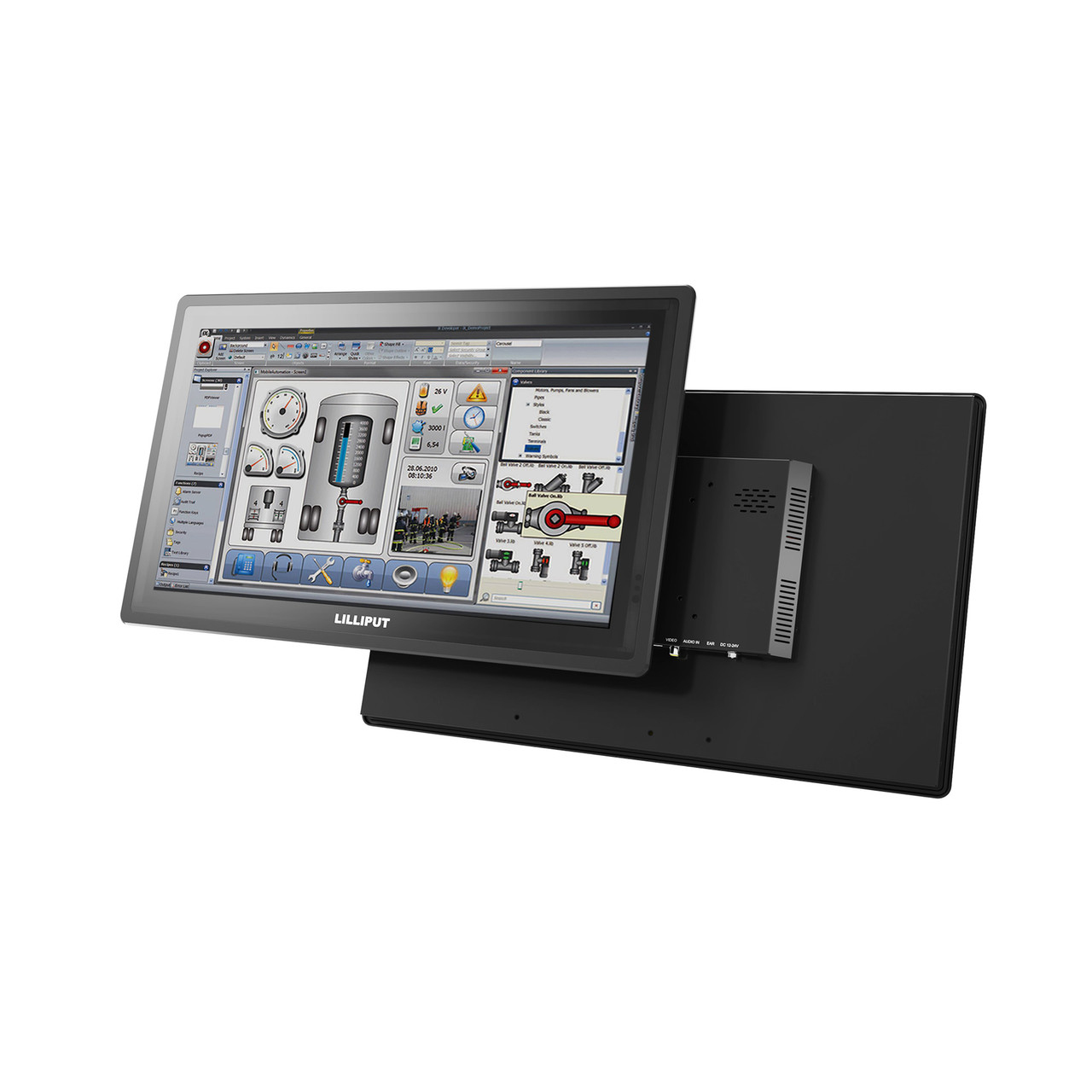

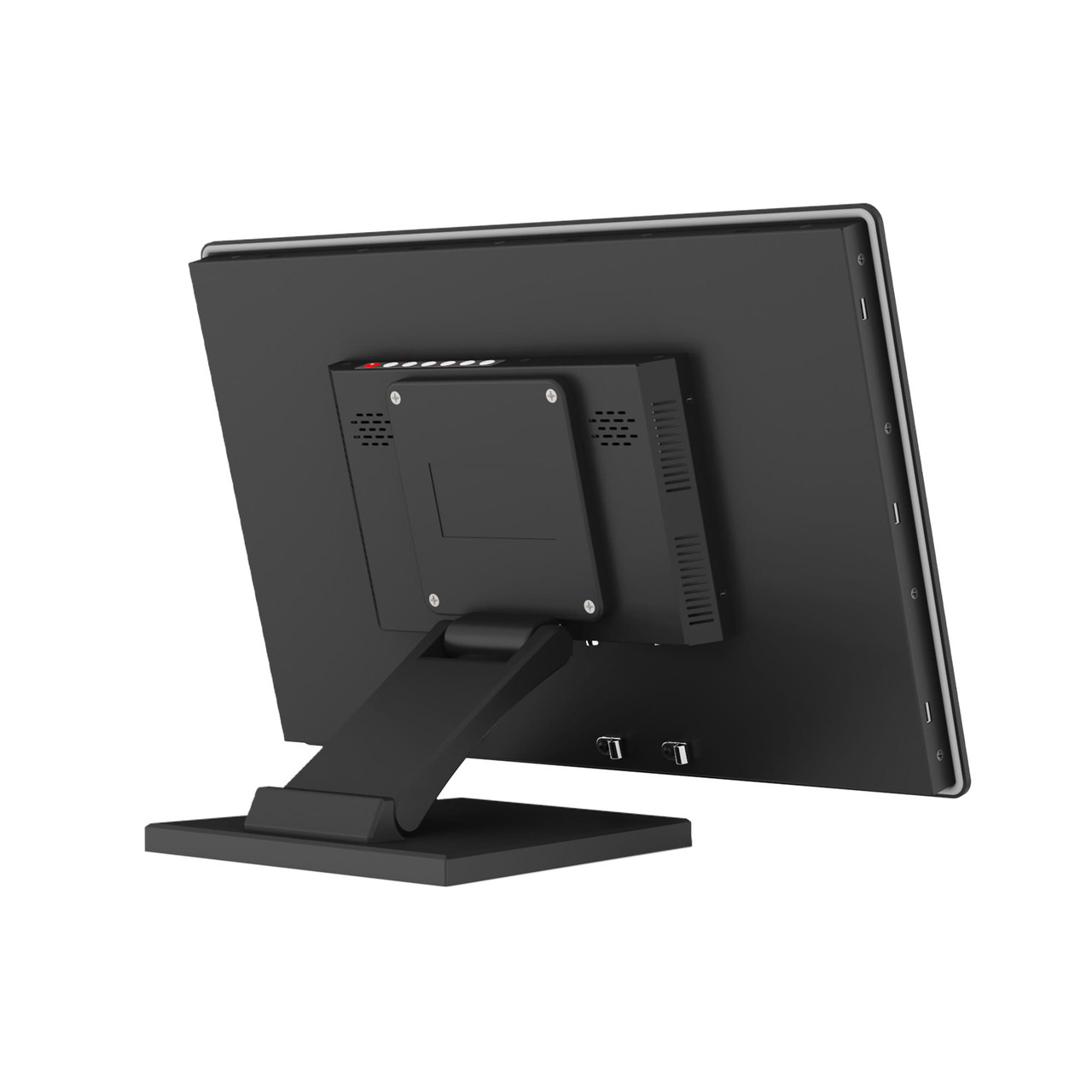

Lilliput Electronics TK1850/T 18.5-Inch 1000 Nits Metal Housing Touch Screen Monitor

ITEM #: LIL-TK1850-T MFG #: TK1850/T

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$499.00

Our Price:

$469.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TK1850/T - Overview

Industrial-Grade Monitor

The Lilliput TK1850/T is an 18.5" touch screen monitor. The front panel of the monitor is designed to carry IP65 rating and NEMA 4 degree of protection which offer complete protection against particles, and a good level of protection against water projected by nozzle against monitor from any direction. The optical bonding process can remove the air layer between the LCD panel and the glass, ensuring that foreign objects such as dust and moisture will not damage the LCD panel. Anti-glare screen can reduce reflective glare in the environment.

  • Features:

    • 1000 nits Brightness
    • 10-points PCAP
    • 7H Hardness Screen
    • IK07 & IP65/NEMA 4 Front Panel
    • Metal Housing
    • Auto Dimming

  • Specifications:

      Display
    • Touch Screen: Capacitive touch
    • Panel: 18.5" LCD, 1920x1080 resolution
    • Aspect Ratio: 16:9
    • Brightness: 1000 nits
    • Contrast: 1000:1
    • Viewing Angle: 170°/ 170°(H/V)
    • Coating: Anti-glare, anti-fingerprint
    • Hardness / Collision: Hardness 27H (ASTM D3363), Collision 2IK07 (IEC6262/ EN62262)

      Input
    • HDMI: 1
    • VGA: 1
    • Video & Audio: 1
    • USB-A: For touch and upgrade

      Supported Formats
    • HDMI: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
    • VGA: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
    • Video & Audio: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60

      Audio In/Out
    • Speaker: 2
    • HDMI: 2ch
    • Ear Jack: 3.5mm - 2ch 48kHz 24-bit

      Power
    • Input Voltage: DC 12V - 24V
    • Power Consumption: ≤32W (15V)

      Environment
    • IP Rating: Front panel IP65 (IEC60529), Front NEMA 4
    • Vibration: 1.5Grms, 5Hz - 500Hz, 1 hr/axis (IEC6068-2-64)
    • Shock: 10G, half-sine wave, last 11 ms (IEC6068-2-27)
    • Operating Temperature: 14°F - 140°F (-10°C - 60°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Dimension (LxWxH): 21" x 18" x 6" (533.4mm x 457.2mm x 152.4mm)
    • Weight: 10.14lbs (4.6kg)
    • Shipping Weight: 16lbs (7.3kg)

  • Item Includes:

    • 1x TK1850/C
    • 1x 15V 3A Power Adapter
    • 1x HDMI A-A Cable
    • 1x VGA Cable
    • 14x Screw Kits
    • 4x Cable Clamps

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    0695082160422
