Lilliput Electronics TK2700/C 27-Inch 1000 Nits Metal Housing Non-Touch Screen Monitor

TK2700/C - Overview

Industrial-Grade Monitor

• Features:

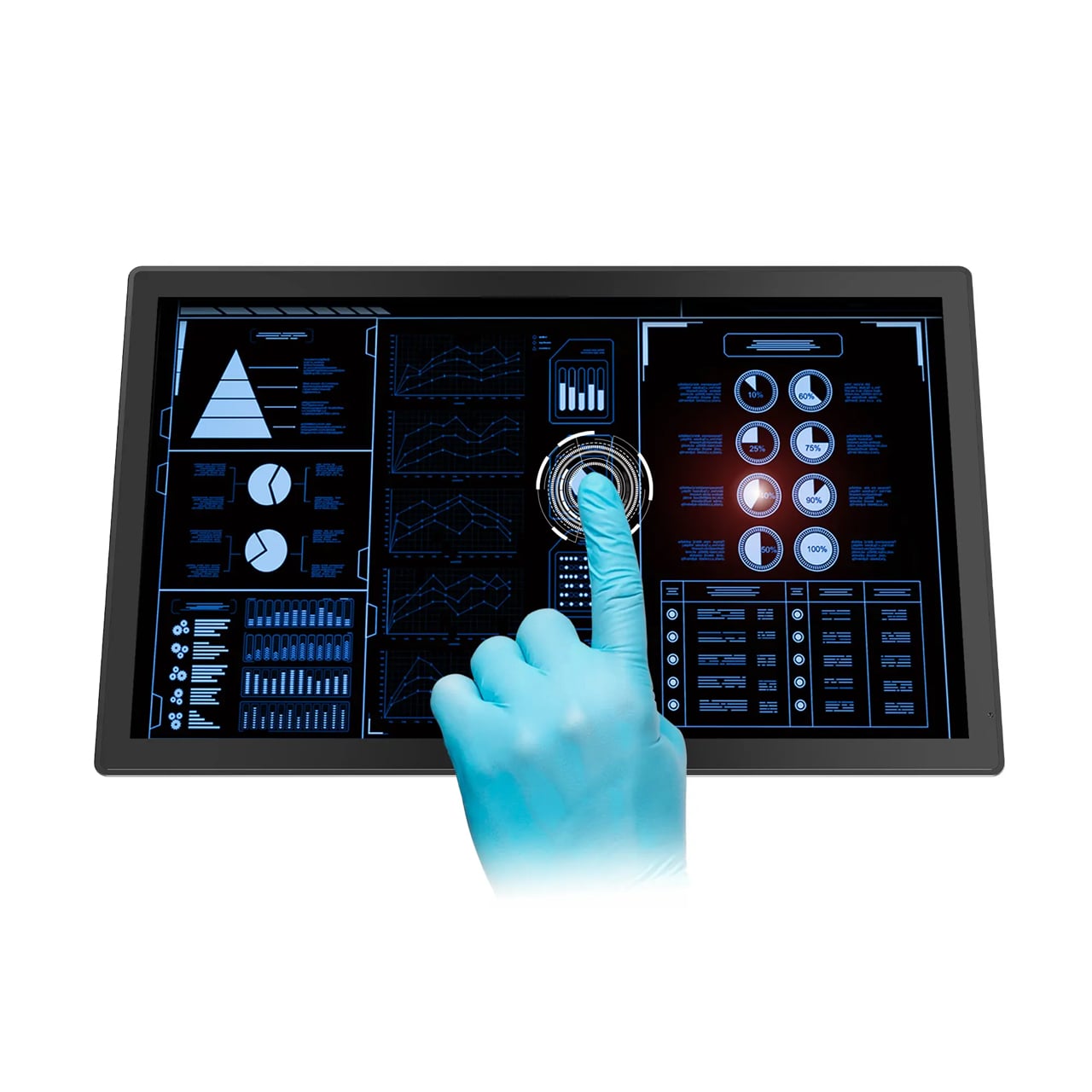

  • 10-point capacitive touch screen, support gloves touch
  • 1000cd/m² high brightness
  • Support multiple video input interfaces: HDMI, VGA, AV
  • Support audio input
  • Support HDMI 4K 30Hz
  • Support Windows XP/7/8/8.1/10, Linux
  • Screen with AG (Gloss70), AF, UV resistance
  • Hardness 7H, impact resistance IK07


• Specifications:

  Display
  • Panel: 27" LCD
  • Physical Resolution: 1920x1080
  • Aspect Ratio: 16:9
  • Brightness: 1000 nits
  • Contrast: 1000:1
  • Viewing Angle: 178° (H)/178° (V)
  • Coating: UV-resistant, anti-glare, anti-fingerprint
  • Hardness/Collision: Hardness ≥7H(ASTM D3363), Collision ≥IK07 (IEC62262/EN62262)

    Input
  • HDMI: 1
  • VGA: 1
  • Audio & Video: 1

    Supported Formats
  • HDMI: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
  • VGA: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
  • Audio & Video: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60

    Audio In/Out
  • Speaker: 2
  • HDMI: 2ch
  • Ear Jack: 3.5mm

    Power
  • Input Voltage: DC 12V - 24V
  • Power Consumption: ≤41W (12V)

    Environment
  • IP Rating: IP65 Front Panel, Front NEMA 4
  • Vibration: 1.5Grms, 5Hz - 500Hz, 1 hr/axis (IEC6068-2-64)
  • Shock: 10G, half-sine wave, last 11 ms(IEC6068-2-27)
  • Operating Temperature: 14°F - 122°F (-10°C - 50°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)

    Physical
  • Dimension (LxWxD): 27" x 21" x 4" (685.8mm x 533.4mm x 101.6mm)
  • Weight: 20.9lbs (9.5kg)
  • Shipping Weight: 22lbs (10kg)


• Item Includes:

  • 1x 12V/5A DC Adapter
  • 1x HDMI A/A cable
  • 1x VGA cable
  • 1x Audio/Video Cable
  • 14x Screw Kits
  • 4x Cable Clamp
  • 1x User Manual


• Warranty:

  • 1 Year Limited Warranty


• GTIN:

  6950821604496
