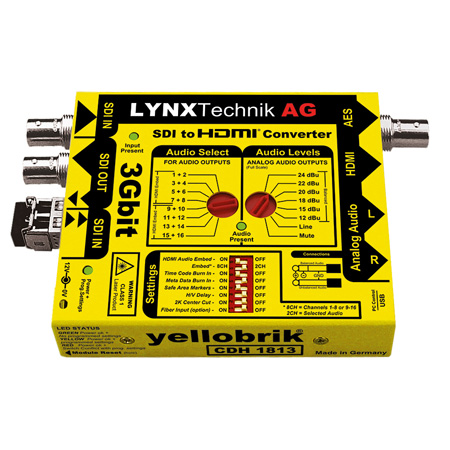

LYNX Technik Yellobrik CDH 1813 3Gbit SDI to HDMI Converter - 3D Support

Manufacturer: LYNX Technik Inc

Item #: LNX-CDH-1813   •   MFG #: CDH-1813


List Price:$735.00
Our Price:$698.25

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



The CDH 1813 is a versatile, compact SDI to HDMI converter designed to combat a host of monitoring and display applications in Broadcast, Post Production and Pro A/V markets.

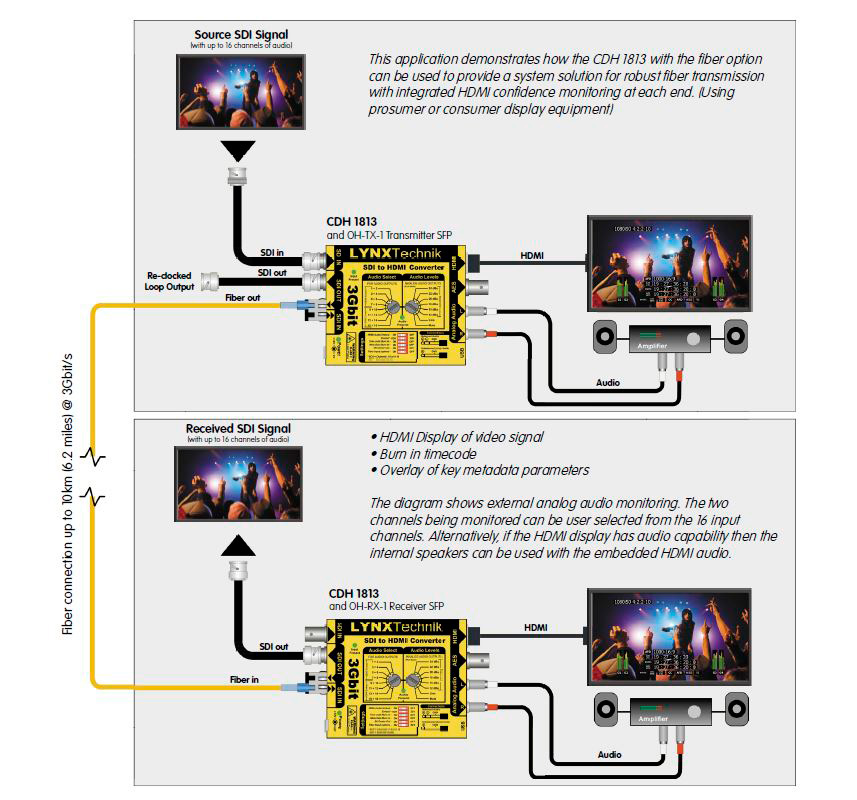

Convert any SDI video signal, including 3D into an HDMI signal for monitoring and display. Flexible fiber connectivity options add SDI fiber transmission or SDI fiber reception (or both) using the integrated fiber SFP socket.

Two channels of audio can be de-embedded from the incoming video signal providing a digital AES output and analog audio output signals. Balanced audio outputs have selectable full scale range presets. The two selected audio channels can also be embedded into the HDMI output. In addition, 8 channels selected from the input signal (channels 1-8 or 9-16) can be embedded into the HDMI output.

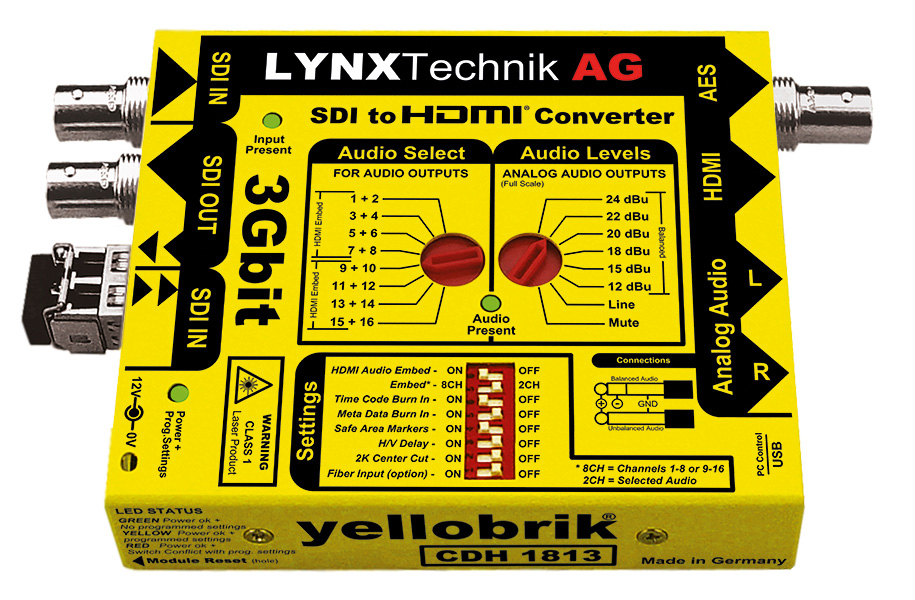

All user controls are located on the top of the module clearly labeled and easily accessible. This facilitates simple changes to module function and configuration without referring to a manual. The compact portable design makes it suitable for a wide range of applications in broadcast and mobile production environments.

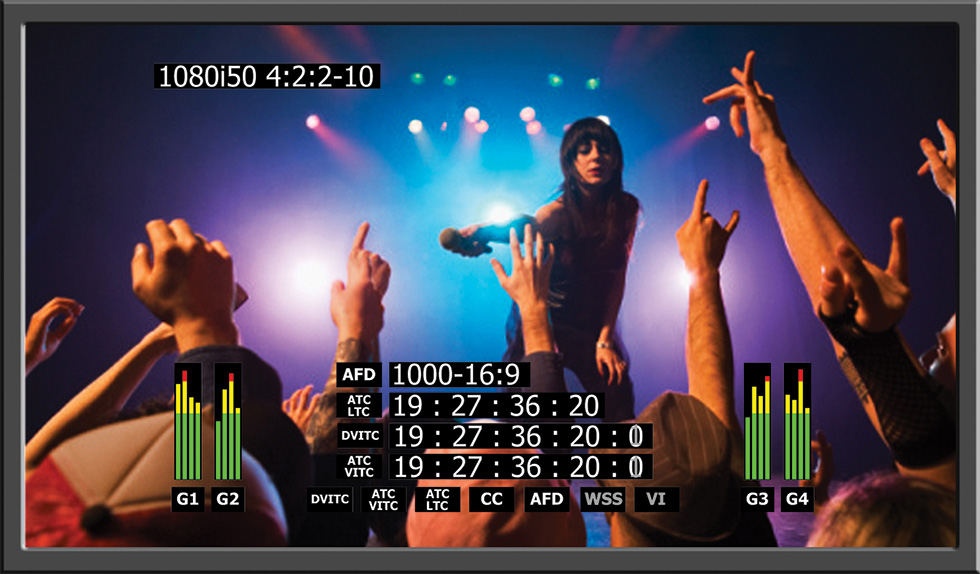

Various burn in features make the CDH 1813 a true monitoring tool. Timecode burn in, 16 channel audio metering, safe area markers and AFD code display are just a few of the on-screen monitoring features.

  • Features

    • SFP Module Slot for Fiber Input & Output (SFP Modules not included - sold separately)
    • Supports SDI video inputs up to 3Gbit/s (1080P)
    • Supports single link 3D formats
    • Automatic input standard and format detection
    • HDMI video output with embedded audio
    • Analog and AES audio outputs
    • Selectable Timecode burn in window
    • Selectable Metadata indication
    • 16 channel on screen audio meters
    • H/V delay to show blanking interval
    • Selectable safe area markers
    • yelloGUI compatible: Gain access to additional features
  • Specifications

    • SDI Input: 1 x SDI video on 75 Ohm BNC connector, Multi-standard operation from 270Mbit to 3Gbit (auto-detect), Support for `single link' 3D modes:"side by side", "top-bottom" and "dual stream (3G level B)" (depends on input SDI format),
    • Return Loss: > 15dB to 1.5GHz and > 10dB up to 3GHz, Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s.
      Optical Input: 1 x fiber optic SDI input. LC fiber connection (Optional- see fi ber options table) SMPTE 297M - 2006.
      SDI Output: 1 x SDI video on 75 Ohm BNC connector, SMPTE 424M, SMPTE 292M, SMPTE 259M, Multi-standard operation from 270Mbit/s to 3Gbit/s.
      Optical Output: 1 x fi ber optic SDI output. LC fi ber connection (Optional- see fiber options table) SMPTE 297M - 2006.
      HDMI Output: 10 bit HDMI 1.4a support including 3D, deep color and embedded audioType A connector. 3D modes supported: "side by side", "top and bottom", "frame packing", 24 bit (3 X 8bit) and 30bit (3 x 10bit) deep color (R,G,B / Y,Cr,Cb / X,Y,Z), 2 or 8 channel audio embedding (selectable).
      AES Output: AES3id on 75 Ohm BNC, 2 channels (selectable).
      Audio Output: Left and right analog audio using 1/4 inch jack sockets (phono sockets), Balanced mode with 24,22,20,18,15,12 dBu full scale (selectable), Unbalanced mode with (line level) at -10 dBv, 1/4 inch Jack plug (phono) to RCA connection adapters supplied.
      USB: Standard USB port for yelloGUI interface and fi rmware updates
    • (Mini Type "B" plug).
      Power: +12VDC power supply (included).
      Size: 105mm x 95mm x 22mm (4.13" x 3.74" x 0.86").
      Includes: Module, power supply, RCA adapters, HDMI cable.
