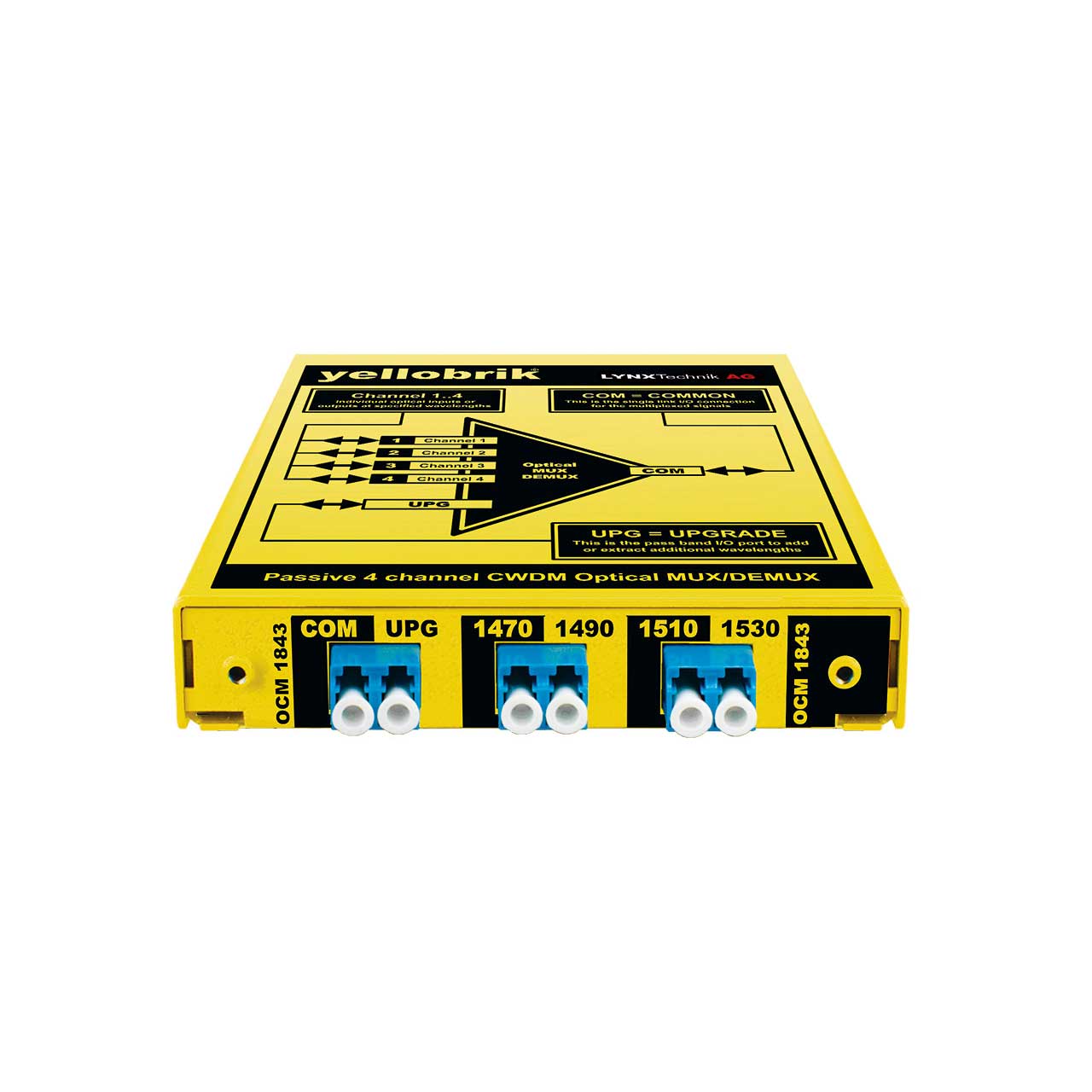

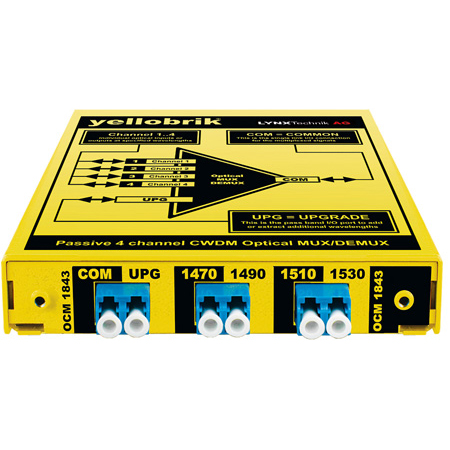

LYNX Technik OCM 1843 4 Channel Fiber CWDM Optical Mux/Demux with LC Connectors 1470-1530

ITEM #: LNX-O-CM-1843 MFG #: O CM 1843

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
LYNX Technik Inc
Free Shipping with $49 Minimum Order

List Price:

$1,175.00

Our Price:

$1,116.25

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

O CM 1843 - Overview

The LYNX Technik OCM 1843 is a compact CWDM passive 4 channel optical multiplexer/demultiplexer designed to send and receive up to 4 individual signals over a single fiber link. Each module has an UPG (Upgrade) port to cascade into the other 4 channel modules, expanding the capability of the system to a maximum of 16 channels.

The modules can be used standalone or integrated into the optional RFR 1018 1/2 RU 19" rack frame, which can accommodate four modules. Ideal for system installations, this unit is ideally suited for use with the CWDM yellobrik fiber modules (all 16 wavelengths are available).

Please Note: SFP Modules Required, Sold Separately. Images for reference only.

  • Features:

    • Send and receive up to 4 channels over a single fiber link
    • Passive operation (no power required)
    • Combine all four modules for up to 16 channels
    • LC/PC single mode optical connections
    • Optional 1/2 RU 19" rack frame (RFR 1018)


  • Specifications:

    • Optical I/O
    • 4x Fiber Optic I/O channels
    • Center frequencies taken from ITU-T G.694.2
    • OCM 1843 = 1470,1490,1510,1530nm

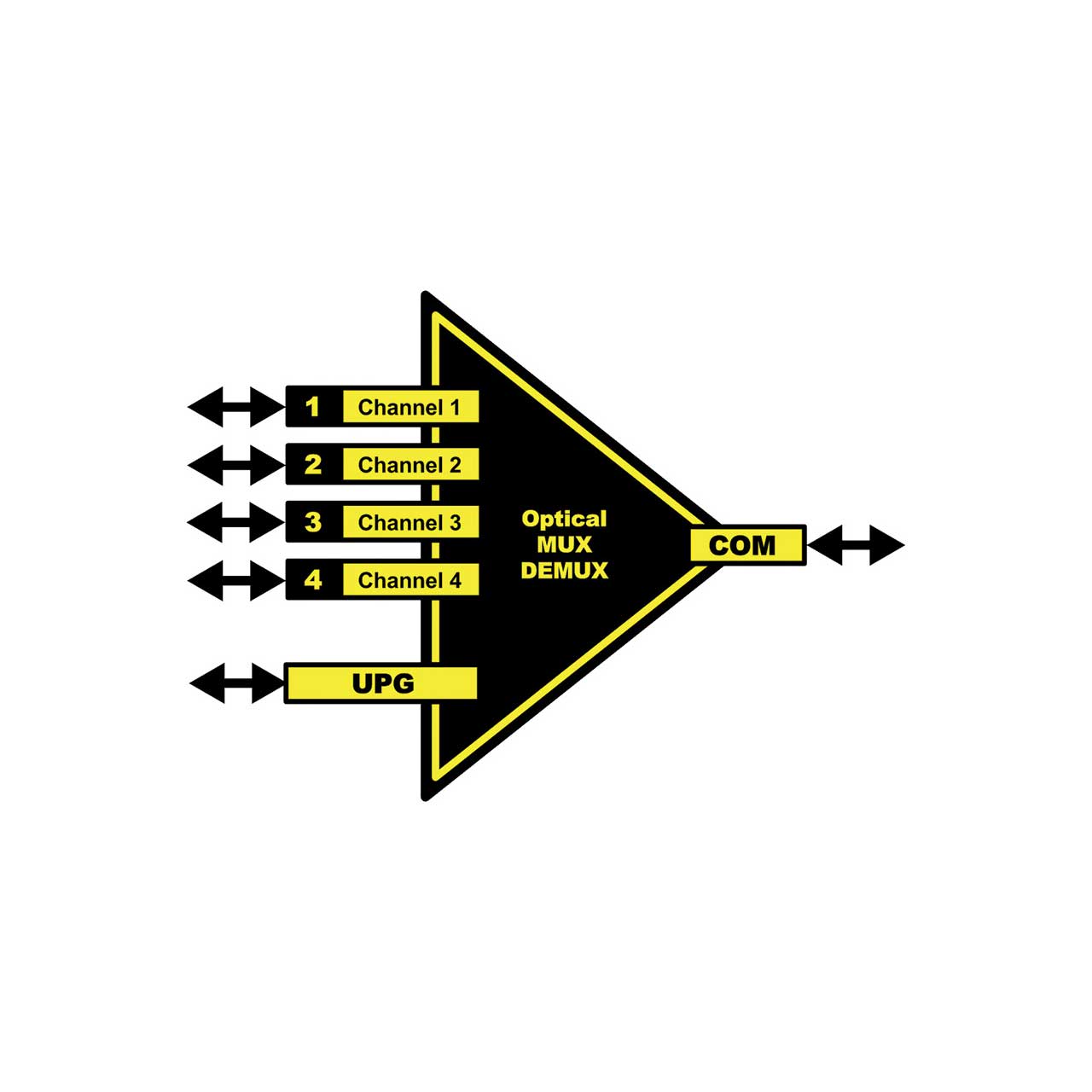

    • 1x COM (common) connection = multiplexed I/O
    • 1x UPG (Upgrade) I/O connection
    • (pass band connection to other OCM 189x modules)
    • LC/PC connectors SMF (single mode)
    • Channel Insertion Loss: 2.7dB , UPG Insertion loss: 2.7dB
    • Polarization Dependant Loss: max 0.2dB
    • Return Loss: > 45dB
    • Isolation (to adjacent channel): > 30dB
    • Directivity > 55dB
    • Temp. Dependant Loss: < 0.005dB/°C
    • Temp. Dependant Change of Wavelength: < 0.003nm/°C
    • Max. Input Power: 500mw
    • Single or full duplex operation

      Physical
    • Power: None required (passive operation)
    • Size: 4.72" x 3.93" x 0.75"
    • Weight: 4.94oz (140g)


  • Item Includes:

    • 1x LynxLNX-O-CM-1843
    • SFP Modules Required, Sold Separately.


  • GTIN:

    4250479319431
