    OTR 1410 - Overview

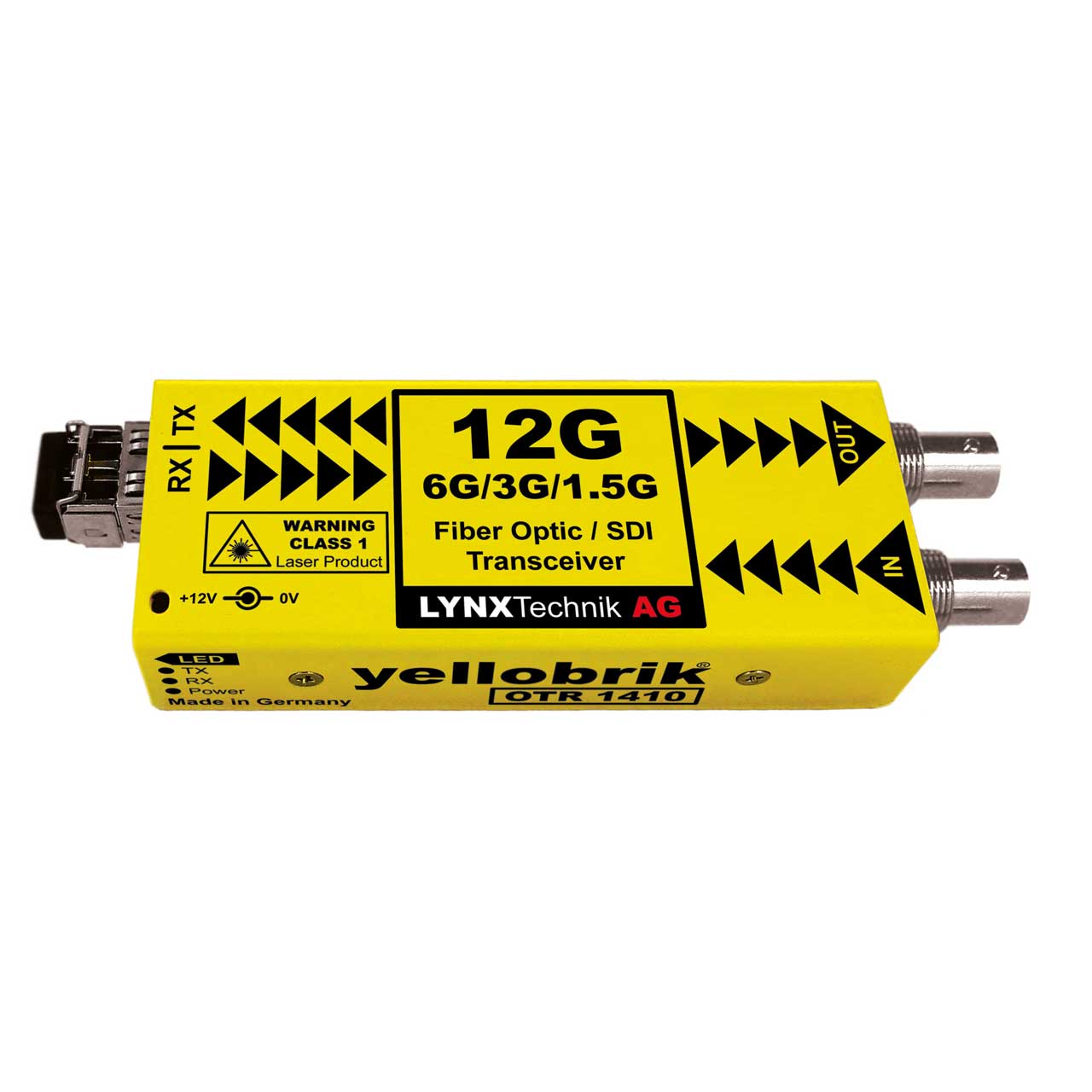

    The LYNX Technik OTR-1410 is a Fiber / SDI transmitter and receiver combined in a single self-contained package. It is a convenient and cost-effective solution to combat the restrictions involved with the distribution of uncompressed, high bandwidth, broadcast quality video signals over long distances.

    Each OTR 1410 transceiver has an independent transmitter and receiver channel, which provides an effective solution for any SDI signal up to 12Gbit/s (4096x2160 @ 60Hz), while preserving full uncompressed quality.

    Operation of the receiver and transmitter is automatic. For transmission, the SDI video format is automatically detected, reclocked and then transmitted over the fiber optic TX connection. For reception, the optical SDI video input signal on the RX connection is automatically detected, reclocked and provided on the SDI output connection.

    The OTX1410 supports 12G, 6G, 3G and 1.5G SDI video standards.

    • Features:

      • SDI fiber receiver and transmitter in single package
      • Supports 12G, 6G, 3G and 1.5G SDI video standards
      • 3Gbit Level A and Level B (support for all formats)
      • Auto reclocking 1.5Gbit / 3Gbit / 6Gbit / 12Gbit
      • Error free optical transmission
      • LC/PC duplex connection
      • Singlemode fiber connection
      • Up to 10km (6.2 miles) @ 3Gbit/s (singlemode)
      • Hot swappable and hot pluggable

    • Specifications:

      • SDI Video
      • 1 x SDI video input, 1 x SDI output
      • 75 Ohm BNC connectors
      • SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M
      • Multi-standard operation from 1.5Gbit/s to 12Gbit/s
      • Multirate reclocking: 1.5Gbit - 3Gbit - 6Gbit - 12Gbit
      • Automatic cable EQ
      • 260m @ 1.5Gbit/s, 150m @ 3Gbit/s (Belden 1694A cable)
      • 90m @ 6Gbit/s, 80m @ 12Gbit/s (Belden 4794R cable)

        Fiber Optic
      • 1 x fiber optic input, 1 x fiber optic output
      • SMF (singlemode) using LC/PC connection
      • SMPTE 297M - 2006
      • Transmitter: 1310nm, typical Optical power -3dBm
      • Receiver: 1260nm - 1620nm (-2dBm to -10dBm)
      • Max. distance approx. 10km (6.2 miles) @ 12Gbit/s (Singlemode)
      • TX active and RX active LEDs on side of module

        Physical
      • Power: +12VDC @ 2.2W nominal - (supports 7 - 24VDC input range)
      • Size: 140 x 42 x 22mm (5.51 x 1.65 x 0.86") including connectors
      • Weight: 125g (4.4oz)
      • Ambient: 41 - 104°F 90% Humidity (non condensing)

    • Item Includes:

      • Module
      • AC power supply

    • Warranty:

      • 3 Years

    • GTIN:

      4250479324749
