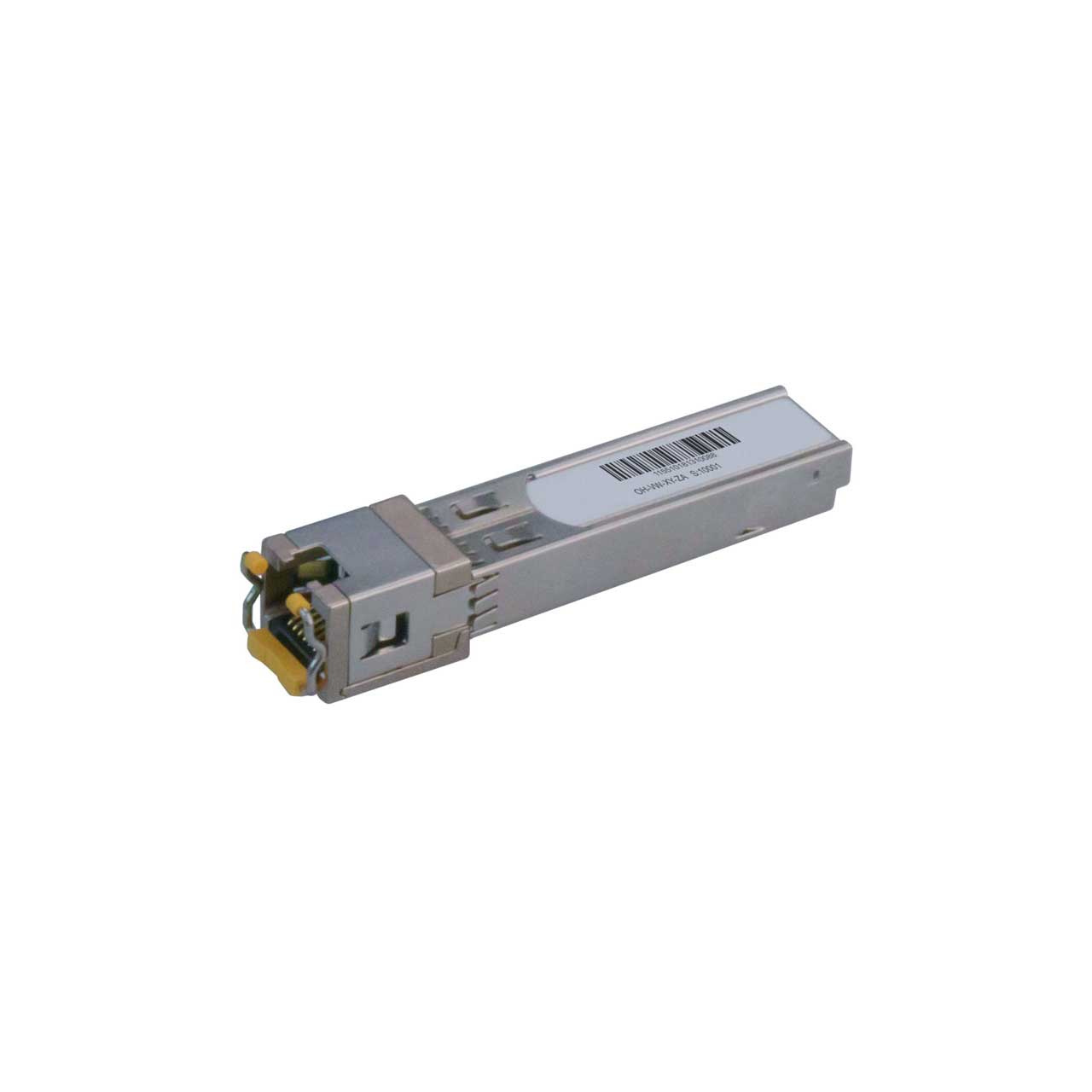

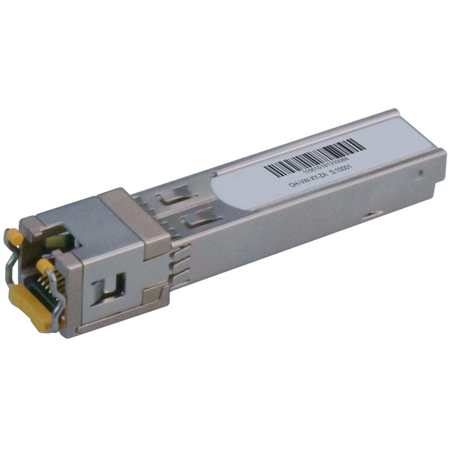

LYNX Technik OH-TR-10G-RJ45 10Gbit Ethernet Electrical Transceiver SFP Module - 30m - RJ45 Connector

Name: LYNX Technik OH-TR-10G-RJ45 10Gbit Ethernet Electrical Transceiver SFP Module - 30m - RJ45 Connector
Brand: LYNX Technik Inc
SKU: LNX-OHTR-10GRJ45
Price: 133.00 USD
Availability: PreSale

ITEM #: LNX-OHTR-10GRJ45 MFG #: OH-TR-10G-RJ45

LYNX Technik Inc

List Price:

$140.00

Our Price:

$133.00

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

OH-TR-10G-RJ45 - Overview

The OH-TR-10G-RJ45 is a plug in option with RJ45 connector for CAT5E (or better) cables for select LYNX Technik products.The transfer rate is 10 or 1 Gbit/s, depending on the connected device.

A socket, or "cage" is provided for the SFP in the supporting LYNX product for easy installation or upgrade. The SFP is hot swappable.

Features:
- Electrical transceiver for 10 Gbit/s (IEEE 802.3an) or 1 Gbit/s (IEEE 802.3ab)
- RJ45 connection
- Distance up to 30 m @10G using CAT6A cable (or better)**
- Pluggable and hot swappable
- Lead free and RoHS compliant
Specifications:
- TX Specifications
- Output Impedance: 100Ω
- CML Inputs (Differential): 250mV - 1200mV

  RX Specifications
- Input Impedance: 100Ω
- CML Inputs (Differential): 350mV - 800mV

  Mechanical
- Size (Not Including Connector - Typ): 2.24 x 0.53 x 0.49" (57 x 13.7 x 12.5mm)
- Weight: 0.11Lbs (50g)
- SFP Connector Pinning: MSA
- Connection: RJ45
- Operating Temperature Range: 14° to 158°F (-10° to 70°C)
- Power Supply Voltage: 3.3V DC
- Power Consumption Max.: 430 mA
- Humidity (Non condensing): 90%
