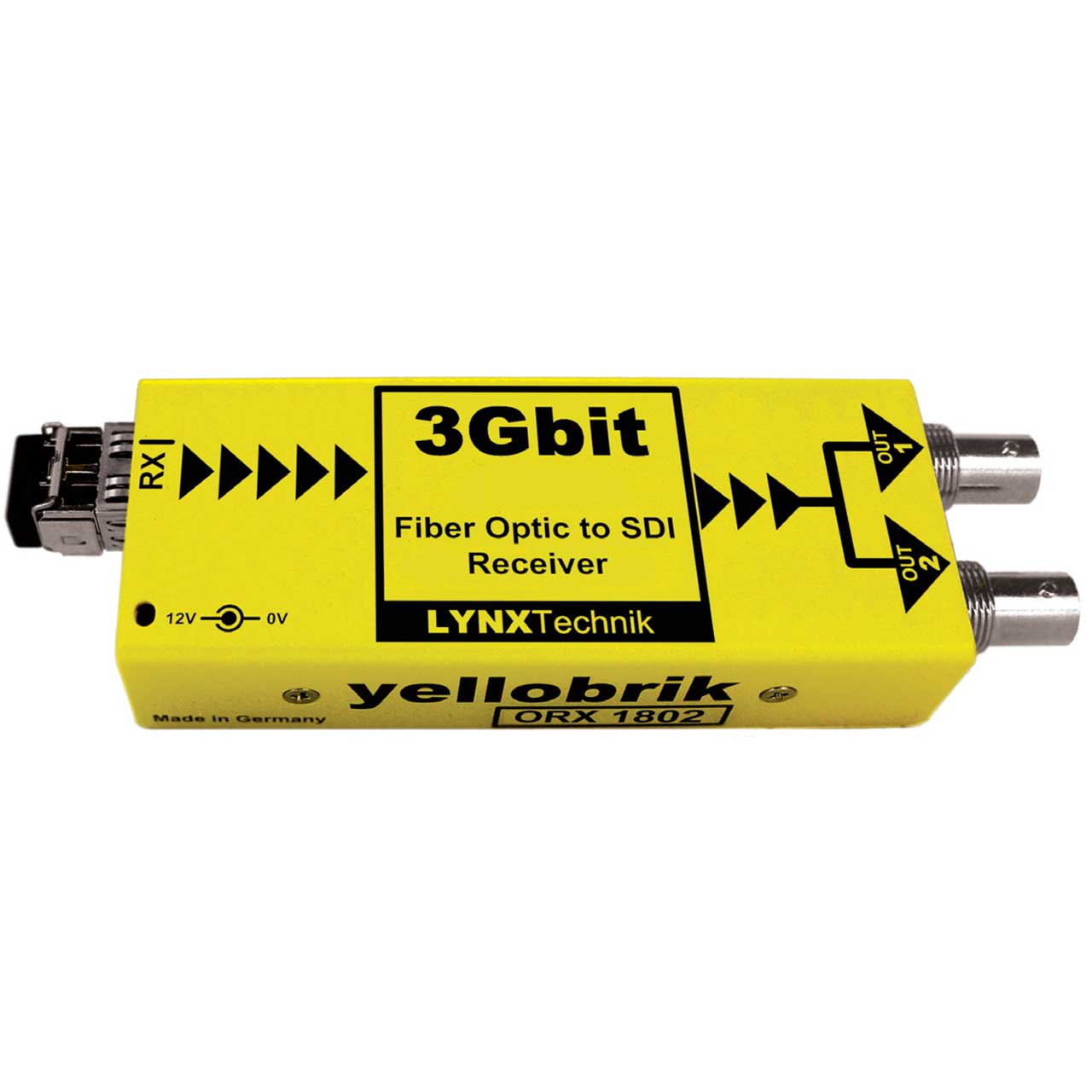

LYNX Technik Yellobrik ORX-1802-ST Fiber Optic to 3G SDI Receiver ST Singlemode

ITEM #: LNX-ORX-1802-ST MFG #: ORX-1802-ST

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$578.00

Our Price:

$549.10

Availability: In Stock
iAvailability Description Popup


    ORX-1802-ST - Overview

    The LYNX Technik ORX-1802-ST is a compact fiber to SDI receiver designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.

    When paired with the fiber optic to SDI transmitters (e.g. yellobrik OTX 1812 or OTX 1842) you have a very cost-effective optical transmission / receiver system for signals up to 1080p60 (3Gbit/s), while preserving full uncompressed quality.

    The OTX 1812 provides 2 SDI outputs and support for LC, ST or SC single mode fiber connections as well as an LC version suitable for multimode fiber.

    The ORX 1802 will auto-detect and re-clock any 270Mbit / 1.5Gbit and 3Gbit SDI fiber source and convert to an electrical signal. The module is fully compatible with 3Gbit Level A and Level B formats.

    • Features:

      • Supports SDI video inputs up to 3Gbit/s (1080p60)
      • 3Gbit Level A and Level B support (all formats)
      • Auto reclocking 270Mbit / 1.5Gbit / 2.97Gbit
      • 2 x SDI outputs
      • Versions for LC, ST or SC fiber connections
      • Multimode version available
      • Input range 1260nm to 1620nm (singlemode)
      • Input range 780nm to 880nm (multimode)
      • Supports hot swapping and hot plugging

    • Specifications:

      • Fiber Input Siglemode
      • 1 x fiber optic Input
      • LC, ST or SC connection
      • SMPTE 297M - 2006
      • Input range (wavelength) 1260nm to 1620nm
      • RX sensitivity -3dBm to -19dBm
      • RX active LED on side of module

        Fiber Input Multimode
      • 1 x Fiber Optic Input
      • LC Connection
      • SMPTE 297M - 2006
      • Input range (wavelength) 780nm to 880nm
      • RX sensitivity 0dBm to -15dBm
      • RX active LED on side of module

        SDI Output
      • 2 x SDI video on 75 Ohm BNC connectors
      • SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
      • Multi-standard operation from 270Mbit/s to 3Gbit/s
      • Return Loss: > 15dB to 1.5GHz and > 10dB up to 3GHz

        Physical
      • Power: +12VDC @ 1.3W nominal - ( supports 7 - 16VDC input range )
      • Size: 140 x 42 x 22mm (5.51 x 1.65 x 0.86") including connectors
      • Weight: 125g (4.4oz)
      • Ambient: 41 - 104°F 90% Humidity (non condensing)

    • Item Includes:

      • Module
      • AC power supply
      • Transport case

    • GTIN:

      4250479359710
