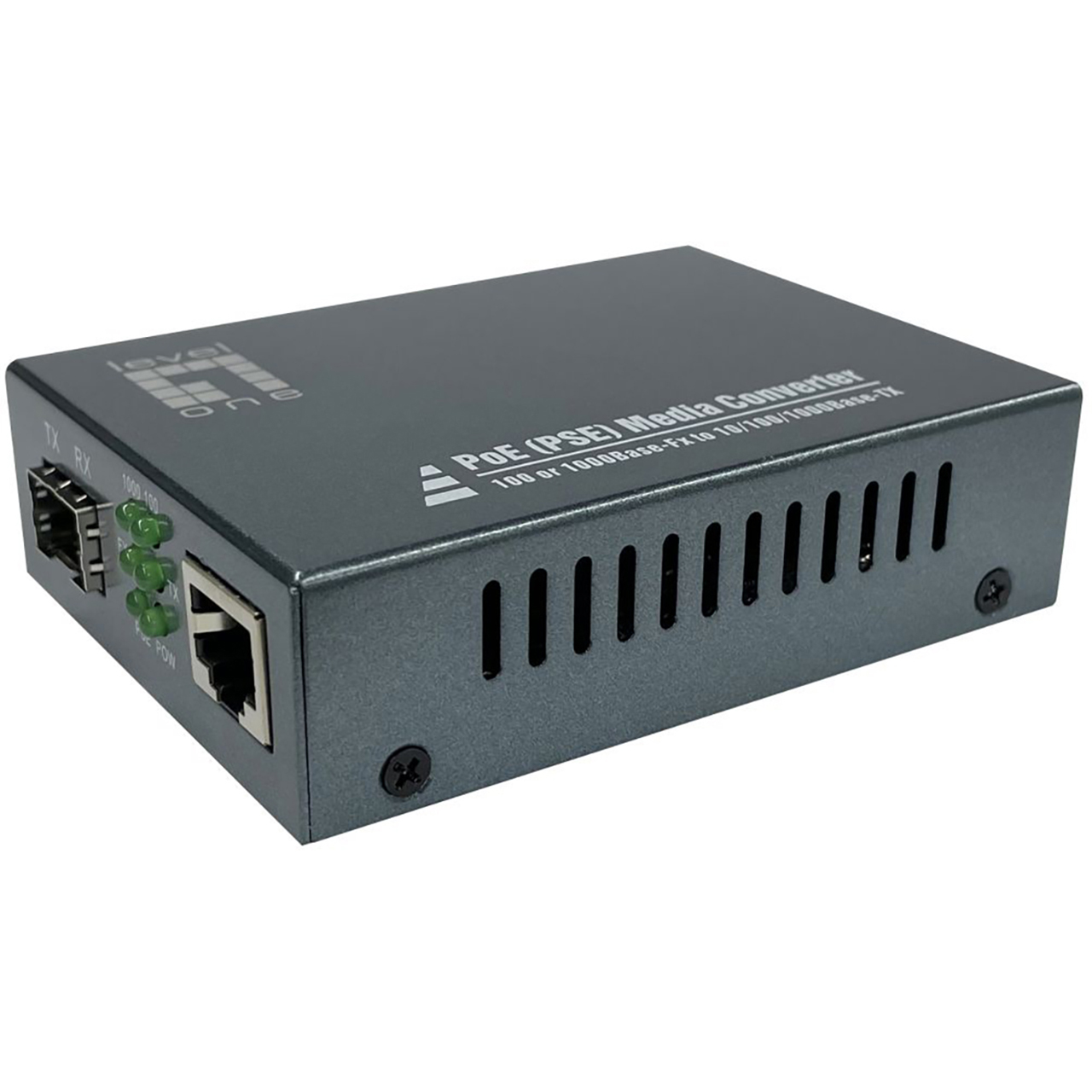

LevelOne GVT-2012 RJ45 to SFP Gigabit Media Converter - PoE/PSE - 1000Mbps Full-Duplex

ITEM #: LVL1-GVT-2012 MFG #: GVT-2012

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$274.30

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


GVT-2012 - Overview

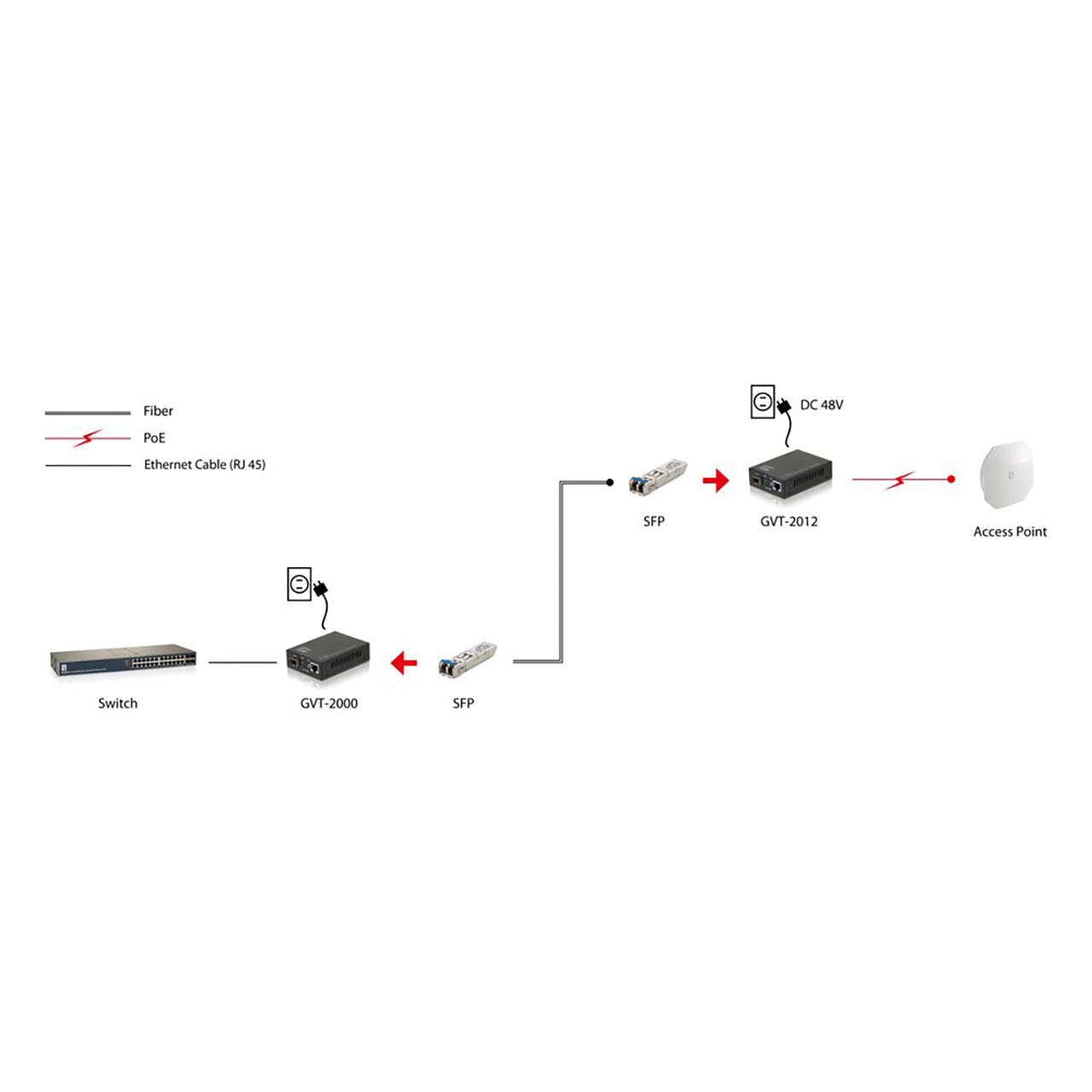

The LevelOne GVT-2012 is a Single-Port, End-Span IEEE 802.3at High Power over Ethernet converter designed specifically to satisfy the growing demand for higher power required network equipment such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a/b/g/n) wireless LAN access points and other network devices that need higher power to function normally. The GVT-2012 is High Power over Ethernet converter series is an ideal solution to delivering data and power to network devices directly via the RJ45 Port interface without the need for installing extra power outlets and electrical cabling.

  • Features:

    • Media conversion between 10/100/1000Base-T and 1000Base-SX/LX
    • 10/100/1000M media converter with SFP slot or SC fiber transceiver
    • Supporting auto-sensing full-duplex and half-duplex operation
    • Supporting auto-sensation of MDI/MDI-X, facilitating system commissioning and installation
    • Store-and-Forward mechanism
    • Support being powered by PoE via UTP cable and AC/DC adaptor

  • Specifications:

    • Data Rate: 1Gbps

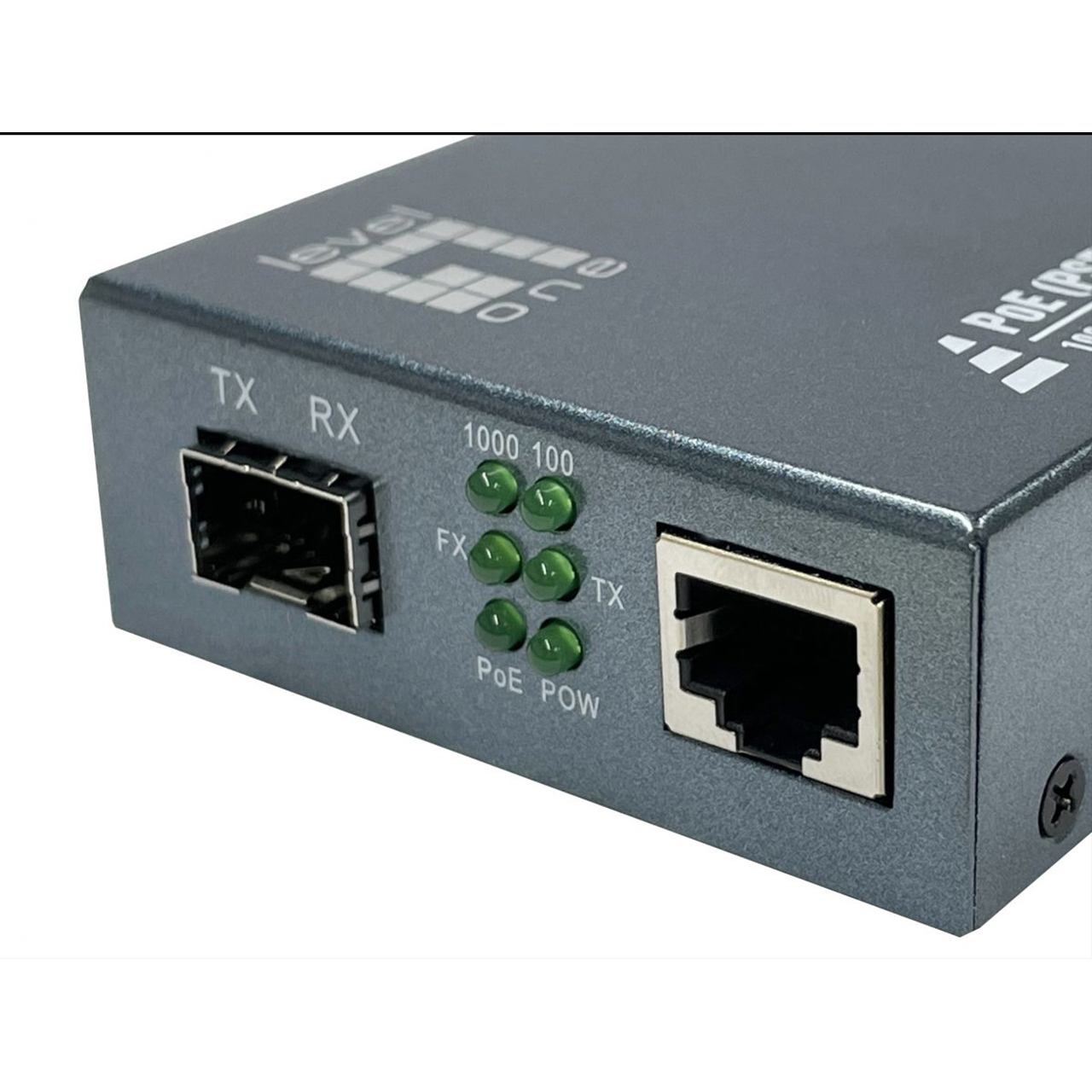

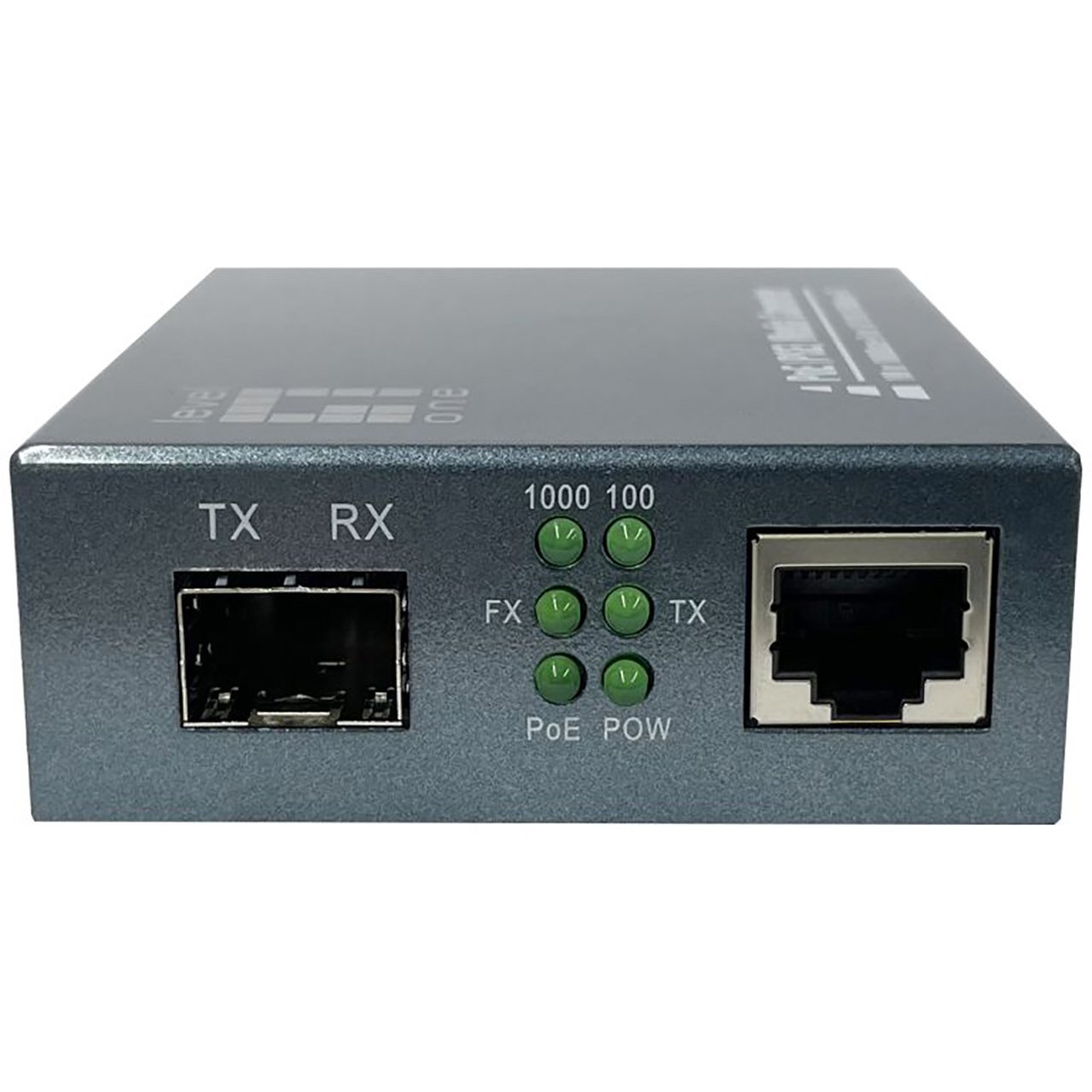

    • Indicators:
      - PWR (power supply)
      - FX LINK (optical link action)
      - TP 1000 (TP cable rate1000M)
      - TP 100 (TP cable rate 100M)
      - TP LINK/ACT (TP cable packet forwarding action)
      - FDX (TP full duplex operation)
    • Jumbo Frame: 9kb
    • Mount: Desk mount
    • MTBF: 30000 hours
    • Power Consumption: DC 48V, 40W (full loading)
    • Power Input: DC IN - 48V, 2A
    • Power Output:
      - PoE 48V(802.3at) with 30W power budget
      - Pin Assignment and Polarity: 1/2 (+), 3/6 (-)
    • Power Supply: 100V - 240V, 50-60Hz 1.6A (Power adapter with power cord)
    • Power Supply Included: Yes
    • Standard:
      - IEEE802.3 10Base-T Ethernet
      - IEEE802.3u 100Base-TX Fast Ethernet
      - IEEE802.3ab 1000Base-T
      - IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
      - IEEE 802.3x flow control
      - IEEE 802.3at POE+
      - IEEE 802.3af POE
    • Transmission Method: Store and forward
    • Wavelength (nm): Depend on SFP fiber optical transceiver
    • Approval and Compliance: CE, RoHS
    • Operating Humidity: 5% RH - 90% RH
    • Operating Temperature: 14°F - 140°F (-10°C - 60°C)
    • Dimensions (WxDxH): 2.76" x 3.70" x 1.02" (70mm x 94mm x 26mm)
    • Product Weight: 0.44lbs (0.2kg)
