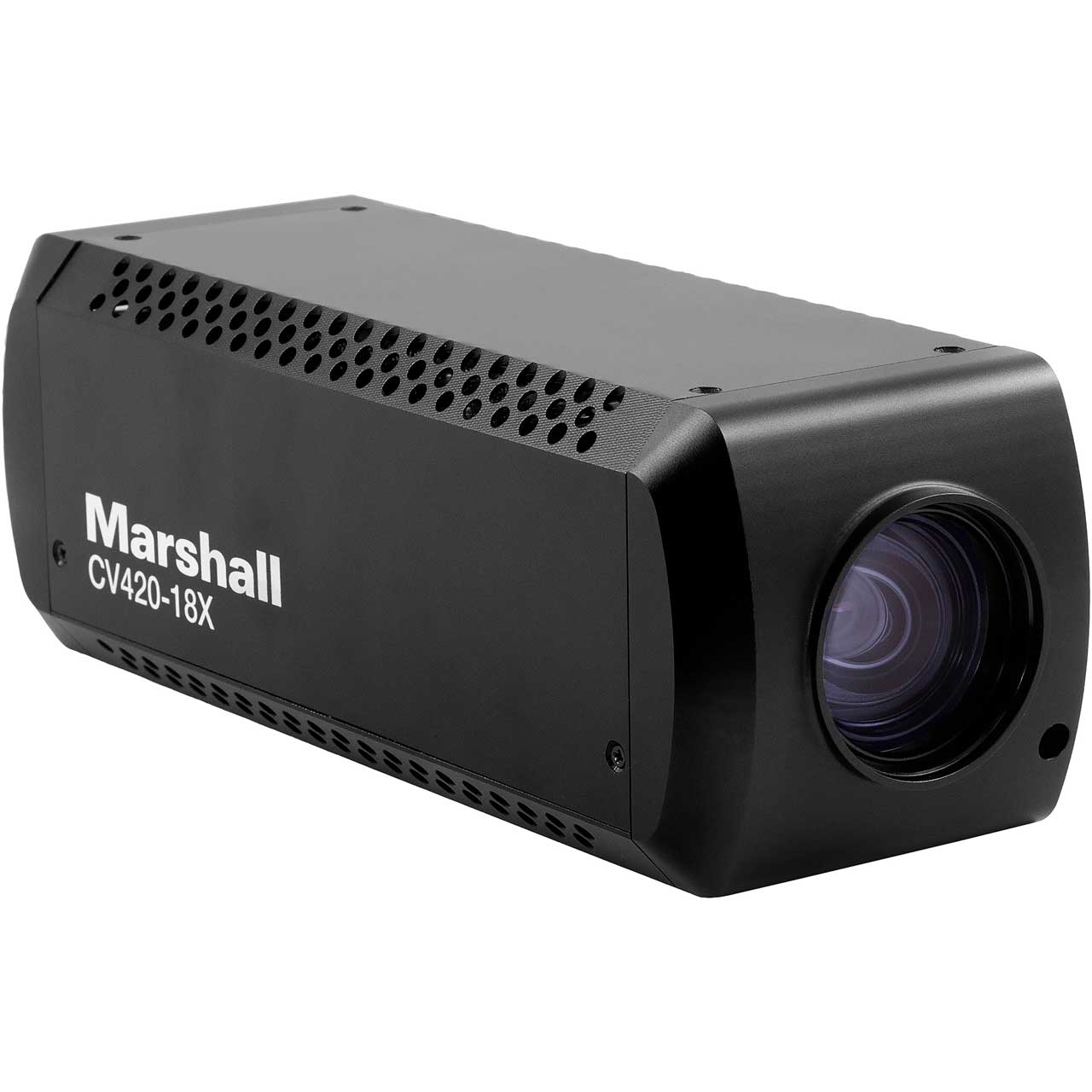

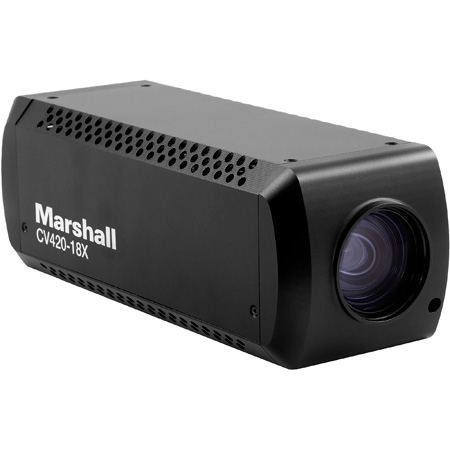

Marshall CV420-18X 18x Zoom True 4K60 12GSDI / HDMI2.0 Camera

CV420-18X - Overview

• Features:

  • Featuring 12G/6G/3G-SDI and HDMI2.0 simultaneous outputs, remote adjustable optical zoom range, and stereo audio embedding ability. CV420-18X delivers crystal-clear 4K images up to 4096x2160p with all usable framerates on one model with ultra-low light ability and industry leading low noise performance.

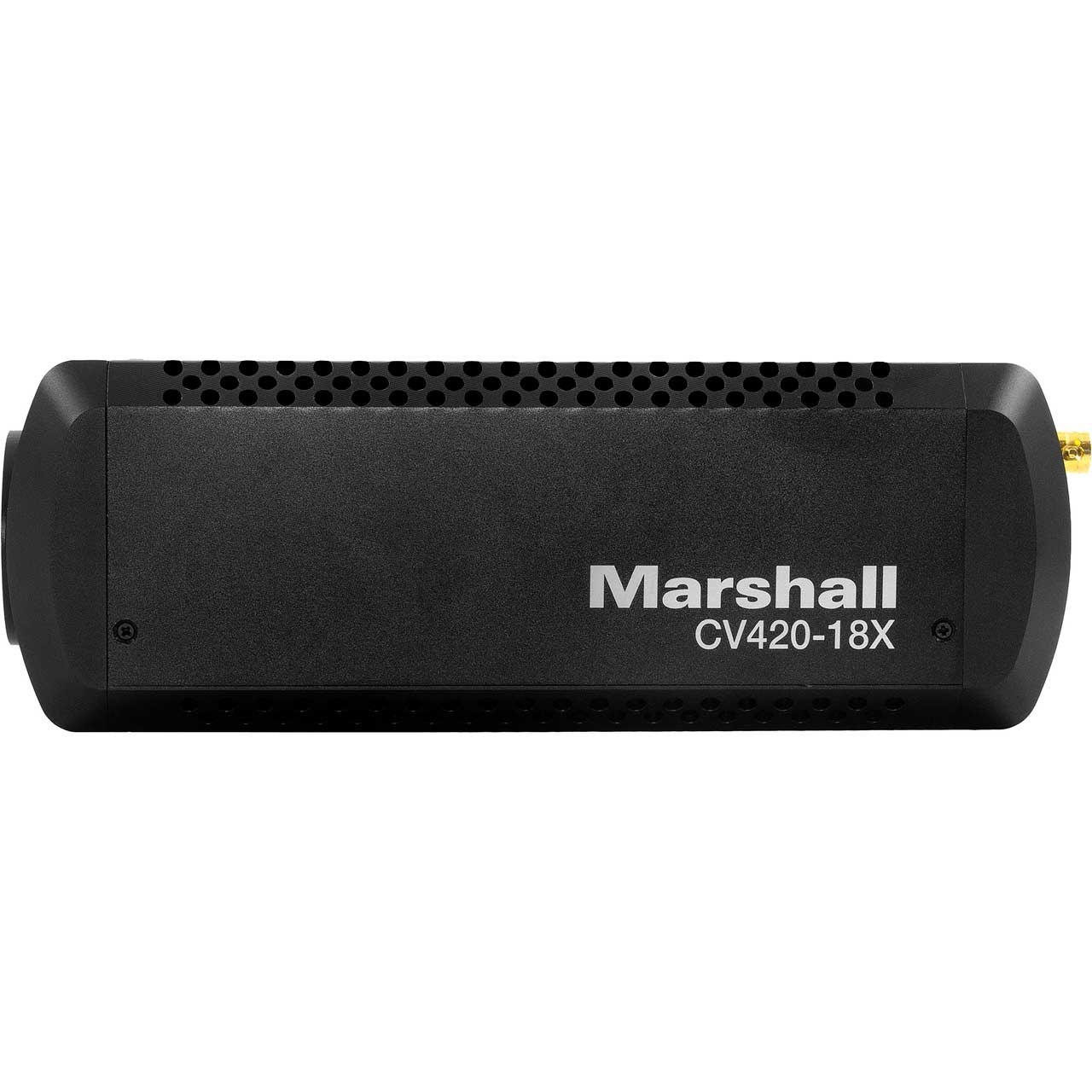

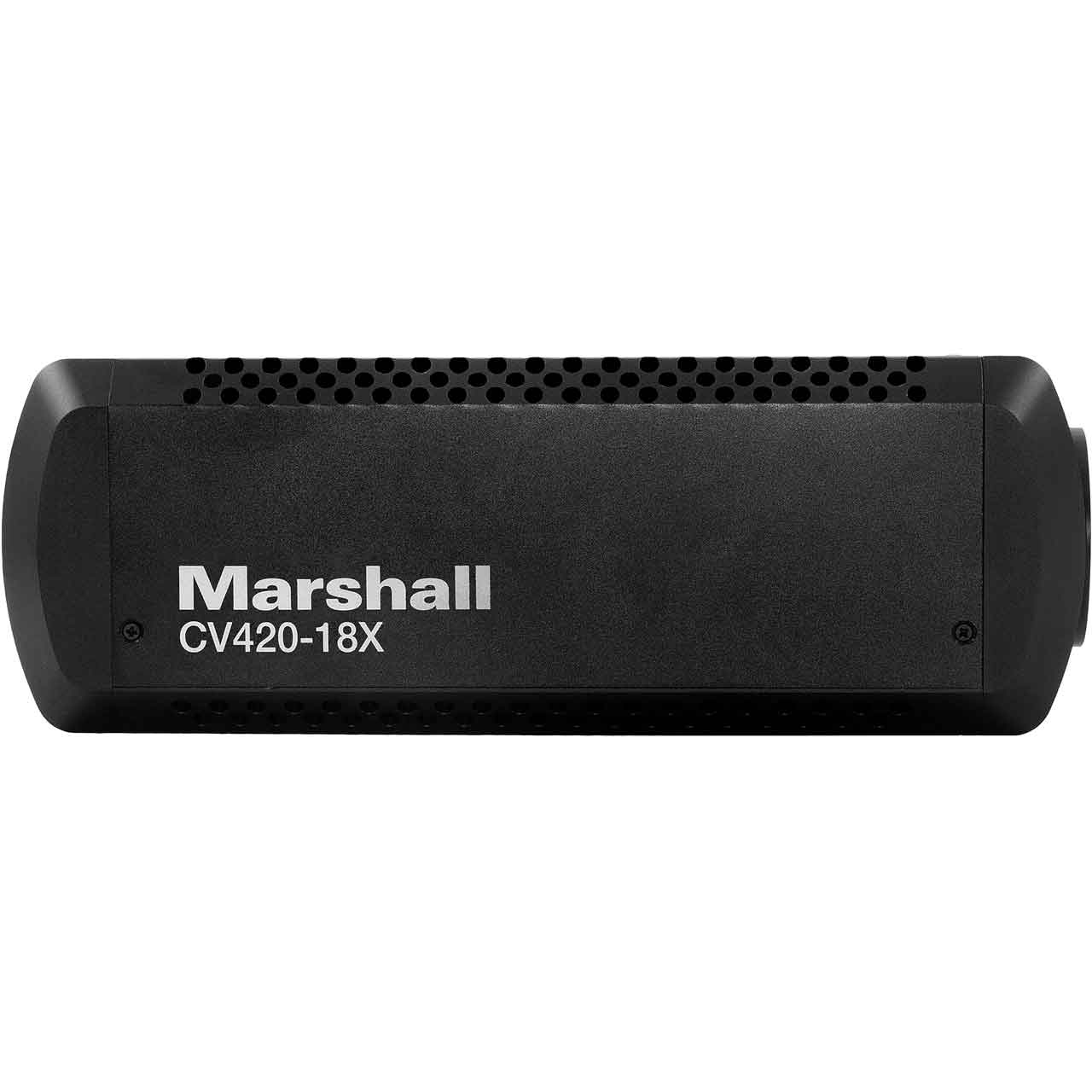

  • Constructed with a durable aluminum alloy body, full-sized BNC and HDMI connections, locking I/O cable carrying RS485/Audio/Power, and side impact protection panels to secure cable connections.
  • Featuring a wide range of 4K, UHD and HD selections in 4096x2160p, 3840x2160p, 1920x1080p, 1280x720p (progressive) and 1920x1080i (interlaced). Choose between 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 frame-rates to capture any workflow or application in every region of the world.
  • Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.
  • 12.5 Megapixel 4K Sensor (1/1.7")
  • 18x Optical zoom (6.8mm~120mm) starting at 55° H.AOV - 3x Digital
  • 12G/6G/3G-SDI, and HDMI2.0 simultaneous outputs 4096x2160p, 3840x1260p, 1920x1080p, 1920x1080i and 1280x710p, 60, 59.94, 50, 30, 29.97, 25, 24 and 23.98fps
  • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
  • 12V Power cable included (7V~15V, 25.2W max)


• Specifications:

  • Imaging Sensor
  • Image Sensor: 1/1.7" Progressive (Approx. 12.4 Megapixel)
  • Effective Pixel: 4096(H) x 2160(V)
  • Pixel Size: 1.85(μm) x 1.85(μm)
  • Min. Illumination: Day: Full Auto (0.8Lux), AE Manual Iris Open (0.4Lux)
  • Night: Full Auto (0.04Lux), AE Manual Iris Open (0.02Lux)

    Optics

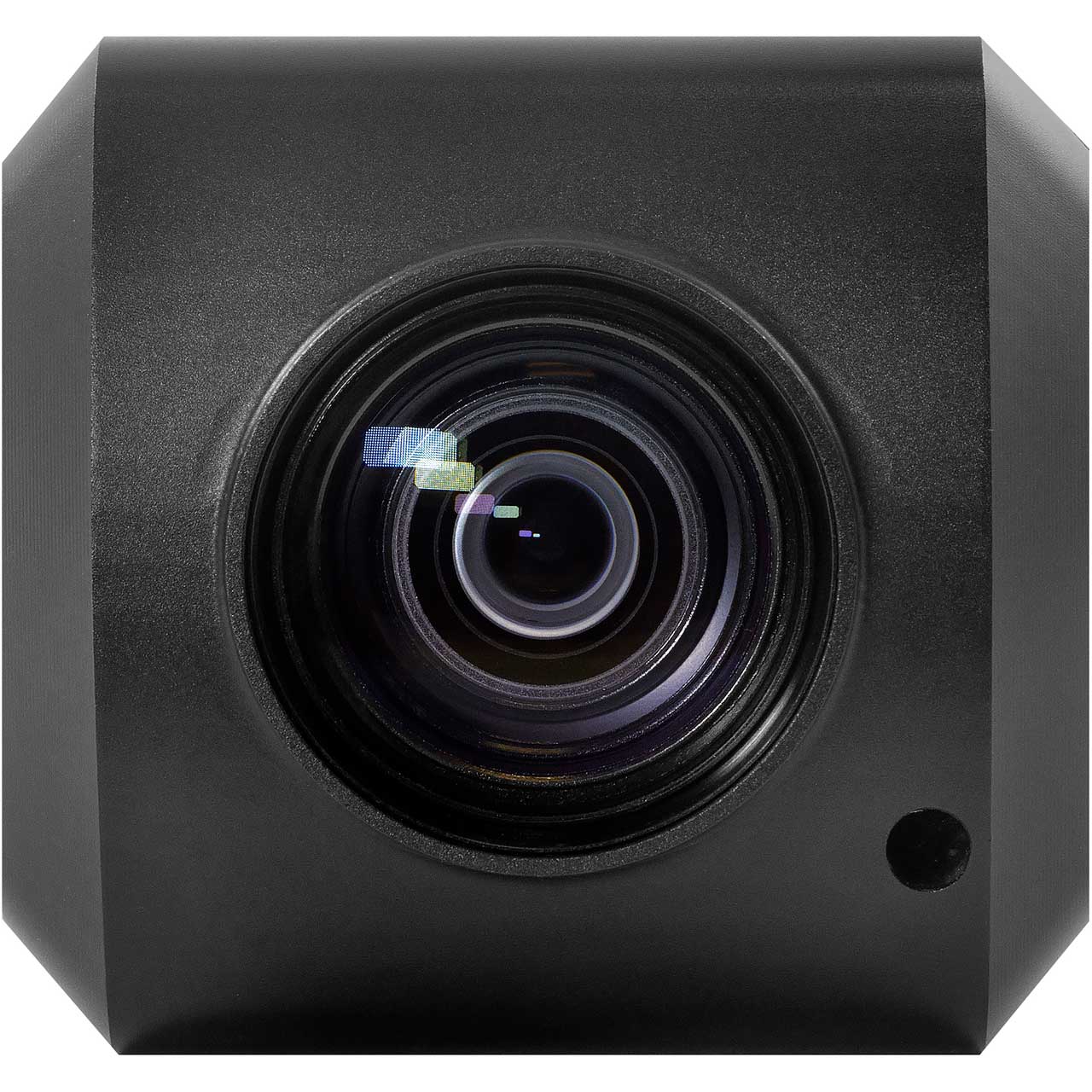

  • Lens: 18x Optical Zoom, f=6.8~120 mm, F1.61 ~ F4.13
  • Zoom: 18x optical zoom + 3x digital zoom = 54x
  • Angle of View (H): 55° (wide end) to 3.4° (tele end)
  • Minimum Working Distance: 150 mm (wide open), 1500 mm (tele end)

    Functions
  • Focus: Auto/ Manual
  • Exposure: Auto / Shutter Priority/ Iris Priority/ AGC Priority/ Manual/ Bright
  • White Balance: AWB (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / INDOOR / OUTDOOR / ONE PUSH / Manual
  • Light Modes: DAY (color), NIGHT (b/w), AUTO switch
  • Electronic Shutter: NTSC: 1/60~1/10000, PAL: 1/50~1/10000, SENS UP : OFF~X15
  • Adjustable Features: Pedestal (Black Level), White Level, Privacy Mask, Image Mirror/Flip, Image Freeze, 2D/3D Noise Reduction, Edge Enhance, Defog, DIS (Digital Image stabilizer), Gamma Correct

    Video Outputs
  • HDMI:
    4096 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
    3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
    1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
    1920 x 1080i: 60, 59.94, 50
    1280 x 720p: 60, 59.94, 50
  • 12G/6G/3G/HD-SDI:
    4096 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
    3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
    1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
    1920 x 1080i: 60, 59.94, 50
    1280 x 720p: 60, 59.94, 50

    Audio
  • Input: 3.5mm TRS Stereo Audio Jack over I/O Cable (Mic and Line)
  • Sample Rate: 16/24/32 Bits

    Control Interface
  • RS485: SONY-VISCA protocols, PELCO-P/D

    General
  • Operation Temperature: 14° to 122°F (-10° to 50°C)
  • Power Input: 12VDC (7V to 15VDC)
  • Power consumption: Max 25.2W
  • Weight:
    Camera Only: 1.95Lbs
    Camera with Breakout Cable: 2.18Lbs
  • Dimensions (DxWxH): 9.13 x 3.38 x 3.15" (232 x 86 x 80mm)


• GTIN:

  0801813227017
