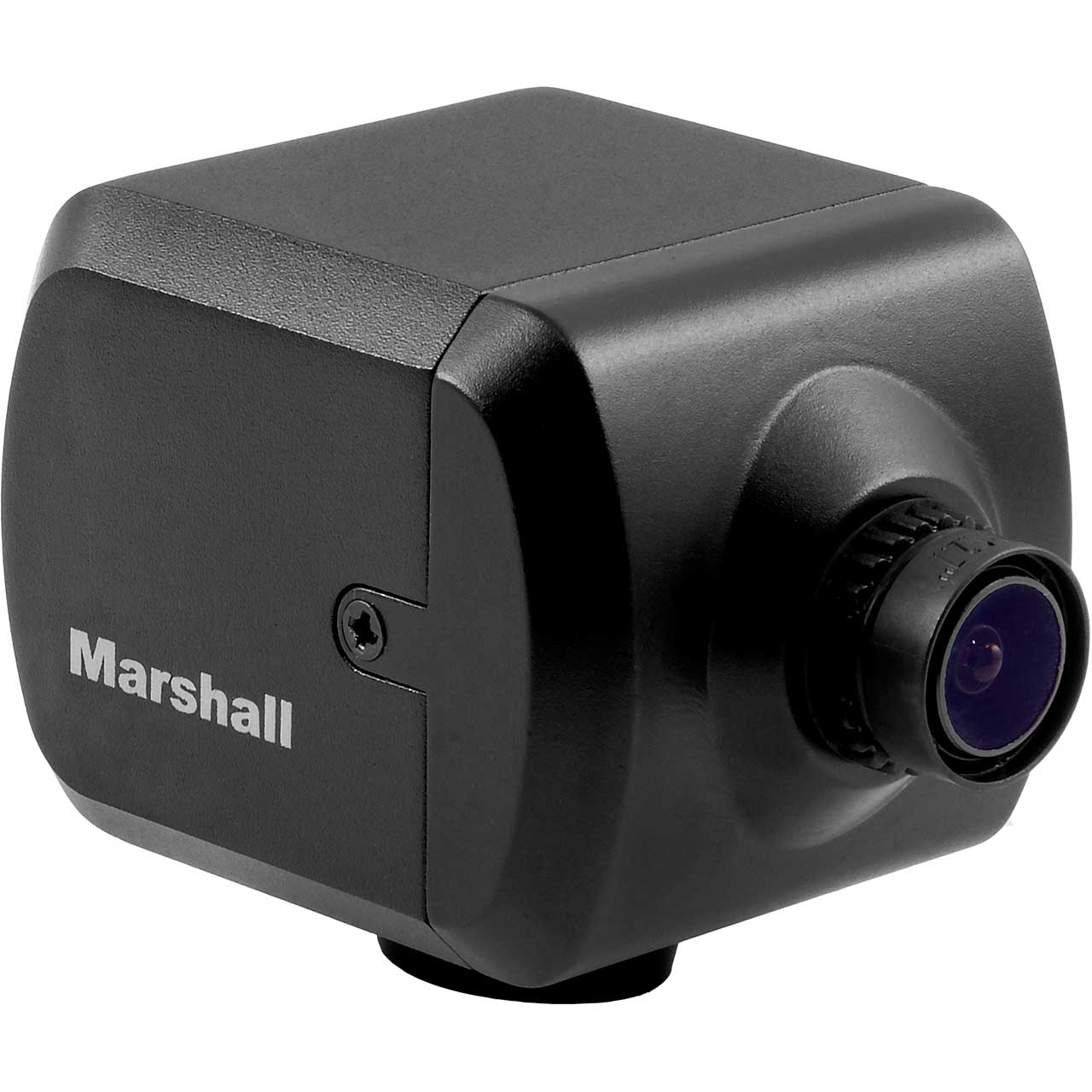

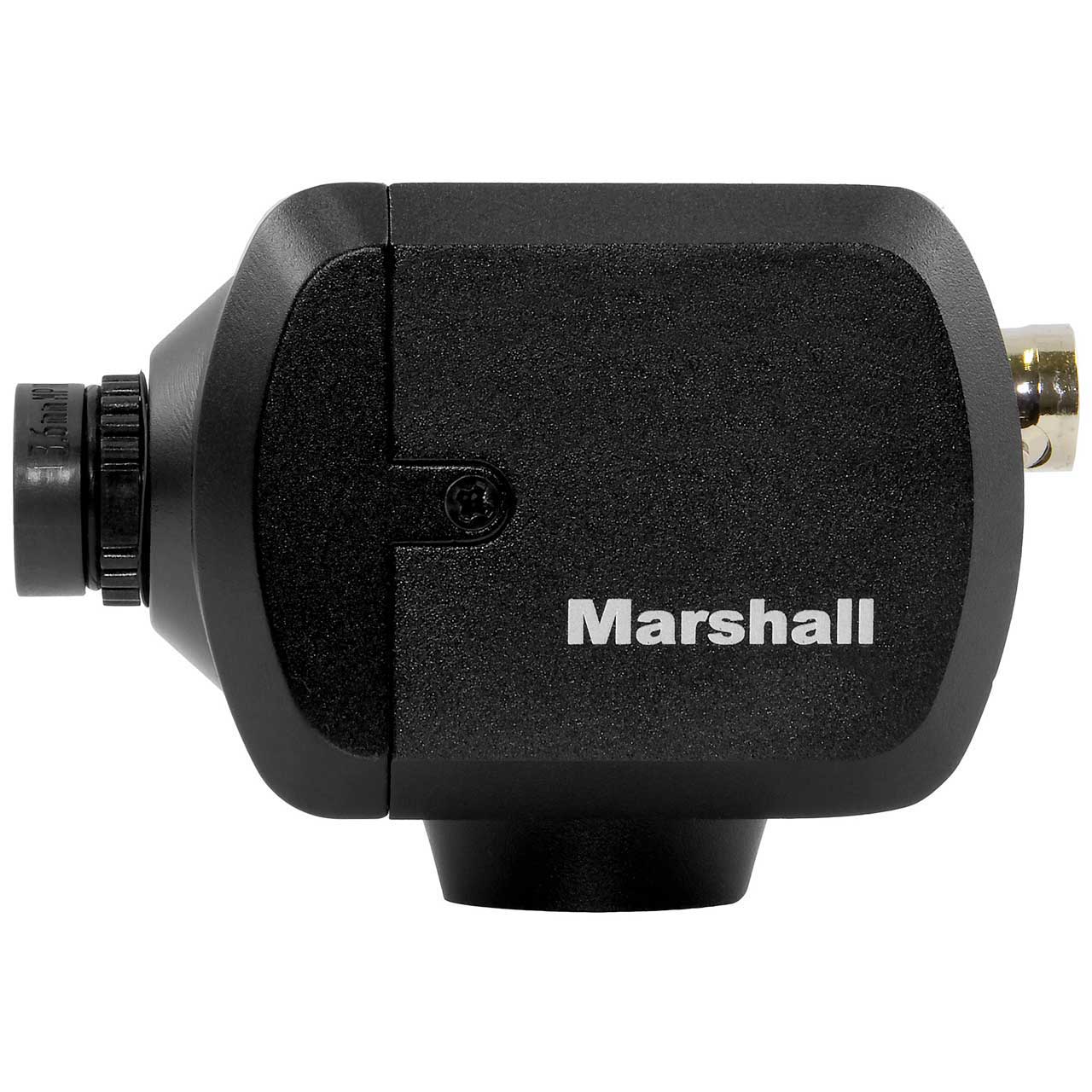

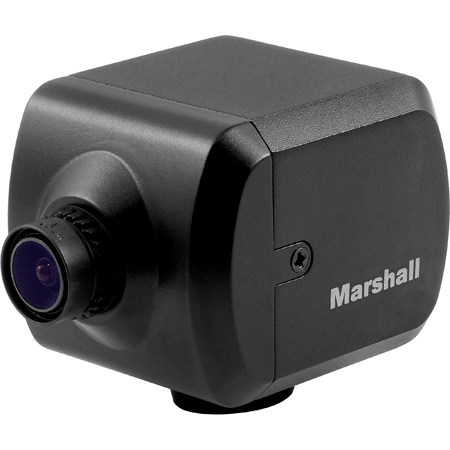

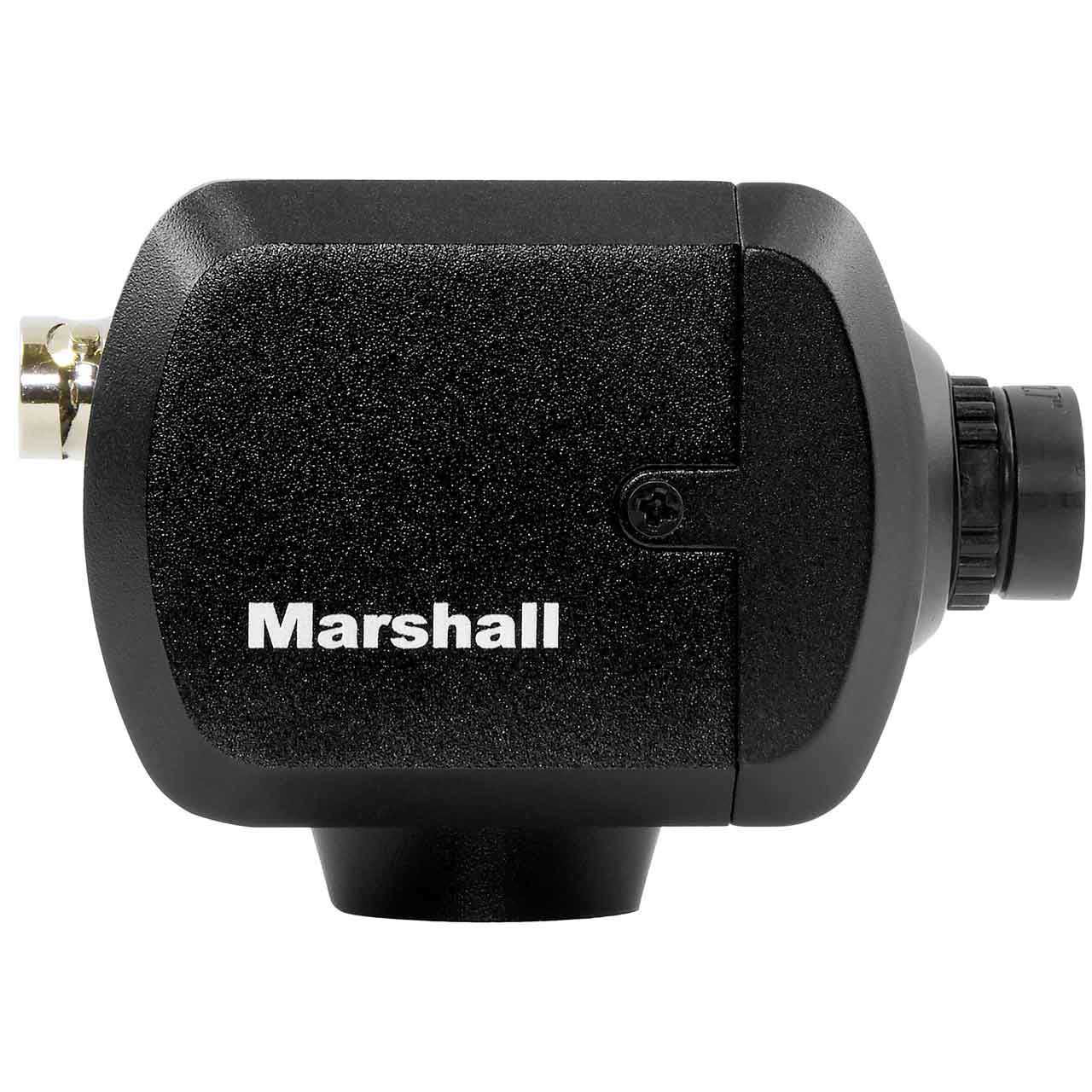

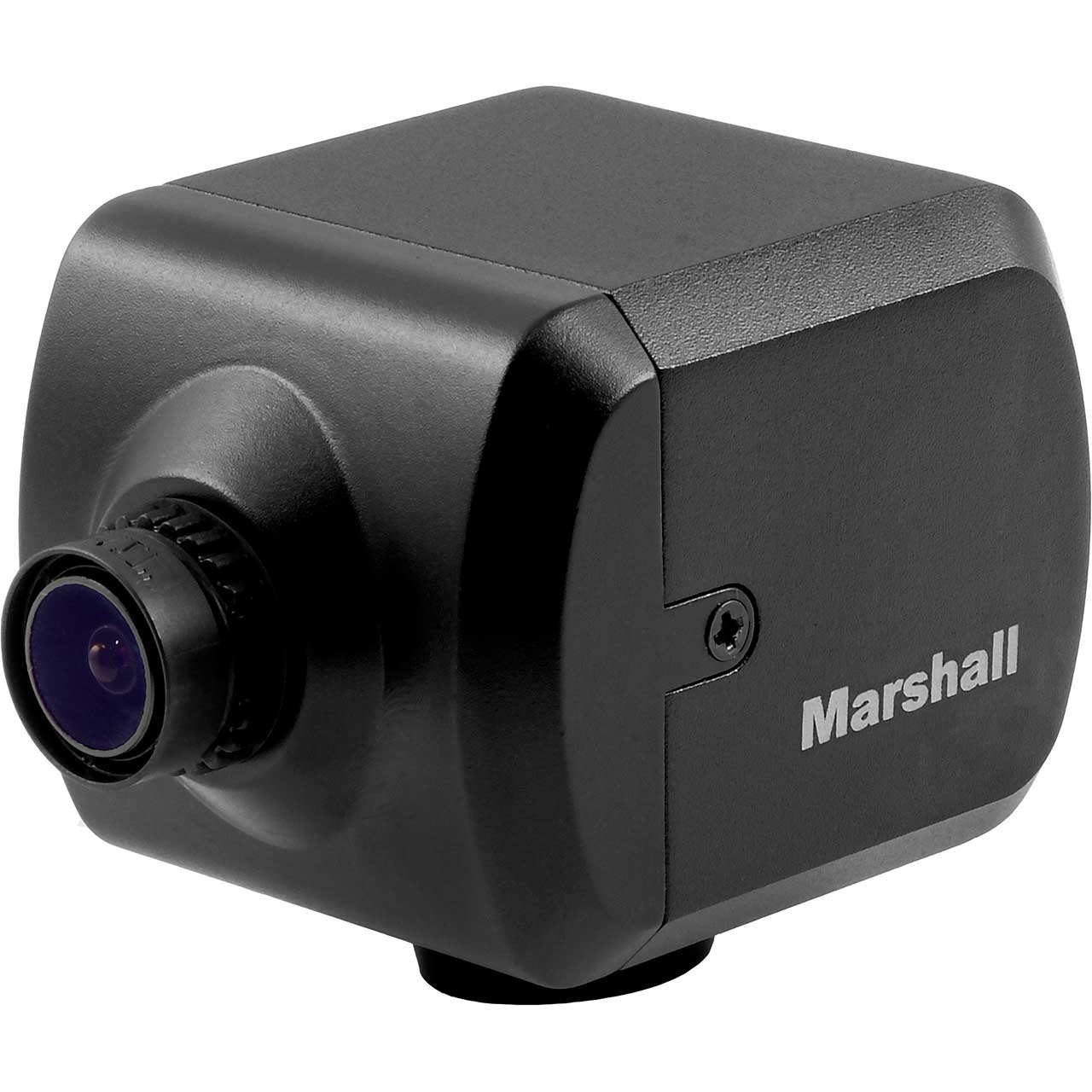

Marshall CV566 Miniature 3GSDI/HDMI Global Genlock Broadcast Camera with 3.6mm Interchangeable Lens

ITEM #: MAR-CV566 MFG #: CV566

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with Minimum Order Banner

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    CV566 - Overview

    The Marshall CV566 Miniature HD Camera with Genlock Sync features. Built around an impressive 1/1.8" Sony global sensor with 25% larger pixels and interchangeable M12 lens mount (comes with a 3.6mm - 73°) make this the most capable POV camera in the miniature camera lineup.

    Tri-level sync allows multiple cameras to be plugged into HD workflows already in sync (genlock) which allows for seamless transitions between cameras with minimal amount of delay. Tri-level runs at higher frequency which makes the HD60 signal sync more accurate and more seamless.

    Larger physical pixel sizes allow for greater accuracy of color and clarity even in low-light applications. The CV568 utilizes a Sony Exmor 1/1.8" sensor with larger physical pixels to deliver step-up broadcast quality images from a miniature camera size.

    Marshall Miniature Cameras are cut from individual aluminum alloy blocks, designed with rear I/O connector protection, solid 1/4"-20 mount type, and flexible interchangeable lenses. Ability to remotely adjust and match a POV camera from a control room that is installed hundreds or thousands of feet away is a powerful tool and comes standard with every Marshall Camera.

    Live Events
    House of Worship
    Live Concert
    Science and Technology

    • Features:

      • Color Matrix to be offered as firmware update (coming soon)
      • Microphone/Line Level input with 2.5V Mic bias
      • Image Mirror/Flip, Digital Zoom, Digital Image Stabilizer
      • Low Light sensitivity (0.05 Lux) with ability to capture IR wavelengths
      • 3.2MP with 25% larger physical pixel size

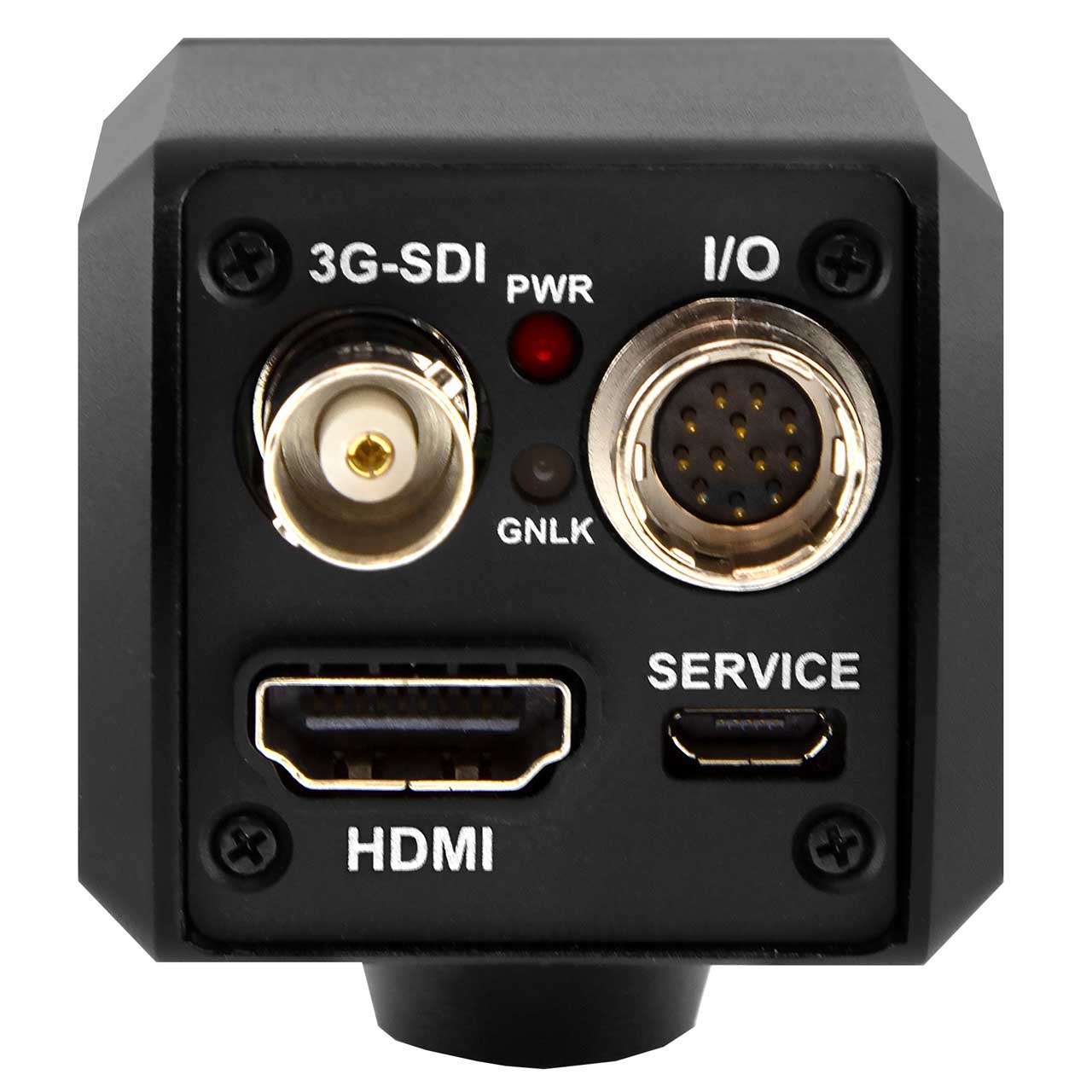

      • Simultaneous HDMI & 3GSDI outputs
    • Specifications:

      • Global Sensor: Sony 1/1.8" Exmor
      • SMPTE 424M (2.97Gbps) - 3GSDI:
        1920x1080p @ 50, 59.94, 60fps
      • SMPTE 292M (1.485Gbps) - HDSDI:
      • 1920x1080p @ 23.97, 24, 25, 29.97, 30fps
        1920x1080i @ 50, 59.94, 60fps
        1280x720p @ 50, 59.94, 60fps
      • Environmental: -10°C ~ 50°C
      • Power Consumption: 6W
    • GTIN:
