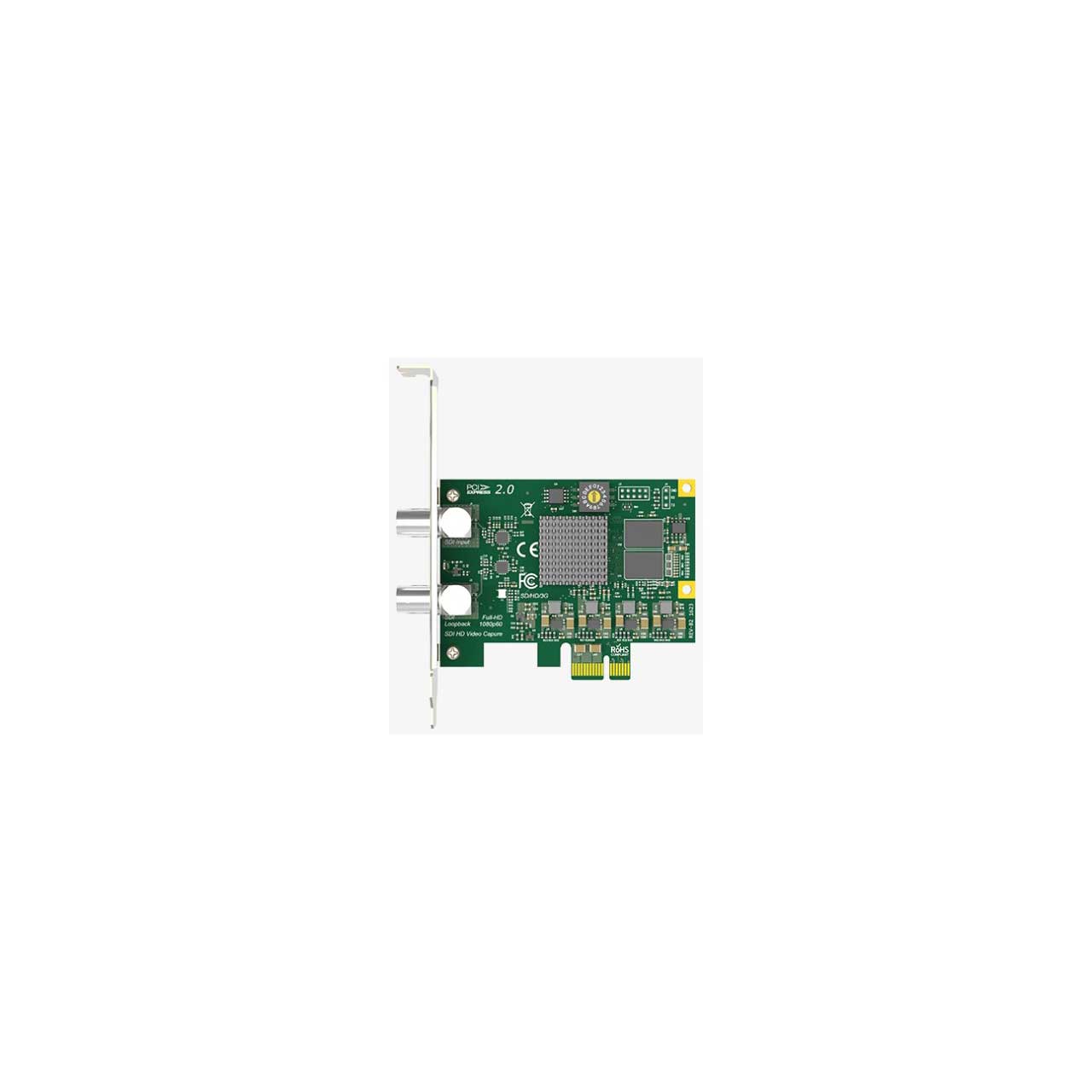

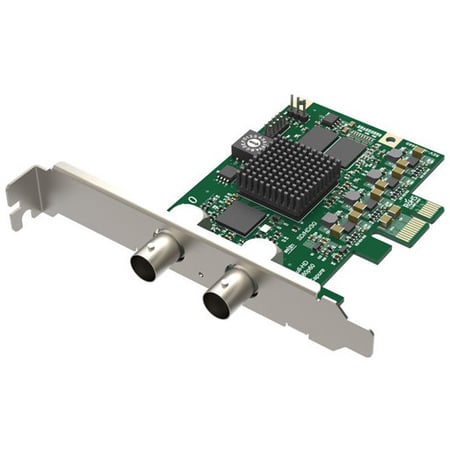

Magewell 11050 Pro Capture SDI Card - 1 Channel

11050 - Overview

• Features:

  • 10-bit video processing
  • Deinterlace
  • Cropping
  • Color Adjustment
  • Hardware Timestamp
  • Color Space Conversion
  • Up/down Conversion
  • Aspect Ratio Conversion
  • OSD
  • SG-DMA Transmission mode


• Specifications:

  • Supported OS:
  • Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
  • Linux (support x86, x64 & ARM architecture)
  • Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
  • CentOS 6.5/7 (x86 & x64)
  • Fedora 25/26/27 (x86 & x64)
  • Red hat 6.5 and above (x86 & x64)
  • Other Linux OS with kernel version 2.6.35 and above
  • Mac - OS X 10.9/10.10/10.11, macOS 10.12 and above

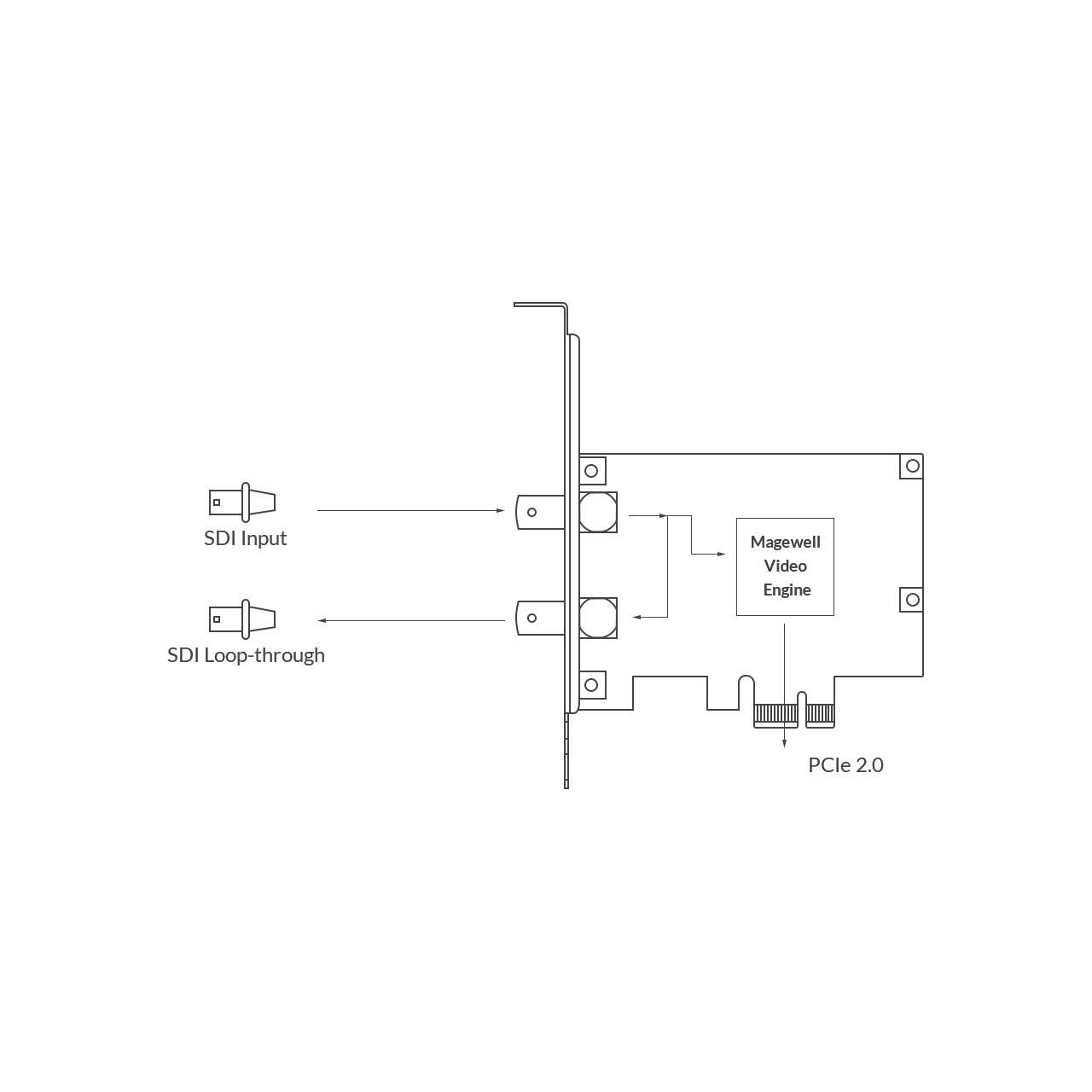

    Input Interfaces:
  • BNC: SD/HD/3G SDI
  • Host Interfaces: PCIe Gen2 x1

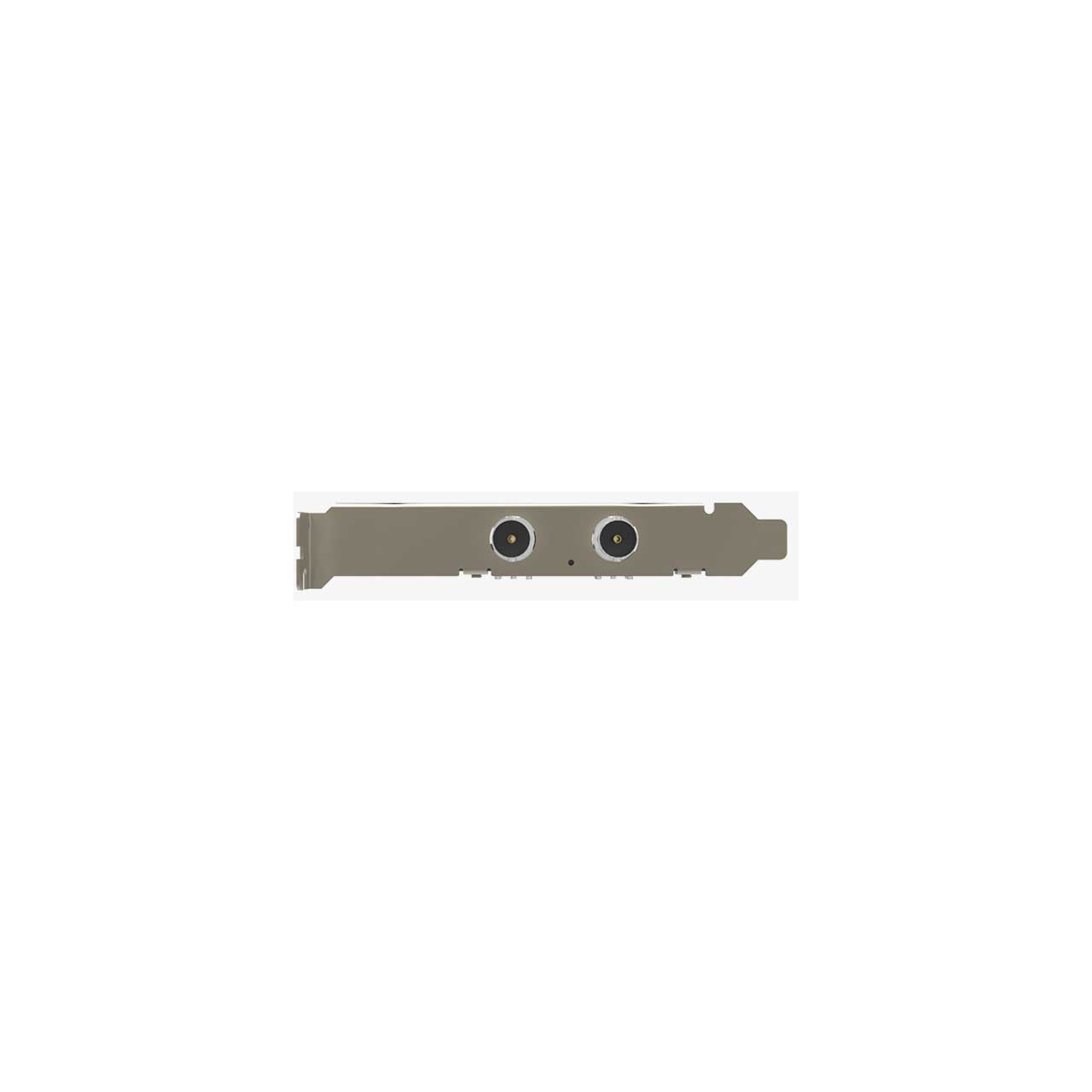

  • Loop-through Interfaces: BNC, SD/HD/3G SDI

    SDI Specific Features:
  • Integrated cable equalizer extending the cable length as follows:
  • up to 330m for SD-SDI signals
  • up to 190m for HD-SDI signals
  • up to 150m for 3G-SDI signals
  • Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards
  • Support for 2K (2048x1080) mode
  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Support for 10/12-bit color depth
  • Support for extraction of SMPTE 352 payload identifier
  • Support for up to 8 (mono) audio channels at 48KHz (channels 1-8 from the 16 available in the SDI spec)
  • Support for extraction of audio formation information & channel status data
  • Limited support of 3Gb-DS: only the first stream can be captured
  • Limited support for capture of the first link of dual link interfaces:
  • YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
  • YCbCr 4:4:4 10-bit: captured as 4:2:2
  • RGB 4:4:4: R/B sub-sampled
  • Support for Closed Caption via SDK

    Video Capture Formats:
  • Support for capture image resolutions up to 2048x2160 pixels
  • Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions - above 1280x1024 - by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920x1080 = ~80fps. )
  • Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
  • Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
  • Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
  • Support for 4:4:4 10-bit capture formats: V410, Y410
  • More capture formats are supported via Magewell Capture SDK

    Video Processing Features:
  • Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one
  • Full 10-bit video processing
  • Video cropping
  • Video scaling
  • Video de-interlacing
  • Weave
  • Blend top & bottom field
  • Top field only
  • Bottom field only
  • Video aspect ratio conversion
  • Auto or manual selection of input aspect ratio
  • Auto or manual selection of capture aspect ratio
  • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
  • Video color format conversion
  • Auto or manual selection of input color format & quantization range
  • Auto or manual selection of capture color format, quantization range & saturation range
  • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
  • Support for Limited or Full quantization range
  • Support for Limited, Full & `Extended gamut' saturation range
  • Video frame rate conversion
  • Video OSD composition
  • Support for PNG OSD image (up to 2048x2160)
  • Support for dynamic loading of RGBA OSD image via SDK

    Multiple Cards per System:
  • Support for multiple cards plugged to one system
  • On-board rotary switch to set card number, with 16 positions from 0 to F
  • System hardware device tree will display "01: Pro Capture SDI" when rotary switch is set to 1, and so on
  • The video and audio device names displayed in your software will include the card number (set by the rotary switch)


• Item Includes:

  • 1x Magewell 11050 Capture Card
  • 1x Low Profile Bracket


• GTIN:

  0814395020303
