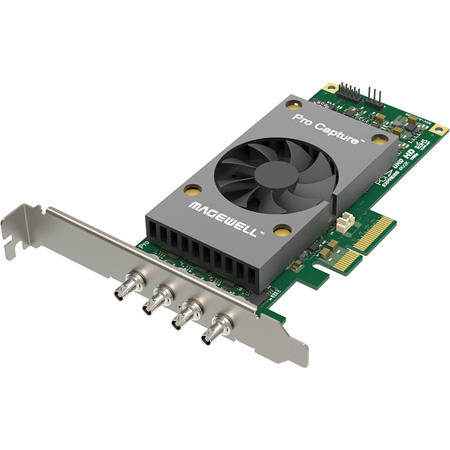

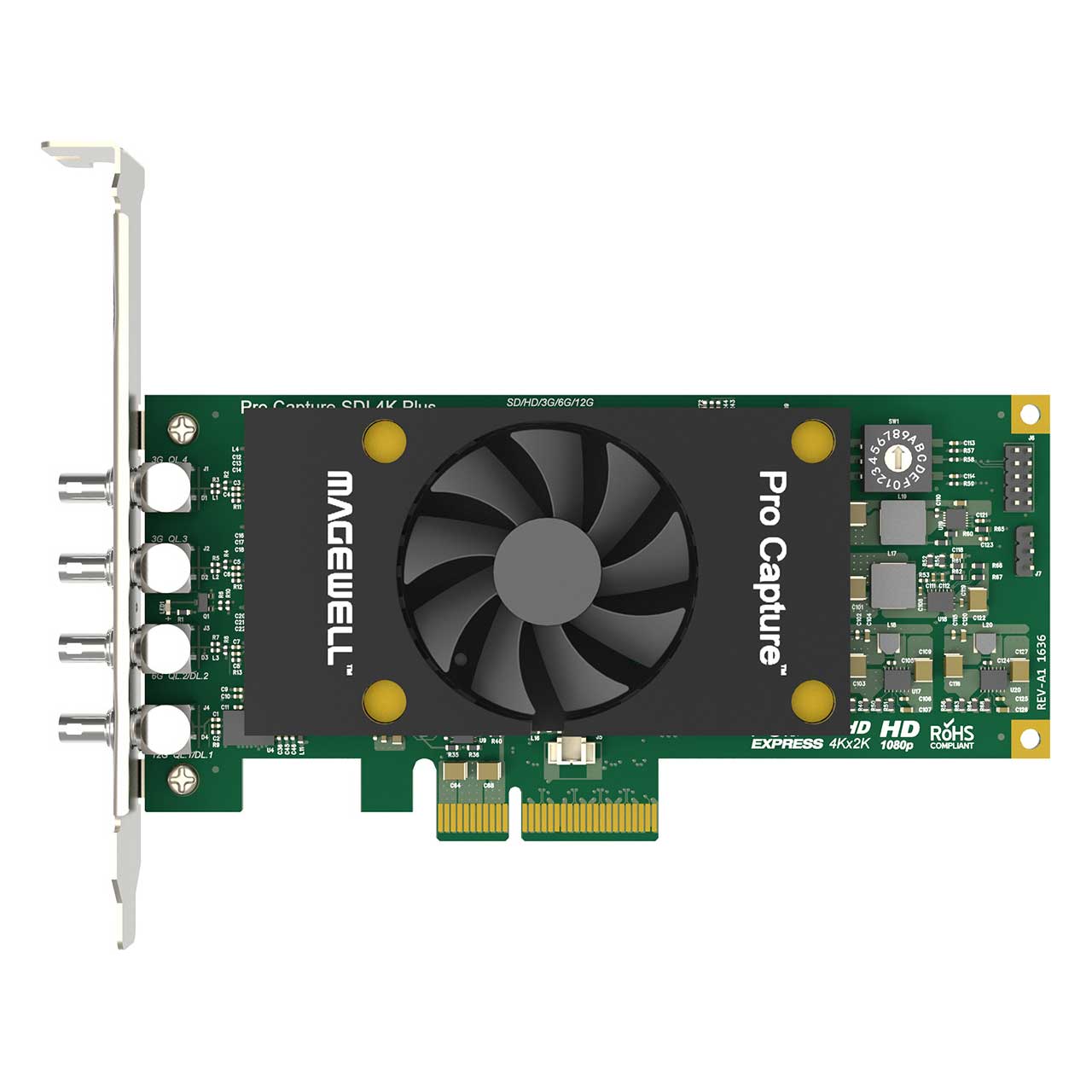

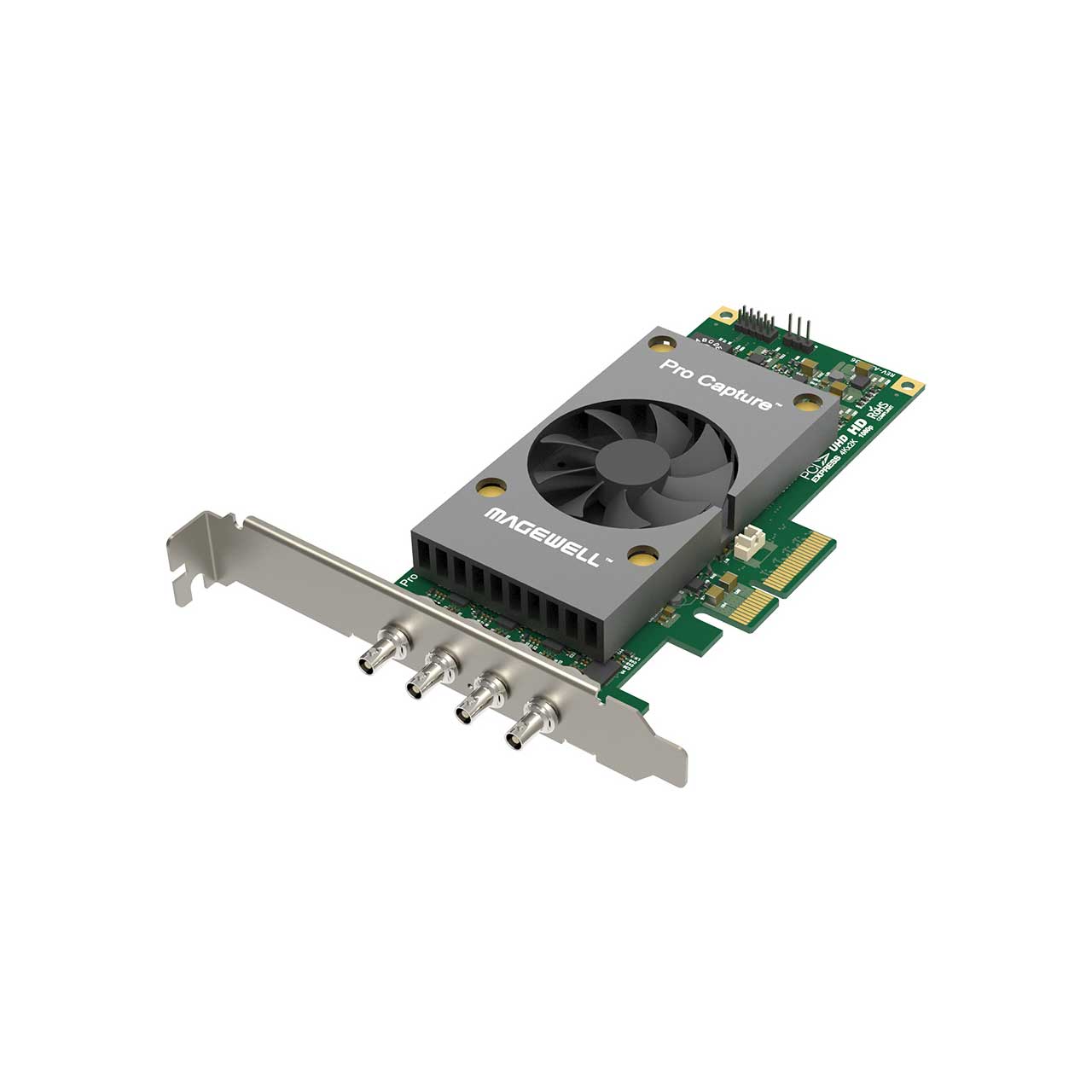

Magewell 11180 Pro Capture Dual SDI 4K Plus One-Channel 4K SDI Capture Card

ITEM #: MGW-11180 MFG #: 11180

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$999.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    11180 - Overview

    The Pro Capture SDI 4K Plus is a one-channel 4K SDI capture card. Capture one 12G-SDI signal in one of the following connecting methods: Single-link 12G-SDI, Dual-link 6G-SDI, Quad-link 3G-SDI.

    The Pro Capture Family brings you the best quality, performance and value. The cards are compatible with both Windows and Linux so more A/V professional s can experience the incredible cards. You can find a model to meet your need, because Pro Capture Family captures all the popular video signals. A FPGA is used for video processing and data transmission, greatly reducing CPU usage. Various features are included to improve the user experience so users can start to capture easily, and the cards maintain stable performance after long periods of use. Users can capture signals from almost every SDI output device, such as high-end video cameras (HD/3G-A SDI), switchers (3G-B SDI) and movie cameras (2K SDI). With the help of the Pro Capture Family, you will no longer find capturing non-standard signals to be a problem. Users can type in the resolution of non standard VGA to correctly capture the video. Manual adjustment of VGA timing is also possible. In terms of audio, both compressed and uncompressed formats are supported.

    • Features:

      • Multiple Capture Streams
      • Low Latency Mode
      • Multiple Devices on One Host
      • Mounting Hole
      • Continuously Work for 24hx7
      • High-speed Memory
      • LED Status Indicator
      • Rotary Switch
      • Windows&Linux SDK
      • 2-year Warranty
      • Support for input video resolutions up to 4096x2160 pixels
      • Auto detection of Single Link, Dual Link, Quad Link
      • Integrated cable equalizer supporting cable lengths up to 230M for HD signals
      • Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G/12G
      • Support for 2K (2048x1080) & 4K (4096x2160) mode
      • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
      • Support for 10/12-bit color depth
      • Support for extraction of SMPTE 352 payload identifier
      • Support for up to 8 (mono) audio channels at 48KHz
      • Support for extraction of audio formation information & channel status data
      • Support for Closed Caption
      • Support for capture image resolutions up to 4096x2160 pixels
      • Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution)
      • Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
      • Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
      • Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
      • Support for 4:4:4 10-bit capture formats: V410, Y410
      • More capture formats are supported via Magewell Capture SDK for DirectKS
      • Two video processing pipelines with ~720 Mpixels/s processing bandwidth for each one
      • Full 10-bit video processing
      • Video cropping
      • Video scaling
      • Support for multiple cards plugged to one system
      • On-board rotary switch to set card number, with 16 positions from 0 to F
      • System hardware device tree will display "01: Pro Capture SDI 4K+" when rotary switch is set to 1, and so on
      • The video and audio device names displayed in your software will include the card number (set by the rotary switch)
      • Unlimited capture streams for any one input channel
      • Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, color adjustment and OSD settings for each individual stream
      • Latency of 64 video lines
      • Partial notification mode in SDK
      • Hardware based 100ns high resolution clock
      • Audio frames (192 audio samples) & video frames are stamped with hardware clock
      • Hardware clock can be synchronized across cards (via SDK)
      • ~1600MB/s per channel DMA bandwidth in PCIe 2.x system
      • ~800MB/s per channel DMA bandwidth in PCIe 1.x system
      • Support for auto detection of Intel tiled GPU surface
      • Support for DirectGMA for AMD video adapter chipsets
      • Support for GPUDirect for Nvidia video adapter chipset

    • Specifications:

      • Windows: Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
      • Linux (support x86, x64 & ARM architecture): Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64) CentOS 6.5/7 (x86 & x64) Fedora 25/26/27 (x86 & x64) Red hat 6.5 and above (x86 & x64)
      • Other Linux OS with kernel version 2.6.35 and above
      • Mac: OS X 10.9/10.10/10.11, macOS 10.12/10.13
      • Supported Software: VLC, VirtualDub, OBS, XSplit, vMix, VidBlaster
      • Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, Any other DirectShow/V4L2 encoding/streaming software

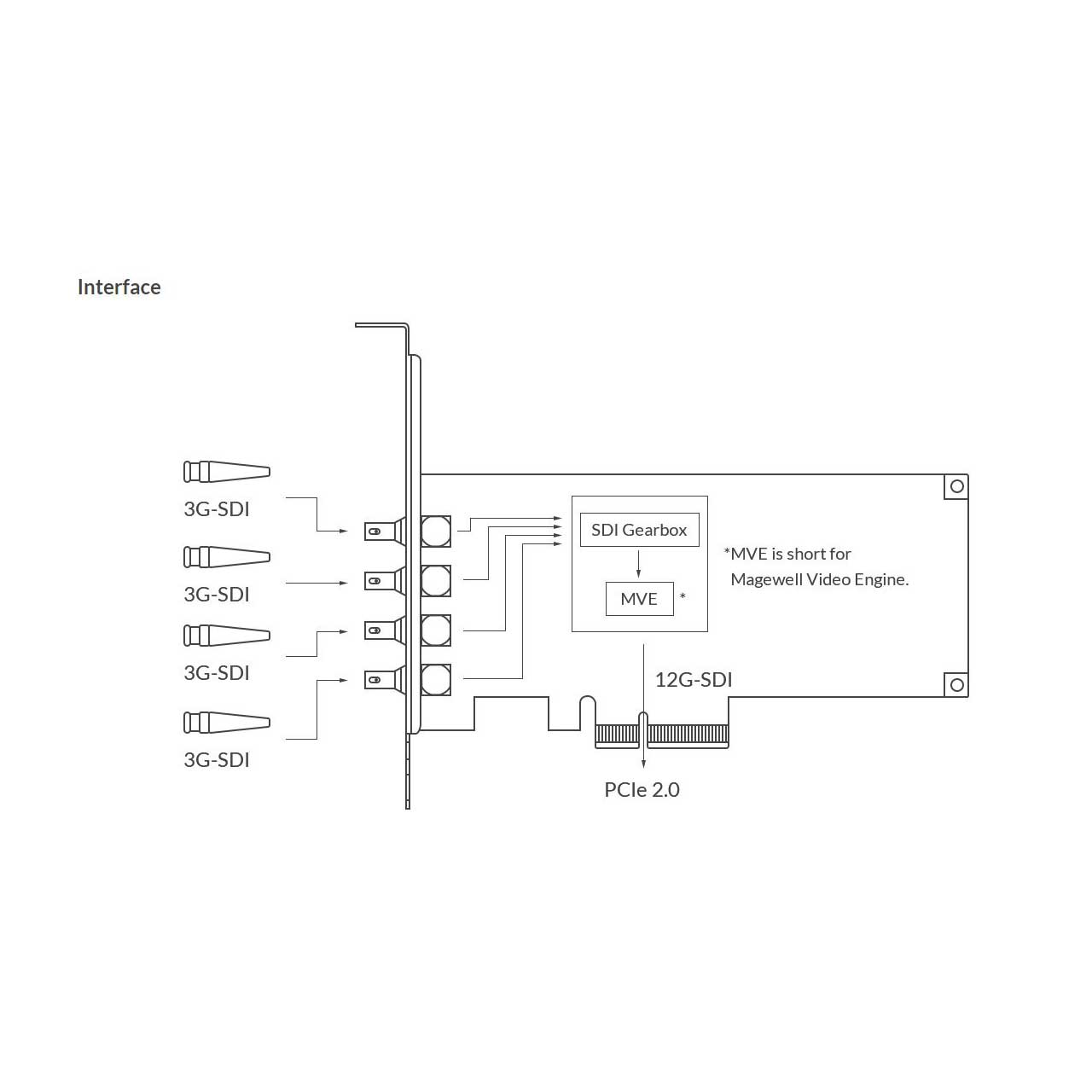

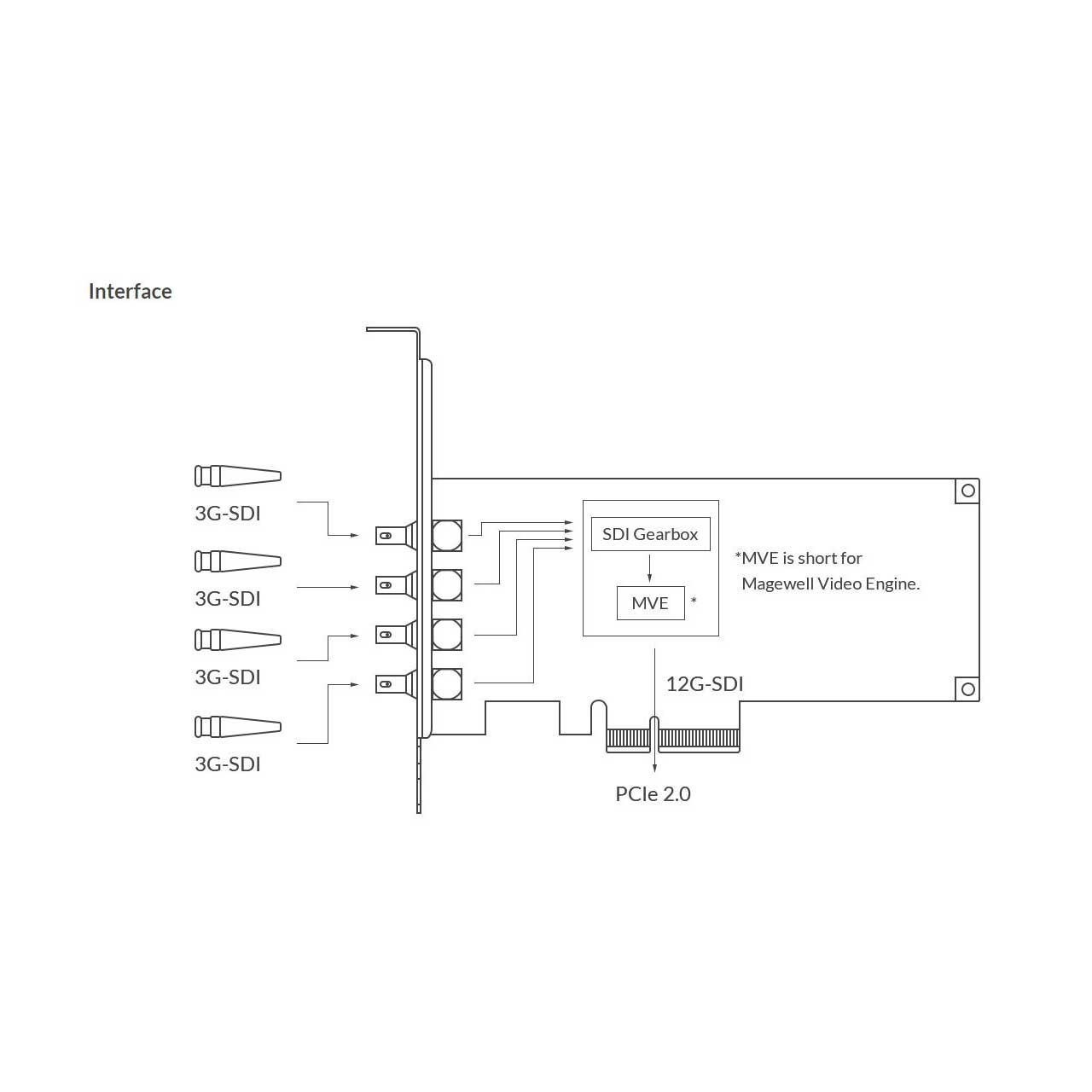

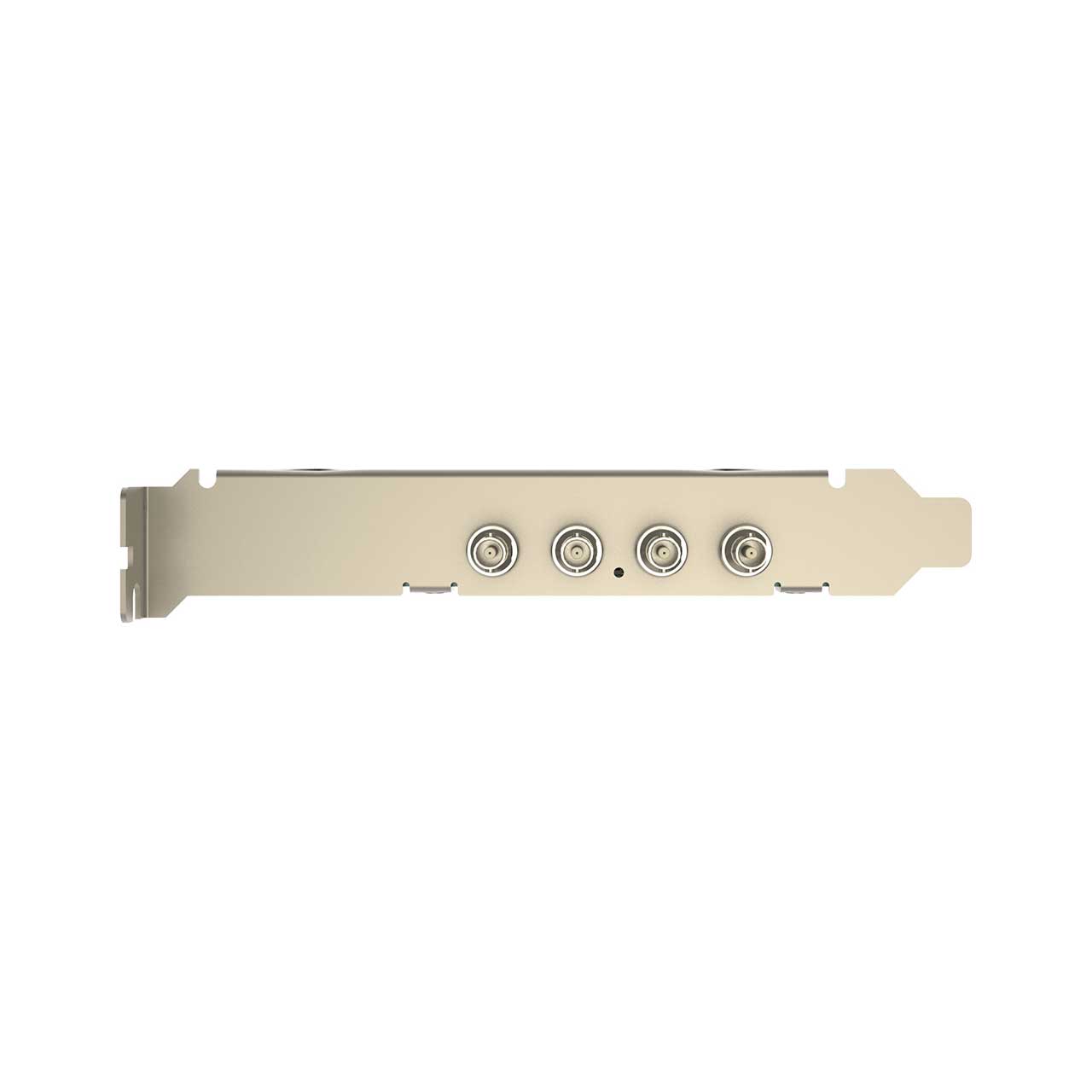

      • Input Interfaces: HD-BNC x4, Two connectors are compatible with SD/HD/3G SDI, One connecter is compatible with SD/HD/3G/6G SDI, One connecter is compatible with SD/HD/3G/6G/12G SDI, Support for input of Single Link, Dual Link, Quad Link
      • Host Interfaces: PCIe Gen2 x4
      • Operating temperature: 0 to 40°C
      • Storage temperature: -20 to 70°C
      • Relative Humidity: 5% to 90% non-condensing

    • GTIN:

      8143950200945
