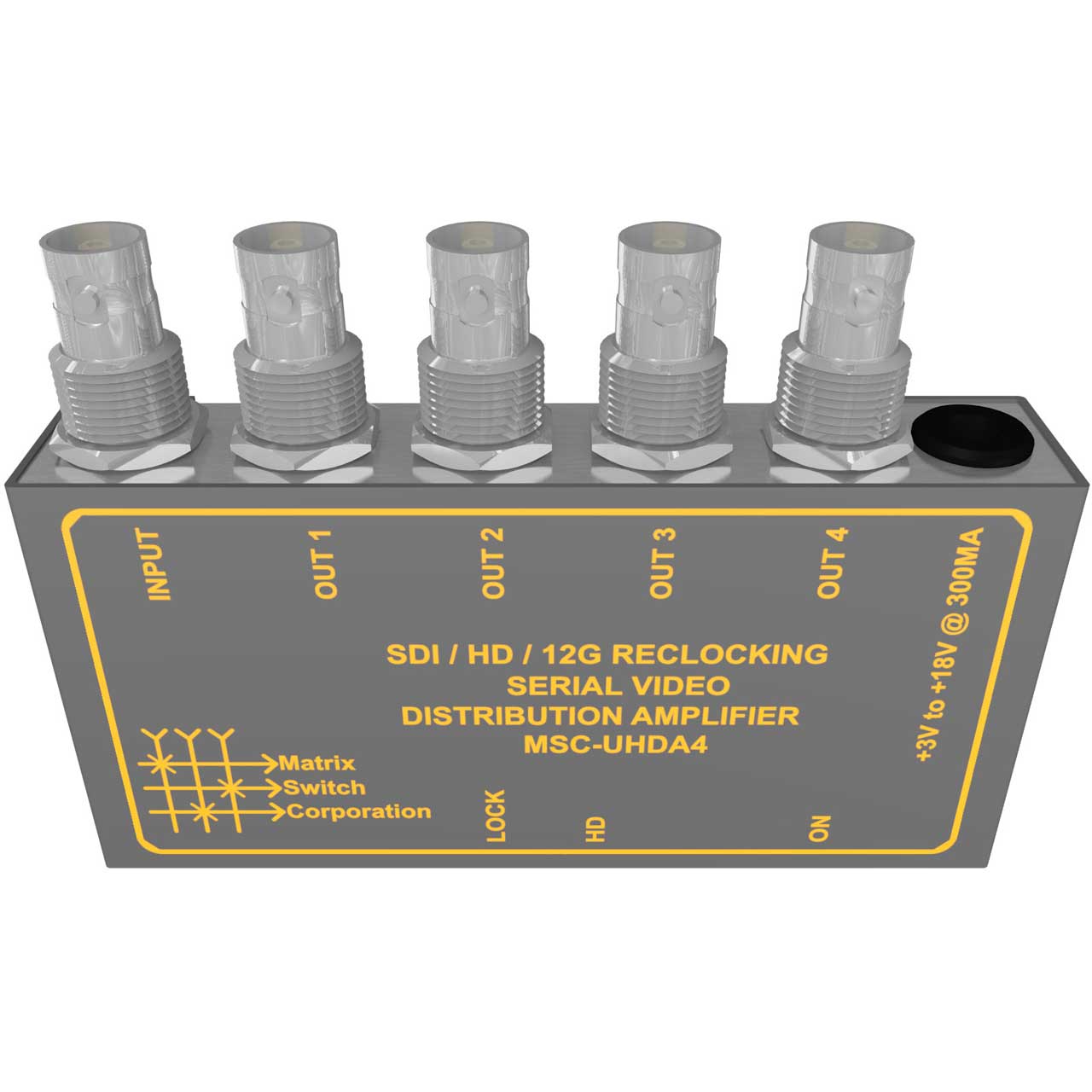

Matrix Switch MSC-UHDA4 4 Output 12G-SDI Video Distribution Amplifier

ITEM #: MSC-UHDA4 MFG #: MSC-UHDA4

Primary Image
Matrix Switch
Free Shipping with $49 Minimum Order

Our Price:

$450.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    MSC-UHDA4 - Overview

    Matrix Switch Corporation distribution amplifiers combine exceptional performance with value. Their compact size allows for them to be utilized in space constrained situations and all external connections are on the same side making for a clean installation.

    The MSC-UHDA4 employs Auto Rate Detection for standard 12G, 6G, 3G, 1.5G and SD data rates, with "Power OK", "Lock" and "HD" indicators. The MSC-UHDA4 includes a 5V external power supply, but will operate over a wide input range of 3V to 18V DC, drawing less than 100mA at 12VDC.

    • Features:

      • Re-clocks standard SDI rates 12G/6G/3G/HD/SD (11.88 / 5.94 / 2.97 / 1.485 / 0.270 Gbit/s)
      • Auto bypass of non-standard SDI rates from 20 Mbit/s to 12 Gbit/s
      • Passes SDI embedded audio and ancillary data
      • Complies with all relevant FCC, U/L, CE, and RoHS requirements


    • Specifications:

      • General
      • Inputs: 1
      • Outputs: 4
      • Size: 4 x 0.70 x 2"
      • Weight: 0.2Lbs
      • Power: 5 VDC 2A Adapter
      • Power Connector: 5.5mm OD 2.5mm ID coaxial
      • Operating Temperature: 32° to 158°F (0° to 70°C)
      • Storage Temperature: 14° to 194°F (-10° to 90°C)
      • MTBF: 50,000+ Hours
      • MTTR: < 48 Hours

        SDI Inputs
      • Connector Type: BNC
      • Data Rates: 19 Mbit/s through 12.0 Gbit/s
      • Input Return Loss: > 15dB @ HD, > 12dB @ 3G
      • Input Impedance: 75 Ohms ±1%
      • Input Level: 800 mV P-P ±20%
      • Cable Equalization: 450m @ SD, 260m @ HD, 180m @ 3G, 60m @ 6G, 40m @ 12G (1694A coax)

        SDI Outputs
      • Connector Type: BNC
      • Data Rates: 19 Mbit/s through 12.0 Gbit/s
      • Re-clocking Data Rates: 11.88 Gbit/s, 5.94 Gbit/s, 2.97 Gbit/s, 1.485 Gbit/s, 270 Mbit/s
      • Output Return Loss: > 15dB @ HD, > 12dB @ 3G
      • Output Impedance: 75 Ohms ±1%
      • Output Level: 800 mV P-P ±5%
      • Output Jitter: < 0.2 UI

        SDI Standards
      • SD Formats: 625/25 PAL and 525/29.97 NTSC
      • HD Formats: 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60
      • 3G Formats: 1080p50, 1080p59.94, 1080p60
      • 2K Formats: 2048 x 1556/23.98/24/25
      • UHD Formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
      • 4K Formats: 2160p23.98, 2160p24, 2160p25
      • Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 372M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
      • Video Sampling: 4:2:2 and 4:4:4
      • Audio Sampling: 24 bit @ 48 KHz
      • Color Precision: 4:2:2 and 4:4:4 10 bit
      • Color Space: YUV or RGB
      • Metadata Support: Ancillary data as defined by SMPTE 352M


    • Warranty:

      • 2 year manufacturer parts and labor warranty
