Matrix Switch MSC-XD3232L 32 Input 32 Output 3G-SDI Video Router with Button Panel

ITEM #: MSC-XD3232L MFG #: MSC-XD3232L

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:


Our Price:


Availability: Direct Ship from manufacturer, contact us for availability
iAvailability Description Popup

    MSC-XD3232L - Overview

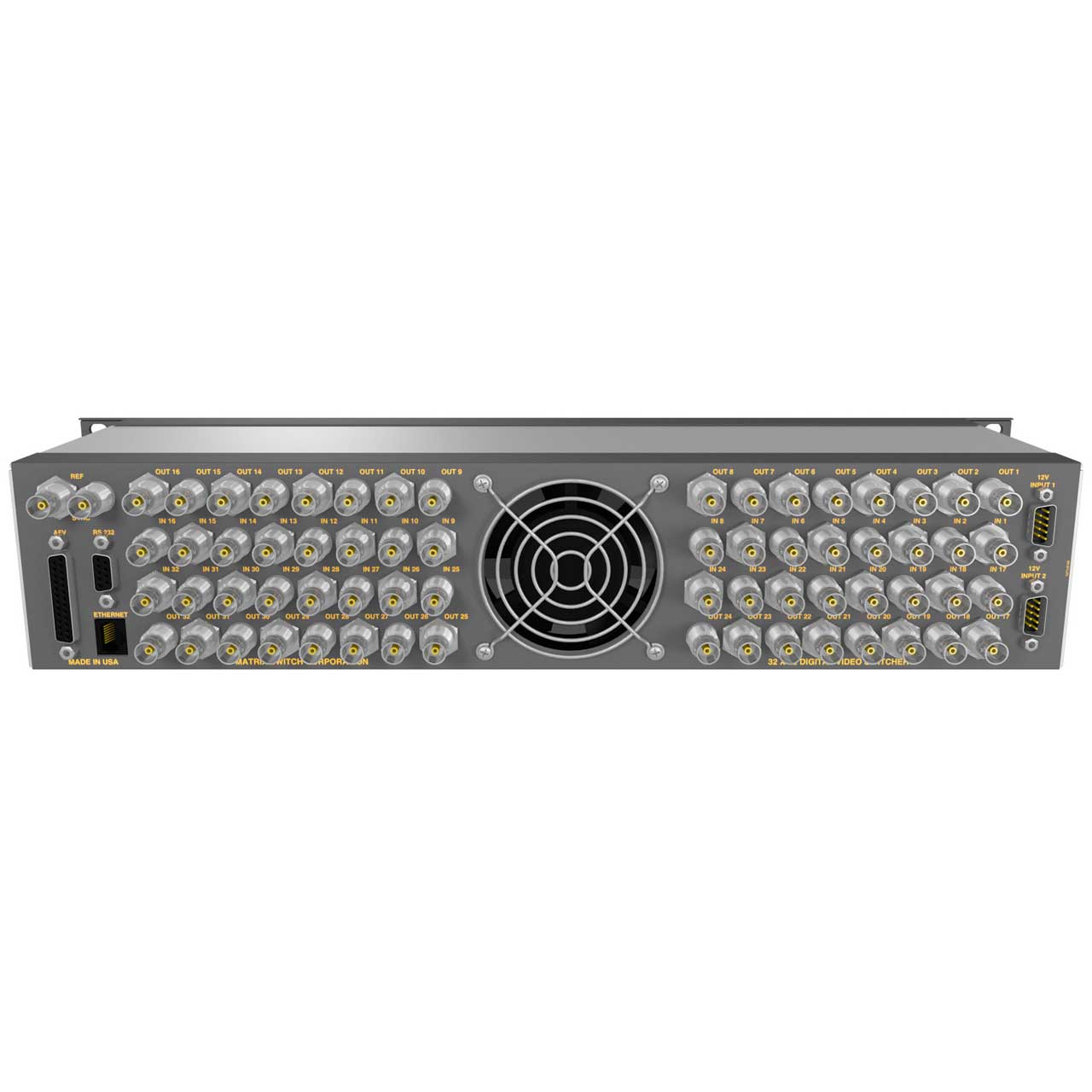

    The MSC-XD3232L SDI routing switcher has 32 inputs and 32 outputs, supports reclocking of standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 20 Mbit/s and 3 Gbit/s, and passes all SDI embedded audio/ancillary data. In addition any output can be independently muted. Switch on vertical sync is provided with the sync reference input with a pass-through connector and provides support for Tri-level sync and NTSC/PAL black burst signals.

    Matrix Switch Corporation routers provide several options for control and system integration. The built-in webpage interface offers a convenient method for control and configuration using a PC or mobile device. In addition to Matrix Switch Corporation's powerful yet easy to use MASCOT protocol, there is also support for some common 3rd party protocols. Additional control interfaces on this router include: USB, RS-485, RS-232, AUX GPIO, and TCP/IP over the Ethernet interface.

    Matrix Switch Corporation Remote Panels can also be used with this router for remote control up to a virtually unlimited distance over TCP/IP.

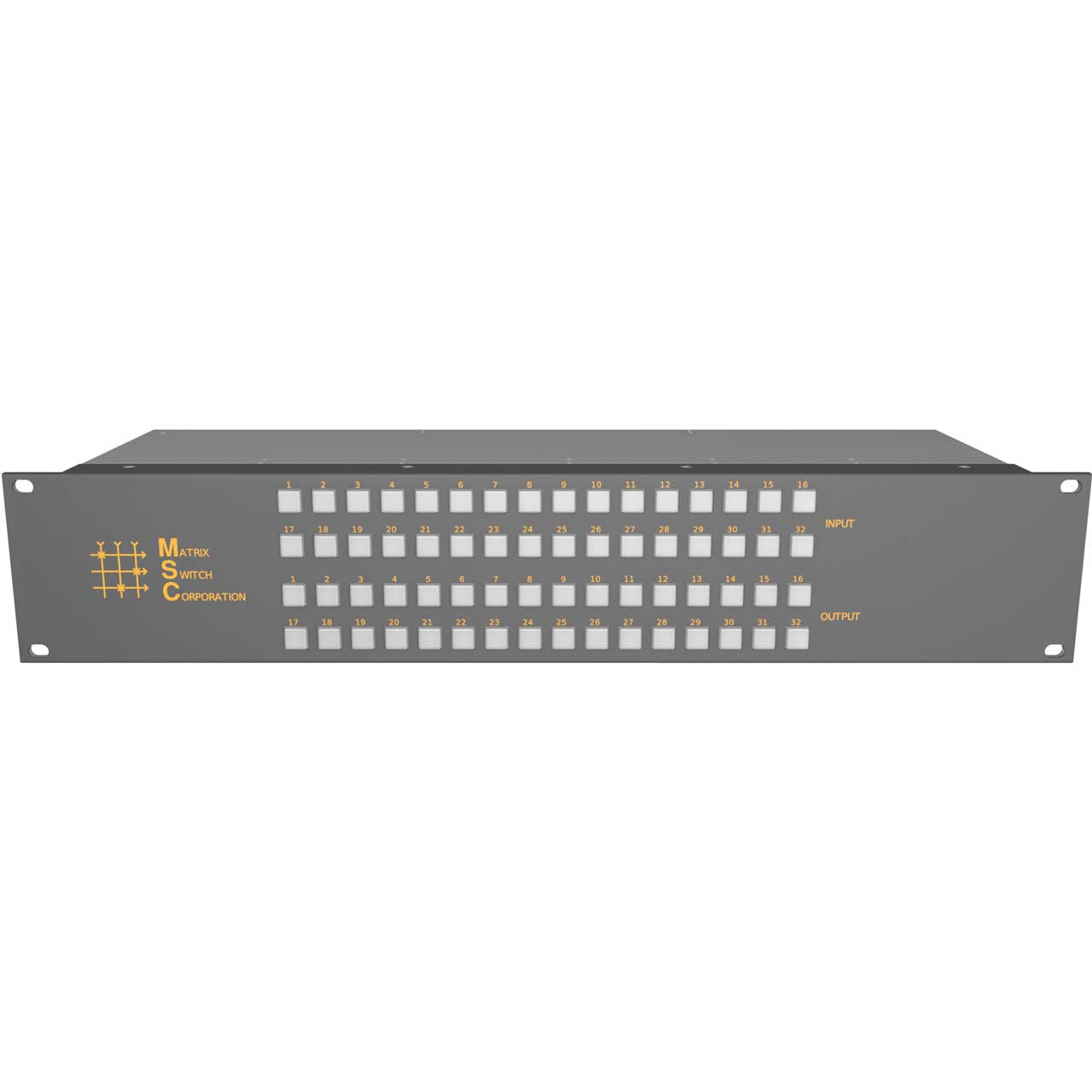

    The built-in button panel provides an additional interface for directly changing the matrix routing state.

    MSC-XD3232L - Required Accessories

      MSC-XD3232L - Recommended Accessories
